    12 Products

    Lathe Chip Guards

    Image of Product. Front orientation. Contains Annotated. Chip Guards. Lathe Chip Guards.
    Image of Attribute. Side1 orientation. Contains Annotated. Chip Guards. Lathe Chip Guards.
    Block chips while maintaining an unobstructed view of the workpiece. Attach the included mounting bracket to the front of the lathe’s headstock, beside the lathe chuck. These guards can be locked in the swing-away or down position.
    Guards
    Replacement
    Panels
    Guard
    For Lathe
    Size
    Max. Chuck
    Dia.
    Ht.
    Lg.
    Ctr.-to-Mount
    Lg.
    Mounting
    Port Dia.
    Wd.
    Thk.
    Material
    Includes
    Each
    Each
    6" to 12"8"6"11.8"7"1"6 1/4"3/16"PlasticMounting Bracket0000000000000000000000000000
    12" to 16"12"8"15.8"9"1"8"3/16"PlasticMounting Bracket00000000000000000000000000
    16" to 20"16"10"19.7"11"1"8"3/16"PlasticMounting Bracket00000000000000000000000000
    20" to 24"20"13"23.6"12.9"1"8"3/16"PlasticMounting Bracket00000000000000000000000000

    Brackets
    5 ½" Headstock Extension Bracket—Headstock extension mounting bracket has an extension tube and can be mounted on the top or back of a lathe’s headstock.
    2 ½" Headstock Mounting Bracket—Headstock mounting bracket allows mounting on the top or back of a lathe’s headstock.
    Each
    5 ½" Headstock Extension Bracket 0000000000000
    2 ½" Headstock Mounting Bracket000000000000

    Adjustable Lathe Chip Guards

    Image of Product. Front orientation. Contains Annotated. Chip Guards. Adjustable Lathe Chip Guards.

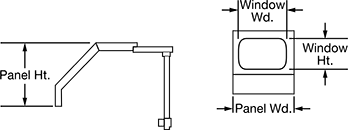

    Image of Attribute. Side1 orientation. Contains Annotated. Adjustable Lathe Chip Guards.
    Protect yourself from flying chips and coolant splash. Guards mount and travel on the cross slides and are fully adjustable in all directions. The adjustable arm swivels and the mounting bracket adjusts vertically. Both lock for easy positioning. Guards have a heavy gauge steel frame and a polycarbonate window that provides a clear view of the workpiece. The front panel lifts for quick access.
    Panel
    Window
    Max. Chuck
    Dia.
    Ht.
    Wd.
    Mateirial
    Ht.
    Wd.
    Thk.
    Material
    Includes
    Each
    20"13"11 7/8"Steel8 1/2"8 1/2"3/16"PlasticMounting Bracket000000000000000
    28"14 1/2"14"Steel10 3/4"9 3/4"3/16"PlasticMounting Bracket00000000000000
