Wall-Mount Sinks
Styles A and D help comply with ADA when properly installed.
Style E are typically used in food service applications. They have rounded corners that are easy to clean and resist buildup.
O'all | Bowl Inside | Faucet Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Fasteners Included | For Use Outdoors | Features | Includes | Each | |
Sinks | ||||||||||||||||
White Porcelain—Meets ADA Compliant, ASME A112.19.2/CSA B45.1 | ||||||||||||||||
| A | 21" | 18 3/4" | 10 1/4" | 16" | 10 3/4" | 8 1/4" | 1 1/4" | 3 | 1 1/4" | 4" | No | No | Overflow Hole | One Mounting Bracket | 0000000 | 0000000 |
White Plastic | ||||||||||||||||
| B | 20" | 23 7/8" | 14 3/8" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | 2 | 1" | 4" | Yes | No | __ | Drain with Strainer, One Mounting Bracket | 000000 | 000000 |
304 Stainless Steel | ||||||||||||||||
| C | 18" | 15" | 7" | 9 1/2" | 14 1/2" | 6" | 1 1/2" | 3 | 1 1/4" | 4" | No | No | Seamless Bowl | Drain with Strainer, One Mounting Bracket, Tailpiece | 0000000 | 000000 |
| D | 18" | 22" | 8" | 14" | 12" | 5" | 1 1/2" | 3 | 1 1/4" | 4" | Yes | No | Seamless Bowl | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 000000 |
O'all | Bowl Inside | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | Faucet Material | Spout Type | Pipe Size  | Thread Type | Flow Rate, gpm | Mounting Fasteners Included | For Use Outdoors | Includes | Each | |
Sinks with Chrome-Plated Faucet | |||||||||||||||||
White Plastic | |||||||||||||||||
| B | 20" | 23 7/8" | 21 3/8" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | Brass | Swivel | 1/2 | NPT | 2.1 | Yes | No | Drain with Strainer, One Mounting Bracket | 000000 | 0000000 |
304 Stainless Steel—Meets NSF/ANSI 2 | |||||||||||||||||
| E | 17" | 15 1/4" | 25 1/8" | 13 3/4" | 10" | 5 1/2" | 1 7/8" | Bronze | Swivel | 1/2 | NPT | 2.2 | No | Yes | Drain with Strainer, One Mounting Bracket, P-Trap, Tailpiece | 0000000 | 000000 |
| E | 24 3/4" | 22" | 27 1/4" | 20" | 16" | 6 1/4" | 1 7/8" | Bronze | Swivel | 1/2 | NPT | 2.2 | No | Yes | Drain with Strainer, One Mounting Bracket, P-Trap, Tailpiece | 0000000 | 00000000 |
304 Stainless Steel | |||||||||||||||||
| F | 21" | 17 1/2" | 39 3/4" | 18" | 14" | 12" | 3 1/2" | Brass | Fixed | 1/2 | NPT | 2.5 | No | No | Drain with Strainer, P-Trap with Cleanout Plug, Three Mounting Brackets | 000000 | 00000000 |
| F | 25" | 19 1/2" | 39 3/4" | 22" | 16" | 12" | 3 1/2" | Brass | Fixed | 1/2 | NPT | 2.5 | No | No | Drain with Strainer, P-Trap with Cleanout Plug, Three Mounting Brackets | 000000 | 00000000 |
| G | 48" | 20" | 33 3/4" | 45" | 16 1/2" | 8" | 3 1/2" | Brass | Swivel or Fixed | 1/2 | NPT | 2.2 | No | No | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 00000000 |
| H | 60" | 20" | 33 3/4" | 57" | 16 1/2" | 8" | 3 1/2" | Brass | Swivel or Fixed | 1/2 | NPT | 2.2 | No | No | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 00000000 |
Touch-Free Wall-Mount Sinks
Place your hands in front of the sensor for water. These sinks are typically used in food service applications. They have rounded corners that are easy to clean and resist buildup. Meeting NSF/ANSI 372, their components comply with standards for lead content.
Choose sinks with a 0.5 gpm flow rate to conserve water.
Sinks with a 5-in. bowl height are ADA compliant.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
For technical drawings and 3-D models, click on a part number.
O'all | Bowl Inside | Inlet | Mounting Holes | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | Spout Type | Flow Rate, gpm | For Tube OD | Tube Connection Type | Mounting Fasteners Included | No. of | Dia. | Detection Range | For Use Outdoors | Includes | Cannot Be Sold To | Each | ||
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372, UL Listed | ||||||||||||||||||||
| A | 19" | 18" | 21" | 17" | 14" | 7" | 2" | Swivel | 0.5 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | __ | 0000000 | 000000000 |
| A | 19" | 18" | 21" | 17" | 14" | 7" | 2" | Swivel | 2 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| A | 21" | 20" | 24" | 19" | 16" | 10" | 2" | Swivel | 0.5 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
| A | 21" | 20" | 24" | 19" | 16" | 10" | 2" | Swivel | 2 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| B | 68" | 20" | 23" | 65" | 16 1/2" | 5" | 2" | Swivel | 2 | 3/8" | Compression | No | 6 | 1/4" | 6"-30" | No | Drain with Strainer, Two Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
Hands-Free Wall-Mount Sinks
Press the pedals with your knees for water; release them to stop the flow. These sinks have rounded corners that are easy to clean and resist buildup.
Sinks that meet NSF/ANSI 372 have parts that comply with requirements for lead content when they touch water. They are typically used in food service applications.
Sinks with 0.5 gpm flow rate are useful when water consumption is a concern.
Touch-free faucet kit (sold separately) converts the faucet to a touch-free faucet.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
O'all | Bowl Inside | Inlet | Mounting Holes | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Backsplash Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Mounting Fasteners Included | No. of | Dia. | For Use Outdoors | Includes | Cannot Be Sold To | Each | ||
0.5 gpm Flow Rate | |||||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | |||||||||||||||||||
| A | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 0000000 |
| B | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 000000 |
| C | 19" | 16" | 27" | 16" | 12 1/2" | 6" | 9" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 000000 |
| C | 23" | 20 1/2" | 31 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | |||||||||||||||||||
| A | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 000000 |
| A | 21" | 20" | 30 3/4" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
| B | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
| D | 40" | 20" | 29 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | __ | 00000000 | 00000000 |
| E | 60" | 20" | 29 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | __ | 00000000 | 00000000 |
| F | 80" | 20" | 29 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 9 | 1/4" | Yes | Drain with Strainer, Three Mounting Brackets | __ | 00000000 | 00000000 |
2 gpm Flow Rate | |||||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | |||||||||||||||||||
| A | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 000000 |
| B | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 000000 |
| C | 19" | 16" | 27" | 16" | 12 1/2" | 6" | 9" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 000000 |
| C | 23" | 20 1/2" | 31 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | |||||||||||||||||||
| A | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 0000000 | 000000 |
| A | 21" | 20" | 30 3/4" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 0000000 | 00000000 |
| B | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| D | 40" | 20" | 29 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| E | 60" | 20" | 29 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| F | 80" | 20" | 29 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 9 | 1/4" | Yes | Drain with Strainer, Three Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| Valve Repair Kit | 0000000 | Each | 000000 |
| Replacement Faucet Spout | 0000000 | Each | 000000 |
| Replacement Knee Valve (with 2 Pedals) | 0000000 | Each | 000000 |
| Replacement Aerator for Sink with 0.5 gpm Flow Rate | 00000000 | Each | 0000 |
| Replacement Strainer | 00000000 | Each | 00000 |
| Touch-Free Faucet Kit | 00000000 | Each | 000000 |
| Replacement Aerator for Sink with 2 gpm Flow Rate (Cannot Be Sold To: CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA) | 00000000 | Each | 0000 |
Countertop Sinks
Fiberglass sinks are impact and stain resistant. Plastic sinks are more chemical resistant than fiberglass.
Stainless steel sinks offer the best corrosion and chemical resistance. They're undercoated to prevent condensation.
Style A have a back ledge that can be drilled for a faucet.
To install Style C, apply sealant (not included) to rim and drop into your counter.
Use optional installation clips to install Style D sinks in countertops that are 3/4" or thicker, or countertops made of material that cannot be nailed into. 13" × 13" and 15" × 15" sinks require eight installation clips, while larger sinks require 12.
O'all | Bowl Inside | For Countertop Hole | Faucet Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Hardware Included | For Use Outdoors | Includes | Each | |
Sinks | |||||||||||||||||
White Fiberglass | |||||||||||||||||
| A | 17" | 20" | 10" | 14" | 15" | 9 1/2" | 15 1/2" | 18 1/2" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 0000000 | 000000 |
| A | 25" | 22" | 13 3/4" | 21 3/8" | 15 3/4" | 13 1/4" | 24" | 21" | 1 1/2" | 0 | __ | __ | Yes | No | Drain with Strainer, Stopper | 0000000 | 000000 |
Black Plastic | |||||||||||||||||
| B | 14 1/2" | 14 1/2" | 8 1/4" | 12" | 12" | 8" | 12 1/2" | 12 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 17 1/2" | 27 1/2" | 10 1/4" | 15" | 25" | 10" | 15 1/2" | 25 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 18 1/2" | 18 1/2" | 8 1/4" | 16" | 16" | 8" | 16 1/2" | 16 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 20 1/2" | 23 1/2" | 10 1/4" | 18" | 21" | 10" | 18 1/2" | 21 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 20 1/2" | 25 1/2" | 12 1/4" | 18" | 23" | 12" | 18 1/2" | 23 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
304 Stainless Steel | |||||||||||||||||
| C | 15" | 15" | 6 1/8" | 12" | 10" | 6" | 14 3/8" | 14 3/8" | 2" | 2 | 1 1/4" | 4" | Yes | No | __ | 0000000 | 000000 |
| D | 13" | 13" | 7 11/16" | 10" | 10" | 7 1/2" | 12 1/4" | 12 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 00000000 | 000000 |
| D | 15" | 15" | 7 11/16" | 12" | 12" | 7 1/2" | 14 1/4" | 14 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 0000000 | 000000 |
| D | 17" | 19" | 7 11/16" | 14" | 16" | 7 1/2" | 16 1/4" | 18 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 00000000 | 000000 |
| D | 25" | 19" | 7 11/16" | 22" | 16" | 7 1/2" | 24 1/4" | 18 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 0000000 | 000000 |
| D | 25" | 19" | 10 11/16" | 22" | 16" | 10 1/2" | 24 1/2" | 18 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 00000000 | 000000 |
| E | 17" | 16" | 7 5/8" | 14" | 10" | 7 1/2" | 16 3/8" | 15 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 00000000 | 000000 |
| E | 17" | 22" | 10 1/8" | 13 1/2" | 16" | 10" | 16 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 19" | 18" | 7 5/8" | 16" | 11 1/2" | 7 1/2" | 18 3/8" | 17 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 19 1/2" | 19" | 10 1/8" | 16" | 13 1/2" | 10" | 18 7/8" | 18 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 19 1/2" | 22" | 7 5/8" | 16" | 16" | 7 1/2" | 18 7/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 22" | 19 1/2" | 7 5/8" | 18" | 14" | 7 1/2" | 21 3/8" | 18 7/8" | 3 1/2" | 4 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 25" | 22" | 10 1/8" | 21" | 15 3/4" | 10" | 24 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 25" | 22" | 12 1/8" | 21" | 15 3/4" | 12" | 24 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 33" | 22" | 10 1/8" | 28" | 16" | 10" | 32 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 00000000 | 000000 |
O'all | Bowl Inside | For Countertop Hole | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Flow Rate, gpm | Mounting Hardware Included | For Use Outdoors | Includes | Each | |
Sinks with Chrome-Plated Brass Faucet | ||||||||||||||||||
304 Stainless Steel | ||||||||||||||||||
| C | 15" | 15" | 6 1/8" | 12" | 10" | 6" | 14 3/8" | 14 3/8" | 2" | Swivel | 1/2 | NPS | 2.2 | Yes | No | Drain with Strainer, Tailpiece | 0000000 | 0000000 |
| E | 17" | 16" | 7 5/8" | 14" | 10" | 7 1/2" | 16 3/8" | 15 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 17" | 22" | 10 1/8" | 13 1/2" | 16" | 10" | 16 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 19" | 18" | 7 5/8" | 16" | 11 1/2" | 7 1/2" | 18 3/8" | 17 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 19 1/2" | 19" | 10 1/8" | 16" | 13 1/2" | 10" | 18 7/8" | 18 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 19 1/2" | 22" | 7 5/8" | 16" | 16" | 7 1/2" | 18 7/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 22" | 19 1/2" | 7 5/8" | 18" | 14" | 7 1/2" | 21 3/8" | 18 7/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | Extendable Faucet Sprayer | 0000000 | 000000 |
| E | 25" | 22" | 10 1/8" | 21" | 15 3/4" | 10" | 24 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 25" | 22" | 12 1/8" | 21" | 15 3/4" | 12" | 24 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 33" | 22" | 10 1/8" | 28" | 16" | 10" | 32 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 0000000 | 00000000 |
Hands-Free Freestanding Sinks
Step on the pedals for water; release them to stop the flow. These sinks have rounded corners that are easy to clean and resist buildup.
Sinks that meet NSF/ANSI 372 have parts that comply with requirements for lead content when they touch water. They are typically used in food service applications.
Sinks with 0.5 gpm flow rate are useful when water consumption is a concern.
Touch-free faucet kit (sold separately) converts the faucet to a touch-free faucet.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
O'all | Bowl Inside | Inlet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Backsplash Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | For Use Outdoors | Includes | Cannot Be Sold To | Each | ||
0.5 gpm Flow Rate | ||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | ||||||||||||||||
| C | 23" | 20 1/2" | 51 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 000000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | ||||||||||||||||
| A | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 000000 |
| A | 21" | 20" | 46" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| B | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| D | 40" | 20" | 49 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| E | 60" | 20" | 49 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| F | 80" | 20" | 49 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
2 gpm Flow Rate | ||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | ||||||||||||||||
| C | 23" | 20 1/2" | 51 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | ||||||||||||||||
| A | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 0000000 | 000000 |
| A | 21" | 20" | 46" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 0000000 | 00000000 |
| B | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| D | 40" | 20" | 49 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| E | 60" | 20" | 49 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| F | 80" | 20" | 49 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 00000000 | 00000000 |
| Replacement Aerator for Sink with 2 gpm Flow Rate (Cannot Be Sold To: CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA) | 00000000 | Each | 00000 |
| Valve Repair Kit | 0000000 | Each | 00000 |
| Touch-Free Faucet Kit | 00000000 | Each | 000000 |
| Replacement Faucet Spout | 0000000 | Each | 000000 |
| Replacement Foot Valve (with 2 Pedals) | 0000000 | Each | 000000 |
| Replacement Strainer | 00000000 | Each | 00000 |
| Replacement Aerator for Sink with 0.5 gpm Flow Rate | 00000000 | Each | 0000 |
Touch-Free Freestanding Sinks
Wash your hands without touching a knob or handle—these freestanding sinks turn on with motion sensors. They’re often used in food service applications. For easy cleaning and to prevent buildup, they’re built with rounded corners. All meet NSF/ANSI 372 standards for lead content.
Sinks with a 0.5 gpm flow rate release water more slowly than sinks with a 2 gpm flow rate to save on usage.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
For technical drawings and 3-D models, click on a part number.
Overall | Bowl Inside | Inlet | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | For Tube OD | Tube Connection Type | For Use Outdoors | Includes | Specifications Met | Each | |
304 Stainless Steel with Chrome-Plated Brass Faucet | ||||||||||||||
| A | 20" | 17 1/2" | 43 1/2" | 17" | 14" | 7" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | 0000000 | 000000000 |
| B | 23" | 20 1/2" | 46 1/2" | 20" | 17" | 9" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | 0000000 | 00000000 |
| C | 40" | 20" | 45" | 37" | 16 1/2" | 8" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | 0000000 | 00000000 |
Overall | Bowl Inside | Inlet | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | For Tube OD | Tube Connection Type | For Use Outdoors | Includes | Specifications Met | Cannot Be Sold To | Each | |
304 Stainless Steel with Chrome-Plated Brass Faucet | |||||||||||||||
| A | 20" | 17 1/2" | 43 1/2" | 17" | 14" | 7" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 0000000 | 000000000 |
| B | 23" | 20 1/2" | 46 1/2" | 20" | 17" | 9" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 0000000 | 00000000 |
| C | 40" | 20" | 45" | 37" | 16 1/2" | 8" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | CA, CO, DC, HI, MA, ME, NJ, NY, OR, RI, VT, WA | 0000000 | 00000000 |
| Strainer Type | Material | For Drain ID | Each | |
| Basket | Stainless Steel | 2"-2 1/2" | 00000000 | 000000 |
Inlet/Outlet | |||
|---|---|---|---|
| For Tube OD | Tube Connection Type | Each | |
| 3/8" | Compression | 0000000 | 000000 |
Freestanding Sinks
Sinks that meet NSF/ANSI standards have rounded corners that are easy to clean and resist buildup. They are typically used in food service applications.
Style C has a threaded side opening with removable plug for external draining.
Style F is the most corrosion resistant sink we offer. The bowl is undercoated to prevent condensation.
Optional drain board for styles H&J is an angled shelf that mounts to either side of the sink.
O'all | Bowl Inside | Faucet Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | No. of Bowls | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | For Use Outdoors | Features | Includes | Each | |
Sinks | ||||||||||||||||
White Plastic with Steel Legs | ||||||||||||||||
| A | 1 | 20" | 23 7/8" | 33 3/4" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | 2 | 1" | 4" | No | Leveling Feet | Drain with Strainer | 000000 | 0000000 |
304 Stainless Steel with Stainless Steel Legs | ||||||||||||||||
| C | 1 | 36" | 18" | 32" | 35 3/4" | 17 3/4" | 14" | 1 1/4" | 0 | __ | __ | Yes | Removable Legs | Removable Plug for Side Opening, Tailpiece | 0000000 | 00000000 |
| E | 1 | 26" | 21" | 33" | 24" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 32" | 21" | 33" | 30" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 40" | 21" | 33" | 38" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 52" | 21" | 33" | 50" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 64" | 21" | 33" | 62" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| H | 1 | 27" | 27" | 48" | 24" | 24" | 12" | 3 1/2" | 2 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| H | 1 | 39" | 27" | 48" | 36" | 24" | 12" | 3 1/2" | 2 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| J | 2 | 51" | 27" | 48" | 24" | 24" | 12" | 3 1/2" | 4 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| J | 2 | 63" | 27" | 48" | 30" | 24" | 12" | 3 1/2" | 4 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
304 Stainless Steel with Stainless Steel Legs—Meets NSF/ANSI 2 | ||||||||||||||||
| G | 1 | 27" | 27 1/2" | 44" | 24" | 24" | 14" | 3 1/2" | 2 | 1 1/2" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| G | 1 | 39" | 27 1/2" | 44" | 36" | 24" | 14" | 3 1/2" | 2 | 1 1/2" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
304 Stainless Steel with Iron Legs | ||||||||||||||||
| E | 1 | 26" | 21" | 33" | 24" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 32" | 21" | 33" | 30" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 40" | 21" | 33" | 38" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 52" | 21" | 33" | 50" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 64" | 21" | 33" | 62" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
316 Stainless Steel with Steel Legs | ||||||||||||||||
| F | 1 | 39" | 20" | 46" | 36" | 17" | 9" | 1 1/2" | 0 | __ | __ | No | Leveling Feet, Undercoated Bowl | Drain with Strainer | 0000000 | 00000000 |
| F | 1 | 51" | 27" | 46" | 48" | 24" | 5" | 1 1/2" | 0 | __ | __ | No | Leveling Feet, Undercoated Bowl | Drain with Strainer | 0000000 | 00000000 |
| Optional Drain Board for Style H and J | 0000000 | Each | 0000000 |
O'all | Bowl Inside | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | No. of Bowls | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Flow Rate, gpm | For Use Outdoors | Features | Includes | Each | |
Sinks with Chrome-Plated Brass Faucet | |||||||||||||||||
White Plastic with Steel Legs | |||||||||||||||||
| A | 1 | 20" | 23 7/8" | 40 3/4" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | Swivel | 1/2 | NPT | 2.1 | No | Leveling Feet | Drain with Strainer | 000000 | 0000000 |

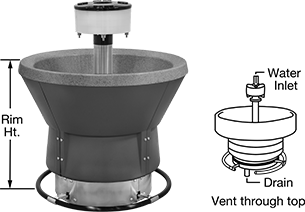

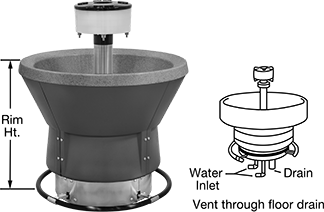

Hands-Free Wash Fountains
You won't have to wait to wash up with these multi-user fountains. Step on the pedals for water; release them to stop the flow. These sinks are chemical and corrosion resistant.
Location | Pedestal | Inlet | Drain | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | O'all Dia. | Flow Rate, gpm | Material | Color | Pipe Size | Thread Type | Gender | Pipe Size | Thread Type | Gender | Each | ||
Beige Bowl | |||||||||||||||||
Floor Mount—Floor Drain | |||||||||||||||||
| A | 5 | Floor | Floor Drain | 29 1/4" | 9" | 36" | 2 | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | 00000000 | 000000000 |
| A | 5 | Top | Top | 29 1/4" | 9" | 36" | 2 | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | 00000000 | 00000000 |
Gray Bowl | |||||||||||||||||
Floor Mount—Floor Drain | |||||||||||||||||
| A | 5 | Floor | Floor Drain | 29 1/4" | 9" | 36" | 2 | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | 00000000 | 00000000 |
Location | O'all | Pedestal | Inlet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | Dia. | Wd. | Dp. | Flow Rate, gpm | Material | Color | Pipe Size | Thread Type | Gender | For Drain Pipe OD | Each | ||
Floor/Wall Mount—Wall Drain | |||||||||||||||||
| B | 2 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 27 1/2" | 17 1/4" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 0000000 | 000000000 |
| C | 3 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 0000000 | 00000000 |
| C | 4 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 0000000 | 00000000 |
Floor Mount—Floor Drain | |||||||||||||||||
| D | 8 | Floor | Floor Drain | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 00000000 | 00000000 |
| D | 8 | Top | Top | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 00000000 | 00000000 |
Touch-Free Wash Fountains
You won't have to wait to wash up with these multi-user fountains. Place your hands in front of the sensor for water. These sinks are chemical and corrosion resistant. They operate at 24 volts AC (from 120 volts AC) with a step-down transformer that draws 3 amps. Sensor and transformer are UL listed.
Location | O'all | Pedestal | Inlet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | Dia. | Wd. | Dp. | Flow Rate, gpm | Material | Color | Pipe Size | Thread Type | Gender | For Drain Pipe OD | Each | ||
Stainless Steel Bowl—Assembled | |||||||||||||||||
Floor/Wall Mount—Wall Drain | |||||||||||||||||
| A | 2 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 27 1/2" | 17 1/4" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 000000000 |
| B | 3 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 00000000 |
| B | 4 | Wall | Floor/Wall | 34" | 4 1/2" | __ | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 00000000 |
Floor Mount—Floor Drain | |||||||||||||||||
| C | 8 | Floor | Floor Drain | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 000000000 | 00000000 |
| D | 8 | Top | Top | 34" | 4 1/2" | 54" | __ | __ | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 000000000 | 00000000 |
Portable Hand Washing Stations
To prevent the spread of illness, these stations give people a place to wash their hands, wherever they need it. Each has a sink basin, faucet, soap dispenser, and paper towel dispenser. Start and stop the flow of water using the foot pedal, instead of using your hands. They have one tank for supplying freshwater and a second, separate tank for storing wastewater. To drain water out of them, all have a drain plug. They’re lightweight when they’re empty, so it only takes one or two people to move them. All meet EPA, FDA, and U.S. Public Health Service standards for drinking water.
One-station units have handles and rubber wheels for moving them around like a hand truck. They come with a drain hose to help you empty them.
Two- and four-station units accommodate multiple users at the same time, so they’re good for busy areas, such as parks, outdoor events, worksites, stadiums, and military sites. Two-station units also have handles for moving them easily.
Capacity, gal. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Stations | Freshwater Tank | Wastewater Tank | Height | Width | Depth | Number of Uses | Weight, lbs. | For Use Outdoors | Specifications Met | Features | Each | |
| 1 | 15 1/2 | 19 | 62" | 18" | 20" | 300 | 47 | Yes | EPA 40 CFR 141, FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297 | Drain Hole, Drain Plug, Handles, Paper Towel Dispenser, Soap Dispenser | 0000000 | 0000000 |
| 2 | 22 | 24 | 62" | 26 1/2" | 21 1/2" | 350 | 70 | Yes | EPA 40 CFR 141, FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297 | Drain Hole, Drain Plug, Handles, Paper Towel Dispenser, Soap Dispenser | 0000000 | 000000 |
| 4 | 20 | 22 | 58" | 22 1/2" | 22 1/2" | 325 | 60 | Yes | EPA 40 CFR 141, FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297 | Drain Hole, Drain Plug, Paper Towel Dispenser, Soap Dispenser | 0000000 | 00000000 |
