Telescoping Hand-Winch Cranes

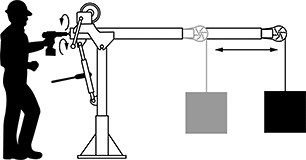

Adjust the arm in, out, up, and down even under load. These cranes are designed for precise positioning adjustments—no need to fully lower the arm and detach your load. For even more positioning flexibility in all directions, these cranes also rotate a full 360°. An automatic brake holds your load securely in place when you release the handle. To quicken your set up, use a power drill to wind the winch or lengthen the arm for you. Also known as davit cranes.
Pair your crane with a powered winch to turn your manual winch into an electric one.
Install additional bases throughout your facility to use your crane in different spots.
Headache balls keep the cable taut when there’s no load, making the crane more stable.
Note: Capacity is highest for the first layer of rope and decreases as each additional layer of rope is wound on the winch. There are at least five wraps of rope on the winch.
Warning: Never use to lift people or items over people.
For technical drawings and 3-D models, click on a part number.
| Min. Cap., lbs. | Max. Cap., lbs. | Fully Wound Cap., lbs. | Arm Lg. | Lift Lg., ft. | O'all Ht. | Wire Rope Material | Hook Movement | Power Source | Fasteners Included | Features | Each | |
Floor Mount (Surface) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Zinc-Plated Steel | ||||||||||||
| 500 | 500 | 500 | 24"-66" | 80 | 4'2" to 7'6" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 000000000 |
| 550 | 1,200 | 550 | 23"-66" | 55 | 4'5" to 7'10" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
Floor Mount (Flush) | ||||||||||||
Zinc-Plated Steel | ||||||||||||
| 500 | 500 | 500 | 24"-66" | 80 | 4'2" to 7'6" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
| 550 | 1,200 | 550 | 23"-66" | 55 | 4'5" to 7'10" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
Wall Mount (Surface) | ||||||||||||
Zinc-Plated Steel | ||||||||||||
| 500 | 500 | 500 | 24"-66" | 80 | 4'2" to 7'6" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
| 550 | 1,200 | 550 | 23"-66" | 55 | 4'5" to 7'10" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
| Material | Each | |
| Powder-Coated Steel | 0000000 | 0000000 |
Lightweight Hand-Winch Cranes
At half the weight of standard hand-winch cranes with similar capacity, these cranes are easier to move from one base to another. Also known as davit cranes, they have a handle you crank to raise and lower the load. An automatic brake holds your load securely in place when you release the handle. For positioning in all directions, these cranes rotate a full 360°, and the arm adjusts to four different lengths. To quicken your set up, use a power drill to wind the winch or lengthen the arm for you. They're aluminum, so they also resist corrosion.
Pair your crane with a powered winch to turn your manual winch into an electric one.
Install additional bases throughout your facility to use your crane in different spots.
Headache balls keep the cable taut when there’s no load, making the crane more stable.
Note: Capacity is highest for the first layer of rope and decreases as each additional layer of rope is wound on the winch. There are at least five wraps of rope on the winch.
Warning: Never use to lift people or items over people.
For technical drawings and 3-D models, click on a part number.
| Min. Cap., lbs. | Max. Cap., lbs. | Fully Wound Cap., lbs. | Arm Lg. | Lift Lg., ft. | O'all Ht. | Wire Rope Material | Hook Movement | Power Source | Fasteners Included | Each | |
Floor Mount (Surface) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Aluminum  | |||||||||||
| 275 | 500 | 275 | 23"-42" | 80 | 4'9" to 6'11" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 000000000 |
| 550 | 1,000 | 550 | 23"-42" | 55 | 4'9" to 7' | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
Floor Mount (Flush) | |||||||||||
Aluminum | |||||||||||
| 275 | 500 | 275 | 23"-42" | 80 | 4'9" to 6'11" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
| 550 | 1,000 | 550 | 23"-42" | 55 | 4'9" to 7' | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
Wall Mount (Surface) | |||||||||||
Aluminum | |||||||||||
| 275 | 500 | 275 | 23"-42" | 80 | 4'9" to 6'11" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
| 550 | 1,000 | 550 | 23"-42" | 55 | 4'9" to 7' | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
| Material | Each | |
| Powder-Coated Steel | 0000000 | 0000000 |
Drill-Wind Precise-Positioning Heavy Duty
Hand Winches for Wire Rope—For Lifting
Remove the handle to wind this winch with a power drill and move loads more gradually than with other winches. Its one-piece machined gears stand up to daily use. An automatic brake holds the load when the handle is released. To lift, mount winch above the load or use winch with a pulley that's mounted above the load. Enclosed gears offer protection from dirt and debris.
For wire rope, see Wire Rope with Hook for Winches.
Note: Capacity is highest for the first layer of rope (at least five wraps of rope on the winch) and decreases as each additional layer of rope is wound on the winch.
Warning: Never use to lift people or items over people.
| Max. Cap., lbs. | Fully Wound Cap., lbs. | For Max. Rope Lg., ft. | For Rope Dia. | Base Wd. | Base Lg. | O'all Wd. | O'all Lg. | O'all Ht. | Handle Lg. | Hex Shank Size | For Max. Drill Speed, rpm | Duty Cycle @ Maximum Capacity | Material | Gear Speed Ratio | Each | |
| 2,000 | 1,200 | 77 | 1/4" | 6 5/8" | 7 1/4" | 11 1/2" | 13 1/2" | 8 1/2" | 11" | 1 1/8" | 400 | 15 Minutes On, 45 Minutes Off | Steel | 32:1 | 0000000 | 000000000 |
