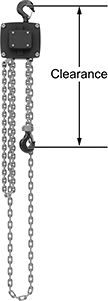

Hand Chain Hoists

Pull the hand chain to lift and position your load, and the brake will securely hold it in place.

Warning: Never use to lift people or items over people.

CM Series 622-A

Image of Product. Front orientation. Contains Annotated. Hoists. Hand Chain Hoists , CM.

Pulling Effort @ Cap., lbf	Clearance	Hook Opening Wd.	Brake Type	Body Material	For Use Outdoors	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift



1/2 ton, 1,000 lb.	50	9 1/2"	7/8"	Mechanical	Steel	No	ASME B30.16, ASME HST-2	000000	0000000	0000000	0000000


1 ton, 2,000 lb.	70	10 5/8"	1 1/8"	Mechanical	Steel	No	ASME B30.16, ASME HST-2	000000	000000	000000	000000
2 ton, 4,000 lb.	105	13 1/2"	1 1/8"	Mechanical	Steel	No	ASME B30.16, ASME HST-2	000000	000000	000000	000000
3 ton, 6,000 lb.	75	18 1/2"	1 3/8"	Mechanical	Steel	No	ASME B30.16, ASME HST-2	000000	000000	000000	000000
5 ton, 10,000 lb.	85	23 5/8"	1 7/8"	Mechanical	Steel	No	ASME B30.16, ASME HST-2	000000	00000000	00000000	00000000

Replacement Hoist Hook Latches

		Each
Replacement Hook Latch for 1-ton Capacity CM Series 622-A Hoists	0000000	000000
Replacement Hook Latch for 1/2-ton Capacity CM Series 622-A Hoists	0000000	00000

OZ Premium Series

Image of Product. Front orientation. Contains Annotated. Hoists. Hand Chain Hoists , OZ.

OZ Premium series hoists have overload protection to prevent hoists from operating when the load exceeds capacity. The enclosed gears are protected from debris and contamination for smooth operation.

Pulling Effort @ Cap., lbf	Pull Lg. to Lift 1 ft. @ Cap., ft.	Clearance	Hook Opening Wd.	Brake Type	Body Material	Features	For Use Outdoors	Specs. Met	Certification		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift	30 ft. Long Lift



1/2 ton, 1,000 lb.	50	28	13"	1 1/8"	Mechanical	Steel	Enclosed Gears Overload Protection	No	ASME B30.16, ASME HST-2	CE Marked	0000000	0000000	0000000	0000000	0000000


1 ton, 2,000 lb.	70	37	14"	1 3/8"	Mechanical	Steel	Enclosed Gears Overload Protection	No	ASME B30.16, ASME HST-2	CE Marked	0000000	000000	000000	000000	000000
1 1/2 ton, 3,000 lb.	70	31	16"	1 3/8"	Mechanical	Steel	Enclosed Gears Overload Protection	No	ASME B30.16, ASME HST-2	CE Marked	0000000	000000	000000	000000	000000
2 ton, 4,000 lb.	80	50	17"	1 1/4"	Mechanical	Steel	Enclosed Gears Overload Protection	No	ASME B30.16, ASME HST-2	CE Marked	0000000	000000	000000	000000	000000
3 ton, 6,000 lb.	60	70	21"	1 1/2"	Mechanical	Steel	Enclosed Gears Overload Protection	No	ASME B30.16, ASME HST-2	CE Marked	0000000	000000	000000	000000	000000

Replacement Hoist Hook Latches

		Each
Replacement Hook Latch for 1-ton Capacity CM Series 622-A Hoists	0000000	000000
Replacement Hook Latch for 1/2-ton Capacity CM Series 622-A Hoists	0000000	00000

Fast-Lift Hand Chain Hoists

Large gears allow these hoists to lift faster with each pull compared to other hand chain hoists. Good for frequent lifting operations where user fatigue is a concern. Pull the hand chain to lift and position your load, and the brake will securely hold it in place. Overload protection prevents hoists from operating if the load exceeds capacity.

Warning: Never use to lift people or items over people.

CM Cyclone

Image of Product. Front orientation. Contains Annotated. Hoists. Fast-Lift Hand Chain Hoists .

Pulling Effort @ Cap., lbf	Pull Lg. to Lift 1 ft. @ Cap., ft.	Clearance	Hook Opening Wd.	Brake Type	Body Material	Features	For Use Outdoors	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift	30 ft. Long Lift



1/4 ton, 550 lb.	25	23	13"	1"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	000000000	000000000	000000000	000000000


1/2 ton, 1,100 lb.	50	23	13"	1"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	00000000	00000000
1 ton, 2,200 lb.	70	30	14"	1 1/8"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	00000000	00000000
1 1/2 ton, 3,300 lb.	80	41	18"	1 1/4"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	00000000	00000000
2 ton, 4,400 lb.	85	52	18"	1 1/4"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	00000000	00000000
5 1/2 ton, 11,000 lb.	75	156	25"	1 5/8"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	00000000	00000000

Trolley-Mount Hand Chain Hoists

A built-in trolley provides stability as these hoists travel along your beam. They can be mounted on fixed beams as well as on cranes with beams. Pull the hand chain to lift and position your load, and the brake will securely hold it in place.

Warning: Never use to lift people or items over people.

CM Hurricane

CM chain hoists have a body that spins 360°, so you can operate them from any direction.

Pulling Effort @ Cap., lbf	Pull Lg. to Lift 1 ft. @ Cap., ft.	Clearance	Hook Opening Wd.	For Beam Wd.	For Min. Beam Ht.	Min. Curve Radius	Brake Type	Body Material	For Use Outdoors	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift	30 ft. Long Lift



1/2 ton, 1,100 lb.	45	30	9 3/4"	7/8"	3 15/16" to 7 3/32"	4"	35"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	000000000	000000000	000000000	000000000


1 ton, 2,200 lb.	55	49	10 3/4"	1 1/8"	3 15/16" to 7 3/32"	4"	35"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	00000000	00000000	00000000	00000000
2 ton, 4,400 lb.	75	71	12 3/4"	1 3/8"	3 15/16" to 7 3/32"	5"	45"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	00000000	00000000	00000000	00000000
3 ton, 6,600 lb.	95	87	15"	1 1/2"	3 15/16" to 7 3/32"	6"	59"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	00000000	00000000	00000000	00000000

Ratchet Pullers with Chain

A thick, rugged frame gives these pullers long life, while a hardened steel chain makes them the strongest, most durable pullers we offer. There’s a stop on one end of the chain to prevent it from pulling completely through the ratchet. All pullers have a revolving handle that folds out on either side of the lever for easy operation at any angle.

					Hook
	Weight Capacity	Retracted Length	Chain Material	Handle Lg.	Opening Wd.	Material	RFID Enabled	Specs. Met		5 ft. Reach Length	10 ft. Reach Length	15 ft. Reach Length	20 ft. Reach Length
Standard Handle







				Aluminum

				1,500 lb.	13"	Steel	13"	1"	Forged Steel	No	ASME B30.21, ASME HST-3, CSA B167	0000000	0000000	0000000	0000000	0000000


				3,000 lb.	15"	Steel	13"	1 1/4"	Forged Steel	No	ASME B30.21, ASME HST-3, CSA B167	0000000	000000	000000	00000000	00000000
				6,000 lb.	18"	Steel	15"	1 5/8"	Forged Steel	No	ASME B30.21, ASME HST-3, CSA B167	0000000	00000000	00000000	00000000	00000000

Compact Lever Chain Hoists

These hoists are small enough to fit in your toolbox and can be used in tight spaces. Use the ratcheting lever to lift and position your load, and the brake will securely hold it in place. A stop on one end of the chain prevents the chain from pulling completely through the hoist. The 360° rotating lever can be used in any position.

Warning: Never use to lift people or items over people.

	Pulling Effort @ Cap., lbf	Clearance	Hook Opening Wd.	Lever Lg.	For Use Outdoors	Specs. Met		5 ft. Long Lift	10 ft. Long Lift
Steel with 360° Rotating Lever



	1/4 ton, 550 lb.	60	10"	5/8"	7"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	0000000	0000000


	1/2 ton, 1,100 lb.	60	12"	1"	7"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	000000	000000

Heavy Duty Lever Chain Hoists


Steel	Steel with Overload Warning	Aluminum with Enclosed Gears and 360° Rotating Lever	Aluminum with Overload Protection, Enclosed Gears, and 360° Rotating Lever

These hoists have a thick, rugged frame for long life. Use the ratcheting lever to lift and position your load, and the brake will securely hold it in place. A stop on one end of the chain prevents the chain from pulling completely through the hoist.

Warning: Never use to lift people or items over people.

Enclosed Gears—Hoists with enclosed gears are protected from debris and contamination for smooth operation.

360° Rotating Lever—360° rotating lever can be used in any position.

Overload Protection—Hoists with overload protection will not operate when the load exceeds capacity.

Overload Warning—Hoists with overload warning have a lever that folds inward and alerts you with a click and an indicator light when the load exceeds capacity.

	Pulling Effort @ Cap., lbf	Clearance	Hook Opening Wd.	Lever Lg.	For Use Outdoors	Specs. Met		5 ft. Long Lift	10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift
Steel



	3/4 ton, 1,500 lb.	55	11"	7/8"	10"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	0000000	0000000	0000000	0000000


	1 ton, 2,000 lb.	75	12"	1 1/8"	10"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	000000	000000	000000	000000
	1 1/2 ton, 3,000 lb.	65	14"	1 1/4"	11"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	000000	000000	000000	000000
	2 ton, 4,000 lb.	60	15"	1 3/8"	11"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	000000	000000	000000	00000000
	2 3/4 ton, 5,500 lb.	85	15"	1 3/8"	11"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	000000	000000	00000000	00000000
	3 ton, 6,000 lb.	70	16"	1 1/2"	17"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	00000000	00000000	00000000	00000000


	Steel with Overload Warning



			3/4 ton, 1,500 lb.	40	11"	7/8"	15"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	000000	000000	000000	000000


			1 ton, 2,000 lb.	50	12"	1 1/8"	15"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	000000	000000	000000	000000
			1 1/2 ton, 3,000 lb.	45	14"	1 1/4"	15"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	000000	00000000	00000000	00000000
			2 ton, 4,000 lb.	45	15"	1 3/8"	15"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	00000000	00000000	00000000	00000000
			2 3/4 ton, 5,500 lb.	60	15"	1 3/8"	15"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	00000000	00000000	00000000	00000000
			3 ton, 6,000 lb.	70	16"	1 1/2"	17"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	0000000	00000000	00000000	00000000	00000000


			Aluminum with Enclosed Gears and 360° Rotating Lever



					3/4 ton, 1,600 lb.	60	11"	1"	22"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	000000	000000	00000000	00000000


					1 1/2 ton, 3,300 lb.	90	15"	1 1/8"	22"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	00000000	00000000	00000000	00000000
					3 1/4 ton, 6,600 lb.	95	17"	1 1/8"	22"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	00000000	00000000	00000000	00000000


					Aluminum with Overload Protection, Enclosed Gears, and 360° Rotating Lever



							3/4 ton, 1,600 lb.	60	11"	1"	24"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	000000	00000000	00000000	00000000


							1 1/2 ton, 3,300 lb.	90	15"	1 1/8"	24"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	00000000	00000000	00000000	00000000
							3 1/4 ton, 6,600 lb.	95	17"	1 1/8"	24"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	00000000	00000000	00000000	00000000

Rotating Hand Chain Hoists

The body spins 360° so you can operate these hoists from any direction. Pull the hand chain to lift and position your load, and the brake will securely hold it in place. Overload protection prevents hoists from operating if the load exceeds capacity.

Warning: Never use to lift people or items over people.

CM Hurricane

Image of Product. Front orientation. Contains Annotated. Hoists. Rotating Hand Chain Hoists .

Pulling Effort @ Cap., lbf	Pull Lg. to Lift 1 ft. @ Cap., ft.	Clearance	Hook Opening Wd.	Brake Type	Body Material	Features	For Use Outdoors	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift	30 ft. Long Lift



1/2 ton, 1,100 lb.	45	30	12"	7/8"	Mechanical	Steel	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	0000000	0000000	0000000	0000000	0000000


1 ton, 2,200 lb.	55	49	14"	1 1/8"	Mechanical	Steel	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	0000000	000000	000000	000000	000000
2 ton, 4,400 lb.	75	71	16"	1 3/8"	Mechanical	Steel	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	0000000	000000	000000	000000	000000
3 ton, 6,600 lb.	95	87	20 1/2"	1 1/2"	Mechanical	Steel	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	0000000	000000	00000000	00000000	00000000

Compact Heavy Duty Lever Chain Hoists

These hoists are small enough to fit in your toolbox and can be used in tight spaces. They have a thick, rugged frame for long life, as well as enclosed gears to protect from debris and contamination for smooth operation. Use the ratcheting lever to lift and position your load, and the brake will securely hold it in place. A stop on one end of the chain prevents the chain from pulling completely through the hoist. The 360° rotating lever can be used in any position.

Warning: Never use to lift people or items over people.

								5 ft. Long Lift		10 ft. Long Lift		15 ft. Long Lift		20 ft. Long Lift
	Wt. Cap.	Pulling Effort @ Cap., lbf	Clearance	Hook Opening Wd.	Lever Lg.	For Use Outdoors	Specs. Met		Each		Each		Each		Each
Aluminum with Enclosed Gears and 360° Rotating Lever



		1/4 ton, 500 lb.	40	8"	3/4"	6"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	000000	0000000	0000000	0000000	00000000	0000000	00000000	0000000


		1/2 ton, 1,000 lb.	60	10"	7/8"	7"	Yes	ASME B30.10, ASME B30.21, ASME HST-3	000000	000000	0000000	000000	00000000	000000	00000000	000000

Replacement Hoist Hooks


Top Hook Assemblies	Bottom Hook Assemblies

	Opening Wd.	Hook Material	Includes		Each
Top Hook Assemblies



	1/4 ton, 500 lb.	3/4"	Steel	Hook, Latch Assembly	00000000	0000000


	1/2 ton, 1,000 lb.	7/8"	Steel	Hook, Latch Assembly	00000000	000000


	Bottom Hook Assemblies



			1/4 ton, 500 lb.	3/4"	Steel	Hex Nut, Hook, Latch Assembly, Socket Head Cap Screw, Spring Washer	00000000	000000


			1/2 ton, 1,000 lb.	7/8"	Steel	Hex Nut, Hook, Latch Assembly, Socket Head Cap Screw, Spring Washer	0000000	000000

Lever Chain Hoists

Use the ratcheting lever to lift and position your load, and the brake will securely hold it in place. A stop on one end of the chain prevents the chain from pulling completely through the hoist.

Warning: Never use to lift people or items over people.

360° Rotating Lever—360° rotating lever can be used in any position.

Overload Protection—Hoists with overload protection will not operate when the load exceeds capacity.

	Pulling Effort @ Cap., lbf	Clearance	Hook Opening Wd.	Lever Lg.	For Use Outdoors	Specs. Met		5 ft. Long Lift	10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift
Steel



	3/4 ton, 1,500 lb.	53	11 3/4"	1 1/16"	9 7/8"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	0000000	0000000	0000000	0000000


	1 1/2 ton, 3,000 lb.	77	14"	1 1/8"	10 1/2"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	000000	000000	000000	000000
	3 ton, 6,000 lb.	87	16 1/2"	1 7/16"	14 7/8"	Yes	ASME B30.21, ASME HST-3, CSA B167	000000	000000	000000	00000000	00000000


	Steel with 360° Rotating Lever and Overload Protection



			3/4 ton, 1,500 lb.	35	13"	1 1/8"	11"	Yes	ASME B30.21	0000000	000000	000000	000000	000000


			1 1/2 ton, 3,000 lb.	50	15"	1 3/8"	17"	Yes	ASME B30.21	0000000	000000	000000	000000	000000
			3 ton, 6,000 lb.	75	19"	1 1/2"	17"	Yes	ASME B30.21	0000000	000000	000000	000000	000000

Replacements for Hoists

Replacement Hoist Hooks


Top Hook Assemblies	Bottom Hook Assemblies

	Opening Wd.	For Lever Lg.	Material	Includes		Each
Top Hook Assemblies



	1 1/2 ton, 3,000 lb.	1 1/8"	10 1/2"	Forged Steel	Hook, Latch, Yoke Pin	00000000	0000000


	3 ton, 6,000 lb.	1 7/16"	14 7/8"	Forged Steel	Hook, Latch, Yoke Pin	00000000	000000


	Bottom Hook Assemblies



			1 1/2 ton, 3,000 lb.	1 1/8"	10 1/2"	Forged Steel	Bolt, Hook, Latch	00000000	000000


			3 ton, 6,000 lb.	1 7/16"	14 7/8"	Forged Steel	Bolt, Hook, Latch	00000000	000000

Replacement Hook Latch Assemblies

Image of Product. Front orientation. Hoist Hook Latches. Lever Chain Hoists .

For Wt. Cap.	For Lever Lg.	Material	Includes		Each
3/4 ton, 1,500 lb.	9 7/8"	Forged Steel	Latch	00000000	000000
1 1/2 ton, 3,000 lb. 3 ton, 6,000 lb.	14 7/8"	Forged Steel	Latch	00000000	00000

Fast-Lift Trolley-Mount Hand Chain Hoists

These hoists have large gears to lift faster with each pull than standard trolley-mount hand chain hoists. Good for frequent lifting operations where user fatigue is a concern. They have a built-in trolley for a stable ride on your beam. Pull the hand chain to lift and position your load, and the brake will securely hold it in place. Overload protection prevents hoists from operating if the load exceeds capacity.

Warning: Never use to lift people or items over people.

CM Cyclone

Pulling Effort @ Cap., lbf	Pull Lg. to Lift 1 ft. @ Cap., ft.	Clearance	Hook Opening Wd.	For Beam Wd.	For Min. Beam Ht.	Min. Curve Radius	Brake Type	Body Material	Features	For Use Outdoors	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift	30 ft. Long Lift



1/2 ton, 1,100 lb.	50	23	9"	1"	3 3/8" to 5"	5"	36"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	000000000	000000000	—	—


1/2 ton, 1,100 lb.	50	23	12"	1"	2 3/4" to 5 1/2"	4"	30"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	000000000	000000000
1 ton, 2,200 lb.	70	30	10"	1 1/8"	3 3/8" to 5"	5"	36"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	—	—
1 ton, 2,200 lb.	70	30	12"	1"	2 3/4" to 5 1/2"	4"	30"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	00000000	00000000
2 ton, 4,400 lb.	85	52	16"	1 3/8"	3 3/4" to 5 1/2"	6"	30"	Mechanical	Aluminum	Overload Protection	No	ASME B30.16, ASME HST-2, CSA B167	000000	00000000	00000000	00000000	00000000

Chain-Driven Trolley-Mount Hand Chain Hoists

A separate hand chain makes these hoists and their built-in trolleys easy to move. They can be mounted on fixed beams as well as on cranes with beams. Pull the hand chain to lift and position your load, and the brake will securely hold it in place.

Warning: Never use to lift people or items over people.

CM Hurricane

CM chain hoists have a body that spins 360°, so you can operate them from any direction.

Pulling Effort @ Cap., lbf	Pull Lg. to Lift 1 ft. @ Cap., ft.	Clearance	Hook Opening Wd.	For Beam Wd.	For Min. Beam Ht.	Min. Curve Radius	Brake Type	Body Material	For Use Outdoors	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift	30 ft. Long Lift



1/2 ton, 1,100 lb.	45	30	9 3/4"	7/8"	3 15/16" to 7 3/32"	4"	35"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	000000000	000000000	000000000	000000000


1 ton, 2,200 lb.	55	49	10 3/4"	1 1/8"	3 15/16" to 7 3/32"	4"	35"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	00000000	00000000	00000000	00000000
2 ton, 4,400 lb.	75	71	12 3/4"	1 3/8"	3 15/16" to 7 3/32"	5"	45"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	00000000	00000000	00000000	00000000
3 ton, 6,600 lb.	95	87	15"	1 1/2"	3 15/16" to 7 3/32"	6"	59"	Mechanical	Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	00000000	00000000	00000000	00000000

Spark-Resistant Hand Chain Hoists

These hoists have a zinc-flake coated steel body, stainless steel chain, and copper-coated steel hooks for spark resistance. Pull the hand chain to lift and position your load, and the brake will securely hold it in place.

Warning: Never use to lift people or items over people.

Pulling Effort @ Cap., lbf	Pull Lg. to Lift 1 ft. @ Cap., ft.	Clearance	Hook Opening Wd.	Brake Type	Body Material	For Use Outdoors	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift



1/2 ton, 1,000 lb.	70	17	13"	1 1/8"	Mechanical	Zinc Flake-Coated Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	000000000	000000000	000000000


1 ton, 2,000 lb.	70	17	13"	1 1/8"	Mechanical	Zinc Flake-Coated Steel	No	ASME B30.16, ASME HST-2, CSA B167	0000000	00000000	00000000	00000000
