L-Handle Keyed Multipoint Locks for Heavy Doors
Through-Hole Mount
 |
Handle | Mounting Hole Ctr.-to-Ctr. | Mounting | Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying | For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Latching Distance | Lg. | Projection | Inside Lg. | Rear Projection | Straight Cam Lg. | Handle Plate | Latch Plate | Mounting Plate Wd. | Fasteners Included | Screw Size | Key No. | No. of Keys Included | For Use On | Includes | Each | |||
Zinc-Plated Steel—Dull | ||||||||||||||||||||||
| Keyed Alike | 5" | 27" to 90" | 7/8" | 1 1/2" | 7 1/2" | 2 1/4" | 9 1/4" | 2 3/8" | 3 1/16" | 7 3/8", 1 1/4" | 3 1/8", 2 3/4" | 2" | No | 1/4" | 1250 | 2 | Metal | One Straight Cam | 1272A12 | 0000000 | ||

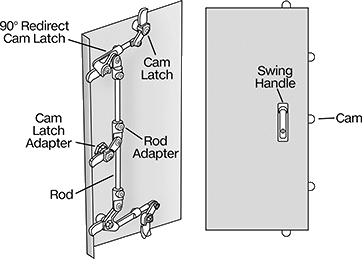

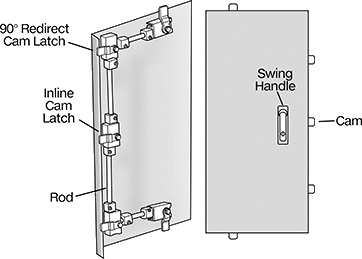

Multipoint Conversion Kits for Cam Locks and Latches
 |
Turn your existing quarter-turn cam locks or latches into a latching system that securely fastens doors at multiple points. Start by connecting a cam latch adapter to your lock or latch to create additional latch points. Then, add a cam latch, two rod adapters, and a rod for each latch point you’ll need. All cam latches weld to the inside of your enclosure door.
Cam Latch Adapters
 |
Through-Hole Dia. | For Min. Rear Projection | Retaining Ring Included | Each | |||
|---|---|---|---|---|---|---|
Zinc | ||||||
Quarter-Turn Clockwise or Counterclockwise to Open | ||||||
| 5/16" | 5/8" | Yes | 4975N12 | 00000 | ||
Inline Cam Latches
 |
Inline Cam Latches |
Inline cam latches come with multiple cams, so you can change their fixed latching distance.
Straight Cam | Offset Cam | Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Latching Distance | For Through-Hole Dia. | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
Zinc—Polished | ||||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | ||||||||||||
| 1/4", 5/8", 1" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N19 | 000000 | ||
Inline Roller Cam Latches
 |
Inline roller cam latches rotate more smoothly than standard inline cam latches, making them easier to open and close. The cam won't scrape paint or metal chips off the frame that can damage items in your enclosures. It also compresses a bit to help minimize rattling from vibration. Good for jobs when precise distances are unknown, these latches have an adjustable latching distance. Adjust the position of the cam before installing.
Roller Cam | Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Latching Distance | For Through-Hole Dia. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
Zinc—Polished | ||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | ||||||||||
| 13/16" to 1" | 5/16" | 2 7/16" | 11/16" | No | M6 | Yes | 4975N23 | 000000 | ||
90° Redirect Cam Latches
 |  |
Bottom Left Side Door Mount, Top Right Side Door Mount | Bottom Right Side Door Mount, Top Left Side Door Mount |
Use 90° redirect cam latches on the inside corners of your door to redirect your multi-point latching system 90° and add additional points along other edges of the door. They come with multiple cams, so you can change their fixed latching distance.
Straight Cam | Offset Cam | Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | Latching Distance | For Through-Hole Dia. | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
Zinc—Polished | |||||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
| Bottom Left Side, Top Right Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N22 | 000000 | ||
| Bottom Right Side, Top Left Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N21 | 00000 | ||
Rod Adapters
 |
Set Screw | ||||||||
|---|---|---|---|---|---|---|---|---|
For Rod Dia. | Drive Style | Included | Drive Size, mm | Retaining Ring Included | Each | |||
Zinc | ||||||||
| 5/16" | Hex | Yes | 3 | No | 4975N11 | 00000 | ||
T-Handle Keyed Multipoint Locks
 |
Shown with Two Latch Kits |
Choose these locks if you need several that open with the same key. Locks arrive ready for single-point latching; for more holding power, add a latch conversion kit for two-point latching or two latch conversion kits for three-point latching (latch conversion kits sold separately).
Mortise Mount
 |
The T-handle on mortise-mount locks lifts and then folds out of the way when not in use.
Keyed Alike—Choose keyed alike locks when you need several locks that open with the same key.
Straight Cam | For Cutout | Quarter-Turn Clockwise to Open | Quarter-Turn Counterclockwise to Open | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying | For Max. Thk. | For Door Ht. | Latching Distance | Handle Lg. | Rear Projection | Lg. | Wd. | Ht. | Wd. | Dp. | Mounting Plate Wd. | Mounting Fasteners Included | Key No. | No. of Keys Included | For Use On | Includes | Each | Each | ||||
300 Series Stainless Steel with Chrome-Plated Zinc Alloy Handle—Dull | ||||||||||||||||||||||
| Keyed Alike | 5/16" | 20" to 118" | 1 1/8" to 1 9/16" | 3 1/4" | 2 9/16" | 2 9/16" | 7/16" | 3 27/32" | 2 27/32" | 1" | 2 13/16" | Yes | CH751 | 2 | Metal | One Straight Cam | 11055A24 | 0000000 | 11055A22 | 0000000 | ||
Galvanized Steel with Galvanized Zinc Alloy Handle—Dull | ||||||||||||||||||||||
| Keyed Alike | 5/16" | 20" to 118" | 1 1/8" to 1 9/16" | 3 1/4" | 2 9/16" | 2 9/16" | 7/16" | 3 27/32" | 2 27/32" | 1" | 2 13/16" | Yes | CH751 | 2 | Metal | One Straight Cam | 11055A42 | 000000 | 11055A41 | 000000 | ||
 |
One Rod Two Rod Guides |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
Rod | Mounting | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Dia. | Lg. | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 5/16" | Aluminum | 0.344" | 48" | Steel | Yes | No. 10 | 0.19" | 4 | One Rod, Two Rod Guides | 11595A55 | 000000 | |
 |
Key No. | Pkg. Qty. | Pkg. | ||
|---|---|---|---|---|
| CH751 | 2 | 1619A57 | 00000 |
Through-Hole Mount
 |
Keyed Alike—Choose keyed alike locks when you need several locks that open with the same key.
Handle | Straight Cam | Quarter-Turn Clockwise to Open | Quarter-Turn Counterclockwise to Open | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying | For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Latching Distance | Lg. | Projection | Rear Projection | Lg. | Wd. | Mounting Fasteners Included | Key No. | No. of Keys Included | For Use On | Includes | Each | Each | ||||
Zinc-Plated Steel with Chrome-Plated Steel Handle—Polished | ||||||||||||||||||||
| Keyed Alike | 1/8" | 20" to 118" | 13/16" | 5/8" to 3/4" | 3 5/16" | 1 1/2" | 1 1/4" | 1 1/2" | 1/2" | Yes | CH751 | 2 | Metal, Plastic, Wood | One Straight Cam | 4088N12 | 000000 | 4088N11 | 000000 | ||
| Keyed Alike | 1/8" | 20" to 118" | 13/16" | 5/8" to 1 1/4" | 3 5/16" | 1 1/2" | 1 3/4" | 1 1/2" | 1/2" | Yes | CH751 | 2 | Metal, Plastic, Wood | One Straight Cam | 4088N14 | 00000 | 4088N13 | 00000 | ||
| Keyed Alike | 1/8" | 20" to 118" | 13/16" | 5/8" to 1 3/4" | 3 5/16" | 1 1/2" | 2 1/4" | 1 1/2" | 1/2" | Yes | CH751 | 2 | Metal, Plastic, Wood | One Straight Cam | 4088N16 | 00000 | 4088N15 | 00000 | ||
|
One Rod Two Rod Guides |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
Rod | Mounting | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Dia. | Lg. | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 1/8" | Aluminum | 0.281" | 36" | Steel | No | M5 | 0.203" | 4 | One Rod, Two Rod Guides | 11595A53 | 000000 | |
|
Key No. | Pkg. Qty. | Pkg. | ||
|---|---|---|---|---|
| CH751 | 2 | 1619A57 | 00000 |
L-Handle Padlockable Multipoint Latches for Heavy Doors
Through-Hole Mount
|
Handle | Mounting Hole Ctr.-to-Ctr. | Mounting | Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Latching Distance | Lg. | Projection | Inside Lg. | Rear Projection | For Max. Padlock Shackle Dia. | Straight Cam Lg. | Handle Plate | Latch Plate | Mounting Plate Wd. | Fasteners Included | Screw Size | For Use On | Includes | Each | |||
Zinc-Plated Steel—Dull | ||||||||||||||||||||
| 5" | 27" to 90" | 7/8" | 1 1/2" | 7 1/2" | 2 1/4" | 9 1/4" | 2 3/8" | 7/16" | 3 1/16" | 7 3/8", 1 1/4" | 3 1/8", 2 3/4" | 2" | No | 1/4" | Metal | One Straight Cam | 1272A11 | 0000000 | ||
Paddle-Handle Multipoint Latches
Mortise Mount
 |
Latch Bolt Housing | For Cutout | Latch Bolt | Mounting | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Door Ht. | For Max. Door Thk. | Rear Projection | Ht. | Wd. | Ht. | Wd. | Projection | Projection | Material | Mounting Hole Ctr.-to-Ctr. | Fasteners Included | Screw Size | Includes | Each | |||
Zinc-Plated Steel with Black Painted Zinc Alloy Handle | |||||||||||||||||
| 36" to 96" | 2" | 1 13/16" | 4 1/2" | 2 1/4" | 4" | 1 11/16" | 1 3/16" | 5/8" | Plastic | 1 1/4", 1 3/4" | No | No. 10 | Mounting Bracket, Two 1/4" Dia. × 48" Lg. Connecting Rods | 13835A85 | 0000000 | ||
L-Handle Keyed Multipoint Locks
 |
Choose these L-handle locks if you need several that open with the same key. Use them for single-point latching, or add latch conversion kits (sold separately) for multipoint latching to create additional holding power.
Through-Hole Mount
Handle | Straight Cam | Quarter-Turn Clockwise to Open | Quarter-Turn Counterclockwise to Open | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying | For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Latching Distance | Lg. | Projection | Rear Projection | Lg. | Wd. | Mounting Fasteners Included | Key No. | No. of Keys Included | For Use On | Includes | Each | Each | ||||
Zinc-Plated Steel with Chrome-Plated Steel Handle—Polished | ||||||||||||||||||||
| Keyed Alike | 1/8" | 20" to 118" | 13/16" | 5/8" to 3/4" | 4 7/16" | 1 9/16" | 1 1/4" | 1 1/2" | 1/2" | Yes | CH751 | 2 | Metal, Plastic, Wood | One Straight Cam | 5177N12 | 000000 | 5177N11 | 000000 | ||
| Keyed Alike | 1/8" | 20" to 118" | 13/16" | 5/8" to 1 1/4" | 4 7/16" | 1 9/16" | 1 3/4" | 1 1/2" | 1/2" | Yes | CH751 | 2 | Metal, Plastic, Wood | One Straight Cam | 5177N14 | 00000 | 5177N13 | 00000 | ||
| Keyed Alike | 1/8" | 20" to 118" | 13/16" | 5/8" to 1 3/4" | 4 7/16" | 1 9/16" | 2 1/4" | 1 1/2" | 1/2" | Yes | CH751 | 2 | Metal, Plastic, Wood | One Straight Cam | 5177N16 | 00000 | 5177N15 | 00000 | ||
|
One Rod Two Rod Guides |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
Rod | Mounting | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Dia. | Lg. | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 1/8" | Aluminum | 0.281" | 36" | Steel | No | M5 | 0.203" | 4 | One Rod, Two Rod Guides | 11595A53 | 000000 | |
|
Key No. | Pkg. Qty. | Pkg. | ||
|---|---|---|---|---|
| CH751 | 2 | 1619A57 | 00000 |
Ring-Handle Keyed Multipoint Locks
Recessed Mount
 |  |
Black Powder-Coated Steel | Chrome-Plated Steel—Polished |
Keyed Alike—Choose keyed alike locks when you need several locks that open with the same key.
Offset Cam | For Cutout | Quarter-Turn Clockwise or Counterclockwise to Open | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying | For Max. Thk. | For Door Ht. | Latching Distance | Rear Projection | Lg. | Wd. | Dia. | Dp. | Mounting Plate Dia. | Mounting Fasteners Included | Key No. | No. of Keys Included | For Use On | Includes | Each | |||
Black Powder-Coated Steel | ||||||||||||||||||
| Keyed Alike | 5/16" | 6" to 72" | 0" to 1/2" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | CH751 | 2 | Metal | One Reversible Offset Cam | 4029N12 | 000000 | ||
| Keyed Alike | 5/16" | 6" to 72" | 1/2" to 1 1/2" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | CH751 | 2 | Metal | One Reversible Offset Cam | 4029N14 | 00000 | ||
Chrome-Plated Steel—Polished | ||||||||||||||||||
| Keyed Alike | 5/16" | 6" to 72" | 0" to 1/2" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | CH751 | 2 | Metal | One Reversible Offset Cam | 4029N11 | 00000 | ||
| Keyed Alike | 5/16" | 6" to 72" | 1/2" to 1 1/2" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | CH751 | 2 | Metal | One Reversible Offset Cam | 4029N13 | 00000 | ||
 |
One Rod Two Rod Guides Two Bushings |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod, two bushings, and two rod guides.
Rod | Mounting | Mounting Holes | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Material | Dia. | Lg. | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 3/8" | Aluminum, Nylon, Steel | Aluminum | 0.344" | 36" | Steel | No | No. 10 | 0.203" | 4 | One Rod, Two Rod Guides, Two Bushings | 1231A36 | 000000 | |
|
Key No. | Pkg. Qty. | Pkg. | ||
|---|---|---|---|---|
| CH751 | 2 | 1619A57 | 00000 |

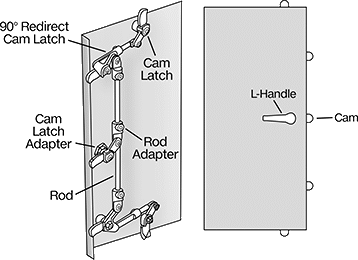

L-Handle Padlockable Multipoint Latches
 |
Design a latching system that fastens doors at multiple points—for extra security, these L-handle latches have a spot for a padlock. The L-handle latch acts as your base. Then add the included cam latch adapter to connect to additional latch points. For each new latch point, you need an inline or 90° cam latch, a rod, and two rod adapters. Weld cam latches to the inside of your enclosure door. These L-handle latches come with multiple cams, so you can change their fixed latching distance.
Through-Hole Mount
 |
Handle | Straight Cam | Offset Cam | Quarter-Turn Clockwise or Counterclockwise to Open | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Through-Hole Dia. | Latching Distance | Lg. | Wd. | Projection | For Max. Padlock Shackle Dia. | Lg. | Wd. | Lg. | Wd. | Mounting Fasteners Included | Includes | Retaining Ring Included | Each | |||
Black Powder-Coated Zinc Alloy | |||||||||||||||||
| 5/16" | 7/8" | 5/16", 11/16", 1 1/8" | 4 1/8" | 1 5/16" | 1 1/2" | 3/8" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | Yes | One Straight Cam, Two Nonreversible Offset Cams | Yes | 5074N12 | 000000 | ||
Chrome-Plated Zinc Alloy—Polished | |||||||||||||||||
| 5/16" | 7/8" | 5/16", 11/16", 1 1/8" | 4 1/8" | 1 5/16" | 1 1/2" | 3/8" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | Yes | One Straight Cam, Two Nonreversible Offset Cams | Yes | 5074N11 | 00000 | ||
316 Stainless Steel—Polished | |||||||||||||||||
| 5/16" | 7/8" | 5/16", 11/16", 1 1/8" | 4 1/8" | 1 5/16" | 1 1/2" | 3/8" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | Yes | One Straight Cam, Two Nonreversible Offset Cams | Yes | 5074N13 | 00000 | ||
|
Cam Latch Adapters |
Through-Hole Dia. | For Min. Rear Projection | Retaining Ring Included | Each | |||
|---|---|---|---|---|---|---|
Cam Latch Adapters—Zinc | ||||||
Quarter-Turn Clockwise or Counterclockwise to Open | ||||||
| 5/16" | 5/8" | Yes | 4975N12 | 00000 | ||
|
Inline Cam Latches |
Inline Cam Latches—Inline cam latches come with multiple cams to accommodate different latching distances.
Straight Cam | Offset Cam | Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | For Through-Hole Dia. | Latching Distance | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
Inline Cam Latch—Zinc—Polished | |||||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
| Left Side, Right Side | 5/16" | 1/4", 5/8", 1" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N19 | 000000 | ||
|
Inline Roller Cam Latches |
Inline Roller Cam Latches—Inline roller cam latches rotate more smoothly than standard inline cam latches, making them easier to open and close. The cam won’t scratch or flake enclosure surfaces to protect electronics inside from paint or metal chips. Good for jobs when precise distances are unknown, they have an adjustable latching distance. Adjust the position of the cam before installing.
Roller Cam | Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Latching Distance | For Through-Hole Dia. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
Inline Roller Cam Latches—Zinc—Polished | ||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | ||||||||||
| 13/16" to 1" | 5/16" | 2 7/16" | 11/16" | No | M6 | Yes | 4975N23 | 000000 | ||
| |
Bottom Left Side Door Mount, Top Right Side Door Mount | Bottom Right Side Door Mount, Top Left Side Door Mount |
90° Redirect Cam Latches—90° redirect cam latches mount to corners, so you can add latch points to the top or bottom of your door. To accommodate different latching distances, they come with multiple cams.
Straight Cam | Offset Cam | Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | Latching Distance | For Through-Hole Dia. | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
90° Redirect Cam Latches—Zinc—Polished | |||||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
| Bottom Left Side, Top Right Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N22 | 000000 | ||
| Bottom Right Side, Top Left Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N21 | 00000 | ||
|
Rod Adapters |
Set Screw | ||||||||
|---|---|---|---|---|---|---|---|---|
For Rod Dia. | Drive Style | Included | Drive Size, mm | Retaining Ring Included | Each | |||
Rod Adapters—Zinc | ||||||||
| 5/16" | Hex | Yes | 3 | No | 4975N11 | 00000 | ||
Paddle-Handle Multipoint Locks
 |
 |
Keyed Alike |
 |
Keyed Differently |
A paddle handle activates the top and bottom spring-loaded latching points to secure large cabinet doors. The handle does not latch. Mount these latches vertically or horizontally. They have two connecting rods that can be cut to fit 3-ft. to 8-ft. high doors.
Mortise Mount
Latch Bolt Housing | For Cutout | Latch Bolt | Mounting | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying | For Door Ht. | For Max. Door Thk. | Rear Projection | Ht. | Wd. | Ht. | Wd. | Projection | Projection | Material | Mounting Hole Ctr.-to-Ctr. | Fasteners Included | Screw Size | Key No. | No. of Keys Included | Includes | Each | |||
Zinc-Plated Steel with Black Powder-Coated Zinc Alloy Handle | ||||||||||||||||||||
| Keyed Alike | 36" to 96" | 2" | 1 13/16" | 4 1/2" | 2 1/4" | 4" | 1 11/16" | 1 3/16" | 5/8" | Plastic | 1 1/4", 1 3/4" | No | No. 10 | TM904 | 2 | Mounting Bracket, Two 1/4" Dia. × 48" Lg. Connecting Rods | 4139N88 | 0000000 | ||
| Keyed Differently | 36" to 96" | 2" | 1 13/16" | 4 1/2" | 2 1/4" | 4" | 1 11/16" | 1 3/16" | 5/8" | Plastic | 1 1/4", 1 3/4" | No | No. 10 | — | 2 | Mounting Bracket, Two 1/4" Dia. × 48" Lg. Connecting Rods | 13835A87 | 000000 | ||
|
Key No. | Each | ||
|---|---|---|---|
| TM904 | 4139N99 | 000000 |
T-Handle Multipoint Latches
 |  |  |  |
Style A | Style B | Style C | Style D |
Style A
|
Style A latches arrive ready for single-point latching; add a latch conversion kit for two-point latching or two latch conversion kits for three-point latching.
Style A latches allow selecting the turn direction when mounting the cam. They come with a reversible offset cam to provide variable latching-distance ranges depending on the cam position.
Latching Distance | Handle | Offset Cam | Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Short | Long | Lg. | Projection | Rear Projection | Lg. | Wd. | Mounting Fasteners Included | For Use On | Includes | Each | |||
Through-Hole Mount | ||||||||||||||||
Zinc-Plated Steel—Dull | ||||||||||||||||
| 1/2" | 20" to 118" | 3/8" | 0" to 1/2" | 1" to 1 1/2" | 2 3/16" | 1 1/4" | 1 3/8" | 1 3/8" | 5/16" | Yes | Metal | One Reversible Offset Cam | 11595A11 | 000000 | ||
| 3/4" | 20" to 118" | 3/8" | 1/16" to 13/16" | 1 1/16" to 1 13/16" | 3" | 1 3/4" | 1 7/8" | 1 5/16" | 5/16" | Yes | Metal | One Reversible Offset Cam | 11595A12 | 00000 | ||
| 1" | 20" to 118" | 1/2" | 0" to 3/4" | 1" to 2 1/4" | 4 1/4" | 2 3/8" | 2" | 1 7/8" | 7/16" | Yes | Metal | One Reversible Offset Cam | 11595A17 | 00000 | ||
Chrome-Plated Steel—Polished | ||||||||||||||||
| 1/2" | 20" to 118" | 3/8" | 0" to 1/2" | 1" to 1 1/2" | 2 3/16" | 1 1/4" | 1 3/8" | 1 3/8" | 5/16" | Yes | Metal | One Reversible Offset Cam | 11595A13 | 00000 | ||
| 3/4" | 20" to 118" | 3/8" | 1/16" to 13/16" | 1 1/16" to 1 13/16" | 3" | 1 3/4" | 1 7/8" | 1 5/16" | 5/16" | Yes | Metal | One Reversible Offset Cam | 11595A14 | 00000 | ||
|
One Rod Two Rod Guides |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
Style B
|
Style B latches arrive ready for single-point latching; add a latch conversion kit for two-point latching or two latch conversion kits for three-point latching.
Style B latches allow selecting the turn direction when mounting the cam.
Handle | Straight Cam | Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Latching Distance | Lg. | Projection | Rear Projection | Lg. | Wd. | Mounting Fasteners Included | For Use On | Includes | Each | |||
Through-Hole Mount | |||||||||||||||
Zinc-Plated Steel—Dull | |||||||||||||||
| 1/2" | 20" to 118" | 3/8" | 1/2" to 1" | 2 3/16" | 1 1/4" | 1 3/8" | 1 3/8" | 5/8" | Yes | Metal | One Straight Cam | 11595A31 | 000000 | ||
| 3/4" | 20" to 118" | 3/8" | 9/16" to 1 5/16" | 3" | 1 3/4" | 1 7/8" | 1 3/8" | 5/16" | Yes | Metal | One Straight Cam | 11595A32 | 00000 | ||
| 1" | 20" to 118" | 1/2" | 1/4" to 1 1/2" | 4 1/4" | 2 3/8" | 2" | 2 1/2" | 7/16" | Yes | Metal | One Straight Cam | 11595A19 | 00000 | ||
|
One Rod Two Rod Guides |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
Style C
 | |
Style C Shown with Two Latch Kits |
Straight Cam | For Cutout | Quarter-Turn Clockwise to Open | Quarter-Turn Counterclockwise to Open | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Door Ht. | Latching Distance | Handle Lg. | Rear Projection | Lg. | Wd. | Ht. | Wd. | Dp. | Mounting Plate Wd. | Mounting Fasteners Included | For Use On | Includes | Each | Each | ||||
Mortise Mount | |||||||||||||||||||
300 Series Stainless Steel with Chrome-Plated Zinc Alloy Handle—Polished | |||||||||||||||||||
| 5/16" | 20" to 118" | 1 1/8" to 1 9/16" | 3 1/4" | 2 9/16" | 2 9/16" | 7/16" | 3 27/32" | 2 27/32" | 1" | 2 13/16" | Yes | Metal | One Straight Cam | 11055A23 | 0000000 | 11055A21 | 0000000 | ||
Steel with Zinc Handle—Dull | |||||||||||||||||||
| 5/16" | 20" to 118" | 1 1/8" to 1 9/16" | 3 1/4" | 2 9/16" | 2 9/16" | 7/16" | 3 27/32" | 2 27/32" | 1" | 2 13/16" | Yes | Metal | One Straight Cam | 11055A34 | 000000 | 11055A35 | 000000 | ||
|
One Rod Two Rod Guides |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
Rod | Mounting | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Dia. | Lg. | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 5/16", 3/4", 1" | Aluminum | 0.344" | 36" | Steel | No | M6 | 0.203" | 4 | One Rod, Two Rod Guides | 11595A52 | 000000 | |
Style D
|
Style D latches require a latch conversion kit to operate. Use the actuator plate from the compatible latch conversion kit for single-point latching, or the entire latch conversion kit for three-point latching. These latches come with three nonreversible offset cams to accommodate different latching distances.
Handle | Offset Cam | Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Latching Distance | Lg. | Projection | Rear Projection | Lg. | Wd. | Mounting Fasteners Included | For Use On | Includes | Each | |||
Through-Hole Mount | |||||||||||||||
Black Powder-Coated Zinc Alloy | |||||||||||||||
| 7/32" | 20" to 118" | 7/8" | 1/8", 3/8", 11/16" | 3 1/4" | 1 1/4" | 1 1/16" | 1 3/4" | 3/4" | Yes | Metal | Three Nonreversible Offset Cams | 11595A24 | 000000 | ||
| 7/32" | 20" to 118" | 7/8" | 15/16", 1 1/4", 1 9/16" | 3 1/4" | 1 1/4" | 1 1/16" | 1 3/4" | 3/4" | Yes | Metal | Three Nonreversible Offset Cams | 11595A25 | 00000 | ||
Chrome-Plated Steel—Polished | |||||||||||||||
| 7/32" | 20" to 118" | 7/8" | 1/8", 3/8", 11/16" | 3 1/4" | 1 1/4" | 1 1/16" | 1 3/4" | 3/4" | Yes | Metal | Three Nonreversible Offset Cams | 11595A22 | 00000 | ||
| 7/32" | 20" to 118" | 7/8" | 15/16", 1 1/4", 1 9/16" | 3 1/4" | 1 1/4" | 1 1/16" | 1 3/4" | 3/4" | Yes | Metal | Three Nonreversible Offset Cams | 11595A23 | 00000 | ||
 |
Two Rods Four Rod Guides |
Rod | Mounting | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Dia., mm | Lg., mm | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 7/32" | Aluminum | 8 | 914 | Steel | No | M5 | 0.203" | 8 | Two Rods, Four Rod Guides | 11595A26 | 000000 | |
Tight-Hold Swing-Handle Keyed Multipoint Locks
 |
Pair a handle with a cam latch and rod to create a keyed latching system that securely fastens doors at multiple points. Also known as compression cam locks, these locks create a tighter hold than a traditional cam lock, making them useful for doors that have a seal. Turn the handle a quarter turn to lock, then turn it another quarter turn to create compression and minimize rattling from vibration. The handle lies flat when locked, which means it won’t snag anything passing by. Choose these locks if you need several locks that open with the same key.
Through-Hole Mount
 |  |
Keyed | Keyed/Padlockable |
Keyed/Padlockable—Add a padlock to keyed/padlockable handles for an added layer of security. These handles are often used in lockout-tagout procedures to ensure equipment is properly shut off.
Handle | For Cutout | Mounting Plate | Mounting | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Lg. | Wd. | Projection | For Max. Padlock Shackle Dia. | Ht. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Key No. | No. of Keys Included | Each | |||
Black Nylon | ||||||||||||||||
Keyed | ||||||||||||||||
| 3/32" | 5 3/4" | 1 1/16" | 13/16" | — | 2" | 1" | 6 3/16" | 1 5/16" | Yes | M4.2 | 1333 | 2 | 5138N19 | 000000 | ||
Keyed/Padlockable | ||||||||||||||||
| 3/32" | 5 3/4" | 1 1/16" | 13/16" | 3/8" | 2" | 1" | 6 3/16" | 1 5/16" | Yes | M4.2 | 1333 | 2 | 5138N21 | 00000 | ||
 |  |  |
Left-Side Door Mount for 2 Rods | Right-Side Door Mount for 1 Rod | Right-Side Door Mount for 2 Rods |
Inline Cam Latches—Weld cam latches to the inside of your enclosure door. All come with multiple cams, so you can change their fixed latching distance.
For 1 Rod—Latches for one rod can be used as the main latch with a handle to control one additional latch point. You can also use them as a final latch point along a line in your multipoint system.
For 2 Rods—Latches for two rods can be used as the main latch with a handle that controls two additional latch points. You can also use them as a midpoint latch that is controlled by the main latch for operating yet another latch along your multipoint system.
Straight Cam | Offset Cam | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | For Max. Thk. | Number of Rods | Latching Distance | Lg. | Wd. | Lg. | Wd. | Each | |||
Inline Cam Latch—Zinc—Dull | |||||||||||
Half-Turn Clockwise to Open | |||||||||||
| Left Side | 3/32" | For 1 Rod | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N13 | 000000 | ||
| Left Side | 3/32" | For 2 Rods | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N11 | 00000 | ||
Half-Turn Counterclockwise to Open | |||||||||||
| Right Side | 3/32" | For 1 Rod | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N14 | 00000 | ||
| Right Side | 3/32" | For 2 Rods | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N12 | 00000 | ||
 |  |  |  |
Bottom Left Side Door Mount | Top Left Side Door Mount | Bottom Right Side Door Mount | Top Right Side Door Mount |
Straight Cam | Offset Cam | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | For Max. Thk. | For No. of Rods | Latching Distance | Lg. | Wd. | Lg. | Wd. | Each | |||
90° Redirect Cam Latches—Zinc—Dull | |||||||||||
Half-Turn Clockwise to Open | |||||||||||
| Bottom Left Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N18 | 000000 | ||
| Top Left Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N17 | 00000 | ||
Half-Turn Counterclockwise to Open | |||||||||||
| Bottom Right Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N16 | 00000 | ||
| Top Right Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N15 | 00000 | ||
L-Handle Multipoint Latches
 |
Use these latches alone for single-point latching. Add latch conversion kits (sold separately) for multipoint latching and extra holding power.
Through-Hole Mount
Handle | Straight Cam | Quarter-Turn Clockwise to Open | Quarter-Turn Counterclockwise to Open | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Door Ht. | For Through-Hole Dia. | Latching Distance | Lg. | Projection | Rear Projection | Lg. | Wd. | Mounting Fasteners Included | For Use On | Includes | Each | Each | ||||
Zinc-Plated Steel with Chrome-Plated Steel Handle—Polished | |||||||||||||||||
| 1/8" | 20" to 118" | 13/16" | 5/8" to 3/4" | 4 7/16" | 1 9/16" | 1 1/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | One Straight Cam | 4925N12 | 000000 | 4925N11 | 000000 | ||
| 1/8" | 20" to 118" | 13/16" | 5/8" to 1 1/4" | 4 7/16" | 1 9/16" | 1 3/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | One Straight Cam | 4925N14 | 00000 | 4925N13 | 00000 | ||
| 1/8" | 20" to 118" | 13/16" | 5/8" to 1 3/4" | 4 7/16" | 1 9/16" | 2 1/4" | 1 1/2" | 1/2" | Yes | Metal, Plastic, Wood | One Straight Cam | 4925N16 | 00000 | 4925N15 | 00000 | ||
|
One Rod Two Rod Guides |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod and two rod guides. One guide attaches to the inside surface of your door, while the other attaches to your frame to create a latching point.
Rod | Mounting | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Dia. | Lg. | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 1/8" | Aluminum | 0.281" | 36" | Steel | No | M5 | 0.203" | 4 | One Rod, Two Rod Guides | 11595A53 | 000000 | |
Ring-Handle Multipoint Latches
Recessed Mount
 |  |
Black Powder-Coated Steel | Chrome-Plated Steel—Polished |
Offset Cam | For Cutout | Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | For Door Ht. | Latching Distance | Rear Projection | Lg. | Wd. | Dia. | Dp. | Mounting Plate Dia. | Mounting Fasteners Included | For Use On | Includes | Each | |||
Black Powder-Coated Steel | |||||||||||||||
| 3/8" | 6" to 72" | 0" to 1/2" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | Metal | One Reversible Offset Cam | 3841N12 | 000000 | ||
| 3/8" | 6" to 72" | 1/2" to 1 1/2" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | Metal | One Reversible Offset Cam | 3841N11 | 00000 | ||
Chrome-Plated Steel—Polished | |||||||||||||||
| 3/8" | 6" to 72" | 0" to 1/2" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | Metal | One Reversible Offset Cam | 1231A42 | 00000 | ||
| 3/8" | 6" to 72" | 1/2" to 1 1/8" | 1 1/2" | 2 1/4" | 7/8" | 2 13/16" | 27/32" | 3 1/4" | Yes | Metal | One Reversible Offset Cam | 1231A41 | 00000 | ||
|
One Rod Two Rod Guides Two Bushings |
Multipoint Latch Conversion Kits—Multipoint latch conversion kits have a rod, two bushings, and two rod guides.
Rod | Mounting | Mounting Holes | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Material | Material | Dia. | Lg. | Guide Material | Fasteners Included | Screw Size | Dia. | No. of | Includes | Each | ||
| 3/8" | Aluminum, Nylon, Steel | Aluminum | 0.344" | 36" | Steel | No | No. 10 | 0.203" | 4 | One Rod, Two Rod Guides, Two Bushings | 1231A36 | 000000 | |
Swing-Handle Keyed Multipoint Locks
 |
Create a keyed locking system that fastens doors at multiple points. The swing-handle lock rotates smoothly when you lift the handle to latch and unlatch the door. The handle lies flat when locked, which means it won’t snag anything passing by. This lock is often installed on server cabinets and electrical panels. It comes with multiple cams, so you can change its fixed latching distance.
You first need a swing-handle lock, which acts as the base for these locks. Add a latch point by connecting an inline or 90° cam latch using a cam latch adapter (sold separately). For each latch point, you’ll need a cam latch, a rod, and two rod adapters. Weld cam latches to the inside of your enclosure door.
Through-Hole Mount
 |
Keyed Alike—Choose keyed alike locks when you need several locks that open with the same key.
Keyed Differently—Choose keyed differently locks when you need locks that each open with a separate key.
Handle | Straight Cam | Offset Cam | For Cutout | Mounting Plate | Mounting | Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying | For Max. Thk. | Latching Distance | Lg. | Wd. | Projection | Lg. | Wd. | Lg. | Wd. | Ht. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Key No. | No. of Keys Included | Includes | Retaining Ring Included | Each | |||
Black Powder-Coated Zinc Alloy | |||||||||||||||||||||||
| Keyed Alike | 3/32" | 5/16", 23/32", 1 3/32" | 4 5/16" | 11/16" | 1/2" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 2" | 1" | 5 1/4" | 1 7/16" | Yes | M4 | 1333 | 2 | One Straight Cam, Two Nonreversible Offset Cams | Yes | 5124N13 | 000000 | ||
| Keyed Differently | 3/32" | 5/16", 23/32", 1 3/32" | 4 5/16" | 11/16" | 1/2" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 2" | 1" | 5 1/4" | 1 7/16" | Yes | M4 | — | 2 | One Straight Cam, Two Nonreversible Offset Cams | Yes | 5124N14 | 00000 | ||
Chrome-Plated Zinc Alloy | |||||||||||||||||||||||
| Keyed Alike | 3/32" | 5/16", 23/32", 1 3/32" | 4 5/16" | 11/16" | 1/2" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 2" | 1" | 5 1/4" | 1 7/16" | Yes | M4 | 1333 | 2 | One Straight Cam, Two Nonreversible Offset Cams | Yes | 5124N11 | 00000 | ||
| Keyed Differently | 3/32" | 5/16", 23/32", 1 3/32" | 4 5/16" | 11/16" | 1/2" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 2" | 1" | 5 1/4" | 1 7/16" | Yes | M4 | — | 2 | One Straight Cam, Two Nonreversible Offset Cams | Yes | 5124N12 | 00000 | ||
|
Cam Latch Adapters |
Through-Hole Dia. | For Min. Rear Projection | Retaining Ring Included | Each | |||
|---|---|---|---|---|---|---|
Cam Latch Adapters—Zinc | ||||||
Quarter-Turn Clockwise or Counterclockwise to Open | ||||||
| 5/16" | 5/8" | Yes | 4975N12 | 00000 | ||
|
Inline Cam Latches |
Inline Cam Latches—Inline cam latches come with multiple cams to accommodate different latching distances.
Straight Cam | Offset Cam | Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | For Through-Hole Dia. | Latching Distance | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
Inline Cam Latch—Zinc—Polished | |||||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
| Left Side, Right Side | 5/16" | 1/4", 5/8", 1" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N19 | 000000 | ||
|
Inline Roller Cam Latches |
Inline Roller Cam Latches—Inline roller cam latches rotate more smoothly than standard inline cam latches, making them easier to open and close. The cam won't scrape paint or metal chips off the frame that can damage items in your enclosures. It also compresses a bit to help minimize rattling from vibration. Good for jobs when precise distances are unknown, these latches have an adjustable latching distance. Adjust the position of the cam before installing.
Roller Cam | Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Latching Distance | For Through-Hole Dia. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
Inline Roller Cam Latches—Zinc—Polished | ||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | ||||||||||
| 13/16" to 1" | 5/16" | 2 7/16" | 11/16" | No | M6 | Yes | 4975N23 | 000000 | ||
| |
Bottom Left Side Door Mount, Top Right Side Door Mount | Bottom Right Side Door Mount, Top Left Side Door Mount |
90° Redirect Cam Latches—Use 90° redirect cam latches on the inside corners of your door to redirect your multi-point latching system 90° and add additional points along other edges of the door. They come with multiple cams, so you can change their fixed latching distance.
Straight Cam | Offset Cam | Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | Latching Distance | For Through-Hole Dia. | Lg. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Retaining Ring Included | Each | |||
90° Redirect Cam Latches—Zinc—Polished | |||||||||||||
Quarter-Turn Clockwise or Counterclockwise to Open | |||||||||||||
| Bottom Left Side, Top Right Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N22 | 000000 | ||
| Bottom Right Side, Top Left Side | 1/4", 5/8" | 5/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | No | M6 | Yes | 4975N21 | 00000 | ||
|
Rod Adapters |
Set Screw | ||||||||
|---|---|---|---|---|---|---|---|---|
For Rod Dia. | Drive Style | Included | Drive Size, mm | Retaining Ring Included | Each | |||
Rod Adapters—Zinc | ||||||||
| 5/16" | Hex | Yes | 3 | No | 4975N11 | 00000 | ||
Tight-Hold Swing-Handle Padlockable Multipoint Latches
 |
Join a handle with a cam latch and rod to create a padlockable latching system that securely fastens doors at multiple points. The handle lies flat when locked, which means it won’t snag anything passing by. Also known as compression cam latches, these latches create a tighter hold than a traditional cam latch, making them useful for doors that have a seal. Turn the handle a quarter turn to lock, then turn it another quarter turn to create compression and minimize rattling from vibration. Add a padlock for extra security.
Through-Hole Mount
 |
Padlockable |
Handle | For Cutout | Mounting Plate | Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Thk. | Lg. | Wd. | Projection | For Max. Padlock Shackle Dia. | Ht. | Wd. | Lg. | Wd. | Fasteners Included | Screw Size | Each | |||
Black Nylon | ||||||||||||||
Padlockable | ||||||||||||||
| 3/32" | 5 3/4" | 1 1/16" | 13/16" | 3/8" | 2" | 1" | 6 3/16" | 1 5/16" | Yes | M4.2 | 5141N11 | 000000 | ||
| | |
Left-Side Door Mount for 2 Rods | Right-Side Door Mount for 1 Rod | Right-Side Door Mount for 2 Rods |
Inline Cam Latches—Weld cam latches to the inside of your enclosure door. All come with multiple cams, so you can change their fixed latching distance.
For 1 Rod—Latches for one rod can be used as the main latch with a handle to control one additional latch point. You can also use them as a final latch point along a line in your multipoint system.
For 2 Rods—Latches for two rods can be used as the main latch with a handle that controls two additional latch points. You can also use them as a midpoint latch that is controlled by the main latch for operating yet another latch along your multipoint system.
Straight Cam | Offset Cam | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | For Max. Thk. | Number of Rods | Latching Distance | Lg. | Wd. | Lg. | Wd. | Each | |||
Inline Cam Latch—Zinc—Dull | |||||||||||
Half-Turn Clockwise to Open | |||||||||||
| Left Side | 3/32" | For 1 Rod | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N13 | 000000 | ||
| Left Side | 3/32" | For 2 Rods | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N11 | 00000 | ||
Half-Turn Counterclockwise to Open | |||||||||||
| Right Side | 3/32" | For 1 Rod | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N14 | 00000 | ||
| Right Side | 3/32" | For 2 Rods | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N12 | 00000 | ||
| | | |
Bottom Left Side Door Mount | Top Left Side Door Mount | Bottom Right Side Door Mount | Top Right Side Door Mount |
Straight Cam | Offset Cam | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Door Mounting Location | For Max. Thk. | For No. of Rods | Latching Distance | Lg. | Wd. | Lg. | Wd. | Each | |||
90° Redirect Cam Latches—Zinc—Dull | |||||||||||
Half-Turn Clockwise to Open | |||||||||||
| Bottom Left Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N18 | 000000 | ||
| Top Left Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N17 | 00000 | ||
Half-Turn Counterclockwise to Open | |||||||||||
| Bottom Right Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N16 | 00000 | ||
| Top Right Side | 3/32" | 2 | 1 1/16", 1 5/16", 1 9/16" | 1 3/4" | 3/4" | 1 3/4" | 3/4" | 5138N15 | 00000 | ||
