    73 Products

    Nonsparking Combination Wrenches

    Image of Product. Front orientation. Combination Wrenches. Nonsparking Combination Wrenches.
    Image of Attribute. Front orientation. Contains Annotated. Nonsparking Combination Wrenches.
    Image of Attribute. Front orientation. Contains Annotated. Nonsparking Combination Wrenches.
    Image of Specification. 12-Point Opening. Front orientation. ZoomedIn view. Contains Border. 12-Point Opening. Nonsparking Combination Wrenches.

    12-Point

    Opening

    Made of aluminum bronze that is FM approved, these wrenches won't create sparks even when scraped, struck, or dropped. They help you meet OSHA requirements when turning nuts and bolts in hazardous environments with flammable vapors, liquids, or dust. Use them everywhere from oil refineries to chemicals plants.
    Warning: Do not use these tools in direct contact with acetylene.
    12-Point Opening—The most common opening, these wrenches work on hex and 12-point nuts and bolts. They slide onto hex heads at more angles than 6-point fasteners for quicker engagement, but they're more likely to slip when you apply more torque.
    Box End
    Open
    End
    Drive
    Size
    Overall
    Lg.
    Head Offset
    Angle
    Head
    Thick.
    Opening
    Angle
    Head
    Thick.
    Certification
    Each
    12-Point Opening

    Aluminum Bronze
    3/8"6 1/4"15°3/8"15°15/64"FM Approved
    		6506A12000000
    7/16"6 7/8"15°3/8"15°15/64"FM Approved
    		6506A1300000
    1/2"7 1/2"15°27/64"15°17/64"FM Approved
    		6506A1400000
    9/16"8"15°27/64"15°17/64"FM Approved
    		6506A1500000
    5/8"8 7/8"15°15/32"15°9/32"FM Approved
    		6506A1600000
    11/16"9 5/8"15°31/64"15°23/64"FM Approved
    		6506A1700000
    3/4"10 3/4"15°31/64"15°23/64"FM Approved
    		6506A1800000
    7/8"11 5/8"15°33/64"15°3/8"FM Approved
    		6506A19000000
    15/16"12 7/8"15°9/16"15°27/64"FM Approved
    		6506A33000000
    1"14"15°9/16"15°27/64"FM Approved
    		6506A21000000
    1 1/16"14"15°9/16"15°27/64"FM Approved
    		6506A22000000
    1 1/8"15 3/8"15°11/16"15°31/64"FM Approved
    		6506A23000000
    1 1/4"17"15°11/16"15°31/64"FM Approved
    		6506A24000000
    1 5/16"17"15°11/16"15°31/64"FM Approved
    		6506A25000000
    1 3/8"19"15°45/64"15°9/16"FM Approved
    		6506A26000000
    1 7/16"19"15°45/64"15°9/16"FM Approved
    		6506A27000000
    1 1/2"19"15°45/64"15°9/16"FM Approved
    		6506A28000000
    1 5/8"20 7/8"15°49/64"15°19/32"FM Approved
    		6506A29000000
    8 mm4 1/2"15°3/16"15°5/16"FM Approved
    		6506A5100000
    10 mm6 3/8"15°3/16"15°5/16"FM Approved
    		6506A5200000
    11 mm6 7/8"15°1/4"15°3/8"FM Approved
    		6506A3100000
    12 mm7 1/2"15°5/16"15°7/16"FM Approved
    		6506A3200000
    13 mm8 1/8"15°5/16"15°7/16"FM Approved
    		6506A5300000
    14 mm8 1/8"15°5/16"15°7/16"FM Approved
    		6506A3400000
    15 mm8 7/8"15°5/16"15°1/2"FM Approved
    		6506A3500000
    16 mm8 7/8"15°5/16"15°1/2"FM Approved
    		6506A3600000
    17 mm9 5/8"15°3/8"15°1/2"FM Approved
    		6506A5400000
    18 mm9 5/8"15°3/8"15°1/2"FM Approved
    		6506A3700000
    19 mm10 5/8"15°3/8"15°1/2"FM Approved
    		6506A5500000
    22 mm11 5/8"15°3/8"15°9/16"FM Approved
    		6506A56000000


    Nonsparking Drum Plug Wrenches

    Image of Product. Front orientation. Drum Plug Wrenches. Nonsparking Drum Plug Wrenches, Style A.
    Image of Product. Front orientation. Drum Plug Wrenches. Nonsparking Drum Plug Wrenches, Style B.
    Image of Product. Front orientation. Drum Plug Wrenches. Nonsparking Drum Plug Wrenches, Style C.
    Image of Product. Front orientation. Drum Plug Wrenches. Nonsparking Drum Plug Wrenches, Style D.

    Style A

    Style B

    Style C

    Style D

    Image of Attribute. Front orientation. Contains Annotated, Border. Nonsparking Drum Plug Wrenches.
    These wrenches inhibit sparking, making them suitable for use around flammable liquids and vapors. Also known as bung wrenches, they install and remove screw-in drum plugs. Their corrosion resistance withstands exposure to chemicals commonly stored in drums.
    Manganese Bronze—The highest impact and wear resistance, handling seized or overtightened plugs without deforming.

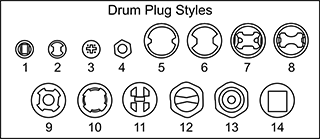

    For
    Drum Plug
    Style
    Style
    Size
    Material
    Overall
    Lg.
    Material
    Magnetic
    Properties
    Certification
    Each
    A1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 123/4", 2"Plastic, Steel10 1/2"Aluminum
    		——6512A12000000
    B1, 2, 4, 5, 6, 7, 8, 9, 12, 143/4", 2"Plastic, Steel15 1/4"Aluminum BronzeNonmagneticFM Approved
    		6496A1000000
    C1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 143/4", 2"Plastic, Steel15 1/2"Manganese Bronze——5600A31000000
    D1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 123/4", 2"Plastic, Steel18"Manganese Bronze——5626A14000000


    Nonsparking Adjustable Wrenches

    Image of Product. Front orientation. Adjustable Wrenches. Nonsparking Adjustable Wrenches.
    Made of FM-approved aluminum bronze, these wrenches won't create sparks when scraped, struck, or dropped. They meet OSHA requirements when turning nuts and bolts in hazardous environments with flammable vapors, liquids, or dust. Use them everywhere from oil refineries to chemical plants.
    Warning: Do not use these tools in direct contact with acetylene.
    Plain Grip
    Overall
    Lg.
    Max. Jaw
    Cap.
    Certification
    Each
    Aluminum Bronze
    6"15/16"FM Approved
    		6502A1000000
    8"1 1/8"FM Approved
    		6502A200000
    10"1 5/16"FM Approved
    		6502A3000000
    12"1 1/2"FM Approved
    		6502A4000000
    15"1 11/16"FM Approved
    		6502A5000000


    Nonsparking Open-End Wrenches

    Image of Product. Front orientation. Open-End Wrenches. Nonsparking Open-End Wrenches.
    Image of Attribute. Front orientation. Contains Annotated. Nonsparking Open-End Wrenches.
    Image of Specification. Front orientation. ZoomedIn view. Contains Border. Round Opening. Nonsparking Open-End Wrenches.

    Round

    Opening

    Safely turn nuts and bolts in hazardous environments with flammable vapors, liquids, or dust. Made of FM-approved aluminum bronze, these wrenches won't create sparks even when scraped, struck, or dropped. All help you meet OSHA requirements for nonsparking tools and won’t weaken or rust when exposed to moisture and chemicals. Use them everywhere from oil refineries to chemicals plants.
    Warning: Do not use these tools in direct contact with acetylene.
    Round Opening—The rounded edges spread force evenly to prevent stripping your fasteners. Use them on hex-head fasteners.
    Drive Size
    Overall
    Lg.
    Opening
    Angle
    Head
    Thickness
    Certification
    Each
    Round Opening

    Aluminum Bronze
    1/4" × 5/16"5 1/4"15°1/4"FM Approved
    		6499A31000000
    3/8" × 7/16"5 1/4"15°1/4"FM Approved
    		6499A3200000
    7/16" × 1/2"5 1/4"15°1/4"FM Approved
    		6499A1100000
    1/2" × 5/8"6"15°1/4"FM Approved
    		6499A1200000
    9/16" × 5/8"6"15°5/16"FM Approved
    		6499A1300000
    9/16" × 3/4"6 3/4"15°5/16"FM Approved
    		6499A1400000
    11/16" × 7/8"8 1/4"15°3/8"FM Approved
    		6499A3600000
    3/4" × 13/16"8 1/8"15°3/8"FM Approved
    		6499A4100000
    3/4" × 7/8"8 1/8"15°3/8"FM Approved
    		6499A3700000
    7/8" × 15/16"9 1/4"15°7/16"FM Approved
    		6499A1700000
    1" × 1 1/8"10 1/4"15°1/2"FM Approved
    		6499A18000000
    1 1/16" × 1 1/4"12 1/2"15°1/2"FM Approved
    		6499A19000000
    1 1/8" × 1 5/16"12 1/2"15°1/2"FM Approved
    		6499A21000000


    Nonsparking Combination Wrench Sets

    Image of Product. Front orientation. Combination Wrenches. Nonsparking Combination Wrench Sets.
    Image of Attribute. Front orientation. Contains Annotated. Nonsparking Combination Wrench Sets.
    Image of Attribute. Front orientation. Contains Annotated. Nonsparking Combination Wrench Sets.
    Image of Specification. 12-Point Opening. Front orientation. ZoomedIn view. Contains Border. 12-Point Opening. Nonsparking Combination Wrench Sets.

    12-Point

    Opening

    Made of aluminum bronze that is FM approved, these wrench sets won't create sparks even when scraped, struck, or dropped. They help you meet OSHA requirements when turning nuts and bolts in hazardous environments with flammable vapors, liquids, or dust. Use them everywhere from oil refineries to chemicals plants.
    Warning: Do not use these tools in direct contact with acetylene.
    12-Point Opening—The most common opening, these wrenches work on hex and 12-point nuts and bolts. They slide onto hex heads at more angles than 6-point fasteners for quicker engagement, but they're more likely to slip when you apply more torque.
    No. of
    Pieces
    Drive Size
    Overall Lg.
    Box-End Head
    Offset Angle
    Open-End Opening
    Angle
    Material
    Container Type
    Certification
    Each
    12-Point Opening
    67/16", 1/2", 9/16", 5/8", 3/4", 1 1/8"6 7/8" to 15 3/8"15°15°Aluminum BronzeFabric Roll-Up PouchFM Approved
    		6506A410000000
    73/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8"6 1/4" to 11 5/8"15°15°Aluminum BronzeFabric Roll-Up PouchFM Approved
    		6506A42000000


    Nonsparking Pipe Wrenches

    Image of Product. Front orientation. Pipe Wrenches. Nonsparking Pipe Wrenches.
    Made of materials that are Factory Mutual approved, these wrenches inhibit sparking and are nonmagnetic and corrosion resistant. They satisfy OSHA requirements that specify nonsparking tools for locations where flammable vapors and combustible residues are present.
    Warning: Do not use these tools in direct contact with acetylene.
    Wrenches
    Replacement
    Jaw Inserts
    Jaw
    Aluminum
    Aluminum Bronze
    Overall
    Lg.
    Max.
    Cap.
    Material
    Texture
    Insert Material
    Certification
    Each
    Each
    Each
    Straight Jaw
    8"1 15/16"Aluminum BronzeSerratedBeryllium CopperFM Approved
    		———06498A100000006461A61000000
    10"2 1/2"Aluminum BronzeSerratedBeryllium CopperFM Approved
    		6461A2100000006498A20000006461A6200000
    14"2 13/16"Aluminum BronzeSerratedBeryllium CopperFM Approved
    		6461A220000006498A30000006461A6300000
    18"3 3/16"Aluminum BronzeSerratedBeryllium CopperFM Approved
    		6461A230000006498A40000006461A6400000
    24"4 1/4"Aluminum BronzeSerratedBeryllium CopperFM Approved
    		6461A240000006498A50000006461A6500000
    36"5 11/16"Aluminum BronzeSerratedBeryllium CopperFM Approved
    		6461A250000006498A60000006461A6600000


    Nonsparking Nonmarring Pipe Wrenches

    Image of Product. Front orientation. Pipe Wrenches. Nonsparking Nonmarring Pipe Wrenches.
    Also known as railroad wrenches, these tools have smooth jaws that won't scratch your workpiece. Made of aluminum bronze that is Factory Mutual approved, they inhibit sparking and are nonmagnetic and corrosion resistant. Wrenches satisfy OSHA requirements that specify nonsparking tools for locations where flammable vapors and combustible residues are present.
    Warning: Do not use these tools in direct contact with acetylene.
    Jaw
    Overall
    Lg.
    Max.
    Cap.
    Material
    Texture
    Certification
    Each
    Straight Jaw

    Aluminum Bronze
    15"2 13/16"Aluminum BronzeSmoothFM Approved
    		6482A120000000
    18"3"Aluminum BronzeSmoothFM Approved
    		6482A16000000
