Legal-for-Trade Floor Scales with Remote Display
Keep a safe distance when weighing large loads—these scales have a remote display that can be mounted up to 20 feet from the platform. They are NTEP approved for use with products sold by weight. The tare function lets you reset the scale to zero after placing a container on the platform.
Side rails keep loads in place on the platform.
Adjustable mounting feet compensate for uneven floor surfaces.
Scales | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Platform | Optional Ramps | |||||||||||||||
| Capacity | Accuracy | Graduations | Side Rail Ht. | Wd. | Dp. | Shape | Material | Plug Type | Cord Lg., ft. | Mount. Fasteners Included for Display | Mount. Hole Dia. for Display | Features | Each | Each | ||
Pounds, Kilograms | ||||||||||||||||
| 1,000 lbs. (450 kg) | ±0.1 lbs. (±0.05 kg) | 0.2 lbs (0.1 kg) | 3 1/4" | 30" | 30" | Square | Steel | Three Prong | 10 | No | 5/16" | Tare Function | 0000000 | 000000000 | 0000000 | 0000000 |
| 1,000 lbs. (450 kg) | ±0.1 lbs. (±0.05 kg) | 0.2 lbs (0.1 kg) | __ | 48" | 48" | Square | Steel | Three Prong | 10 | No | 5/16" | Adjustable Mounting Feet, Tare Function | 00000000 | 00000000 | 00000000 | 000000 |
| 2,500 lbs (1,130 kg) | ±0.25 lbs. (±0.1 kg) | 0.5 lbs. (0.2 kg) | 3 1/4" | 36" | 36" | Square | Steel | Three Prong | 10 | No | 5/16" | Tare Function | 0000000 | 00000000 | 0000000 | 000000 |
| 2,000 lbs (900 kg) | ±0.25 lbs. (±0.1 kg) | 0.5 lbs. (0.2 kg) | __ | 48" | 48" | Square | Steel | Three Prong | 10 | No | 5/16" | Adjustable Mounting Feet, Tare Function | 00000000 | 00000000 | 00000000 | 000000 |
| 5,000 lbs. (2,260 kg) | ±0.5 lbs. (±0.25 kg) | 1 lbs. (0.5 kg) | __ | 48" | 48" | Square | Steel | Three Prong | 10 | No | 5/16" | Adjustable Mounting Feet, Tare Function | 00000000 | 00000000 | 00000000 | 000000 |
| 10,000 lbs. (4,530 kg) | ±1 lbs. (±0.5 kg) | 2 lbs (1 kg) | __ | 48" | 48" | Square | Steel | Three Prong | 10 | No | 5/16" | Adjustable Mounting Feet, Tare Function | 00000000 | 00000000 | 00000000 | 000000 |
Washdown Legal-For-Trade Floor Scales with Remote Display
These scales are NTEP approved as legal for trade and have an IP69K rated load cell for use in washdown environments. They withstand exposure to dust and moisture, including the frequent high-pressure, high-temperature washdowns commonly used in outdoor industrial environments, food processing facilities, and chemical plants. Plus, the scale-to-display junction box meets NEMA 4X standards for protection against washdowns and corrosion.
Also known as platform scales, these have a low profile so you only need to lift heavy objects 3" off the ground. Their stainless steel construction and a ribbed structural underside give them the necessary support to weigh thousands of pounds at a time. To keep items in place, a diamond tread on the platform provides slip resistance. The load cells in these scales are FM approved, so they’ve been tested for quality and safety by Factory Mutual.
Subtract the weight of a container with the tare function to weigh only the material inside. Use the counting mode to keep a running tally of how many items are on the scale.
Mount the remote display at a distance on a workstation, column, or wall—the connecting cable is 22 feet long. The backlit display features 1"-tall digits for easy reading.
Install optional ramps to slide or wheel heavy loads onto scales. If you install two ramps, they must be on opposite ends.
Scales | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Platform | Optional Ramps | ||||||||||||||
| Capacity | Accuracy | Graduations | Wd. | Dp. | Material | Plug Type | Cord Lg., ft. | Mount. Fasteners Included for Display | Mount. Hole Dia. for Display | Features | Environmental Rating | Each | Each | ||
Grams, Kilograms, Ounces, Pounds | |||||||||||||||
| 2,500 lbs. (1,130 kg) | ±2.5 lbs. (±1.13 kg) | 0.5 lbs. (0.2 kg) | 36" | 36" | Stainless Steel | Three Prong | 8 | No | 9/16" | Tare Function Counting Mode Print Function | IP69K, NEMA 4X | 0000000 | 000000000 | 0000000 | 000000000 |
| 5,000 lbs. (2,260 kg) | ±5 lbs. (±2.26 kg) | 1 lbs. (0.5 kg) | 48" | 48" | Stainless Steel | Three Prong | 8 | No | 9/16" | Tare Function Counting Mode Print Function | IP69K, NEMA 4X | 0000000 | 00000000 | 0000000 | 00000000 |
Floor Scales with Remote Display
Position the display up to 14 feet from the platform for reading at a safe distance. The platform has a ramp on both sides for loading material. Scales have a 9-pin RS-232 serial port to connect to your PC with a data cord (sold separately). The tare function lets you reset the scale to zero after placing a container on the platform. Scales operate on an AC adapter or batteries (not included).
Optional data logging software (sold separately) is Windows compatible and allows you to upload data.
Platform | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Accuracy | Graduations | Wd. | Dp. | Shape | Material | Overall Ht. | Voltage | Battery Size | Number of Batteries Required | Wheel Material | Number of Wheels | Features | Each | |
Pounds, Kilograms | |||||||||||||||
| 500 lbs. (220 kg) | ±0.2 lbs. (±0.1 kg) | 0.2 lbs. (0.1 kg) | 32 1/2" | 30" | Rectangular | Steel | 3 1/2" | 120V AC | AA | 6 | Plastic | 2 | Tare Function | 0000000 | 000000000 |
| 1,000 lbs. (450 kg) | ±0.5 lbs. (±0.2 kg) | 0.5 lbs. (0.2 kg) | 32 1/2" | 30" | Rectangular | Steel | 3 1/2" | 120V AC | AA | 6 | Plastic | 2 | Tare Function | 0000000 | 00000000 |
| Optional Data Logging Software | 000000 | Each | 0000000 |
Digital Bench-Top Scales with Remote Display
Weigh loads on your benchtop without obstructing the display. The tare function lets you reset the scale to zero after placing a container on the platform. Scales operate on the included AC adapter or batteries (not included).
Platform | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Accuracy | Graduations | Wd. | Dp. | Material | Voltage | Battery Size | Number of Batteries Required | Mount. Fasteners Included for Display | Mount. Hole Dia. for Display | Features | Each | |
Pounds, Kilograms | |||||||||||||
| 150 lbs. (68 kg) | ±0.4 lbs. (±0.2 kg) | 0.2 lbs. (0.1 kg) | 12 1/2" | 12" | Steel | 120V AC | 9V | 1 | No | 1/4" | Tare Function | 00000000 | 0000000 |
| 150 lbs. (75 kg) | ±0.1 lbs. (±0.05 kg) | 0.1 lbs. (0.05 kg) | 20 1/2" | 15.7" | Steel | 120V AC 240V AC | AA | 3 | No | 10mm | Tare Function | 00000000 | 000000 |
| 400 lbs. (180 kg) | ±1 lbs. (±0.4 kg) | 0.5 lbs. (0.2 kg) | 12 1/4" | 12" | Steel | 120V AC | 9V | 1 | No | 1/4" | Tare Function | 00000000 | 000000 |

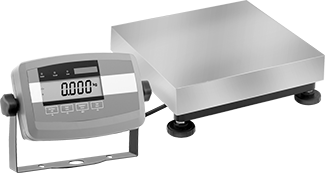

Legal-for-Trade Bench-Top Scales with Remote Display
Position the display up to 6 feet from the platform for an unobstructed view when weighing large loads. These scales are NTEP approved for weighing materials sold by weight. All have a tare function that lets you reset the scale to zero after placing a container on the platform. They have a power cord.
For technical drawings and 3-D models, click on a part number.
Platform | Overall | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Accuracy | Graduations | Wd. | Dp. | Shape | Material | Ht. | Wd. | Dp. | Column Ht. | Voltage | Plug Type | Mount. Fasteners Included for Display | Features | Each | |
Pounds, Kilograms | ||||||||||||||||
| 25.000 lbs. (12.500 kg) | ±0.001 lbs. (±0.001 kg) | 0.001 lbs. (0.005 kg) | 12" | 12" | Square | Stainless Steel | 22 5/8" | 12" | 17 3/8" | 13 3/4" | 120V AC 240V AC | Three Prong | Yes | Tare Function | 0000000 | 000000000 |
| 50.000 lbs. (25.000 kg) | ±0.002 lbs. (±0.001 kg) | 0.002 lbs. (0.001 kg) | 12" | 12" | Square | Stainless Steel | 22 5/8" | 12" | 17 3/8" | 13 3/4" | 120V AC 240V AC | Three Prong | Yes | Tare Function | 0000000 | 00000000 |
| 100.000 lbs. (50.000 kg) | ±0.005 lbs. (±0.002 kg) | 0.005 lbs. (0.002 kg) | 18" | 18" | Square | Stainless Steel | 35 5/8" | 18" | 24 3/4" | 26 3/4" | 120V AC 240V AC | Three Prong | Yes | Tare Function | 0000000 | 00000000 |
| 250.000 lbs. (125.000 kg) | ±0.01 lbs. (±0.005 kg) | 0.01 lbs. (0.005 kg) | 18" | 18" | Square | Stainless Steel | 35 5/8" | 18" | 24 3/4" | 26 3/4" | 120V AC 240V AC | Three Prong | Yes | Tare Function | 0000000 | 00000000 |
| 500.000 lbs. (250.000 kg) | ±0.02 lbs. (±0.01 kg) | 0.02 lbs. (0.01 kg) | 24" | 24" | Square | Stainless Steel | 35 5/8" | 24" | 30 1/2" | 38 1/2" | 120V AC 240V AC | Three Prong | Yes | Tare Function | 0000000 | 00000000 |
Forklift Forks with Embedded Scale
Check the weight of your load without leaving your forklift. These forks have an embedded scale that uses Bluetooth to send measurements. For easy viewing, clamp the remote display onto your forklift’s dashboard or mast. You can also link the scale to your smartphone or tablet to view, log, and export data from an app.
To measure the weight of your load alone, place an empty pallet on the forks and press the tare button. Then either load up the pallet or remove it and pick up a different, pre-loaded pallet with the forks. The scale also has tilt compensation, so it’s accurate even if the mast is not perfectly vertical.
Use these forks with any forklift equipped with an Industrial Truck Association (ITA) Class II carriage. They slide into forklift pockets just like any other forks. To minimize downtime, each fork has its own battery that lasts up to 75 hours on a single charge.
Forks cannot be sold to Canada due to energy efficiency regulations.
Warning: Distribute your load evenly across the forks to prevent overloading one side or the tips. Never use to lift people or items over people.
| For ITA Carriage Class | Distance Between Carriage Hooks | Lg. | Wd. | Thick. | Capacity per Pair | Material | Color | Accuracy | Graduations | Scale | Batteries Included | Battery Charger Included | Remote Display Batteries Included | Data Connection | Features | Cannot Be Sold To | Pair | |
| Class II | 16" | 42" | 5 5/16" | 2 5/16" | 5,000 lbs. (2,260 kg) | Steel | Red | ±0.1% | 2 lbs., 5 lbs. (0.9 kg, 2.2 kg) | Pounds, Kilograms | Yes | Yes | Yes | Bluetooth | Tare Function, Tilt Compensation | Canada | 00000000 | 000000000 |
| Battery Chemistry | Voltage | Pair | |
| Lithium Ion (Li-Ion) | 3.7V DC | 00000000 | 0000000 |
Forklift Forks with Legal-for-Trade Embedded Scale
Weigh materials sold by weight right from your forklift—these forks have an embedded scale that’s NTEP certified for accuracy. For easy viewing, clamp the remote display to your forklift’s dashboard or mast. The scale uses Bluetooth to send measurements. You can also link the scale to your smartphone or tablet to view, log, and export data from an app.
To measure the weight of your load alone, place an empty pallet on the forks and press the tare button. Then either load up the pallet or remove it and pick up a different, pre-loaded pallet with the forks. The scale also has tilt compensation, so it’s accurate even if the mast is not perfectly vertical.
Use these forks with any forklift equipped with an Industrial Truck Association (ITA) Class II carriage. They slide into forklift pockets just like any other forks. To minimize downtime, each fork has its own battery that lasts up to 75 hours on a single charge.
Forks cannot be sold to Canada due to energy efficiency regulations.
Warning: Distribute your load evenly across the forks to prevent overloading one side or the tips. Never use to lift people or items over people.
| For ITA Carriage Class | Distance Between Carriage Hooks | Lg. | Wd. | Thick. | Capacity per Pair | Material | Color | Accuracy | Graduations | Scale | Batteries Included | Battery Charger Included | Remote Display Batteries Included | Data Connection | Features | Cannot Be Sold To | Pair | |
| Class II | 16" | 42" | 5 5/16" | 2 5/16" | 5,000 lbs. (2,260 kg) | Steel | Red | ±0.1% | 2 lbs., 5 lbs. (0.9 kg, 2.2 kg) | Pounds, Kilograms | Yes | Yes | Yes | Bluetooth | Tare Function, Tilt Compensation | Canada | 00000000 | 000000000 |
| Battery Chemistry | Voltage | Pair | |
| Lithium Ion (Li-Ion) | 3.7V DC | 00000000 | 0000000 |
Remote-Reading Tension Force Gauges
Safely view your tension force measurements on a handheld receiver up to 450 ft. away when moving bulk material with cranes and hoists. These gauges are also called dynamometers and crane scales. Made of steel, they’re durable enough to briefly hold heavy loads up to 500% of their capacity. But, they will no longer take measurements if the load exceeds 200%. Warning lights will flash first when your load exceeds capacity, then again when it reaches 133% capacity. To prevent overloads, the peak-hold setting displays the highest measurement. The tare function lets you reset the gauge to zero after attaching a container to weigh only the material inside. These gauges include a calibration certificate traceable to NIST that states they’ve passed a test for accuracy. They also meet IEC and ASME safety and fatigue standards.
Because their indicators and load cells are IP rated, these gauges stand up to washdowns and brief submersion common to food and chemical plants. They’re also safe to use outdoors since they’re NEMA rated to seal out weather.
These gauges come with two shackles that work with other lifting fittings, such as clevis hooks. The included batteries power their load cells for up to 2,000 hours.
Capacity | Accuracy | Measuring Increments | Shackle | Temp. Range, °F | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| English | Metric | Newtons | English | Metric | Newtons | English | Metric | Newtons | Ht. | Wd. | Dp. | Opening Ht. | Opening Wd. | Load Point | Remote Receiver | Each | |
Gauges | |||||||||||||||||
| 2,000 lbs. | 900 kg | 8,800 N | ±2 lbs. | ±1 kg | ±9 N | 1 lbs. | 0.5 kg | 5 N | 4 7/8" | 4" | 3 1/4" | 1 3/8" | 1" | -15° to 175° | 0° to 155° | 0000000 | 000000000 |
| 4,000 lbs. | 1,800 kg | 17,700 N | ±4 lbs. | ±2 kg | ±18 N | 2 lbs. | 1 kg | 9 N | 4 7/8" | 4" | 3 1/4" | 1 3/8" | 1" | -15° to 175° | 0° to 155° | 0000000 | 00000000 |
| 10,000 lbs. | 4,500 kg | 44,400 N | ±10 lbs. | ±5 kg | ±45 N | 5 lbs. | 2 kg | 23 N | 5 3/8" | 4" | 3 1/4" | 2 3/8" | 1 3/4" | -15° to 175° | 0° to 155° | 0000000 | 00000000 |
| 20,000 lbs. | 9,000 kg | 88,900 N | ±20 lbs. | ±9 kg | ±89 N | 10 lbs. | 5 kg | 45 N | 7 3/4" | 4" | 4 5/8" | 3 3/4" | 2 5/8" | -15° to 175° | 0° to 155° | 0000000 | 00000000 |
| 50,000 lbs. | 22,600 kg | 222,400 N | ±50 lbs. | ±23 kg | ±222 N | 10 lbs. | 5 kg | 50 N | 9 3/8" | 4" | 4 5/8" | 5 3/4" | 3 55/64" | -15° to 175° | 0° to 155° | 0000000 | 00000000 |
