    5 Products

    Removal Tools for Blind and Solid Rivets

    Image of ProductInUse. Front orientation. Rivet Tools. Removal Tools for Blind and Solid Rivets.
    Image of Product. Front orientation. Rivet Tools. Removal Tools for Blind and Solid Rivets.
    Attach this tool to your drill to remove all styles of aluminum, steel, and plastic domed head rivets. Collets fit over the head of your rivet to keep the drill bit centered and prevent it from slipping and damaging surrounding material. The tool also allows you to control the depth of your drilling.
    For Rivet Dia.
    For Rivet Material
    Dia.
    Lg.
    Material
    Includes
    Each
    3/32", 1/8", 5/32", 3/16"Aluminum, Plastic, Steel7/8"5"Steel
    		Four 1" Lg. Collets (3/32", 1/8", 5/32", and 3/16")
    Four 2 1/8" Lg. Drill Bits (3/32", 1/8", 5/32", and 3/16")    		90112A600000000

    Drill-Powered Tools for Blind Rivets

    Image of Product. Front orientation. Rivet Tools. Drill-Powered Tools for Blind Rivets.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Drill-Powered Tools for Blind Rivets.

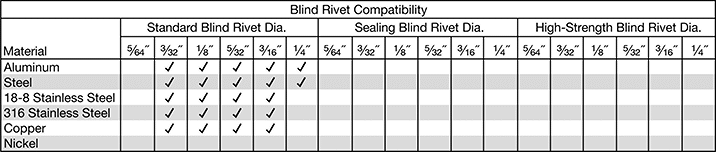

    Transform your drill into a rivet tool. You’ll need a 12V or higher drill to install aluminum and steel rivets, or a 16V drill for stainless steel rivets. Insert a mandrel into the tool’s nosepiece and slide the rivet into your material. When you start your drill, these tools pull the mandrel through the rivet’s body to create a secure hold on both sides of the material. They also break off the excess mandrel—reverse your drill to release it.
    Shank
    Overall
    Dia.
    Lg.
    Type
    Size
    Material
    Includes
    Each
    1 3/4"7"Hex1/4"Aluminum
    		Six Nosepieces (3/32", 1/8", 5/32", 3/16", 7/32", and 1/4")
    Wrench    		9098N11000000

    Tools for Hex-Drive Rivets

    Pair these tools with your drill to install hex-drive rivets—also known as fab-lock fasteners—faster than with a wrench and socket.
    Drivers
    Image of Product. Front orientation. Rivet Tools. Tools for Hex-Drive Rivets, Drivers.
    Drivers are for installing rivets in existing holes. They include a sleeve to hold the rivet head in place and a socket to turn the hex drive.
    For Hex
    Wd.
    Material
    Lg.
    Dia.
    No. of
    Pieces
    Includes
    Each
    5/16"Steel
    		2 1/8"1 1/2"2Sleeve
    Socket    		97111A137000000
    Drill Bit/Drivers
    Image of ProductInUse. Front orientation. Contains Annotated, Border, MultipleImages. Rivet Tools. Tools for Hex-Drive Rivets, Drill Bit/Drivers.
    Image of Product. Front orientation. Rivet Tools. Tools for Hex-Drive Rivets, Drill Bit/Drivers.
    Drill bit/drivers let you drill a hole and install the rivet with a single tool.
    Rivet Tools
    Replacement
    Drill Bits
    For Hex
    Wd.
    Material
    Lg.
    Dia.
    No. of
    Pieces
    Includes
    Each
    Pkg.
    Qty.
    Pkg.
    5/16"Steel
    		7 1/8"7/8"2Bit
    Driver    		9278N11000000059278N12000000
