Fall-Arrest Harnesses
Harnesses have a D-ring that attaches to a lanyard. A complete fall-arrest system requires a lanyard, a harness, and an anchor. When used properly, the system meets applicable OSHA requirements.
Polyester/elastomer harnesses expand and contract with your movements.
Padded harnesses have breathable padding on the back for all-day comfort.
Available Sizes | |||
|---|---|---|---|
| Size | For Height | For Weight | Waist Size |
Pullover Harness with Traditional Thigh Buckle—Polyester | |||
| M/L | 5'0"-6'4" | 140-280 lbs. | 32" to 48" |
| XL | 5'4"-6'6" | 200-330 lbs. | 36" to 54" |
| 2XL | 5'6"-6'8" | 230-380 lbs. | 42" to 57" |
| 3XL | 5'8"-6'8" | 250-400 lbs. | 46" to 60" |
Pullover Harness with Slide Thigh Buckle—Polyester | |||
| S | 4'10"-6'0" | 100-160 lbs. | 26" to 38" |
| M/L | 5'0"-6'4" | 140-280 lbs. | 32" to 48" |
| XL | 5'4"-6'6" | 200-330 lbs. | 36" to 54" |
| 2XL | 5'6"-6'8" | 230-380 lbs. | 42" to 57" |
| 3XL | 5'8"-6'8" | 250-400 lbs. | 46" to 60" |
Pullover Harness with Squeeze Release Thigh Buckle—Polyester | |||
| S | 4'10"-6'0" | 100-160 lbs. | 26" to 38" |
| M | 5'0"-6'2" | 140-240 lbs. | 30" to 42" |
| M/L | 5'0"-6'4" | 140-280 lbs. | 32" to 48" |
| L | 5'2"-6'4" | 170-300 lbs. | 34" to 50" |
| XL | 5'4"-6'6" | 200-330 lbs. | 36" to 54" |
| 2XL | 5'6"-6'8" | 230-380 lbs. | 42" to 57" |
Front-Buckle Harness with Traditional Thigh Buckle—Polyester | |||
| XXS/XS | 5’-6’2” | 0-150 lbs. | 24" to 32" |
| M/L | 5'4"-6'5" | 150-225 lbs. | 32" to 48" |
| XL | 5'4"-6'6" | 225-300 lbs. | 36" to 52" |
| 2XL | 5'4"-6'6" | 300-400 lbs. | 45" to 57" |
Front-Buckle Harness with Traditional Thigh Buckle— Polyester/Elastomer | |||
| XL | 5'4"-6'8" | 190-300 lbs. | 36" to 52" |
Front-Buckle Harness with Slide Thigh Buckle—Polyester | |||
| XXS/XS | 5’-6’2” | 0-150 lbs. | 24" to 32" |
| M/L | 5'4"-6'5" | 150-225 lbs. | 32" to 48" |
| XL | 5'4"-6'6" | 225-300 lbs. | 36" to 52" |
| 2XL | 5'4"-6'6" | 300-400 lbs. | 45" to 57" |
Front-Buckle Harness with Slide Thigh Buckle—Polyester/Elastomer | |||
| XL | 5'4"-6'8" | 190-300 lbs. | 36" to 52" |
Front-Buckle Harness with Squeeze Release Thigh Buckle— Polyester/Elastomer | |||
| S/M | 4'11"-5'9" | 90-190 lbs. | 30" to 42" |
| L/XL | 4'11"-6'7" | 190-340 lbs. | 40" to 52" |
| 2XL/3XL | 4'11"-6'7" | 340-400 lbs. | 45" to 57" |
| Capacity, lbs. | Harness Material | D-Ring Location (No. of) | Specifications Met | Features | Choose a Size | Each | |
Pullover Harness with Traditional Thigh Buckle | |||||||
|---|---|---|---|---|---|---|---|
| 400 | Polyester | Back (1); Chest (1) | ANSI/ASSP Z359.11 | __ | 00000000 | 0000000 | |
Pullover Harness with Slide Thigh Buckle | |||||||
| 400 | Polyester | Back (1); Chest (1) | ANSI/ASSP Z359.11 | __ | 00000000 | 000000 | |
Pullover Harness with Squeeze Release Thigh Buckle | |||||||
| 400 | Polyester | Back (1); Chest (1) | ANSI/ASSP Z359.11 | __ | 00000000 | 000000 | |
Front-Buckle Harness with Traditional Thigh Buckle | |||||||
| 400 | Polyester | Back (1) | ANSI/ASSP Z359.11 | __ | 0000000 | 00000 | |
| 400 | Polyester/Elastomer | Back (1) | ANSI/ASSE A10.32, ANSI/ASSP Z359.1, ANSI/ASSP Z359.11 | __ | XL | 0000000 | 000000 |
Front-Buckle Harness with Slide Thigh Buckle | |||||||
| 400 | Polyester | Back (1) | ANSI/ASSP Z359.11 | __ | 0000000 | 00000 | |
| 400 | Polyester/Elastomer | Back (1) | ANSI/ASSE A10.32, ANSI/ASSP Z359.1, ANSI/ASSP Z359.11 | __ | XL | 0000000 | 000000 |
Front-Buckle Harness with Squeeze Release Thigh Buckle | |||||||
| 420 | Polyester/Elastomer | Back (1) | ANSI/ASSP Z359.11 | Padded Back | 0000000 | 000000 | |
Heat-Resistant Fall-Arrest Harnesses
Made of heat-resistant Nomex, these harnesses withstand temperatures up to 700° F. They have a D-ring on the back that attaches to a lanyard. A complete fall-arrest system requires a lanyard, a harness, and an anchor. When used properly, the system meets applicable OSHA requirements.
| Harness Material | D-Ring Location (No. of) | Size | For Height | For Weight, lbs. | Max. Temperature, ° F | Specifications Met | Each | |
Front-Buckle Harness with Slide Thigh Buckle | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nomex | Back (1) | S | 4’10”-5’10” | 100-160 | 700° | ANSI Z359.11 | 00000000 | 0000000 |
| Nomex | Back (1) | M/L | 5’-6’2” | 180-260 | 700° | ANSI Z359.11 | 00000000 | 000000 |
| Nomex | Back (1) | XL | 5’2”-6’2” | 280-320 | 700° | ANSI Z359.11 | 00000000 | 000000 |
Electrical Arc Flash-Resistant Fall-Arrest Harnesses
These harnesses have leather-insulated metal components and meet ASTM F887 when used with an arc flash-resistant lanyard. They have a D-ring on the back that attaches to a lanyard. A complete fall-arrest system requires a lanyard, a harness, and an anchor. When used properly, the system meets applicable OSHA requirements.
| Capacity, lbs. | Harness Material | D-Ring Location (No. of) | Size | Waist Size | Specifications Met | Each | |
Front-Buckle Harness with Slide Thigh Buckle | |||||||
|---|---|---|---|---|---|---|---|
| 400 | Kevlar | Back (1) | XL | 32" to 56" | ANSI Z359.1, ASTM F887 | 000000 | 0000000 |
Fall-Arrest Harnesses for Ladder Climbing and Positioning
These versatile harnesses have one D-ring on the chest for use with ladder-climbing systems as well as one D-ring on each hip to provide a stable working position. Attach harness to a ladder-climbing system using a carabiner. Harnesses have a D-ring on the back that attaches to a lanyard for fall protection. A complete fall-arrest system requires a lanyard, a harness, and an anchor. When used properly, the system meets applicable OSHA requirements.
| Capacity, lbs. | Harness Material | D-Ring Location (No. of) | Size | For Height | For Weight, lbs. | Waist Size | Specifications Met | Each | |
Pullover Harness with Traditional Thigh Buckle | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 400 | Polyester | Back (1), Chest (1), Hips (2) | One Size Fits All | __ | __ | 32" to 48" | ANSI Z359.1 | 0000000 | 0000000 |
Front-Buckle Harness with Traditional Thigh Buckle | |||||||||
| 400 | Polyester | Back (1), Chest (1), Hips (2) | M/L | 5'4"-6'5" | 150-225 | 32" to 48" | ANSI Z359.1 | 00000000 | 000000 |
Fall-Arrest Harnesses for Positioning
D-rings on each hip provide a stable working position. Harnesses have a D-ring on the back that attaches to a lanyard for fall protection. A complete fall-arrest system requires a lanyard, a harness, and an anchor. When used properly, the system meets applicable OSHA requirements.
| Capacity, lbs. | Harness Material | D-Ring Location (No. of) | Harness Size (Waist) | For Height | For Weight, lbs. | Specifications Met | Each | |
Front-Buckle Harness with Slide Thigh Buckle | ||||||||
|---|---|---|---|---|---|---|---|---|
| 400 | Polyester | Back (1), Hips (2) | One Size Fits All (44" to 48") | 5'9-6'7 | 190-400 | ANSI Z359.1 | 0000000 | 0000000 |
Zip-Up Harness with Slide Thigh Buckle | ||||||||
| 310 | Polyester | Back (1), Hips (2) | M (34" to 37") | 5’-6’3” | 140-250 | ANSI Z359.1 | 0000000 | 000000 |
| 310 | Polyester | Back (1), Hips (2) | L (38" to 41") | 5’-6’3” | 140-250 | ANSI Z359.1 | 0000000 | 000000 |
| 310 | Polyester | Back (1), Hips (2) | XL (42" to 49") | 5’2”-6’6” | 180-310 | ANSI Z359.1 | 0000000 | 000000 |
Fall-Arrest Harnesses for Extracting
With D-rings on the shoulders, these harnesses allow you to raise and lower workers. They have a D-ring on the back that attaches to a lanyard. A complete fall-arrest system requires a lanyard, a harness, and an anchor. When used properly, the system meets applicable OSHA requirements.
| Capacity, lbs. | Harness Material | D-Ring Location (No. of) | Size | For Height | For Weight, lbs. | Waist Size | Specifications Met | Each | |
Front-Buckle Harness with Slide Thigh Buckle | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 310 | Polyester | Back (1), Shoulders (2) | M/L | 5'4"-6'5" | 150-225 | 32" to 48" | ANSI Z359.11 | 0000000 | 0000000 |
D-Ring Extension Straps
Hook these straps to your harness to add length to the existing D-ring and make it easier to attach a fall-arrest lanyard.
| Lg. | Capacity, lbs. | Connection Type | Each | |
| 18" | 310 | D-Ring × Snap Hook | 000000 | 000000 |
Leg Support Straps
Prevent suspension trauma when hanging motionless. Strap attaches to a harness and has a foot loop so workers can flex legs while suspended.
| Capacity, lbs. | Each | |
| 400 | 000000 | 000000 |
Harness Webbing Rings
Attach these rings to any harness to keep excess lanyard webbing out of the way.
| Ring ID | Lg. | Wd. | Thick. | Construction | Each | |
| 3/4" | 8" | 1" | 1/16" | Webbing | 000000 | 00000 |
Shock-Absorbing Fall-Arrest Lanyards
 |  Single Leg |  Dual Leg |
 |
For adequate fall clearance, you must have at least 18 1/2 ft. of clearance. Use in conjunction with a harness and an anchor for a complete fall-arrest system. When used properly, the system meets applicable OSHA requirements.
Polyester/elastomer lanyards expand and contract with your movements.
Dual-leg lanyards attach to two anchors at once.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Lg. After Fall, ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Specifications Met | Each | |
Single Leg | ||||||||||||
| 6 | 9 1/2 | 310 | Nylon | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 000000 |
| 6 | 9 1/2 | 420 | Polyester | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | __ | 000000 | 000000 |
| 6 | 10 | 310 | Polyester/Elastomer | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 000000 |
| 4 to 6 ft. | 10 1/2 | 310 | Nylon | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 00000 |
Dual Leg | ||||||||||||
| 6 | 9 1/2 | 310 | Nylon | Webbing | Snap Hook | Steel | Snap Hook/Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 000000 |
| 6 | 9 1/2 | 420 | Polyester | Webbing | Snap Hook | Steel | Snap Hook/Snap Hook | Steel | 3/4" | __ | 000000 | 000000 |
| 6 | 10 | 310 | Polyester/Elastomer | Webbing | Snap Hook | Steel | Snap Hook/Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 000000 |
| 4 to 6 ft. | 10 1/2 | 310 | Nylon | Webbing | Snap Hook | Steel | Snap Hook/Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 00000 |
Electrical Arc Flash-Resistant Shock-Absorbing Fall-Arrest Lanyards
| Single Leg | Dual Leg |
|
Made of Kevlar, these lanyards meet ASTM F887 when used with an arc flash-resistant harness. For adequate fall clearance, you must have at least 18 1/2 ft. of clearance. Use in conjunction with a harness and an anchor for a complete fall-arrest system. When used properly, the system meets applicable OSHA requirements.
Dual-leg lanyard attaches to two anchors at once.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Lg. After Fall, ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Specifications Met | Each | |
Single Leg | ||||||||||||
| 6 | 10 | 310 | Kevlar | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.1, ASTM F887 | 000000 | 0000000 |
Dual Leg | ||||||||||||
| 6 | 10 | 310 | Kevlar | Webbing | Snap Hook | Steel | Snap Hook/Snap Hook | Steel | 3/4" | ANSI Z359.1, ASTM F887 | 000000 | 000000 |
Heat-Resistant Shock-Absorbing Fall-Arrest Lanyards
Made of steel, these durable lanyards hold up in abrasive and high-heat applications. For adequate fall clearance, you must have at least 20 ft. of clearance. Use in conjunction with a harness and an anchor for a complete fall-arrest system. When used properly, the system meets applicable OSHA requirements.
Dual-leg lanyard attaches to two anchors at once.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Lg. After Fall, ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Specifications Met | Each | |
Single Leg | ||||||||||||
| 6 | 10 | 310 | Steel | Wire Rope | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.13 | 000000 | 0000000 |
Dual Leg | ||||||||||||
| 6 | 10 | 310 | Steel | Wire Rope | Snap Hook | Steel | Snap Hook/Snap Hook | Steel | 3/4" | ANSI Z359.13 | 000000 | 000000 |
Shock-Absorbing Fall-Arrest Lanyards with Anchor Point
For adequate fall clearance, you must have at least 18 1/2 ft. of clearance. Use in conjunction with a harness for a complete fall-arrest system. When used properly, the system meets applicable OSHA requirements.

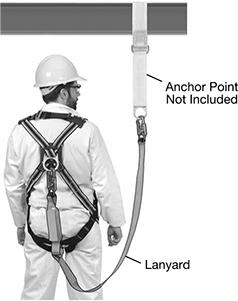

Hook-over lanyards have a large snap hook that attaches directly to a rated structure such as a scaffold or pipe to create an anchor point.
Wraparound lanyards loop around a rated structure such as an I-beam and then attach to themselves to create an anchor point.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Lg. After Fall, ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Specifications Met | Each | |
Hook Over Single Leg | ||||||||||||
| 6 | 9 1/2 | 310 | Polyester | Webbing | Snap Hook | Steel | Snap Hook | Steel | 2 1/2" | ANSI Z359.13 | 00000000 | 0000000 |
| 6 | 10 | 310 | Polyester | Webbing | Snap Hook | Steel | Snap Hook | Steel | 2 1/2" | ANSI Z359.13 | 00000000 | 000000 |
Wraparound Single Leg | ||||||||||||
| 6 | 9 1/2 | 310 | Polyester | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 000000 |
| 4 to 6 | 10 1/2 | 310 | Nylon | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.1 | 0000000 | 000000 |
Heat-Resistant Shock-Absorbing Fall-Arrest Lanyards with Anchor Point
Made of steel, these durable lanyards hold up in abrasive and high-heat applications. Attach the large snap hook directly to a rated structure such as a scaffold or pipe to create an anchor point. For adequate fall clearance, you must have at least 20 ft. of clearance. Use in conjunction with a harness for a complete fall-arrest system. When used properly, the system meets applicable OSHA requirements.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Lg. After Fall, ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Specifications Met | Each | |
Hook-Over Single Leg | ||||||||||||
| 6 | 10 | 310 | Steel | Wire Rope | Snap Hook | Steel | Snap Hook | Steel | 3/4", 2 1/2" | ANSI Z359.13 | 000000 | 0000000 |
Electrical Arc Flash-Resistant Shock-Absorbing
Fall-Arrest Lanyards with Anchor Point
Made of Kevlar, these lanyards meet ASTM F887 when used with an arc flash-resistant harness. Wrap the lanyard around a rated structure such as an I-beam and then attach it to itself to create an anchor point. For adequate fall clearance, you must have at least 18 1/2 ft. of clearance. Use in conjunction with a harness for a complete fall-arrest system.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Lg. After Fall, ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Specifications Met | Each | |
Wraparound Single Leg | ||||||||||||
| 6 | 10 | 310 | Kevlar | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | ANSI Z359.1, ASTM F887 | 000000 | 0000000 |
Quick-Stop Fall-Arrest Lanyards
A quick-stop lanyard must be used when you have less than 18 1/2 ft. of fall clearance as it will stop your fall within a few inches. Use in conjunction with a harness and an anchor for a complete fall-arrest system. When used properly, the system meets applicable OSHA requirements.
Dual-leg lanyard attaches to two anchors at once.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Housing Material | Specifications Met | Each | |
Single Leg | ||||||||||||
| 6 | 310 | Polyester | Webbing | Snap Hook | Steel | Snap Hook | Steel | 3/4" | Plastic | ANSI Z359.14 | 0000000 | 0000000 |
| 9 | 310 | Polyester | Webbing | Shackle | Stainless Steel | Snap Hook | Steel | 3/4" | Plastic | ANSI Z359.14 | 0000000 | 000000 |
| 11 | 310 | Polyester | Webbing | Shackle | Stainless Steel | Snap Hook | Steel | 3/4" | Plastic | ANSI Z359.14 | 0000000 | 000000 |
| 20 | 420 | Nylon | Webbing | Swivel Eye | Steel | Snap Hook | Steel | 3/4" | Plastic | ANSI Z359.14 | 0000000 | 000000 |
| 25 | 310 | Stainless Steel | Wire Rope | Carabiner | Stainless Steel | Snap Hook | Steel | 3/4" | Plastic | ANSI Z359.14 | 0000000 | 000000 |
| 50 | 420 | Stainless Steel | Wire Rope | Swivel Eye | Stainless Steel | Snap Hook | Stainless Steel | 3/4" | Aluminum, Stainless Steel | ANSI Z359.14 | 0000000 | 00000000 |
Dual Leg | ||||||||||||
| 6 | 310 | Polyester | Webbing | Pin Retainer | Aluminum | Snap Hook/Snap Hook | Steel | 3/4" | Plastic | ANSI Z359.14 | 0000000 | 000000 |
Quick-Stop Fall-Arrest Lanyards with Anchor Point
These lanyards form their own anchor point by attaching directly to a rated structure. A quick-stop lanyard must be used when you have less than 18 1/2 ft. of fall clearance. Use in conjunction with a harness for a complete fall-arrest system. When used properly, the system meets applicable OSHA requirements.
Hook-over lanyard has a large snap hook that attaches directly to a rated structure such as a scaffold or pipe to create an anchor point.
Wraparound lanyard loops around a rated structure such as an I-beam and then attaches to itself to create an anchor point.
Harness End Connection | Anchor End Connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Capacity, lbs. | Material | Construction | Type | Material | Type | Material | Snap Hook Opening Size | Housing Material | Specifications Met | Each | |
Hook Over Single Leg | ||||||||||||
| 6 | 310 | Polyester | Webbing | Carabiner | Steel | Snap Hook | Steel | 2 1/2" | Plastic | ANSI Z359.14 | 0000000 | 0000000 |
Wraparound Single Leg | ||||||||||||
| 7 1/2 | 310 | Polyester | Webbing | Pin Retainer | Aluminum | Snap Hook | Steel | 3/4" | Plastic | ANSI Z359.14 | 0000000 | 000000 |
