Hand Sanitizer Dispenser Stands
Tabletop Stands
Base | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ht. | Wd. | Dp. | Material | No. of Mounting Holes | Mounting Hole Ctr.-to-Ctr. | Mounting Slot Wd. | For Mfr. | Features | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
For Push-Activated and Touch-Free Dispensers | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 13" | 8" | 9" | Steel | 5 | 1" | 2 1/2" | Kimberly-Clark, Purell | Drip Tray, Felt Pads | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Stands
Base | Mounting Hole Ctr.-to-Ctr. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ht. | Wd. | Dp. | For Max. Container Dia. | Material | Base Material | No. of Mounting Holes | (A) | (B) | For Mfr. | Features | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
For Push-Activated and Touch-Free Dispensers | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 48" | 16" | 16" | — | Aluminum | Steel | 4 | 1 1/8" | 2 1/2" | Kimberly-Clark, Purell | Drip Tray | 0000000 | 0000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
For Wipe Dispensers | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 44" | 12" | 12" | 4 1/4" | Aluminum | Steel | — | — | — | — | Drip Tray, Felt Pads | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Stands with Frame
Frame | Base | Mounting Hole Ctr.-to-Ctr. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ht. | Ht. | Wd. | Wd. | Dp. | For Max. Container Dia. | Material | Base Material | No. of Mounting Holes | (A) | (B) | For Mfr. | Features | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
For Push-Activated and Touch-Free Dispensers | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 48" | 11" | 8 1/2" | 16" | 16" | — | Aluminum | Steel | 4 | 1 1/8" | 2 1/2" | Kimberly-Clark, Purell | Drip Tray | 0000000 | 0000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 48" | 14" | 11" | 16" | 16" | — | Aluminum | Steel | 4 | 1 1/8" | 2 1/2" | Kimberly-Clark, Purell | Drip Tray | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
For Wipe Dispensers | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 44" | 11" | 8 1/2" | 12" | 12" | 4 1/4" | Aluminum | Steel | — | — | — | — | Drip Tray, Felt Pads | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 44" | 14" | 11" | 12" | 12" | 4 1/4" | Aluminum | Steel | — | — | — | — | Drip Tray, Felt Pads | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Personal Protection Sanitizing Stations
Personal Protection Sanitizing Stations
Personal Protection Sanitizing Stations | Floor Stands for Personal Protection Sanitizing Stations | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face Mask Compartment | Hand Sanitizer Compartment | Tissue/Glove Compartment | Overall | Mounting Hole | Base | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
No. of | For No. of Boxes | No. of | For Mount Type | No. of | For No. of Boxes | Ht. | Wd. | Dp. | Color | Mounting Location | No. of | Dia. | Mounting Hardware Included | Each | Wd. | Dp. | Ht. | Material | Color | Each | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plastic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | 1 | Freestanding | 1 | 2 | 10 1/2" | 18" | 4 1/2" | Beige | Floor Stand, Wall | 2 | 1/8", 1/4" | No | 00000000 | 0000000 | 17" | 17" | 36" | Powder-Coated Steel | Beige | 00000000 | 0000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | 1 | Freestanding | 1 | 2 | 10 1/2" | 18" | 4 1/2" | Brown Woodgrain | Floor Stand, Wall | 2 | 1/8", 1/4" | No | 00000000 | 000000 | 18" | 18" | 36" | Powder-Coated Steel | Black | 00000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Powder-Coated Steel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | 1 | Freestanding | 1 | 2 | 11 3/4" | 18" | 5" | Beige | Floor Stand, Wall | 4 | 1/8", 1/4" | No | 00000000 | 000000 | 17" | 17" | 36" | Powder-Coated Steel | Beige | 00000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Personal Protection Sanitizing Stations with Hinged Locking Lid
Personal Protection Sanitizing Stations | Floor Stands for Personal Protection Sanitizing Stations | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Face Mask Compartment | Hand Sanitizer Compartment | Tissue/Glove Compartment | Overall | Mounting Hole | Base | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
No. of | For No. of Boxes | For No. of Masks | No. of | For Mount Type | Mounting Hardware Included | No. of | For No. of Boxes | Ht. | Wd. | Dp. | Color | Mounting Location | No. of | Dia. | Mounting Hardware Included | Each | Wd. | Dp. | Ht. | Material | Color | Each | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plastic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | — | 1 | Adhesive Back, Screw | No | 1 | 2 | 14 3/4" | 22 1/4" | 5" | Beige | Floor Stand, Wall | 4 | 1/8", 1/4" | No | 00000000 | 0000000 | 17" | 17" | 36" | Powder-Coated Steel | Beige | 00000000 | 0000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 | 2 | 100 | 1 | Adhesive Back, Screw | No | 1 | 2 | 14 3/4" | 22 1/4" | 5" | Beige | Floor Stand, Wall | 4 | 1/8", 1/4" | No | 00000000 | 000000 | 17" | 17" | 36" | Powder-Coated Steel | Beige | 00000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 | 2 | 100 | 1 | Adhesive Back, Screw | No | 1 | 2 | 14 3/4" | 22 1/4" | 5" | Black | Floor Stand, Wall | 4 | 1/8", 1/4" | No | 00000000 | 000000 | 18" | 18" | 36" | Powder-Coated Steel | Black | 00000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Powder-Coated Steel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 2 | — | 1 | Adhesive Back, Screw | No | 1 | 2 | 14 3/4" | 22 1/4" | 5 1/4" | Beige | Floor Stand, Wall | 4 | 1/8", 1/4" | No | 00000000 | 000000 | 17" | 17" | 36" | Powder-Coated Steel | Beige | 00000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Automatic Hand Washing Stations
Water Inlet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ht. | Wd. | Lg. | Pipe Size | Thread Type | Water Pressure, psi | Voltage, V AC | Electrical Phase | Wire Connection | Features | Each | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 45" | 15" | 27" | 3/4 | NPT | 29 to 87 | 110 | Single | Wire Leads | Foot Pads, Intake Tube for Cleaners, Paper Towel Dispenser, Signal Light, Waste Receptacle | 0000000 | 000000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Portable Hand Washing Stations
Cap., gal. | Electrical | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
No. of Stations | Freshwater Tank | Wastewater Tank | Ht. | Wd. | Dp. | No. of Uses | Wt., lb. | Voltage, V AC | Connection | No. of Blades | Cord Lg., ft. | For Use Outdoors | Shipping Std. | Specs. Met | Food Industry Std. | Features | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hand Washing Stations | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LDPE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 15 1/2 | 19 | 62" | 18" | 20" | 992 | 47 | — | — | — | — | Yes | CFR Title 42 Section 72 | EPA Compliant 40 CFR 141 | FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297 | Drain Hole, Drain Plug, Handles, Paper Towel Dispenser, Soap Dispenser | 0000000 | 0000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 | 22 | 24 | 62" | 26 1/2" | 21 1/2" | 1,480 | 70 | — | — | — | — | Yes | CFR Title 42 Section 72 | EPA Compliant 40 CFR 141 | FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297 | Drain Hole, Drain Plug, Handles, Paper Towel Dispenser, Soap Dispenser | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 20 | 22 | 58" | 22 1/2" | 22 1/2" | 1,280 | 60 | — | — | — | — | Yes | CFR Title 42 Section 72 | EPA Compliant 40 CFR 141 | FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297 | Drain Hole, Drain Plug, Paper Towel Dispenser, Soap Dispenser | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hand Washing Stations with Heater | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LDPE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 15 1/2 | 19 | 62" | 18" | 20" | 992 | 47 | 110 | Straight Blade | 3 | 6 | Yes | CFR Title 42 Section 72 | EPA Compliant 40 CFR 141 | FDA Compliant 21 CFR 175.300, FDA Compliant 21 CFR 177.1520, FDA Compliant 21 CFR 178.3297 | Drain Hole, Drain Plug, Handles, Heater, Paper Towel Dispenser, Soap Dispenser | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch-Free Wall-Mount Sinks
![]() | ![]() |
Style A | Style B |
O'all | Bowl Inside | Inlet | Mounting Holes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | Spout Type | Flow Rate, gpm | For Tube OD | Connection | Mounting Fasteners Included | No. of | Dia. | Detection Distance Range | For Use Outdoors | Includes | Cannot Be Sold To | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sinks with Chrome-Plated Brass Faucet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel —Meets NSF/ANSI 2, NSF/ANSI 372, UL Listed | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 19" | 18" | 21" | 17" | 14" | 7" | 2" | Swivel | 2 | 3/8" | Compression | No | 3 | 1/4" | 6" to 30" | No | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | 00000000 | 000000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 21" | 20" | 24" | 19" | 16" | 10" | 2" | Swivel | 0.5 | 3/8" | Compression | No | 3 | 1/4" | 6" to 30" | No | Drain with Strainer, One Mounting Bracket | — | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 21" | 20" | 24" | 19" | 16" | 10" | 2" | Swivel | 2 | 3/8" | Compression | No | 3 | 1/4" | 6" to 30" | No | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 68" | 20" | 23" | 65" | 16 1/2" | 5" | 2" | Swivel | 2 | 3/8" | Compression | No | 6 | 1/4" | 6" to 30" | No | Drain with Strainer, Two Mounting Brackets | California, Colorado, Connecticut, Georgia | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch-Free Wash Fountains
![]() |
Style A |
![]() |
Style B |
![]() |

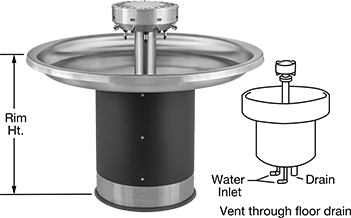

Style C |
![]() |

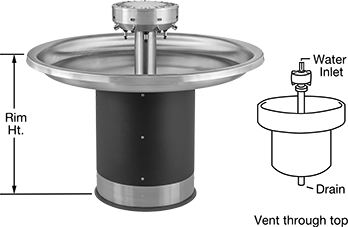

Style D |
Location | Overall | Pedestal | Inlet | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | Dia. | Wd. | Dp. | Flow Rate, gpm | Material | Color | Pipe Size | Thread Type | Gender | For Drain Pipe OD | Each | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stainless Steel Bowl—Assembled | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor/Wall Mount—Wall Drain | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 2 | Wall | Floor/Wall | 34" | 4 1/2" | — | 27 1/2" | 17 1/4" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 000000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 3 | Wall | Floor/Wall | 34" | 4 1/2" | — | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 4 | Wall | Floor/Wall | 34" | 4 1/2" | — | 38" | 32" | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 1 1/2" | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Mount—Floor Drain | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 8 | Floor | Floor Drain | 34" | 4 1/2" | 54" | — | — | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 000000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| D | 8 | Top | Top | 34" | 4 1/2" | 54" | — | — | 0.5 | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | 2" | 000000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch-Free Freestanding Sinks
![]() | ![]() | ![]() |
Style A | Style B | Style C |
O'all | Bowl Inside | Inlet | 0.5 gpm Flow Rate | 2 gpm Flow Rate | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | For Tube OD | Connection | For Use Outdoors | Includes | Each | Cannot Be Sold To | Each | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sinks with Chrome-Plated Brass Faucet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel with Stainless Steel Leg —Meets NSF/ANSI 2, NSF/ANSI 372, UL Listed | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 20" | 17 1/2" | 43 1/2" | 17" | 14" | 7" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | 0000000 | 000000000 | California, Colorado, Connecticut, Georgia | 0000000 | 000000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 23" | 20 1/2" | 46 1/2" | 20" | 17" | 9" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | 0000000 | 00000000 | California, Colorado, Connecticut, Georgia | 0000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 40" | 20" | 45" | 37" | 16 1/2" | 8" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | 0000000 | 00000000 | California, Colorado, Connecticut, Georgia | 0000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hands-Free Wash Fountains
![]() |
Style A |
![]() |
Style B |
![]() |
Style C Floor Inlet |
![]() |
Style C Top Inlet |
Location | Overall | Pedestal | Inlet | Drain | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | No. of Users | Inlet | Venting | Rim Ht. | Bowl Inside Ht. | Dia. | Wd. | Dp. | Flow Rate, gpm | Bowl Color | Material | Color | Pipe Size | Thread Type | Gender | Pipe Size | Thread Type | Gender | For Drain Pipe OD | Each | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plastic Bowl—Unassembled | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Mount—Floor Drain | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 5 | Floor | Floor Drain | 29 1/4" | 9" | 36" | — | — | 2 | Beige | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | — | 00000000 | 000000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 5 | Top | Top | 29 1/4" | 9" | 36" | — | — | 2 | Beige | Plastic | Gray | 1/2 | NPT | Female | 2 | NPT | Male | — | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stainless Steel Bowl—Assembled | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor/Wall Mount—Wall Drain | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 2 | Wall | Floor/Wall | 34" | 4 1/2" | — | 27 1/2" | 17 1/4" | 0.5 | — | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | — | — | — | 1 1/2" | 0000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 3 | Wall | Floor/Wall | 34" | 4 1/2" | — | 38" | 32" | 0.5 | — | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | — | — | — | 1 1/2" | 0000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 4 | Wall | Floor/Wall | 34" | 4 1/2" | — | 38" | 32" | 0.5 | — | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | — | — | — | 1 1/2" | 0000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Mount—Floor Drain | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 8 | Floor | Floor Drain | 34" | 4 1/2" | 54" | — | — | 0.5 | — | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | — | — | — | 2" | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 8 | Top | Top | 34" | 4 1/2" | 54" | — | — | 0.5 | — | Vinyl-Coated Steel | Black | 1/2 | NPT | Male | — | — | — | 2" | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wall-Mount Sinks
![]() | ![]() | ![]() |
Style A | Style B | Style C (Shown with Faucet) |
![]() | ![]() | ![]() |
Style D | Style E | Style F |
![]() | ![]() | ![]() |
Style G | Style H | Style J |
O'all | Bowl Inside | Faucet Holes | Inlet | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | Spout Type | Pipe Size | Thread Type | Flow Rate, gpm | Mounting Fasteners Included | For Use Outdoors | Features | Includes | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sinks | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Porcelain —Meets ASME A112.19.2/CSA B45.1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 20 3/8" | 17 5/8" | 9 3/8" | 13 1/2" | 10" | 7 3/8" | 1 1/4" | 3 | 1 1/4" | 4" | — | — | — | — | No | No | Overflow Hole | One Mounting Bracket | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 20 3/4" | 18 1/4" | 12 1/4" | 14" | 10" | 5 1/2" | 1 1/4" | 1 | 1" | — | — | — | — | — | No | No | Overflow Hole | One Mounting Bracket | 00000000 | 00000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Polypropylene | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 20" | 23 7/8" | 14 3/8" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | 2 | 1" | 4" | — | — | — | — | Yes | No | — | Drain with Strainer, One Mounting Bracket | 000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| D | 18" | 15" | 7" | 9 1/2" | 14 1/2" | 6" | 1 1/2" | 3 | 1 1/4" | 4" | — | — | — | — | No | No | Seamless Bowl | Drain with Strainer, One Mounting Bracket, Tailpiece | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| E | 18" | 22" | 8" | 14" | 12" | 5" | 1 1/2" | 3 | 1 1/4" | 4" | — | — | — | — | Yes | No | Seamless Bowl | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sinks with Chrome-Plated Brass Faucet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Polypropylene | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 20" | 23 7/8" | 21 3/8" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | — | — | — | Swivel | 1/2 | NPT | 2.1 | Yes | No | — | Drain with Strainer, One Mounting Bracket | 000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| G | 21" | 17 1/2" | 39 3/4" | 18" | 14" | 12" | 3 1/2" | — | — | — | Fixed | 1/2 | NPT | 2.5 | No | No | — | Drain with Strainer, P-Trap with Cleanout Plug, Three Mounting Brackets | 000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| G | 25" | 19 1/2" | 39 3/4" | 22" | 16" | 12" | 3 1/2" | — | — | — | Fixed | 1/2 | NPT | 2.5 | No | No | — | Drain with Strainer, P-Trap with Cleanout Plug, Three Mounting Brackets | 000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| H | 48" | 20" | 33 3/4" | 45" | 16 1/2" | 8" | 3 1/2" | — | — | — | Swivel, Fixed | 1/2 | NPT | 2.2 | No | No | — | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| J | 60" | 20" | 33 3/4" | 57" | 16 1/2" | 8" | 3 1/2" | — | — | — | Swivel, Fixed | 1/2 | NPT | 2.2 | No | No | — | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sinks with Chrome-Plated Bronze Faucet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel —Meets NSF/ANSI 2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| F | 17" | 15" | 25 1/8" | 13 3/4" | 10" | 5 1/2" | 1 7/8" | — | — | — | Swivel | 1/2 | NPT | 2.2 | No | Yes | — | Drain with Strainer, One Mounting Bracket, P-Trap, Tailpiece | 0000000 | 000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| F | 24 3/4" | 21 7/8" | 27 3/16" | 20" | 16" | 6 1/4" | 1 7/8" | — | — | — | Swivel | 1/2 | NPT | 2.2 | No | Yes | — | Drain with Strainer, One Mounting Bracket, P-Trap, Tailpiece | 0000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hands-Free Freestanding Sinks
![]() | ![]() |
Style A | Style B |
![]() | ![]() |
Style C | Style D |
![]() | ![]() |
Style E | Style F |
O'all | Bowl Inside | Inlet | 0.5 gpm Flow Rate | 2 gpm Flow Rate | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Backsplash Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | For Use Outdoors | Includes | Cannot Be Sold To | Each | Each | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sinks with Chrome-Plated Brass Faucet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel with Stainless Steel Legs — Meets NSF/ANSI 2, NSF/ANSI 372 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | — | 00000000 | 000000000 | ——— | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | California, Colorado, Connecticut, Georgia | ——— | 0 | 0000000 | 000000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 21" | 20" | 46" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | — | 00000000 | 00000000 | ——— | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 21" | 20" | 46" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | California, Colorado, Connecticut, Georgia | ——— | 0 | 0000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | — | 00000000 | 00000000 | ——— | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 23" | 20 1/2" | 51 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | — | 00000000 | 00000000 | ——— | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 23" | 20 1/2" | 51 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| D | 40" | 20" | 49 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | — | 00000000 | 00000000 | ——— | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| D | 40" | 20" | 49 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| E | 60" | 20" | 49 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | — | 00000000 | 00000000 | ——— | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| E | 60" | 20" | 49 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| F | 80" | 20" | 49 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | — | 00000000 | 00000000 | ——— | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| F | 80" | 20" | 49 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hands-Free Wall-Mount Sinks
![]() | ![]() |
Style A | Style B |
![]() | ![]() |
Style C | Style D |
![]() | ![]() |
Style E | Style F |
O'all | Bowl Inside | Inlet | Mounting Holes | 0.5 gpm Flow Rate | 2 gpm Flow Rate | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Backsplash Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Mounting Fasteners Included | No. of | Dia. | For Use Outdoors | Includes | Cannot Be Sold To | Each | Each | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sinks with Chrome-Plated Brass Faucet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
304 Stainless Steel —Meets NSF/ANSI 2, NSF/ANSI 372 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | — | 00000000 | 0000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 0000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | — | 00000000 | 000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | ——— | 0 | 0000000 | 000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 21" | 20" | 30 3/4" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | — | 00000000 | 00000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A | 21" | 20" | 30 3/4" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | ——— | 0 | 0000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | — | 00000000 | 000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | — | 00000000 | 00000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 19" | 16" | 27" | 16" | 12 1/2" | 6" | 9" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | — | 00000000 | 000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 19" | 16" | 27" | 16" | 12 1/2" | 6" | 9" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 23" | 20 1/2" | 31 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | — | 00000000 | 00000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | 23" | 20 1/2" | 31 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| D | 40" | 20" | 29 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | — | 00000000 | 00000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| D | 40" | 20" | 29 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| E | 60" | 20" | 29 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | — | 00000000 | 00000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| E | 60" | 20" | 29 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| F | 80" | 20" | 29 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 9 | 1/4" | Yes | Drain with Strainer, Three Mounting Brackets | — | 00000000 | 00000000 | ——— | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| F | 80" | 20" | 29 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 9 | 1/4" | Yes | Drain with Strainer, Three Mounting Brackets | California, Colorado, Connecticut, Georgia | ——— | 0 | 00000000 | 00000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
