    19 Products

    Rubber Edge Trim

    Image of Product. Front orientation. Edge Trim. Rubber Edge Trim, Style 1.
    Image of Product. Front orientation. Edge Trim. Rubber Edge Trim, Style 2.

    Style 1

    Style 2

    Wrap this soft rubber trim around rough or sharp edges to protect people and parts when they bump into them. It also prevents denting and wear to sheet metal, signs, and equipment. It's flexible enough to follow the sharp curves reinforced rubber trim can't handle, though it doesn't withstand the same heavy knocks and scrapes.
    Abrasion-Resistant SBR Rubber
    Image of Product. Front orientation. Edge Trim. Rubber Edge Trim, Style 1.
    Image of Product. Front orientation. Edge Trim. Rubber Edge Trim, Style 2.

    Style 1

    Style 2

    Image of Attribute. Front orientation. Contains Annotated. Rubber Edge Trim, Style 1.

    Style 1

    Image of Attribute. Front orientation. Contains Annotated. Rubber Edge Trim, Style 2.

    Style 2

    Resists cracking and other signs of wear over long periods. However, it’s not for use outdoors or with oil and harsh chemicals.
    Hardness Rating—The harder the edge trim, the better it withstands impact and abrasion over time. The softer the edge trim, the more cushioning it provides for fragile materials such as glass and thin metal.
    Inside
    Outside
    Per Ft.
    Wd.
    (A)
    Ht.
    (B)
    Wd.
    (C)
    Ht.
    (D)
    Flexibility
    Temp. Range,
    ° F
    For Use
    Outdoors
    Color
    Hardness
    Hardness
    Rating
    Choose a Length, ft.
    1-99
    100-Up
    Style 1
    1/32"5/32"7/64"7/32"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K110000000000
    1/16"11/32"7/32"7/16"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K1200000000
    3/32"21/64"3/16"3/8"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K1400000000
    3/16"7/16"5/16"1/2"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K1900000000
    1/4"5/16"3/8"3/8"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K2200000000
    3/8"13/32"1/2"1/2"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K2500000000
    1/2"1/2"5/8"5/8"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K2900000000

    Style 2
    1/8"1/4"1/4"5/16"Extra Flexible0 to 220NoBlackDurometer 55AMedium
    10
    ,
    25
    ,
    50
    ,
    100
    		8510K1600000000


    Rubber Edge Trim Selector Packs

    Image of Product. Front orientation. Edge Trim. Rubber Edge Trim Selector Packs.
    Image of Specification. Style 1. Front orientation. Contains Annotated, MultipleImages. Style 1. Rubber Edge Trim Selector Packs.
    Image of Specification. Style 2. Front orientation. Contains Annotated, MultipleImages. Style 2. Rubber Edge Trim Selector Packs.

    Style 1

    Style 2

    Try out several sizes and styles of edge trim before committing to one. This rubber trim protects sheet metal, signs, and machinery from denting and wear while adding a finished look.
    Abrasion-Resistant SBR Rubber—Resists cracking and other signs of wear over long periods. However, it’s not for use outdoors or with oil and harsh chemicals.
    Hardness Rating—The harder the edge trim, the better it withstands impact and abrasion over time. The softer the edge trim, the more cushioning it provides for fragile materials such as glass and thin metal.
    No. of
    Pieces
    Flexibility
    Temp. Range,
    ° F
    For Use
    Outdoors
    Style
    Includes
    Hardness
    Hardness
    Rating
    Each
    Abrasion-Resistant SBR Rubber
    8Extra Flexible0 to 220No1
    2    		Style 1 Trim: 1/16" Inside Wd. (A), 11/32" Inside Ht. (B), 7/32" Outside Wd. (C), 7/16" Outside Ht. (D)
    Style 1 Trim: 1/2" Inside Wd. (A), 1/2" Inside Ht. (B), 5/8" Outside Wd. (C), 5/8" Outside Ht. (D)
    Style 1 Trim: 1/32" Inside Wd. (A), 5/32" Inside Ht. (B), 7/64" Outside Wd. (C), 7/32" Outside Ht. (D)
    Style 1 Trim: 1/4" Inside Wd. (A), 5/16" Inside Ht. (B), 3/8" Outside Wd. (C), 3/8" Outside Ht. (D)
    Style 1 Trim: 3/16" Inside Wd. (A), 7/16" Inside Ht. (B), 5/16" Outside Wd. (C), 1/2" Outside Ht. (D)
    Style 1 Trim: 3/32" Inside Wd. (A), 21/64" Inside Ht. (B), 3/16" Outside Wd. (C), 3/8" Outside Ht. (D)
    Style 1 Trim: 3/8" Inside Wd. (A), 13/32" Inside Ht. (B), 1/2" Outside Wd. (C), 1/2" Outside Ht. (D)
    Style 2 Trim: 1/8" Inside Wd. (A), 1/4" Inside Ht. (B), 1/4" Outside Wd. (C), 5/16" Outside Ht. (D)    		Durometer 55AMedium8510K9500000


    Surface Guards for Corners

    Image of Product. Front orientation. Contains Annotated, Inset. Surface Guards. Surface Guards for Corners, Style 2.

    Style 2

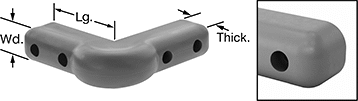

    Image of Product. Front orientation. Contains Annotated, Inset. Surface Guards. Surface Guards for Corners, Style 3.

    Style 3

    Protect corners on equipment, walls, and docks. These guards sit at a 90° angle to shield against damage from carts, vehicles, and moving objects.
    Screw In—These guards have mounting holes and attach with fasteners.
    Synthetic Rubber—Synthetic rubber surface guards are more impact and abrasion resistant than vinyl plastic guards.
    Temp.,
    ° F
    Mounting
    Style
    Lg.
    Wd.
    Thk.
    Nonmarking
    For Use
    Outdoors
    Hardness
    Rating
    Hardness
    Min.
    Max.
    No. of
    Holes
    Hole
    Dia.
    Fasteners
    Included
    Flexibility
    Color
    Each
    Screw In

    Synthetic Rubber
    22 1/2"3/4"5/8"YesYesHardDurometer 70A-4018041/8"NoRigidGray11165A1800000
    23"1 1/16"15/16"YesYesHardDurometer 70A-4018043/16"NoRigidGray11165A160000
    23", 6 1/8"1 1/2"1"YesYesHardDurometer 70A-4018031/4"NoRigidGray11165A3100000
    33"1 1/16"1"YesYesHardDurometer 70A-4018043/16"NoRigidGray46875K430000


    Flexible Reinforced Surface Guards

    Image of System. Front orientation. Contains Annotated. Surface Guards. Flexible Reinforced Surface Guards.
    Image of Product. Front orientation. Contains Annotated. Surface Guards. Flexible Reinforced Surface Guards.
    Image of Product. Front orientation. Contains Annotated. Surface Guards. Flexible Reinforced Surface Guards, Corner Guards.

    Corner Guards

    Strengthened with a metal core yet still bendable, these guards conform to curved surfaces and withstand repeated impact. Bend them around columns, curved walls, equipment edges, and even tight corners to protect against damage from carts, forklifts, and other vehicles.
    Use any number of corner, edge, and surface guards to cover your area. Corner guards, edge guards, and end caps mount with fasteners. Surface guards can be installed with adhesive or fastened in place, which requires drilling.
    Synthetic Rubber—Synthetic rubber surface guards are more impact and abrasion resistant than vinyl plastic guards.
    Surface Guards
    Corner Guards
    Temp.,
    ° F
    Lg.,
    ft.
    Wd.
    Thk.
    Nonmarking
    For Use
    Outdoors
    Hardness
    Rating
    Hardness
    Flexibility
    Min.
    Max.
    Core
    Material
    Mounting Fasteners
    Included
    Color
    Each
    Lg.
    Each
    Plain Back

    Synthetic Rubber
    51 1/2"1"YesYesHardDurometer 70AExtra Flexible-40180MetalNoGray11165A3400000003", 6 1/8"11165A31000000
    83/4"5/8"YesYesHardDurometer 70AExtra Flexible-40180MetalNoGray11165A52000002 1/2"11165A180000
    81 1/16"15/16"YesYesHardDurometer 70AExtra Flexible-40180MetalNoGray11165A54000003"11165A160000
    163/4"5/8"YesYesHardDurometer 70AExtra Flexible-40180MetalNoGray11165A140000002 1/2"11165A180000
    161 1/16"15/16"YesYesHardDurometer 70AExtra Flexible-40180MetalNoGray11165A130000003"11165A160000

    Surface Guard Accessories
    Image of Product. Front orientation. Contains Annotated. Surface Guards. Flexible Reinforced Surface Guards, Cushioned Corner Guards.
    Image of Product. Front orientation. Contains Annotated. Surface Guards. Flexible Reinforced Surface Guards, Edge Guards.

    Cushioned Corner Guards

    Edge Guards

    Temp.,
    ° F
    Mounting
    Lg.
    Wd.
    Thk.
    Nonmarking
    For Use
    Outdoors
    Hardness
    Rating
    Hardness
    Min.
    Max.
    No. of
    Holes
    Hole Dia.
    Fasteners
    Included
    Flexibility
    Core
    Material
    Color
    Each
    Cushioned Corner Guards

    Synthetic Rubber
    3"1 1/16"1"YesYesHardDurometer 70A-4018043/16"NoRigidMetalGray46875K4300000

    Edge Guards

    Synthetic Rubber
    12"3/4"7/16"YesYesHardDurometer 70A-4018045/32"NoRigidMetalGray46875K4500000
