Sine Bars
Measure, mark, and inspect exact angles on dies and other precision parts. These sine bars are smaller and less expensive than sine plates and more accurate than other measuring tools, such as protractors. They are made from hardened, precision-ground steel to resist wear and ensure accurate measurements over time.
Sine Plates
Use with gauge blocks to tilt the plate surface to a precise angle. Measure angles on your workpiece or set up a part for precision grinding. Do not use for milling and drilling machine processes.
Magnetic Sine Plates
Turn the handle to switch the magnet on and secure steel parts—no need for clamps or screws. Use these plates with gauge blocks to tilt the plate surface to a precise angle. Measure angles on your workpiece or set up a part for precision grinding. Do not use for milling and drilling machine processes.
Overall | Tolerance | |||||||
|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Inside Lg. | Squareness | Parallel | Material | Each | |
| 6" | 6" | 4 1/4" | 5" | 0.0002" | 0.0002" | Steel | 0000000 | 000000000 |
Any-Which-Way Angle Plates
The handle extends the full length and height of these plates for use on any of their six sides. Ensure accurate right angles and hold workpieces and fixtures perpendicular to a machine table by securing them to the plate with clamps.
For technical drawings and 3-D models, click on a part number.
Tolerance per 6" | ||||||||
|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Wt., lbs. | Squareness | Parallel | Material | Each | |
Standard | ||||||||
| 4" | 3 3/4" | 5" | 10 | 0.002" | 0.002" | Iron | 00000000 | 0000000 |
| 4" | 4" | 6" | 12 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
| 5" | 4" | 8" | 21 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
| 5" | 4 1/2" | 6" | 16 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
| 6" | 6" | 8" | 32 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
| 7" | 5 1/2" | 10" | 37 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
| 8" | 5" | 12" | 44 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
| 8" | 5 1/2" | 10" | 40 | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 9" | 8" | 16" | 94 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
| 10" | 8" | 12" | 86 | 0.002" | 0.002" | Iron | 00000000 | 000000 |
Tight Tolerance | ||||||||
| 4" | 3 3/4" | 5" | 10 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
| 4" | 4" | 6" | 12 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
| 5" | 4" | 8" | 21 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
| 5" | 4 1/2" | 6" | 16 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
| 6" | 6" | 8" | 32 | 0.0005" | 0.00025" | Iron | 000000 | 000000 |
| 7" | 5 1/2" | 10" | 37 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
| 8" | 5" | 12" | 44 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
| 8" | 5 1/2" | 10" | 40 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
| 9" | 8" | 16" | 94 | 0.0005" | 0.00025" | Iron | 000000 | 00000000 |
| 10" | 8" | 12" | 86 | 0.0005" | 0.00025" | Iron | 0000000 | 000000 |
Angle Plates with Mounting Holes
Mount workpieces in precisely located holes for repeatable setups. These plates ensure accurate right angles and hold workpieces and fixtures perpendicular to a machine table.
For technical drawings and 3-D models, click on a part number.
Threaded Holes | Counterbored Holes | Tolerance per 6" | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | No. of | Thread Size | No. of | Dia. | Dp. | Wt., lbs. | Squareness | Parallel | Material | Each | |
Tight Tolerance | |||||||||||||
| 3" | 3" | 4" | 13 | 1/4"-20 | 4 | 5/16" | 7/16" | 6 | 0.0005" | 0.0005" | Steel | 0000000 | 0000000 |
| 4" | 4" | 4" | 13 | 1/4"-20 | 4 | 5/16" | 7/16" | 10 | 0.0005" | 0.0005" | Steel | 0000000 | 000000 |
| 4" | 4" | 6" | 14 | 3/8"-16 | 4 | 7/16" | 5/8" | 14 | 0.0005" | 0.0005" | Steel | 0000000 | 000000 |
Angle Plates
Ensure accurate right angles and hold workpieces and fixtures perpendicular to a machine table by securing them to these plates with clamps.
For technical drawings and 3-D models, click on a part number.
Tolerance per 6" | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Wt., lbs. | Squareness | Parallel | End Squareness | End Parallel | Material | Each | |
Standard | ||||||||||
| 2" | 2" | 2" | 1 | 0.002" | 0.002" | __ | __ | Iron | 00000000 | 000000 |
| 3" | 3" | 3" | 3 | 0.002" | 0.002" | __ | __ | Iron | 00000000 | 00000 |
| 4" | 4" | 4" | 7 | 0.002" | 0.002" | __ | __ | Iron | 00000000 | 000000 |
| 5" | 5" | 5" | 11 | 0.002" | 0.002" | __ | __ | Iron | 00000000 | 000000 |
| 6" | 6" | 6" | 18 | 0.002" | 0.002" | __ | __ | Iron | 00000000 | 000000 |
| 8" | 8" | 8" | 42 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
| 12" | 12" | 12" | 125 | 0.002" | 0.002" | __ | __ | Iron | 00000000 | 000000 |
Tight Tolerance | ||||||||||
| 2" | 2" | 2" | 1 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 00000 |
| 3" | 3" | 3" | 3 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 4" | 4" | 4" | 7 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 5" | 5" | 5" | 11 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 6" | 6" | 6" | 18 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 8" | 6" | 10" | 45 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 8" | 8" | 8" | 42 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 000000 | 000000 |
| 8" | 10" | 6" | 50 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
Angle Plates with Mounting Slots
Use these plates to ensure accurate right angles and hold workpieces and fixtures perpendicular to a machine table.
Tight tolerance plates are ground to squareness and parallel tolerances of 0.0005".
For technical drawings and 3-D models, click on a part number.
Slot Lg. | Tolerance per 6" | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Slot Wd. | (A) | (B) | Wt., lbs. | Squareness | Parallel | End Squareness | End Parallel | Material | Each | |
Standard | |||||||||||||
| 2 1/2" | 3 1/2" | 3" | 7/16" | 7/8" | 3/8" | 4 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
| 3" | 4 1/2" | 3 1/2" | 9/16" | 1 1/16" | 2 11/16" | 4 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
| 3" | 4 1/2" | 3 1/2" | 9/16" | 1 1/4" | 3/4" | 5 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
| 4 1/2" | 6" | 5" | 11/16" | 2 1/16" | 1 9/16" | 13 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
| 4 1/2" | 7" | 5 1/2" | 11/16" | 2 9/16" | 1 9/16" | 14 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
| 5" | 8" | 6" | 9/16" | 3 1/16" | 1 3/4" | 22 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
| 6" | 9" | 7" | 11/16" | 3 7/8" | 2 1/16" | 28 | 0.002" | 0.002" | __ | __ | Iron | 000000 | 000000 |
| 6" | 10" | 8" | 11/16" | 4 1/2" | 2 3/8" | 37 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 000000 |
Tight Tolerance | |||||||||||||
| 3" | 4 1/2" | 3 1/2" | 9/16" | 1 1/4" | 3/4" | 5 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 4 1/2" | 6" | 5" | 11/16" | 2 1/16" | 1 9/16" | 13 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 4 1/2" | 7" | 5 1/2" | 11/16" | 2 9/16" | 1 9/16" | 14 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 5" | 8" | 6" | 9/16" | 3 1/16" | 1 3/4" | 22 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 6" | 9" | 7" | 11/16" | 3 7/8" | 2 1/16" | 28 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 000000 | 000000 |
| 6" | 10" | 8" | 11/16" | 4 1/2" | 2 3/8" | 37 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 000000 |
Slot Lg. | Tolerance per 6" | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Slot Wd. | (A) | (B) | Wt., lbs. | Squareness | Parallel | Material | Each | |
Standard | |||||||||||
| 4 1/2" | 6" | 5" | 9/16" | 2" | 1 1/4" | 12 | 0.002" | 0.002" | Iron | 0000000 | 0000000 |
Slot Lg. | Tolerance per 6" | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Slot Wd. | (A) | (B) | (C) | (D) | Wt., lbs. | Squareness | Parallel | End Squareness | End Parallel | Material | Each | |
Standard | |||||||||||||||
| 8" | 12" | 9" | 11/16" | 1 7/16" | 5 1/8" | 1 7/16" | 3 3/16" | 63 | 0.002" | 0.002" | __ | __ | Iron | 0000000 | 0000000 |
Tight Tolerance | |||||||||||||||
| 8" | 12" | 9" | 11/16" | 1 7/16" | 5 1/8" | 1 7/16" | 3 3/16" | 63 | 0.0005" | 0.0005" | 0.002" | 0.002" | Iron | 0000000 | 00000000 |
Slot Lg. | Tolerance per 6" | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Slot Wd. | (A) | (B) | (C) | (D) | Wt., lbs. | Squareness | Parallel | Material | Each | |
Standard | |||||||||||||
| 6" | 9" | 7" | 11/16" | 15/16" | 3 1/2" | 1 5/8" | 2 1/2" | 24 | 0.002" | 0.002" | Iron | 0000000 | 0000000 |
| 6" | 10" | 8" | 11/16" | 1 3/16" | 4 1/8" | 1 7/8" | 2 1/8" | 33 | 0.002" | 0.002" | Iron | 0000000 | 000000 |
| 8" | 12" | 9" | 13/16" | 1 5/16" | 4 5/8" | 2 7/16" | 3 5/8" | 62 | 0.002" | 0.002" | Iron | 0000000 | 000000 |

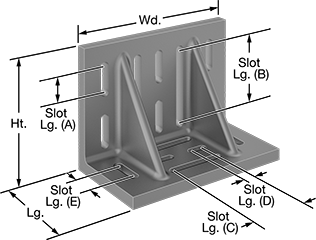

Slot Lg. | Tolerance per 6" | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Slot Wd. | (A) | (B) | (C) | (D) | (E) | Wt., lbs. | Squareness | Parallel | Material | Each | |
Standard | ||||||||||||||
| 9" | 16" | 12" | 13/16" | 2 17/32" | 7 15/32" | 4 3/4" | 1 1/8" | 2 17/32" | 115 | 0.002" | 0.002" | Iron | 0000000 | 000000000 |

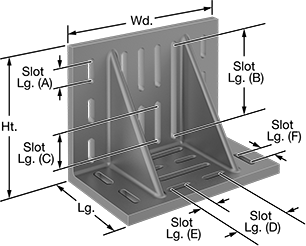

Slot Lg. | Tolerance per 6" | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Slot Wd. | (A) | (B) | (C) | (D) | (E) | (F) | Wt., lbs. | Squareness | Parallel | Material | Each | |
Standard | |||||||||||||||
| 12" | 20" | 16" | 13/16" | 2 3/16" | 11 5/16" | 4 17/32" | 6 3/4" | 2 1/8" | 2 17/32" | 210 | 0.002" | 0.002" | Iron | 0000000 | 000000000 |
