    201 Products

    Skate Wheel Conveyors

    Skate wheel conveyors are for light duty loading and unloading of flat-bottom objects.
    Note: Weight capacities are based on an evenly distributed load with at least one stand at each end for straight conveyors, and an additional stand in the center for curved conveyors. You can increase the weight capacity of a straight conveyor by adding a stand in the center. The length of the material you’re conveying should be at least three times the axle spacing.
    Straight Conveyors
    Image of Product. Front orientation. Conveyors. Skate Wheel Conveyors, Straight Conveyors.
    Zinc-Plated Steel Wheel—Zinc-plated steel is stronger than aluminum and provides some corrosion resistance.
    Aluminum Wheel—Aluminum is lighter than steel with better corrosion resistance.
    Nylon Wheel—Nylon is nonmarring.
    Wheel
    5 ft. Long
    10 ft. Long
    Overall
    Wd.
    Dia.
    Spacing
    Projection
    Color
    Axle
    Dia.
    No. of Wheels
    per Axle
    Frame
    Ht.
    No. of Stands
    Included
    Wt. Cap. Per Lg. (No.
    of Stands Req.)
    Each
    Wt. Cap. Per Lg. (No.
    of Stands Req.)
    Each
    Zinc-Plated Steel Wheel with Galvanized Steel Frame
    12"1.9"3"3/8"—1/4"2, 32 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K4110000000175 lb/ft (3), 35 lb/ft (2)56755K3110000000
    15"1.9"3"3/8"—1/4"2, 32 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K421000000175 lb/ft (3), 35 lb/ft (2)56755K321000000
    18"1.9"3"3/8"—1/4"3, 42 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K431000000175 lb/ft (3), 35 lb/ft (2)56755K331000000
    24"1.9"3"3/8"—1/4"62 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K441000000175 lb/ft (3), 35 lb/ft (2)56755K351000000

    Aluminum Wheel with Aluminum Frame
    12"1.9"3"3/8"—1/4"2, 32 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K51000000175 lb/ft (3), 35 lb/ft (2)56755K56000000
    15"1.9"3"3/8"—1/4"2, 32 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K52000000175 lb/ft (3), 35 lb/ft (2)56755K57000000
    18"1.9"3"3/8"—1/4"3, 42 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K53000000175 lb/ft (3), 35 lb/ft (2)56755K58000000
    24"1.9"3"3/8"—1/4"62 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K54000000175 lb/ft (3), 35 lb/ft (2)56755K61000000

    Nylon Wheel with Galvanized Steel Frame
    12"1.9"3"3/8"Black1/4"2, 32 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K412000000175 lb/ft (3), 35 lb/ft (2)56755K312000000
    15"1.9"3"3/8"Black1/4"2, 32 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K422000000175 lb/ft (3), 35 lb/ft (2)56755K322000000
    18"1.9"3"3/8"Black1/4"3, 42 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K432000000175 lb/ft (3), 35 lb/ft (2)56755K332000000
    24"1.9"3"3/8"Black1/4"62 1/2"0175 lb/ft (2), 35 lb/ft (2)56755K442000000175 lb/ft (3), 35 lb/ft (2)56755K352000000

    Straight Conveyors with Multidirectional Wheels
    Image of ProductInUse. Top orientation. Contains Annotated. Conveyors. Skate Wheel Conveyors, Straight Conveyors with Multidirectional Wheels.
    Image of Product. Front orientation. Conveyors. Skate Wheel Conveyors, Straight Conveyors with Multidirectional Wheels.
    Conveyors with multidirectional wheels have rollers that rotate around the wheel core to allow movement in multiple directions. They’re good for side loading and unloading, workstations, and other situations that require multidirectional movement of items.
    ABS Wheel—ABS is nonmarring.
    Wheel
    2 ft. Long
    3 ft. Long
    5 ft. Long
    10 ft. Long
    Overall
    Wd.
    Dia.
    Spacing
    Projection
    Color
    Axle
    Dia.
    No. of Wheels
    per Axle
    Frame
    Ht.
    Wt. Cap. Per Lg. (No.
    of Stands Req.)
    No. of Stands
    Included
    Each
    Each
    Each
    Each
    ABS Wheel with Steel Frame
    12"2"3"3/8"Blue1/4"32 1/2"32 lb/ft (2)056755K15000000056755K16000000056755K17000000056755K18000000000
    18"2"3"3/8"Blue1/4"4, 52 1/2"32 lb/ft (2)056755K1900000056755K2500000056755K2600000056755K2700000000
    24"2"3"3/8"Blue1/4"62 1/2"32 lb/ft (2)056755K2800000056755K2900000056755K630000000056755K6400000000

    90° Curved Conveyors
    Image of Product. Front orientation. Conveyors. Skate Wheel Conveyors, 90° Curved Conveyors.
    Image of Attribute. Top orientation. Contains Annotated. Skate Wheel Conveyors, 90° Curved Conveyors.
    Zinc-Plated Steel Wheel—Zinc-plated steel is stronger than aluminum and provides some corrosion resistance.
    Aluminum Wheel—Aluminum is lighter than steel with better corrosion resistance.
    Nylon Wheel—Nylon is nonmarring.
    Wheel
    Overall
    Wd.
    Radius
    Dia.
    Spacing
    Projection
    Color
    Axle
    Dia.
    No. of Wheels
    per Axle
    Frame
    Ht.
    Wt. Cap. Per Lg. (No.
    of Stands Req.)
    No. of Stands
    Included
    Each
    Zinc-Plated Steel Wheel with Galvanized Steel Frame
    12"36"1.9"3"3/8"—1/4"2, 32 1/2"450 lb/ft (3)056755K9110000000
    15"33"1.9"3"3/8"—1/4"2, 32 1/2"450 lb/ft (3)056755K921000000
    18"30"1.9"3"3/8"—1/4"3, 42 1/2"450 lb/ft (3)056755K931000000
    24"36"1.9"3"3/8"—1/4"62 1/2"300 lb/ft (3)056755K941000000

    Aluminum Wheel with Aluminum Frame
    12"36"1.9"3"3/8"—1/4"2, 32 1/2"200 lb/ft (3)056755K81000000
    15"33"1.9"3"3/8"—1/4"2, 32 1/2"200 lb/ft (3)056755K82000000
    18"30"1.9"3"3/8"—1/4"3, 42 1/2"200 lb/ft (3)056755K83000000
    24"36"1.9"3"3/8"—1/4"62 1/2"120 lb/ft (3)056755K84000000

    Nylon Wheel with Galvanized Steel Frame
    12"36"1.9"3"3/8"Black1/4"2, 32 1/2"450 lb/ft (3)056755K912000000
    15"33"1.9"3"3/8"Black1/4"2, 32 1/2"450 lb/ft (3)056755K922000000
    18"30"1.9"3"3/8"Black1/4"3, 42 1/2"450 lb/ft (3)056755K932000000
    24"36"1.9"3"3/8"Black1/4"62 1/2"300 lb/ft (3)056755K942000000

    Stationary Stands
    Image of Product. Front orientation. Conveyors. Skate Wheel Conveyors, Stationary Stands.
    Stationary stands have adjustable mounting plates to position the conveyor at a decline.
    Ht.
    Material
    Mounting Fasteners
    Included
    No. of Mounting
    Holes
    Each

    For 12" Overall Width
    15" to 20"Galvanized SteelYes65214K25000000
    19" to 24"Galvanized SteelYes65214K2600000
    23" to 28"Galvanized SteelYes65214K2700000
    27" to 32"Galvanized SteelYes65214K2800000
    31" to 42"Galvanized SteelYes65214K2900000

    For 15" Overall Width
    15" to 20"Galvanized SteelYes65214K3100000
    19" to 24"Galvanized SteelYes65214K3200000
    23" to 28"Galvanized SteelYes65214K3300000
    27" to 32"Galvanized SteelYes65214K3400000
    31" to 42"Galvanized SteelYes65214K35000000

    For 18" Overall Width
    15" to 20"Galvanized SteelYes65214K7100000
    19" to 24"Galvanized SteelYes65214K7200000
    23" to 28"Galvanized SteelYes65214K7300000
    27" to 32"Galvanized SteelYes65214K7400000
    31" to 42"Galvanized SteelYes65214K75000000

    For 24" Overall Width
    15" to 20"Galvanized SteelYes65214K8200000
    19" to 24"Galvanized SteelYes65214K8300000
    23" to 28"Galvanized SteelYes65214K8400000
    27" to 32"Galvanized SteelYes65214K8500000
    31" to 42"Galvanized SteelYes65214K86000000

    Portable Stands
    Image of Product. Front orientation. Conveyors. Skate Wheel Conveyors, Portable Stands.
    For portable stands, the conveyor rests on top of the stand.
    Ht.
    Material
    Color
    Each

    For 12" or 15" Overall Width
    11" to 17"Powder-Coated SteelBlue5214K11000000
    17" to 29"Powder-Coated SteelBlue5214K1200000
    23" to 39"Powder-Coated SteelBlue5214K13000000
    29" to 51"Powder-Coated SteelBlue5214K14000000

    For 18" Overall Width
    11" to 17"Powder-Coated SteelBlue5214K1500000
    17" to 29"Powder-Coated SteelBlue5214K16000000
    23" to 39"Powder-Coated SteelBlue5214K17000000
    29" to 51"Powder-Coated SteelBlue5214K18000000

    For 24" Overall Width
    11" to 17"Powder-Coated SteelBlue5214K2100000
    17" to 29"Powder-Coated SteelBlue5214K22000000
    23" to 39"Powder-Coated SteelBlue5214K23000000
    29" to 51"Powder-Coated SteelBlue5214K24000000


    Flow Rails

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style A.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style B.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style C.

    With Wheels

    Style A

    With Wheels

    Style B

    With Wheels

    Style C

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style D.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style E.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style F.

    With Wheels

    Style D

    With Wheels

    Style E

    With Wheels

    Style F

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style G.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style H.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style J.

    With Wheels

    Style G

    With Wheels

    Style H

    With Wheels

    Style J

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style K.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style L.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style M.

    With Wheels

    Style K

    With Wheels

    Style L

    With Wheels

    Style M

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style N.

    With Wheels

    Style N

    Use rails to convey packages and pallets in flow racks and confined spaces. They are easier to maneuver and take up less area than a full conveyor.
    Note: Capacities are based on a fully supported rail.
    With Wheels
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style A.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style B.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style C.

    Style A

    Style B

    Style C

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style D.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style E.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style F.

    Style D

    Style E

    Style F

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style G.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style H.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style J.

    Style G

    Style H

    Style J

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style K.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style L.
    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style M.

    Style K

    Style L

    Style M

    Image of Product. Front orientation. Flow Rails. Flow Rails, With Wheels, Style N.

    Style N

    Galvanized Steel Frame—Rails with a galvanized steel frame have a thick coating for more corrosion resistance than rails with a power-coated frame.
    Powder-Coated Steel Frame—Rails with a powder-coated steel frame have mild corrosion resistance. They have a finished appearance but are prone to chipping if there’s impact.
    Style D—Style D rails have a flange that extends beyond the wheel to keep material flowing along the channel.
    Wheel
    Overall
    Bearing
    Mounting
    Slot
    5 ft. Long
    10 ft. Long
    Style
    Dia.
    Wd.
    Spacing
    Projection
    Wt. Cap. per
    Wheel, lb.
    Wd.
    Ht.
    Type
    Material
    Ball Bearing
    Material
    Lg.
    Wd.
    Mounting Hole
    Ctr.-to-Ctr.
    Mounting
    Hole Dia.
    Each
    Each
    Zinc-Plated Steel Wheels with Galvanized Steel Frame
    A1 15/16"9/16"3"9/16"502"2 7/8"Ball
    		SteelSteel——5"3/8"5880K1430000005880K1440000000
    B1 15/16"9/16"3"3/8"502"2 7/8"Ball
    		SteelSteel——5"3/8"5880K141000005880K142000000
    C1 15/16"9/16"3"9/16"502 13/16"2 7/8"Ball
    		SteelSteel——5"3/8"5880K147000005880K148000000
    D1 15/16"9/16"3"9/16"502 23/32"3 1/2"Ball
    		SteelSteel——5"3/8"5880K149000005880K151000000
    E1 7/8"1 1/2"3"3/8"1503"2 1/2"Ball
    		SteelSteel2"3/8"3"—5880K1520000005880K53000000
    F1 15/16"5/8"3"17/32"203 5/16"2 1/2"Ball
    		SteelSteel——2.32"1/4"5673K44000005673K64000000
    G1 15/16"5/8"3"3/8"1002 13/16"3"Ball
    		SteelSteel1"3/8"1.5"—5880K73000005880K71000000
    G2 1/4"13/16"3"1/2"3003"3 1/8"Ball
    		SteelSteel1"3/8"1.5"—5880K410000005880K422000000
    H1 15/16"9/16"1 1/2"3/8"1003 3/4"3"Ball
    		SteelSteel1"3/8"1.5"—5815K610000005815K41000000
    J1 15/16"9/16"1 1/2"9/16"503 3/4"2 7/8"Ball
    		SteelSteel——5"3/8"5880K1450000005880K146000000

    Zinc-Plated Steel Wheels with Powder-Coated Steel Frame
    A1 15/16"5/8"1 1/2"3/8"752 1/8"2 3/8"Ball
    		SteelSteel——3"7/16"5880K1070000005880K108000000
    A1 15/16"5/8"2"3/8"752 1/8"2 3/8"Ball
    		SteelSteel——3"7/16"5880K1090000005880K111000000
    B1 15/16"5/8"2"15/32"752"3"Ball
    		SteelSteel——3"7/16"5880K1050000005880K106000000
    C1 15/16"5/8"2"3/8"752 13/16"2 3/8"Ball
    		SteelSteel——3"7/16"5880K1120000005880K113000000
    F1 15/16"5/8"2"1/2"754"2 1/4"Ball
    		SteelSteel——3"7/16"5880K1140000005880K115000000
    K1 15/16"5/8"3"15/32"752 13/16"3"Ball
    		SteelSteel——3"7/16"5880K1010000005880K102000000
    L1 15/16"5/8"2"15/32"753 11/16"3"Ball
    		SteelSteel——3"7/16"5880K1030000005880K104000000

    Galvanized Steel Wheels with Galvanized Steel Frame
    E1 15/16"5/8"3"19/32"502 29/32"2 11/32"Ball
    		SteelSteel——6"1/4"5880K125000005880K126000000
    G1 15/16"5/8"3"3/8"502 13/16"2 7/8"Ball
    		SteelSteel——4"1/4"5880K118000005880K119000000
    M1 15/16"5/8"3"17/32"503 5/16"2 1/2"Ball
    		SteelSteel——2.375"1/4"5880K116000005880K117000000

    Nylon Wheels with Galvanized Steel Frame
    G2 15/16"1 1/2"3"7/8"3303 5/8"3 1/2"Ball
    		SteelSteel1"3/8"1.5"—5880K780000005880K79000000

    ABS Wheels with Galvanized Steel Frame
    N1 5/8"13/16"3"1/4"253"2 3/8"Plain
    		——2"3/8"3"—5880K12200000———0
    N1 5/8"7/8"3"1/4"253"2 3/8"Plain
    		——2"3/8"3"————05880K23000000
    N1 5/8"7/8"4 1/2"1/4"253"2 3/8"Plain
    		——2"3/8"3"—5880K124000005880K25000000


    Flexible Skate Wheel Conveyors

    Image of Product. Shown Expanded. Front orientation. Conveyors. Flexible Skate Wheel Conveyors.
    Image of Product. Shown Retracted. Front orientation. Contains Border. Conveyors. Flexible Skate Wheel Conveyors.

    Shown Expanded

    Shown Retracted

    An accordion-style frame lets you quickly curve, expand, and retract these conveyors. They have skate wheels for flat-bottom objects in assembly lines or packaging and shipping applications. A package stop on one end keeps boxes from sliding off.
    Note: Weight capacities are based on an evenly distributed load.
    Steel Wheel—Steel wheels are impact resistant.
    Nylon Wheel—Nylon wheels resist moisture and are lighter than steel.
    Wheel
    28" to 107" Long
    39" to 154" Long
    74" to 296" Long
    Overall
    Wd.
    Overall
    Ht.
    Wt. Cap. per
    Lg., lb/ft
    Dia.
    Spacing
    Projection
    Color
    Axle
    Dia.
    No. of Wheels
    per Axle
    Features
    Each
    Each
    Each
    Steel Wheel with Zinc-Plated Steel Frame
    18"28" to 44"2251.9"5 1/4"1/2"—5/16"6Package Stop, Connecting Hooks, Handle5717K410000000005717K420000000005717K43000000000
    24"28" to 44"2251.9"5 1/4"1/2"—5/16"8Package Stop, Connecting Hooks, Handle5717K44000000005717K45000000005717K4600000000

    Nylon Wheel with Zinc-Plated Steel Frame
    14"28" to 44"2251.9"5 1/4"1/2"Red5/16"6Package Stop, Connecting Hooks, Handle5717K52000000005717K32000000005717K1200000000
    18"28" to 44"2251.9"5 1/4"1/2"Red5/16"6Package Stop, Connecting Hooks, Handle5717K53000000005717K33000000005717K1300000000
    24"28" to 44"2251.9"5 1/4"1/2"Red5/16"8Package Stop, Connecting Hooks, Handle5717K54000000005717K34000000005717K1400000000


    Clamp-On Framing and Fittings

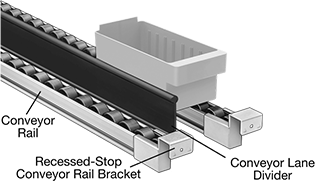

    Image of System. Front orientation. Contains Annotated. Clamp-On Framing and Fittings. Clamp-On Framing and Fittings .
    Fittings come in two pieces to clasp over rails, making assembly and disassembly quicker than our other framing. Use it to form temporary partitions, modular conveyors, and workstations. To assemble, clamp fittings onto the rail and tighten the included cap screw and nut. For permanent connections and added strength, fittings have a 5/32" hole to drill in an additional screw (not included).
    Conveyor Rails
    Image of Product. Front orientation. Conveyor Rails. Clamp-On Framing and Fittings .
    Conveyor rails slide directly into the conveyor rail mounting brackets.
    Wheel
    For Rail OD
    Wt. Cap.
    Overall
    Ht.
    Lg.,
    ft.
    Dia.
    Wd.
    Spacing
    Frame
    Material
    Each
    1 9/16" Overall Width
    1.08", 28 mm175 lb.1 11/16"81 5/16"13/16"1 5/8"Aluminum
    		2534T53000000
    1.08", 28 mm200 lb.1 11/16"61 5/16"13/16"1 5/8"Aluminum
    		2534T5200000
    1.08", 28 mm225 lb.1 11/16"41 5/16"13/16"1 5/8"Aluminum
    		2534T5100000
    1.08", 28 mmNot Rated1 11/16"21 5/16"13/16"1 5/8"Aluminum
    		6297N5800000
    1.08", 28 mmNot Rated1 11/16"51 5/16"13/16"1 5/8"Aluminum
    		6297N6300000
    1.08", 28 mmNot Rated1 11/16"101 5/16"13/16"1 5/8"Aluminum
    		6297N5600000

    3 3/8" Overall Width
    1.08", 28 mm160 lb.1 7/16"811/16"2 3/4"3/4"Steel6297N3900000
    1.08", 28 mm280 lb.1 7/16"411/16"2 3/4"3/4"Steel6297N3800000

    Conveyor Rail Brackets
    Image of ProductInUse. Adjustable-Angle Bracket Shown Installed with Conveyor and Round Rail. Front orientation. Contains Annotated. Adjustable Angle. Clamp-On Framing and Fittings , Conveyor Rail Brackets.
    Image of ProductInUse. Connecting Brackets Shown Installed. Front orientation. Connecting Bracket. Clamp-On Framing and Fittings .
    Image of ProductInUse. Support Bracket Shown Installed with Conveyor and Round Rail. Front orientation. Support Bracket. Clamp-On Framing and Fittings .

    Adjustable-Angle Bracket

    Shown Installed with

    Conveyor and Round Rail

    Connecting Brackets Shown

    Installed

    Support Bracket Shown

    Installed with

    Conveyor and Round Rail

    Image of Product. Flow-Through Hanging Bracket. Front orientation. Conveyor Rail Brackets. Clamp-On Framing and Fittings , Hanging Flow Through.

    Flow-Through

    Hanging Bracket

    Image of Product. Connecting Bracket. Front orientation. Connecting Bracket. Clamp-On Framing and Fittings .

    Connecting

    Bracket

    Connecting Bracket—Conveyor rail connecting brackets join small sections of conveyor together.
    Support Bracket—Conveyor rail support brackets secure the midpoint of a conveyor rail to a rail for extra support.
    Adjustable Angle—Conveyor rail brackets join small sections of conveyor together. Adjustable-angle brackets change the angle between two connected conveyor rail sections up to 45°. You’ll need a recessed-stop conveyor rail bracket (sold separately) to keep items from falling off the end.
    Flow-Through Bracket—Flow-through conveyor rail brackets are for use on the loading side of your application.
    Recessed-Stop Bracket—Recessed-stop conveyor rail brackets are for use on the picking side of your application.
    For 1 9/16"
    Overall Width
    For 3 3/8"
    Overall Width
    Conveyor Rail Bracket Type
    For Rail OD
    Material
    Each
    Each
    Connecting Flow Through1.08", 28 mmAluminum6297N6100000———0
    Hanging Flow Through1.08", 28 mmZinc-Plated Steel2534T4100006297N4100000
    Support Flow Through1.08", 28 mmZinc-Plated Steel———06297N420000
    Connecting Adjustable-Angle Flow Through1.08", 28 mmZinc-Plated Steel———06297N440000
    Hanging Recessed Stop1.08", 28 mmZinc-Plated Steel2534T4300006297N430000
    Conveyor Lane Dividers
    Image of Product. Front orientation. Conveyor Lane Dividers. Clamp-On Framing and Fittings .
    Conveyor lane dividers guide and keep products separated on conveyor rail systems.
    Black Plastic
    For Rail OD
    Lg.,
    ft.
    For Overall
    Wd.
    Each
    1.08", 28 mm21 9/16"6297N59000000
    1.08", 28 mm41 9/16"2534T7800000
    1.08", 28 mm51 9/16"6297N6400000
    1.08", 28 mm61 9/16"2534T7900000
    1.08", 28 mm81 9/16"2534T8100000


    Flexible Skate Wheel Conveyors with Side Rails

    Image of Product. Shown Retracted. Front orientation. Contains Border. Conveyors. Flexible Skate Wheel Conveyors with Side Rails.
    Image of Product. Shown Expanded. Front orientation. Conveyors. Flexible Skate Wheel Conveyors with Side Rails.

    Shown Retracted

    Shown Expanded

    An accordion-style frame lets you quickly curve, expand, and retract these conveyors, while side rails and a package stop keep boxes from sliding off. They have skate wheels for flat-bottom objects in assembly lines or packaging and shipping applications.
    Note: Weight capacities are based on an evenly distributed load.
    Wheel
    28" to 107" Long
    39" to 154" Long
    74" to 296" Long
    Overall
    Wd.
    Overall
    Ht.
    Wt. Cap. per
    Lg., lb/ft
    Dia.
    Spacing
    Projection
    Color
    Axle
    Dia.
    No. of Wheels
    per Axle
    Features
    Each
    Each
    Each
    Nylon Wheel with Zinc-Plated Steel Frame
    14"28" to 44"2251.9"5 1/4"3/8"Red5/16"6Package Stop, Connecting Hooks, Handle5717K870000000005717K910000000005717K94000000000
    18"28" to 44"2251.9"5 1/4"3/8"Red5/16"6Package Stop, Connecting Hooks, Handle5717K88000000005717K92000000005717K9500000000
    24"28" to 44"2251.9"5 1/4"3/8"Red5/16"8Package Stop, Connecting Hooks, Handle5717K89000000005717K93000000005717K9600000000


    Build-Your-Own Flow Rails

    Image of System. Front orientation. Contains Annotated. Flow Rails. Build-Your-Own Flow Rails.
    Configure wheels where you need them on these economical rails that you can cut to length.
    Note: Capacities are based on a fully supported rail.
    Frames
    Image of Product. Front orientation. Flow Rails. Build-Your-Own Flow Rails, Frames.
    Frames can be cut to your desired length and drilled for mounting. They have interlocking sides so you can connect rails side by side.
    Lg.,
    ft.
    Min. Wheel
    Spacing
    Overall
    Wd.
    Frame
    Material
    Each
    51 1/8"1 1/2"Aluminum5897K75000000
    101 1/8"1 1/2"Aluminum5897K7100000
    Spacers
    Image of Product. Front orientation. Flow Rails. Build-Your-Own Flow Rails, Spacers.
    Spacers snap into the frame to increase wheel spacing. Multiple spacers can be used.
    Wd.
    Pkg.
    Qty.
    Pkg.
    7/8"205897K5100000
    Wheels
    Image of Product. Front orientation. Flow Rails. Build-Your-Own Flow Rails, Wheels.
    Wheels have a built-in bracket that snaps into the frame.
    Wheel
    Wd.
    Dia.
    Projection
    Material
    Color
    Wt. Cap. per
    Wheel, lb.
    Overall
    Ht.
    Bearing
    Type
    Axle Material
    Pkg.
    Qty.
    Pkg.
    1/2"1"11/16"AcetalRed251 1/2"Plain
    		Stainless Steel
    		205897K41000000
    9/16"1"11/16"AcetalWhite31 1/2"Plain
    		Nylon
    		205897K2100000

    Heavy Duty Flow Rails

    Image of Product. Front orientation. Flow Rails. Heavy Duty Flow Rails.
    Image of Product. Front orientation. Wheels. Heavy Duty Flow Rails.

    Replacement

    Wheels

    All-steel construction and tightly spaced wheels with double ball bearings gives these rails the strength needed to handle heavy loads in confined spaces. Drill holes to mount or weld in place.
    Note: Capacities are based on a fully supported rail.
    Flow Rails
    Replacement
    Wheels
    Wheel
    Overall
    Wt. Cap.,
    lb.
    Dia.
    Wd.
    Spacing
    Projection
    Frame
    Wd.
    Wd.
    Ht.
    Each
    Each
    Steel Wheels with Steel Frame

    4 ft. Long
    24,0001 1/8"1 1/8"7/8"3/16"3"4"1 3/4"5161T2100000005161T10100000
    48,0001 1/4"3/4"7/8"1/4"3"4"2"5161T240000005161T1020000

    5 ft. Long
    30,0001 1/8"1 1/8"7/8"3/16"3"4"1 3/4"5161T610000005161T1010000
    60,0001 1/4"3/4"7/8"1/4"3"4"2"5161T710000005161T1020000

    6 ft. Long
    36,0001 1/8"1 1/8"7/8"3/16"3"4"1 3/4"5161T220000005161T1010000
    72,0001 1/4"3/4"7/8"1/4"3"4"2"5161T250000005161T1020000

    8 ft. Long
    48,0001 1/8"1 1/8"7/8"3/16"3"4"1 3/4"5161T230000005161T1010000
    96,0001 1/4"3/4"7/8"1/4"3"4"2"5161T26000000005161T1020000

    10 ft. Long
    60,0001 1/8"1 1/8"7/8"3/16"3"4"1 3/4"5161T62000000005161T1010000
    120,0001 1/4"3/4"7/8"1/4"3"4"2"5161T72000000005161T1020000


    Multidirectional Flow Rails

    Rotate materials in any direction on these flow rails. Use them to convey packages and pallets in flow racks, assembly areas, and confined spaces.
    Note: Capacities are based on a fully supported rail.
    With Wheels
    Image of Product. Front orientation. Flow Rails. Multidirectional Flow Rails, With Wheels.
    Wheels have rollers around the wheel core to allow for multidirectional movement.
    Wheel
    Overall
    5 ft. Long
    10 ft. Long
    Dia.
    Wd.
    Spacing
    Projection
    Wt. Cap. per
    Wheel, lb.
    Wd.
    Ht.
    Bearing
    Type
    Mounting Fasteners
    Included
    Mounting
    Hole Dia.
    Frame
    Wd.
    Each
    Each
    Acetal Wheels with Galvanized Steel Frame
    1.9"1 5/16"2"21/32"252 3/16"2 1/2"Plain
    		No1/4"1 1/2"57705K71000000057705K72000000000
    1.9"1 5/16"4"21/32"252 3/16"2 1/2"Plain
    		No1/4"1 1/2"57705K7300000057705K74000000


    Flanged-Wheel Flow Rails

    The flange on the wheels separates and guides packages as they flow down the rails. Rails are a lightweight solution when you don't need a complete conveyor in confined spaces such as flow racks and assembly areas. The flange location is based on facing the unloading end of the rail.
    Note: Capacities are based on a fully supported rail.
    With Wheels
    Image of Product. Front orientation. Contains Annotated. Flow Rails. Flanged-Wheel Flow Rails, With Wheels, Left-Side Flange.
    Image of Product. Front orientation. Contains Annotated. Flow Rails. Flanged-Wheel Flow Rails, With Wheels, Right-Side Flange.

    Left-Side Flange

    Right-Side Flange

    Wheel
    Overall
    Bearing
    Mounting
    Slot
    5 ft. Long
    10 ft. Long
    Flange
    Location
    Dia.
    Wd.
    Spacing
    Projection
    Wt. Cap. per
    Wheel, lb.
    Wd.
    Ht.
    Type
    Material
    Ball Bearing
    Material
    Lg.
    Wd.
    Mounting Hole
    Ctr.-to-Ctr.
    Each
    Each
    Zinc-Plated Steel Wheels with Galvanized Steel Frame
    Left Side1 7/8"3 1/2"3"7/8"2004 27/32"3"Ball
    		SteelSteel2"3/8"3"5880K17600000005880K1780000000
    Right Side1 7/8"3 1/2"3"7/8"2004 27/32"3"Ball
    		SteelSteel2"3/8"3"5880K1750000005880K177000000

    ABS Wheels with Galvanized Steel Frame
    Left Side1 5/8"1 5/8"3"13/16"303"2 15/16"Plain
    		——2"3/8"3"5880K172000005880K174000000
    Right Side1 5/8"1 5/8"3"13/16"303"2 3/8"Plain
    		——2"3/8"3"5880K17100000———0
    Right Side1 5/8"1 5/8"3"13/16"303"2 15/16"Plain
    		——2"3/8"3"———05880K173000000


    Telescoping Mobile Skate Wheel Conveyors

    Image of Product. Partially Expanded. Front orientation. Conveyors. Telescoping Mobile Skate Wheel Conveyors.

    Partially Expanded

    Image of Product. Fully Retracted. Front orientation. Conveyors. Telescoping Mobile Skate Wheel Conveyors.

    Fully Retracted

    Extend these conveyors more than 60 ft. to move items over long stretches and then retract them to a more compact 10 ft. for storage. Often used to load trailers, they’re best for light duty loading of boxes and other flat-bottomed objects. The first section of these conveyors features a roller conveyor extension. The rollers on the extension have a higher capacity than skate wheels to resist more impact as boxes are loaded onto the conveyor. A package stop on one end keeps boxes from sliding off. To facilitate positioning, these conveyors have handles and multidirectional wheels with rollers that rotate around the wheel core to allow movement in any direction. A floor lock keeps the conveyors in place.
    Wheel
    120" to
    734" Long
    Overall
    Wd.
    Overall
    Ht.
    Wt. Cap. per
    Lg., lb/ft
    Dia.
    Spacing
    Projection
    Color
    Features
    Each
    Plastic Wheel with Powder-Coated Steel Frame
    29"26" to 42"1001.1"2"5/16"BluePackage Stop, Handles, Floor Lock, Roller Conveyor Extension5527N11000000000

    Replacement Tracks
    Image of Product. Back orientation. Conveyor Tracks.
    Wd.
    Lg.
    Frame Material
    Each
    1"36"Galvanized Steel5527N12000000
    back to top
