Slant-Top Oil-Resistant Enclosures
Mount these enclosures on either of two sides, creating a 30° or 60° slanted surface for displays, touch screens, and other interactive devices. They are rated NEMA 13 and IP65 for indoor protection from dirt, dust, spraying and splashing oil/coolant, and low-pressure jets of water.
Add a pedestal and a pedestal base to enclosures to make them freestanding.
For technical drawings and 3-D models, click on a part number.
| Ht. | Front Ht. | Wd. | Dp. | Slant Lg. | Closure Screw Type | Environment | Environmental Rating | Specifications Met | Color | Each | |
Powder-Coated Steel with Hinged Cover and Screw Closure | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7" | 2 1/2" | 8 1/4" | 7 1/2" | 8 1/4" | Captive | Oily, Washdown | IP65; NEMA 13 | CSA Certified, UL Listed, C-UL Listed, UL 508A | Gray | 00000000 | 0000000 |
| 7" | 2 1/2" | 12 1/4" | 7 1/2" | 8 1/4" | Captive | Oily, Washdown | IP65; NEMA 13 | CSA Certified, UL Listed, C-UL Listed, UL 508A | Gray | 00000000 | 000000 |
| 7" | 2 1/2" | 16 1/4" | 7 1/2" | 8 1/4" | Captive | Oily, Washdown | IP65; NEMA 13 | CSA Certified, UL Listed, C-UL Listed, UL 508A | Gray | 00000000 | 000000 |
| 9" | 2 1/2" | 12 1/4" | 11" | 12 1/4" | Captive | Oily, Washdown | IP65; NEMA 13 | CSA Certified, UL Listed, C-UL Listed, UL 508A | Gray | 00000000 | 000000 |
| 9" | 2 1/2" | 16 1/4" | 11" | 12 1/4" | Captive | Oily, Washdown | IP65; NEMA 13 | CSA Certified, UL Listed, C-UL Listed, UL 508A | Gray | 00000000 | 000000 |
| 9" | 2 1/2" | 24 1/4" | 11" | 12 1/4" | Captive | Oily, Washdown | IP65; NEMA 13 | CSA Certified, UL Listed, C-UL Listed, UL 508A | Gray | 00000000 | 000000 |
| 11" | 2 1/2" | 20 1/4" | 14 1/2" | 16 1/4" | Captive | Oily, Washdown | IP65; NEMA 13 | CSA Certified, UL Listed, C-UL Listed, UL 508A | Gray | 00000000 | 000000 |
Pedestal | Enclosure Mounting | Base Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Shape | Plate Width | Plate Depth | Hardware Included | Plate Width | Plate Depth | Hardware Included | Includes | Color | Each | |
Powder-Coated Steel | |||||||||||||
| 35" | 4" | 4" | Straight | 5 3/4" | 5 3/4" | Yes | 7 5/8" | 7 5/8" | Yes | Gasketed Access Plate, Two Gaskets | Gray | 00000000 | 0000000 |
Pedestal Mounting | Floor Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Fasteners Included | Hole Thread Size  | No.of Holes | Fasteners Included | Hole Diameter | No. of Holes | Color | Each | |
Powder-Coated Steel | |||||||||||
| 1" | 18" | 18" | No | 1/4"-20 | 8 | No | 7/16" | 4 | Gray | 00000000 | 0000000 |
Push-Button Slant-Top Oil-Resistant Enclosures
Make your push buttons, switches, and indicating lights more visible and ergonomic to use. Enclosures mount on either of two sides, creating a 30° or 60° slanted surface. They are rated NEMA 13 for indoor protection from dirt and oil/coolant spraying when used with equivalently rated components.
Add a pedestal and a pedestal base to enclosures to make them freestanding.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of Holes | No. of Columns | No. of Rows | Ht. | Front Ht. | Wd. | Dp. | Slant Lg. | Environment | Environmental Rating | Closure Screw Type | No. of Holes | Hole Dia. | Specifications Met | Color | Each | |
Powder-Coated Steel with Lift-Off Cover and Screw Closure | ||||||||||||||||
For 22 mm | ||||||||||||||||
| 1 | 1 | 1 | 4 3/4" | 2 1/2" | 3 1/2" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 0000000 |
| 2 | 2 | 1 | 4 3/4" | 2 1/2" | 5 3/4" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 3 | 3 | 1 | 4 3/4" | 2 1/2" | 8" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 4 | 2 | 2 | 6 3/4" | 2 1/2" | 6 1/2" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 4 | 4 | 1 | 4 3/4" | 2 1/2" | 10 1/4" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 6 | 3 | 2 | 6 3/4" | 2 1/2" | 8 3/4" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 8 | 4 | 2 | 6 3/4" | 2 1/2" | 11" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 9 | 3 | 3 | 8" | 2 1/2" | 8 3/4" | 9 3/4" | 9 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 10 | 5 | 2 | 6 3/4" | 2 1/2" | 13 1/4" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 12 | 6 | 2 | 6 3/4" | 2 1/2" | 15 1/2" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
For 30 mm | ||||||||||||||||
| 1 | 1 | 1 | 4 3/4" | 2 1/2" | 3 1/2" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 2 | 2 | 1 | 4 3/4" | 2 1/2" | 5 3/4" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 3 | 3 | 1 | 4 3/4" | 2 1/2" | 8" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 4 | 2 | 2 | 6 3/4" | 2 1/2" | 6 1/2" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 4 | 4 | 1 | 4 3/4" | 2 1/2" | 10 1/4" | 4 1/2" | 3 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 6 | 3 | 2 | 6 3/4" | 2 1/2" | 8 3/4" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 8 | 4 | 2 | 6 3/4" | 2 1/2" | 11" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 9 | 3 | 3 | 8" | 2 1/2" | 8 3/4" | 9 3/4" | 9 1/2" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 10 | 5 | 2 | 6 3/4" | 2 1/2" | 13 1/4" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
| 12 | 6 | 2 | 6 3/4" | 2 1/2" | 15 1/2" | 7 3/4" | 7 1/4" | Oily | IP65, NEMA 13 | Captive | 4 | 0.22" | UL Listed, CSA Certified, ANSI 61, UL 508A | Gray | 0000000 | 000000 |
Pedestal | Enclosure Mounting | Base Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Shape | Plate Width | Plate Depth | Hardware Included | Plate Width | Plate Depth | Hardware Included | Includes | Color | Each | |
Powder-Coated Steel | |||||||||||||
| 35" | 4" | 4" | Straight | 5 3/4" | 5 3/4" | Yes | 7 5/8" | 7 5/8" | Yes | Gasketed Access Plate, Two Gaskets | Gray | 00000000 | 0000000 |
Pedestal Mounting | Floor Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Fasteners Included | Hole Thread Size | No.of Holes | Fasteners Included | Hole Diameter | No. of Holes | Color | Each | |
Powder-Coated Steel | |||||||||||
| 1" | 18" | 18" | No | 1/4"-20 | 8 | No | 7/16" | 4 | Gray | 00000000 | 0000000 |
Sanitary Stainless Steel Washdown Enclosures
With a hygienic design, these enclosures minimize spots where food, debris, and water could collect after washdowns. Use them to house and mount switches, buttons, and other components in sanitary environments. Each has a sloped roof that lets liquid drain quickly without pooling. They’re IP66 and IP69K rated, meaning they withstand the high-pressure, high-temperature washdowns that are typical in food processing plants. Made of stainless steel, these enclosures won’t corrode from frequent contact with harsh cleaners and sanitizers.
The seal on these enclosures keeps water and other contaminants from getting in. It’s FDA-compliant for direct food contact, meaning it won’t contaminate food if it breaks off and falls into your line. It’s bright blue too, so it’s easy to spot and remove.
For use indoors or out, these enclosures are also NEMA 4X and NEMA 13 rated to protect against dirt, oil, water, and coolant. UL and C-UL listed, they meet U.S. and Canadian safety standards.
Enclosures with a hinged cover have an internal hinge that lets the seal cover the entire door opening joint free. They have one or two locks, each of which has an external locking design without any crevices where water and bacteria could build up. Mount components to the removable panel.
To leave space for cleaning behind your enclosure, offset it from the wall with a sanitary standoff.
For technical drawings and 3-D models, click on a part number.
| Ht. | Wd. | Dp. | Slope Angle | Environment | Environmental Rating | No. of Locks | No. of Keys Included | Specifications Met | Each | |
Hinged Cover and Key-Lock Closure | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 17 1/4" | 8 1/2" | 6" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 1 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 000000000 |
| 21 1/2" | 15 1/4" | 8 1/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 21 1/2" | 31 3/4" | 8 1/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 23 1/2" | 24" | 11 3/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 26 1/4" | 20" | 8 1/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 30 1/4" | 15 1/4" | 8 1/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 30 1/4" | 24" | 8 1/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 32 1/4" | 31 3/4" | 11 3/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 36 1/2" | 24" | 8 1/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 38 1/2" | 30" | 11 3/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 48" | 31 3/4" | 11 3/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
| 56" | 31 3/4" | 11 3/4" | 30° | Corrosive, Food Industry, Oily, Outdoor, Sanitary, Washdown, Wet Location | IP66, IP69K, NEMA 4X, NEMA 13 | 2 | 1 | FDA Compliant 21 CFR 177.2600, UL Listed, C-UL Listed | 0000000 | 00000000 |
Console Enclosures
Build out human-machine interfaces by installing buttons, switches, gauges, and other components to monitor and control machinery. These enclosures have a large, slanted cover that holds components at a visible angle without blocking the view of your operation. They are about countertop height, so you can sit or stand during use. Remove the cover and doors to assemble electronics with more working space. They are IP and NEMA rated for protection from washdowns, oil, and dust.
Choose enclosures with rear access doors for another access point to internal electronics. They have panel mounting channels, so you can position panels (sold separately) at different depths, creating more space for components.
Add panels inside the enclosure to mount electronics without cutting or drilling the walls, maintaining protection from washdowns, oil, and dust. Electronics can be assembled on the panel outside of the enclosure for more working space and inserted when complete.
Replacement covers (sold separately) allow you to repurpose the enclosure for operations with different layouts.
For technical drawings and 3-D models, click on a part number.

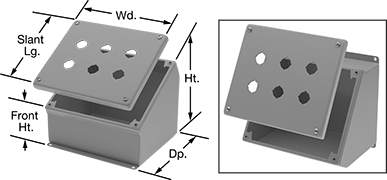

| Ht. | Front Ht. | Wd. | Dp. | Slant Length | Slope Angle | Lock Location | Number of Locks | Number of Keys Included | Environmental Rating | Includes | Features | Specifications Met | Color | Each | |
Powder-Coated Steel | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
One Door | |||||||||||||||
| 40 1/4" | 32 1/8" | 25 1/4" | 21 1/2" | 21 5/8" | 25° | Front Access Door | 1 | 2 | IP66, NEMA 4, NEMA 13 | Document Holder | Gasketed Cover, Removable Cover, Front Access Door, Removable Doors, Drain, Concealed Hinge | UL Listed, C-UL Listed | Gray | 0000000 | 000000000 |
Two Doors | |||||||||||||||
| 47 1/8" | 36 3/4" | 25 1/4" | 24 1/2" | 24 7/8" | 25° | Front Access Door, Rear Access Door | 2 | 4 | IP66, NEMA 4, NEMA 13 | Document Holder | Panel Mounting Channels, Gasketed Cover, Removable Cover, Front Access Door, Rear Access Door, Removable Doors, Drain, Concealed Hinge | UL Listed, C-UL Listed | Gray | 0000000 | 00000000 |
Four Doors | |||||||||||||||
| 47 1/8" | 36 3/4" | 49 1/4" | 24 1/2" | 24 7/8" | 25° | Front Access Door, Rear Access Door | 4 | 8 | IP66, NEMA 4, NEMA 13 | Document Holder | Panel Mounting Channels, Gasketed Cover, Removable Cover, Front Access Door, Rear Access Door, Removable Doors, Drain, Concealed Hinge | UL Listed, C-UL Listed | Gray | 0000000 | 00000000 |
Mounting Hole Center-to-Center | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Material | Ht. | Wd. | Ht. | Wd. | Thickness | Mounting Fasteners Included | Number of Mounting Holes | Mounting Hole Dia. | For Mounting Fastener Screw Size | Each | |
For Enclosures with One Door | ||||||||||||
| White | Powder-Coated Steel | 27" | 21" | 25 1/4" | 19 1/4" | 0.12" | No | 4 | 1/2" | 3/8" | 00000000 | 000000 |
For Enclosures with Two Doors | ||||||||||||
| White | Powder-Coated Steel | 33" | 21" | 31 1/4" | 19 1/4" | 0.12" | No | 6 | 1/2" | 3/8" | 00000000 | 000000 |
For Enclosures with Four Doors | ||||||||||||
| White | Powder-Coated Steel | 45" | 33" | 43 1/4" | 31 1/4" | 0.12" | No | 8 | 1/2" | 3/8" | 00000000 | 000000 |
Pedestals for Enclosures
Raise your enclosure to access switches, gauges, screens, and other parts at a comfortable working height. These pedestals are hollow and have a gasketed access plate, so you can route and manage wires within the column to organize and protect them. All require a base (sold separately). Bases need to be anchored to the floor for stability.
Combine straight pedestals with slant-top enclosures or angled pedestals with standard enclosures. Both combinations position buttons and other components at a comfortable angle.
Powder-coated steel pedestals resist rusting from water. 304 stainless steel pedestals resist corrosion better than steel pedestals. They stand up to salt water and cleaners.
For technical drawings and 3-D models, click on a part number.
Pedestal | Enclosure Mounting | Base Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Plate Width | Plate Depth | Hardware Included | Plate Width | Plate Depth | Hardware Included | Includes | Color | Each | |
Straight | ||||||||||||
| 35" | 4" | 4" | 5 3/4" | 5 3/4" | Yes | 7 5/8" | 7 5/8" | Yes | Gasketed Access Plate, Two Gaskets | Gray | 00000000 | 0000000 |
Angled | ||||||||||||
| 41" | 4" | 4" | 5 3/4" | 5 3/4" | Yes | 7 5/8" | 7 5/8" | Yes | Gasketed Access Plate, Two Gaskets | Gray | 00000000 | 000000 |
Pedestal | Enclosure Mounting | Base Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Plate Width | Plate Depth | Hardware Included | Plate Width | Plate Depth | Hardware Included | Includes | Each | |
Straight | |||||||||||
| 35" | 4" | 4" | 5 3/4" | 5 3/4" | Yes | 7 5/8" | 7 5/8" | Yes | Gasketed Access Plate, Two Gaskets | 00000000 | 0000000 |
Angled | |||||||||||
| 41" | 4" | 4" | 5 3/4" | 5 3/4" | Yes | 7 5/8" | 7 5/8" | Yes | Gasketed Access Plate, Two Gaskets | 00000000 | 000000 |
Pedestal Mounting | Floor Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height | Width | Depth | Fasteners Included | Hole Thread Size | No. of Holes | Fasteners Included | Hole Diameter | No. of Holes | Material | Color | Each | |
For Powder-Coated Steel Pedestals | ||||||||||||
| 1" | 18" | 18" | No | 1/4"-20 | 8 | No | 7/16" | 4 | Powder-Coated Steel | Gray | 00000000 | 0000000 |
For 304 Stainless Steel Pedestals | ||||||||||||
| 1" | 18" | 18" | No | 1/4"-20 | 8 | No | 7/16" | 4 | 304 Stainless Steel | __ | 00000000 | 000000 |
