Sealed Linear Solenoids
Pull Solenoid
Push Solenoid
Spend less time on solenoid maintenance in dirty environments—these have a closed steel housing that keeps dust out.
Pull solenoids exert force when the rod retracts.
Push solenoids exert force when the rod extends.
For technical drawings and 3-D models, click on a part number.
Intermittent Use
Length | Overall | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | On/Off Time, Minutes | Dia. | Wd. | Ht. | Rod Dia. (R) | Each | |
For DC Voltage | |||||||||||||
Pull | |||||||||||||
| 1/4" | 1.6" | 1.9" | 1.9" | 5 | 7.5 | 1/9 | 1/2" | 1/2" | 1/2" | 0.2" | 000000000 | 000000 | |
| 1/2" | 2.4" | 2.9" | 2.9" | 15 | 24 | 1/9 | 3/4" | 3/4" | 3/4" | 1/4" | 000000000 | 00000 | |
| 1" | 2.9" | 3.9" | 3.9" | 29 | 38 | 1/9 | 1" | 1" | 1" | 0.44" | 000000000 | 00000 | |
| 1" | 3.3" | 4.3" | 4.3" | 79 | 59 | 1/9 | 1 1/2" | 1 1/2" | 1 1/2" | 1/2" | 000000000 | 00000 | |
Push | |||||||||||||
| 1/4" | 1.5" | 1.7" | 1.7" | 3 | 7.5 | 1/9 | 1/2" | 1/2" | 1/2" | 0.06" | 000000000 | 00000 | |
| 1/2" | 2.6" | 3.1" | 3.1" | 78 | 41 | 1/9 | 1 1/2" | 1 1/2" | 1 1/2" | 0.19" | 000000000 | 00000 | |
| 1/2" | 2.8" | 3.3" | 3.3" | 25 | 38 | 1/9 | 1" | 1" | 1" | 0.11" | 000000000 | 00000 | |
| 1" | 3.4" | 4.4" | 4.4" | 68 | 59 | 1/9 | 1 1/2" | 1 1/2" | 1 1/2" | 0.19" | 000000000 | 00000 | |
Continuous Use
Length | Overall | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | Dia. | Wd. | Ht. | Rod Dia. (R) | Each | |
For DC Voltage | ||||||||||||
Pull | ||||||||||||
| 1/4" | 1.6" | 1.9" | 1.9" | 2 | 2.5 | 1/2" | 1/2" | 1/2" | 0.2" | 000000000 | 000000 | |
| 1/2" | 2.4" | 2.9" | 2.9" | 4 | 3.5 | 3/4" | 3/4" | 3/4" | 1/4" | 000000000 | 00000 | |
| 1" | 2.9" | 3.9" | 3.9" | 5 | 5.5 | 1" | 1" | 1" | 0.44" | 000000000 | 00000 | |
| 1" | 3.3" | 4.3" | 4.3" | 17 | 10 | 1 1/2" | 1 1/2" | 1 1/2" | 1/2" | 000000000 | 00000 | |
Push | ||||||||||||
| 1/4" | 1.5" | 1.7" | 1.7" | 1 | 2.5 | 1/2" | 1/2" | 1/2" | 0.06" | 000000000 | 00000 | |
| 1/2" | 2.6" | 3.1" | 3.1" | 14 | 7 | 1 1/2" | 1 1/2" | 1 1/2" | 0.19" | 000000000 | 00000 | |
| 1/2" | 2.8" | 3.3" | 3.3" | 7 | 5.5 | 1" | 1" | 1" | 0.11" | 000000000 | 00000 | |
| 1" | 3.4" | 4.4" | 4.4" | 11 | 10 | 1 1/2" | 1 1/2" | 1 1/2" | 0.19" | 000000000 | 00000 | |
Extended-Life Sealed Linear Solenoids
In addition to a closed steel housing that keeps out dust, these solenoids have a PTFE coating on the rod to minimize friction for a long service life. All are pull solenoids—they exert force when the rod retracts.
For technical drawings and 3-D models, click on a part number.
Intermittent Use
Length | Overall | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | On/Off Time, Minutes | Dia. | Wd. | Ht. | Rod Dia. (R) | Each | |
For DC Voltage | |||||||||||||
Pull | |||||||||||||
| 1/4" | 1.8" | 2" | 2" | 2 | 5.6 | 1.7/5 | 1/2" | 1/2" | 1/2" | 0.16" | 0000000 | 0000000 | |
| 1/2" | 2.4" | 2.9" | 2.9" | 10 | 11 | 1.7/5 | 3/4" | 3/4" | 3/4" | 0.31" | 0000000 | 00000 | |
| 3/4" | 3.1" | 3.9" | 3.9" | 25 | 20.4 | 1.7/5 | 1" | 1" | 1" | 0.44" | 0000000 | 00000 | |
| 1" | 3.4" | 4.4" | 4.4" | 45 | 32.4 | 1.7/5 | 1 1/2" | 1 1/2" | 1 1/2" | 1/2" | 0000000 | 000000 | |
Continuous Use
Length | Overall | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | Dia. | Wd. | Ht. | Rod Dia. (R) | Each | |
For DC Voltage | ||||||||||||
Pull | ||||||||||||
| 1/4" | 1.8" | 2" | 2" | 2 | 2.7 | 1/2" | 1/2" | 1/2" | 0.16" | 0000000 | 000000 | |
| 1/2" | 2.4" | 2.9" | 2.9" | 5 | 4.3 | 3/4" | 3/4" | 3/4" | 0.31" | 0000000 | 00000 | |
| 3/4" | 3.1" | 3.9" | 3.9" | 9 | 7.8 | 1" | 1" | 1" | 0.44" | 0000000 | 00000 | |
| 1" | 3.4" | 4.4" | 4.4" | 15 | 8.4 | 1 1/2" | 1 1/2" | 1 1/2" | 1/2" | 0000000 | 000000 | |
Water-Resistant Sealed Linear Solenoids
Great for use in damp and dirty environments, these solenoids meet IP65 for protection from dust and spraying water. They have two-pin plugs that are compatible with Deutsch-style DC connectors (sold separately). They can be used to pull or push. To pull, install them with the connector pins facing your device; to push, install them facing away.
For technical drawings and 3-D models, click on a part number.
Intermittent Use
Length | Overall | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | On/Off Time, Minutes | Wd. | Ht. | Rod Dia. (R) | Environmental Rating | Each | |
For DC Voltage | |||||||||||||
Pull/Push | |||||||||||||
| 0.39" | 4.6" | 4.6" | 4.6" | 115 | 50 | 1/3 | 2 1/4" | 2 1/4" | 0.2" | IP65 | 00000000 | 0000000 | |
| 0.51" | 4.7" | 4.7" | 4.7" | 177 | 60 | 1/3 | 2 7/8" | 2 3/4" | 0.2" | IP65 | 00000000 | 000000 | |
Linear Solenoids

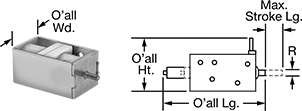

Pull Solenoid

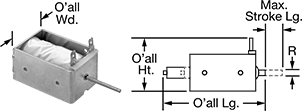

Push Solenoid
Pull/Push Solenoid
Create linear motion economically with one of these open-frame solenoids.
Pull solenoids exert force when the rod retracts.
Push solenoids exert force when the rod extends.
Pull/push solenoids exert force when the rod retracts and extends.
For technical drawings and 3-D models, click on a part number.
Intermittent Use
Length | Overall | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | On/Off Time, Minutes | Wd. | Ht. | Rod Dia. (R) | Specifications Met | Each | |
For AC Voltage, 60 Hz | |||||||||||||
Pull | |||||||||||||
| 1/2" | 1.7" | 2.2" | 2.2" | 13 | __ | 18 | 1/3 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 000000 |
| 1/2" | 2.5" | 3" | 3" | 22 | __ | 40.9 | 1/3 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 00000 |
| 1" | 3.2" | 4.2" | 4.3" | 34 | __ | 57.6 | 1/3 | 1 3/4" | 1 3/4" | 0.44" | UL Recognized Component | 000000000 | 00000 |
Push | |||||||||||||
| 1/2" | 1.9" | 1.9" | 2" | 13 | __ | 23 | 1/3 | 1 1/4" | 1 1/4" | 0.09" | UL Recognized Component | 000000000 | 00000 |
| 1/2" | 3.1" | 3.1" | 3.3" | 21 | __ | 52.4 | 1/3 | 1 1/4" | 1 1/4" | 0.09" | UL Recognized Component | 000000000 | 00000 |
For DC Voltage | |||||||||||||
Pull | |||||||||||||
| 1/2" | 1.7" | 2.2" | 2.2" | 9 | 11.5 | 1/3 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 00000 | |
| 1/2" | 2.5" | 3" | 3" | 26 | 19 | 1/3 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 00000 | |
| 1" | 3.2" | 4.2" | 4.3" | 52 | 38 | 1/3 | 1 3/4" | 1 3/4" | 0.44" | UL Recognized Component | 000000000 | 00000 | |
Pull/Push | |||||||||||||
| 0.19" | 2" | 2.2" | 2.2" | 8 | 7.2 | 0.2/1.5 | 1" | 3/4" | 0.13" | __ | 00000000 | 000000 | |
Push | |||||||||||||
| 1/2" | 3.1" | 3.1" | 3.3" | 26 | 19 | 1/3 | 1 1/4" | 1 1/4" | 0.09" | UL Recognized Component | 000000000 | 00000 | |
| 1" | 3.2" | 3.2" | 3.2" | 13 | 30 | 0.8/2.5 | 1" | 1 1/4" | 0.13" | __ | 00000000 | 00000 | |
Continuous Use
Length | Overall | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | Wd. | Ht. | Rod Dia. (R) | Specifications Met | Each | |
For AC Voltage, 60 Hz | ||||||||||||
Pull | ||||||||||||
| 1/2" | 1.7" | 2.2" | 2.2" | 10 | __ | 7.2 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 000000 |
| 1/2" | 2.5" | 3" | 3" | 10 | __ | 11.5 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 00000 |
| 1" | 3.2" | 4.2" | 4.3" | 9 | __ | 9 | 1 3/4" | 1 3/4" | 0.44" | UL Recognized Component | 000000000 | 00000 |
Push | ||||||||||||
| 1/2" | 1.9" | 1.9" | 2" | 8 | __ | 7.8 | 1 1/4" | 1 1/4" | 0.09" | UL Recognized Component | 000000000 | 00000 |
| 1/2" | 3.1" | 3.1" | 3.3" | 8 | __ | 12.5 | 1 1/4" | 1 1/4" | 0.09" | UL Recognized Component | 000000000 | 00000 |
For DC Voltage | ||||||||||||
Pull | ||||||||||||
| 1/2" | 1.7" | 2.2" | 2.2" | 4 | 5 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 00000 | |
| 1/2" | 2.5" | 3" | 3" | 15 | 8 | 1 1/4" | 1 1/4" | 0.31" | UL Recognized Component | 000000000 | 00000 | |
| 1" | 3.2" | 4.2" | 4.3" | 18 | 11 | 1 3/4" | 1 3/4" | 0.44" | UL Recognized Component | 000000000 | 00000 | |
Push | ||||||||||||
| 1/2" | 3.1" | 3.1" | 3.3" | 15 | 8 | 1 1/4" | 1 1/4" | 0.09" | UL Recognized Component | 000000000 | 00000 | |
| 1" | 3.2" | 3.2" | 3.2" | 3 | 7.5 | 1" | 1 1/4" | 0.13" | __ | 00000000 | 00000 | |
High-Force Linear Solenoids
Pull Solenoid
Push Solenoid
High-force solenoids draw more power than our other open-frame solenoids, so they can deliver higher force. They also have a laminated rod that minimizes friction during operation.
Pull solenoids exert force when the rod retracts.
Push solenoids exert force when the rod extends.
For technical drawings and 3-D models, click on a part number.
Intermittent Use
Length | Overall | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Voltage | Power Draw, Watts | On/Off Time, Minutes | Wd. | Ht. | Rod Dia. (R) | Each | |
For AC Voltage, 60 Hz | ||||||||||||
Pull | ||||||||||||
| 1" | 2.3" | 3" | 3" | 60 | 120V AC | 70 | 2.5/22.5 | 1 1/2" | 1 1/2" | 0.36" | 000000 | 0000000 |
| 1" | 2.7" | 3.4" | 3.4" | 195 | 120V AC | 228 | 3/27 | 1 7/8" | 2 1/8" | 0.49" | 000000 | 00000 |
| 1" | 2.7" | 3.4" | 3.4" | 195 | 240V AC | 228 | 3/27 | 1 7/8" | 2 1/8" | 0.49" | 000000 | 00000 |
Push | ||||||||||||
| 0.82" | 3" | 3" | 3" | 60 | 120V AC | 70 | 2.5/22.5 | 1 1/2" | 1 1/2" | 0.13" | 000000 | 000000 |
| 1" | 3 1/2" | 3.5" | 3.5" | 195 | 120V AC | 228 | 3/27 | 1 7/8" | 2 1/8" | 0.19" | 0000000 | 000000 |
Continuous Use
Length | Overall | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Overall | Force @ 50% Stroke Lg., oz. | Voltage | Power Draw, Watts | Wd. | Ht. | Rod Dia. (R) | Each | |
For AC Voltage, 60 Hz | |||||||||||
Pull | |||||||||||
| 1" | 2.3" | 3" | 3" | 30 | 120V AC | 20 | 1 1/2" | 1 1/2" | 0.36" | 000000 | 0000000 |
| 1" | 2.7" | 3.4" | 3.4" | 105 | 120V AC | 49 | 1 7/8" | 2 1/8" | 0.49" | 000000 | 00000 |
| 1" | 2.7" | 3.4" | 3.4" | 105 | 240V AC | 49 | 1 7/8" | 2 1/8" | 0.49" | 000000 | 00000 |
Push | |||||||||||
| 0.82" | 3" | 3" | 3" | 30 | 120V AC | 20 | 1 1/2" | 1 1/2" | 0.13" | 0000000 | 000000 |
| 1" | 3 1/2" | 3.5" | 3.5" | 105 | 120V AC | 49 | 1 7/8" | 2 1/8" | 0.19" | 0000000 | 000000 |
Compact Linear Solenoids
A thin profile allows these solenoids to fit well in narrow spaces. You can use them to push or pull—use the side with the unthreaded rod (R) and two mounting studs to push or use the opposite side with the threaded rod to pull.
For technical drawings and 3-D models, click on a part number.
Intermittent Use
Rod Length (Pulling) | Rod Length (Pushing) | Overall | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Retracted | Extended | Force @ 100% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | On/Off Time, Seconds | Dia. | Lg. | Rod Dia. (R) | Each | |
For DC Voltage | |||||||||||||
Pull/Push | |||||||||||||
| 0.2" | 0.5" | 0.7" | 0.3" | 0.5" | 7 | 18 | 30/90 | 1 1/4" | 1 1/2" | 0.16" | 000000 | 000000 | |
| 0.3" | 0.6" | 0.9" | 0.2" | 0.5" | 1 | 16 | 20/60 | 1" | 1 3/4" | 0.13" | 000000 | 00000 | |
| 0.7" | 1.9" | 2.6" | 0.3" | 1" | 50 | 80 | 90/270 | 2 3/4" | 4 3/4" | 0.38" | 000000 | 000000 | |
Continuous Use
Rod Length (Pulling) | Rod Length (Pushing) | Overall | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Lg. | Retracted | Extended | Retracted | Extended | Force @ 100% Stroke Lg., oz. | Choose a Voltage | Power Draw, Watts | Dia. | Lg. | Rod Dia. (R) | Each | |
For DC Voltage | ||||||||||||
Pull/Push | ||||||||||||
| 0.2" | 0.5" | 0.7" | 0.3" | 0.5" | 2 | 4.5 | 1 1/4" | 1 1/2" | 0.16" | 000000 | 000000 | |
| 0.2" | 0.6" | 0.8" | 0.3" | 0.5" | 2 | 4 | 1" | 1 3/4" | 0.13" | 000000 | 00000 | |
| 0.5" | 1.9" | 2.4" | 0.5" | 1" | 45 | 20 | 2 3/4" | 4 3/4" | 0.38" | 000000 | 000000 | |
Rotary Solenoids
If your application requires rotary motion, take one of these solenoids for a spin.
For technical drawings and 3-D models, click on a part number.
Intermittent Use
Overall | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Max. Stroke Rotation | Torque @ 50% Rotation, in.-oz. | Choose a Direction of Force | Power Draw, Watts | On/Off Time, Minutes | Dia. | Lg. | Rod Dia. (R) | Each | |
12V DC | |||||||||
| 40° | 11.2 | 36 | 1/3 | 1 1/2" | 1 3/4" | 0.19" | 0000000 | 0000000 | |
| 40° | 17 | 40 | 1.5/4.5 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 24 | 44 | 1.5/4.5 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 41 | 48 | 3.5/10.5 | 2 3/4" | 2 1/4" | 0.24" | 0000000 | 000000 | |
24V DC | |||||||||
| 40° | 11.2 | 36 | 1/3 | 1 1/2" | 1 3/4" | 0.19" | 0000000 | 000000 | |
| 40° | 17 | 40 | 1.5/4.5 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 24 | 44 | 1.5/4.5 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 41 | 48 | 3.5/10.5 | 2 3/4" | 2 1/4" | 0.24" | 0000000 | 000000 | |
Continuous Use
Overall | ||||||||
|---|---|---|---|---|---|---|---|---|
| Max. Stroke Rotation | Torque @ 50% Rotation, in.-oz. | Choose a Direction of Force | Power Draw, Watts | Dia. | Lg. | Rod Dia. (R) | Each | |
12V DC | ||||||||
| 40° | 2.8 | 9 | 1 1/2" | 1 3/4" | 0.19" | 0000000 | 0000000 | |
| 40° | 6.8 | 10 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 9.5 | 11 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 16 | 12 | 2 3/4" | 2 1/4" | 0.24" | 0000000 | 000000 | |
24V DC | ||||||||
| 40° | 2.8 | 9 | 1 1/2" | 1 3/4" | 0.19" | 0000000 | 000000 | |
| 40° | 6.8 | 10 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 9.5 | 11 | 2" | 2 1/4" | 0.24" | 0000000 | 000000 | |
| 40° | 16 | 12 | 2 3/4" | 2 1/4" | 0.24" | 0000000 | 000000 | |
