14 Products

Surface Guards for Corners

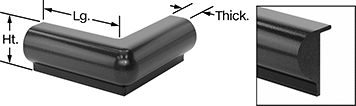

Style 1

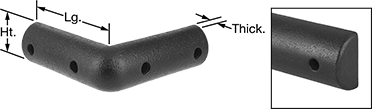

Style 2

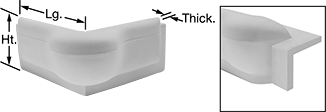

Style 3

Style 4

Screw In

These surface guards are at a 90° angle to protect corners on equipment, walls, and docks from damage caused by carts, vehicles, and other moving objects. All have a hard rating to withstand high levels of impact. They are nonmarring and can be used outdoors.

UV Resistant—UV-resistant surface guards won’t dry out and become brittle when exposed to UV rays.

Screw In—Screw-in surface guards mount with fasteners.

Plain Back—Plain-back surface guards mount with screws after drilling holes. They can also be nailed down.

Plastic—These surface guards resist abrasion and absorb impact over long periods, and they won't degrade when exposed to sunlight.

Polyurethane Foam—Polyurethane foam surface guards are designed to cushion during impact. They have good abrasion resistance. They can be used outdoors.

Vinyl Plastic—These surface guards resist water, acids, bases, and solvents, so you can wash them down and clean them with chemicals.

										Temp., ° F		Mounting
	Style	Lg.	Ht.	Thk.	Counterbore Dia.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Min.	Max.	No. of Holes	Hole Dia.	Ctr.-to-Ctr.	Color	Performance		Each
Screw In







				Plastic

				1	6 1/4"	2 1/2"	1 1/2"	3/4"	Yes	Yes	Hard	Durometer 70A	-20	200	4	1/4"	2 1/2"	Black	UV Resistant	000000000	000000


				1	6 1/4"	2 1/2"	1 1/2"	3/4"	Yes	Yes	Hard	Durometer 70A	-20	200	4	1/4"	2 1/2"	White	UV Resistant	000000000	00000




						Polyurethane Foam

						2	7"	7"	7"	1 1/8"	Yes	Yes	Hard	Durometer 70A	-10	140	4	3/8"	3"	Black	UV Resistant	000000000	000000


						2	12"	4 1/4"	2 1/4"	1"	Yes	Yes	Hard	Durometer 70A	-10	140	4	3/8"	7 1/4"	Black	UV Resistant	000000000	00000


						Plain Back







										Vinyl Plastic

										3	8"	3 3/4"	2 1/4"	—	Yes	Yes	Hard	Durometer 85A	0	120	—	—	—	White	—	0000000	00000


										3	10"	6"	3"	—	Yes	Yes	Hard	Durometer 85A	0	120	—	—	—	White	—	0000000	00000
										4	7 1/8"	3 5/8"	1 1/4"	—	Yes	Yes	Hard	Durometer 85A	0	120	—	—	—	Black	UV Resistant	00000000	00000
										4	7 1/8"	3 5/8"	1 1/4"	—	Yes	Yes	Hard	Durometer 85A	0	120	—	—	—	Gray	UV Resistant	00000000	00000
										4	7 1/8"	3 5/8"	1 1/4"	—	Yes	Yes	Hard	Durometer 85A	0	120	—	—	—	White	UV Resistant	00000000	00000

90° Angle Caps

Vinyl Plastic

Polyethylene

Enclose the raw ends of angle iron, shelving, and furniture so people won’t get caught or injured by them.

Vinyl Plastic—A good all-around choice, these durable caps won’t rip or shred, even with repeated use. They also hold up to oils, mild acids, and solvents. Caps are flexible and conform to parts for a tight fit.

Polyethylene—These tough caps are hard and wear resistant to hold up against scrapes and gouges.

	For Leg Lg.	Inside Ht.	Flexibility	Max. Temp., ° F	Color	Pkg. Qty.		Pkg.
Vinyl Plastic



	1/8"	3/4"	1/2"	Flexible	200	Black	100	00000000	000000


	1/8"	1 1/4"	1/2"	Flexible	200	Black	50	00000000	00000
	1/8"	2"	1/2"	Flexible	200	Black	25	00000000	00000


	Polyethylene



			3/32"	1 1/2"	21/32"	Rigid	180	Black	25	00000000	00000


			1/8"	1"	9/16"	Rigid	180	Black	100	00000000	00000
