Snap-Together Reinforced Surface Guards


Style 1	Style 2

Style 3	Style 4

A vinyl cover snaps onto an aluminum base for strong impact protection and a clean, fastener-free look. The aluminum base reinforces these guards against repeated contact from carts and equipment, so they withstand high-traffic areas such as corridors and loading zones. Also known as crash rails.

Combine any number of corner guards, surface guards, and end caps to cover your area. To install, drill the included aluminum base, secure with fasteners, then snap on the cover.

	Surface Guards																End Caps			Corner Guards
										Temp., ° F
	Style	Lg., ft.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	Flammability Rating	Mounting Fasteners Included	Choose a Color		Each	Lg.		Each	Lg.		Each
Screw In







				Vinyl Plastic Cover

				1	6	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80A	Rigid	40	110	NFPA 101 Class A	No	Black, Gray	11335A83	000000	3 7/8"	11165A46	000000	2 7/8"	11165A44	000000


				1	12	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80A	Rigid	40	110	NFPA 101 Class A	No	Black, Gray	11335A37	000000	3 7/8"	11165A46	00000	2 7/8"	11165A44	00000
				2	6	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray	11335A81	00000	1 1/16"	11335A93	0000	1 1/2"	11335A91	0000
				2	6	2"	1 3/4"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray	11335A82	00000	2 1/2"	11335A94	00000	2 3/8"	11335A92	0000
				2	12	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray	11335A13	00000	1 1/16"	11335A93	0000	1 1/2"	11335A91	0000
				2	12	2"	1 3/4"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray	11335A24	000000	2 1/2"	11335A94	00000	2 3/8"	11335A92	0000
				3	6	2 15/16"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray, White	11335A84	00000	1"	11335A97	0000	1 3/8"	11335A95	00000
				3	6	6"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray, White	11335A85	000000	1"	11335A98	0000	1 1/2"	11335A96	0000
				3	12	2 15/16"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray, White	11335A61	000000	1"	11335A97	0000	1 3/8"	11335A95	00000
				3	12	6"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray, White	11335A72	000000	1"	11335A98	0000	1 1/2"	11335A96	0000
				4	12	7 3/4"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	NFPA 101 Class A	No	Beige, Black, Gray, White	1119A13	000000	1"	1119A14	0000	1"	1119A15	0000

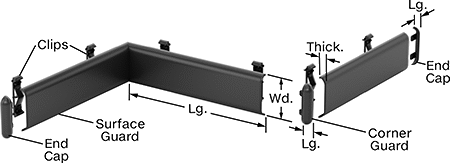

Snap-Together Surface Guards

Protect walls without sacrificing style. A cover snaps onto plastic mounting clips for a clean, fastener-free look. These guards provide lightweight impact protection ideal for offices, schools, and healthcare facilities. Also known as crash rail.

Combine any number of corner guards, surface guards, and end caps to cover your area. To install, attach the clips to the wall using screws, nails, or construction adhesive then snap the cover into place.

	Surface Guards														End Caps			Corner Guards
									Temp., ° F
	Lg., ft.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	Flammability Rating	Choose a Color		Each	Lg.		Each	Lg.		Each
Plain Back







				Vinyl Plastic Cover

				6	6"	1"	Yes	No	Hard	Durometer 79D	Rigid	40	90	NFPA 101 Class A	Black, Gray, White	5443N12	000000	1"	5443N14	00000	1"	5443N13	00000


				6	7 3/4"	1"	Yes	No	Hard	Durometer 79D	Rigid	40	90	NFPA 101 Class A	Black, Gray, White	5443N22	00000	1"	5443N24	0000	1"	5443N23	0000
				12	6"	1"	Yes	No	Hard	Durometer 79D	Rigid	40	90	NFPA 101 Class A	Black, Gray, White	5443N11	00000	1"	5443N14	0000	1"	5443N13	0000
				12	7 3/4"	1"	Yes	No	Hard	Durometer 79D	Rigid	40	90	NFPA 101 Class A	Black, Gray, White	5443N21	000000	1"	5443N24	0000	1"	5443N23	0000
