    63 Products

    T-Slotted Framing Component

    Hinge Type

    Hinge Type

    Hinges for T-Slotted Framing

    Use hinges to add doors, lids, and machine guards to T-slotted framing.
    Hinges
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Hinges, Rail-to-Rail.
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Hinges, Rail-to-Panel.

    Rail-to-Rail

    Rail-to-Panel

    Rail-to-Rail—Provide smooth motion at the junction between two rails.
    Rail-to-Panel—Provide smooth motion at the junction between a rail and a panel.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail
    Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    For Max.
    Panel Thk.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1"Left Side, Right Side2"2"—2BlackAnodized AluminumYes47065T347000000
    1"Left Side, Right Side2 1/16"1 7/8"—2SilverLacquer-Coated AluminumYes47065T95100000
    1 1/2"Left Side, Right Side3"3"—2SilverAnodized AluminumYes47065T52900000
    1 1/2"Left Side, Right Side3"3"—2BlackAnodized AluminumYes47065T34800000
    1 1/2"Left Side, Right Side3 1/16"1 7/8"—2SilverLacquer-Coated AluminumYes47065T38200000
    20 mmLeft Side, Right Side1 1/4"3/4"—2BlackPlasticYes5537T850000
    20 mmLeft Side, Right Side1 1/2"1 3/16"—2SilverLacquer-Coated AluminumYes5537T85900000
    30 mmLeft Side, Right Side2 5/16"1 7/8"—2SilverLacquer-Coated AluminumYes5537T84700000
    30 mmLeft Side, Right Side2 3/8"1 9/16"—2BlackPlasticYes5537T8580000
    40 mmLeft Side, Right Side3"3"—2SilverAnodized AluminumYes47065T53900000
    40 mmLeft Side, Right Side3"3"—2BlackAnodized AluminumYes47065T54900000
    40 mmLeft Side, Right Side3 1/16"1 7/8"—2SilverLacquer-Coated AluminumYes5537T84800000
    45 mmLeft Side, Right Side3 7/16"1 7/8"—2SilverLacquer-Coated AluminumYes5537T84900000

    Rail-to-Panel
    20 mmLeft Side, Right Side1 7/16"1 11/16"1/4"2BlackPlasticYes5537T8380000

    Reducer Hinges
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Reducer Hinges.
    Reducer hinges join two rails of different heights.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Reducer Rail-to-Rail
    45 mm × 30 mmLeft Side, Right Side2 1/2"1"2SilverStainless SteelYes6812N501000000
    45 mm × 30 mmLeft Side, Right Side2 1/2"1"2BlackPowder-Coated Zinc AlloyYes6812N50500000

    Hinges with Slots
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Hinges with Slots.
    Image of Product. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Hinges with Slots.
    Hinges with slots give you some wiggle room when mounting a hinge to rails, allowing you to customize the position of your rails.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1 1/2", 40 mmLeft Side, Right Side2 1/2"1 9/16"2BlackPainted SteelYes6812N511000000
    1 1/2", 40 mmLeft Side, Right Side2 9/16"1 9/16"2BlackPlasticYes6812N50200000
    1 1/2", 40 mmLeft Side, Right Side3 1/8"1 9/16"2BlackPowder-Coated Zinc AlloyYes5537T5500000
    40 mm, 45 mmLeft Side, Right Side3 1/8"1 9/16"2BlackPowder-Coated Zinc AlloyYes5537T33200000

    Hinges with Bearings
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Hinges with Bearings.
    Hinges with bearings move smoothly as they open and close.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Bearing
    Nonremovable Pin
    For Rail
    Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    Material
    Type
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    30 mmLeft Side, Right Side3 3/4"2 1/4"PTFE
    		Plain
    		2SilverAluminumYes6812N508000000
    40 mmLeft Side, Right Side3 3/4"2 11/16"PTFE
    		Plain
    		2SilverAluminumYes6812N50900000
    45 mmLeft Side, Right Side3 3/4"3 1/16"PTFE
    		Plain
    		2SilverAluminumYes6812N5100000

    Friction Hinges
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Friction Hinges, Rail-to-Rail.
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Friction Hinges, Rail-to-Panel.

    Rail-to-Rail

    Rail-to-Panel

    Constant resistance through the full range of motion to hold lids, panels, and doors at any angle. Tighten or loosen the adjustment screw to change the resistance of the hinge.
    Rail-to-Rail—Provide smooth motion at the junction between two rails.
    Rail-to-Panel—Provide smooth motion at the junction between a rail and a panel.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    For Max.
    Panel Thk.
    Torque,
    in·lbf
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1 1/2", 40 mmLeft Side, Right Side2 7/8"2 1/2"—402BlackPlasticYes47065T357000000
    30 mmLeft Side, Right Side2 1/8"2 1/2"—402BlackPlasticYes5537T83900000

    Rail-to-Panel
    1"Left Side, Right Side1 7/16"1 11/16"1/4"72BlackPlasticYes47065T16200000
    1 1/2"Left Side, Right Side2 1/4"2 1/2"1/4"352BlackPlasticYes47065T16300000
    25 mmLeft Side, Right Side1 11/16"1 7/16"1/4"72BlackPlasticYes6812N50300000
    40 mmLeft Side, Right Side2 1/4"2 1/2"1/4"352BlackPlasticYes6812N50400000

    Two-Way Swinging Hinges
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Two-Way Swinging Hinges.
    Two-way hinges open doors and gates in both directions. A spring automatically pulls them closed. Use the included tension adjustment tool to change how quickly they close.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    GS 1 - Drawer Slides
    Range of
    Motion
    Closing Tension
    Adjustability
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1 1/2", 40 mmLeft Side, Right Side5 1/2"4 1/16"Self-Close T-Slotted Framing and Fittings350°Adjustable3Silver201 Stainless SteelYes5537T78000000
    1 1/2", 40 mmLeft Side, Right Side5 1/2"4 1/16"Self-Close T-Slotted Framing and Fittings350°Adjustable3Black201 Stainless SteelYes6812N50600000

    Lift-Off Hinges
    Image of ProductInUse. For Left-Swinging Doors. Front orientation. Left-Side Door Mount. Hinges for T-Slotted Framing, Lift-Off Hinges, 2 Leaves.
    Image of ProductInUse. For Right-Swinging Doors. Front orientation. Right-Side Door Mount. Hinges for T-Slotted Framing, Lift-Off Hinges, 2 Leaves.
    Image of ProductInUse. For Left or Right Swinging Doors. Front orientation. Right-Side Door Mount. Hinges for T-Slotted Framing, Lift-Off Hinges, 3 Leaves.

    For

    Left-Swinging

    Doors

    For

    Right-Swinging

    Doors

    For Left or

    Right Swinging

    Doors

    Lift-off hinges have a permanently attached pin for quickly lifting the door off the hinge without removing the pin.
    Door Mounting Location—To choose a door mounting location, stand on the pull side of the door. Use a right-side hinge if the hinge is on the right, or a left-side hinge if it’s on the left.
    Lift-Off Pin
    For Rail Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1"Left Side, Right Side1 3/4"2 5/16"3BlackAnodized AluminumYes47065T509000000
    1"Left Side, Right Side1 13/16"2 5/16"3SilverAnodized AluminumYes47065T16100000
    1"Left Side2"2"2SilverAnodized AluminumYes47065T34500000
    1"Right Side2"2"2SilverAnodized AluminumYes47065T34300000
    1 1/2"Left Side, Right Side2 3/4"2 5/16"3BlackAnodized AluminumYes47065T51900000
    1 1/2"Left Side, Right Side2 13/16"2 5/16"3SilverAnodized AluminumYes47065T9600000
    1 1/2", 40 mmLeft Side3"3"2SilverAnodized AluminumYes47065T34600000
    1 1/2", 40 mmRight Side3"3"2SilverAnodized AluminumYes47065T34400000
    40 mmLeft Side3"3"2SilverAnodized AluminumYes6812N14100000
    40 mmRight Side3"3"2SilverAnodized AluminumYes6812N14200000

    Lever-Locking Indexing Hinges
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Lever-Locking Indexing Hinges.
    Lever-locking indexing hinges can lock open at any angle up to 180°. Pull the lever up and turn it a quarter turn to make adjustments.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    Range of
    Motion
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1"Left Side, Right Side2 3/8"1 7/8"180°2BlackNickel-Plated AluminumYes47065T356000000
    1 1/2", 40 mmLeft Side, Right Side3"1 7/8"180°2BlackNickel-Plated AluminumYes5537T8300000

    Piano Hinges
    Image of Product. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Piano Hinges.

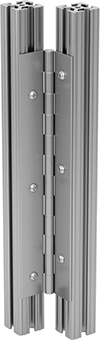

    Piano hinges run the entire length of rails for even weight distribution and stable support.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Knuckle
    Nonremovable Pin
    For Rail
    Ht.
    Door Mounting
    Location
    Lg.,
    ft.
    Ht.
    Dia.
    Lg.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1"Left Side, Right Side12"0.45"1"2SilverAnodized AluminumYes6812N52000000
    1"Left Side, Right Side32"0.45"1"2SilverAnodized AluminumYes6812N5300000
    1 1/2"Left Side, Right Side13"0.45"1"2SilverAnodized AluminumYes6812N5400000
    1 1/2"Left Side, Right Side33"0.45"1"2SilverAnodized AluminumYes6812N5500000
    40 mmLeft Side, Right Side13"0.45"1"2SilverAnodized AluminumYes6812N5600000
    40 mmLeft Side, Right Side33"0.45"1"2SilverAnodized AluminumYes6812N5700000

    Hinges for Three Rails
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Hinges for Three Rails.
    Hinges for three rails let you add a door to both sides of one rail.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail
    Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    30 mmLeft Side, Right Side3 1/2"1 7/16"2BlackPlasticYes6812N514000000
    40 mmLeft Side, Right Side4 11/16"1 7/16"2BlackPlasticYes6812N51500000
    45 mmLeft Side, Right Side5 1/4"1 7/16"2BlackPlasticYes6812N51600000

    Reducer Hinges for Three Rails
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Reducer Hinges for Three Rails.
    Add a door to both sides of one rail even if the connecting rails are different sizes.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Reducer Rail-to-Rail
    40 mm × 45 mm × 40 mmLeft Side, Right Side4 7/8"1 7/16"3GrayPlasticYes6812N512000000
    40 mm × 45 mm × 40 mmLeft Side, Right Side4 7/8"1 7/16"3BlackPlasticYes6812N51300000

    Lift-Off Hinges for Three Rails
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Hinges for T-Slotted Framing, Lift-Off Hinges for Three Rails.
    These hinges let you add a door to both sides of one rail. Unlike standard hinges for three rails, these have a permanently attached pin for quickly lifting the door off the hinge without removing the pin.
    Lift-Off Pin
    For Rail
    Ht.
    Door Mounting
    Location
    Lg.
    Ht.
    No. of
    Leaves
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    1 1/2"Left Side, Right Side3 15/16"1 1/4"2GrayPlasticYes6812N507000000


    Miniature T-Slotted Framing and Fittings

    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Miniature T-Slotted Framing and Fittings.
    Build test fixtures, prototypes, and other small structures with this miniature version of T-slotted framing and fittings. The framing has continuous T-slots for attaching fittings with mounting fasteners.
    Hinges
    Image of ProductInUse. Front orientation. T-Slotted Framing and Fittings. Miniature T-Slotted Framing and Fittings, Hinges.
    Hinges provide smooth motion between two rails.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Nonremovable Pin
    For Rail
    Ht., mm
    Lg.
    For No.
    of Rails
    Ht.
    Color
    Material
    Mounting Fasteners
    Included
    Each
    Rail-to-Rail
    107/8"213/16"SilverZinc AlloyYes5969N33000000


    Switches for T-Slotted Framing

    Start, stop, or control equipment when you push a button or open and close a door. These switches come with fasteners to mount them to T-slotted framing rails.
    Hinge Safety Switches
    Image of System. Components Sold Separately. Front orientation. T-Slotted Framing and Fittings. Switches for T-Slotted Framing, Hinge Safety Switches.
    Image of ProductInUse. M12 Connection Plug In on Top. Front orientation. T-Slotted Framing and Fittings. Switches for T-Slotted Framing, Hinge Safety Switches, For Single Rails, M12 Connection Plug In on Top.
    Image of ProductInUse. M12 Connection Plug In on Bottom. Front orientation. T-Slotted Framing and Fittings. Switches for T-Slotted Framing, Hinge Safety Switches, For Single Rails, M12 Connection Plug In on Bottom.
    Image of ProductInUse. Hardwire on Back. Front orientation. T-Slotted Framing and Fittings. Switches for T-Slotted Framing, Hinge Safety Switches, For Single Rails, Hardwire on Back.

    Components Sold Separately

    M12 Connection

    Plug In on Top

    M12 Connection

    Plug In on

    Bottom

    Hardwire on Back

    Hinge safety switches have a switch that automatically shuts off power to machinery when an access door opens. If your door requires more than one hinge, only one needs to have a safety switch; use hinges without a safety switch (sold separately) for the rest. Make sure to mount the safety switch on the rail that won't be moving.
    Nonremovable Pin—Since the pin can’t be removed, the door or panel can only be taken down by removing the hinge completely.
    Switches
    Hinges Without
    Safety Switch
    Nonremovable Pin
    For Rail Ht.
    Color
    Material
    Lg.
    Ht.
    Switch Starting
    Position
    Switching Current
    @ Voltage
    Switch
    Location
    Door Mounting
    Location
    Input Voltage
    Enclosure
    Rating
    Mounting Fasteners
    Included
    Each
    Each
    For Single Rails

    M12 Connection Plug In on Top
    1"BlackPlastic2 3/8"4 5/16"2 Off and 2 On
    		2 amp @ 24V AC,
    2 amp @ 24V DC    		Right SideLeft Side, Right Side24V AC/24V DCIP67
    		Yes6812N51800000006812N523000000
    1 1/2", 40 mmBlackPlastic2 3/8"4 5/16"2 Off and 2 On
    		2 amp @ 24V AC,
    2 amp @ 24V DC    		Right SideLeft Side, Right Side24V AC/24V DCIP67
    		Yes6812N5170000006812N52400000

    M12 Connection Plug In on Bottom
    1"BlackPlastic2 3/8"4 5/16"2 Off and 2 On
    		2 amp @ 24V AC,
    2 amp @ 24V DC    		Right SideLeft Side, Right Side24V AC/24V DCIP67
    		Yes6812N5190000006812N52300000
    1 1/2", 40 mmBlackPlastic2 3/8"4 5/16"2 Off and 2 On
    		2 amp @ 24V AC,
    2 amp @ 24V DC    		Right SideLeft Side, Right Side24V AC/24V DCIP67
    		Yes6812N5220000006812N52400000

    Hardwire on Back
    1 1/2", 40 mmBlackPlastic2 3/8"4 5/16"2 Off and 2 On
    		2 amp @ 24V AC,
    2 amp @ 24V DC    		Right SideLeft Side, Right Side—IP67
    		Yes6812N2110000006812N52400000

    back to top
