Threaded Rod Eye Nuts
![](/prerenderstable/mvPRE/contents/gfx/imagecache/943/9436t041c1-e01k-digital-master-p9@halfx_637070085803221922.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/299/29995t71c1-e01k-digital-master-p9@halfx_637070084961215355.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/300/3002t1c1-e01k-digital-master1569447168-p9@halfx_637050278158452187.png?ver=imagenotfound)
Add an eye nut to threaded rod to hang the rod from rings, hooks, and hangers.
Socket eye nuts hang threaded rod from center-mount beam clamps. A cutout on the side of the nut makes it easier to see thread engagement after the nut is installed.
Turnbuckle eye nuts have a swivel eye that allows height adjustment after installation.
Note: Capacity is for the eye nut only. Mounting surface and fastening hardware will affect the ultimate capacity.
For technical drawings and 3-D models, click on a part number.
For Thread Size | Threaded Hole Dp. | Cap., lbs. | Eye Dia. | Ctr. Ht. | Wd. | Ht. | Threaded Rod Included | Fasteners Required | Each | |
Iron | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Eye Nut | ||||||||||
1/4"-20 | 3/8" | 225 | 1/4" | 1" | 7/8" | 1 3/8" | No | No | 00000000 | 00000 |
3/8"-16 | 1/2" | 600 | 1/4" | 1 3/16" | 1 1/8" | 1 9/16" | No | No | 00000000 | 0000 |
1/2"-13 | 5/8" | 1,125 | 1/4" | 1 3/8" | 1 9/32" | 1 7/8" | No | No | 0000000 | 0000 |
5/8"-11 | 3/4" | 1,800 | 3/8" | 1 5/8" | 1 9/16" | 2 1/4" | No | No | 0000000 | 0000 |
3/4"-10 | 25/32" | 2,700 | 1/2" | 1 25/32" | 1 7/8" | 2 7/16" | No | No | 0000000 | 00000 |
Socket Eye Nut | ||||||||||
3/8"-16 | 13/16" | 600 | 1/2" | 2 1/16" | 25/32" | 2 1/2" | No | No | 00000000 | 0000 |
1/2"-13 | 15/16" | 1,125 | 1/2" | 2 5/16" | 1" | 2 59/64" | No | No | 00000000 | 00000 |
5/8"-11 | 1" | 1,550 | 1/2" | 2 7/16" | 1 3/32" | 3" | No | No | 00000000 | 00000 |
3/4"-10 | 1 3/16" | 2,100 | 1/2" | 2 7/8" | 1 7/32" | 3 1/2" | No | No | 00000000 | 00000 |
Turnbuckle Eye Nut | ||||||||||
1/4"-20 | 1 1/4" | 225 | 7/32" | 2 1/2" | 1" | 2 11/16" | No | No | 000000 | 00000 |
3/8"-16 | 1 7/8" | 725 | 13/32" | 3 7/8" | 1 1/2" | 4 7/16" | No | No | 000000 | 00000 |
1/2"-13 | 1 13/16" | 725 | 13/32" | 3 7/8" | 1 1/2" | 4 7/16" | No | No | 000000 | 00000 |
5/8"-11 | 2 5/16" | 725 | 1/2" | 4 7/8" | 1 15/16" | 5 11/16" | No | No | 000000 | 00000 |
Rod End Nuts
Attach these nuts to rods, pipes, and tubes to make pivoting and hinge movements where misalignment is not a concern. They’re often used to control air- and hydraulic-powered arms as well as other components in power transmission systems. Made of zinc-plated steel, these nuts resist being dislodged. They’re heavy, however, and may corrode over time as the plating wears down.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/562/5621n12polished-steelpositive_front_positive_top_hex_1615494302_588@halfx_637510695892644858.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/562/5621n12--694f3a72ab91615215384-p9@halfx_637507905895785782.png?ver=imagenotfound)

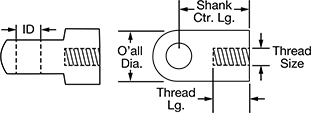

Shank Thread Size | ID, mm | Overall Diameter, mm | Shank Center Length, mm | Shank Thread Length, mm | Tensile Strength | Material | Each | |
Right-Hand Threaded Shank | ||||||||
---|---|---|---|---|---|---|---|---|
M3.5 × 0.6 mm | 4.1 | 8 | 11 | 6 | Not Rated | Zinc-Plated Steel | 0000000 | 00000 |
M5 × 0.8 mm | 6.1 | 10 | 16 | 8 | Not Rated | Zinc-Plated Steel | 0000000 | 0000 |
M8 × 1.25 mm | 8.1 | 14 | 19 | 11 | Not Rated | Zinc-Plated Steel | 0000000 | 0000 |
M10 × 1.5 mm | 8.1 | 18 | 27 | 12 | Not Rated | Zinc-Plated Steel | 0000000 | 0000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/562/5621n13polished-steelpositive_front_positive_top_hex_1613072103_690@halfx_637486473971152712.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/562/5621n13--325185f5b2c1615215425-p9@halfx_637507906498738643.png?ver=imagenotfound)

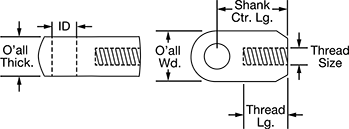

Shank Thread Size | ID, mm | Overall Width, mm | Overall Thickness, mm | Shank Center Length, mm | Shank Thread Length, mm | Tensile Strength | Material | Each | |
Right-Hand Threaded Shank | |||||||||
---|---|---|---|---|---|---|---|---|---|
M5 × 0.8 mm | 8.1 | 15 | 10 | 16 | 8 | Not Rated | Zinc-Plated Steel | 0000000 | 00000 |

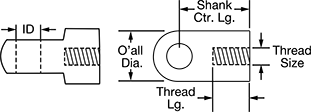

Corrosion-Resistant Rod End Nuts
![](/prerenderstable/mvPRE/contents/gfx/imagecache/840/8404n11polished-steelpositive_front_positive_top_hex_1613072187_363@halfx_637486474826021171.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/840/8404n11--740b851f5351615215541-p9@halfx_637507907448776811.png?ver=imagenotfound)
Made of stainless steel for excellent corrosion resistance, these nuts make pivoting and hinge movements where misalignment is not a concern. Attach them to rods, pipes, and tubes to control air- and hydraulic-powered arms as well as other components in power transmission systems. They have a rubber bushing to reduce noise and vibration.
For technical drawings and 3-D models, click on a part number.
Shank Thread Size | ID, mm | Overall Diameter, mm | Shank Center Length, mm | Shank Thread Length, mm | Tensile Strength | Material | Each | |
Right-Hand Threaded Shank | ||||||||
---|---|---|---|---|---|---|---|---|
Round | ||||||||
M5 × 0.8 mm | 6.1 | 10 | 16 | 8 | Not Rated | 303 Stainless Steel | 0000000 | 00000 |
M8 × 1.25 mm | 8.1 | 14 | 19 | 11 | Not Rated | 303 Stainless Steel | 0000000 | 00000 |
M10 × 1.5 mm | 8.1 | 18 | 27 | 12 | Not Rated | 303 Stainless Steel | 0000000 | 00000 |
