    8 Products

    TIG Torch Nozzles

    Image of System. Standard. Side1 orientation. Exploded view. Contains Annotated. Standard TIG Welding.

    Standard

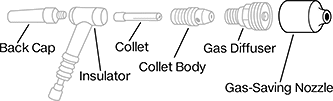

    Image of System. Gas Saving. Side1 orientation. Exploded view. Contains Annotated. Gas-Saving TIG Welding.

    Gas Saving

    Image of ProductInUse. Front orientation. Contains Annotated. TIG Torch Nozzles.
    Image of Product. Front orientation. TIG Torch Nozzles. Aluminum Oxide Ceramic for Narrow Gas Coverage.
    Image of Product. Front orientation. TIG Torch Nozzles. Silicon Nitride Ceramic for Narrow Gas Coverage.

    Aluminum Oxide

    Ceramic for

    Narrow Gas

    Coverage

    Silicon Nitride

    Ceramic for

    Narrow Gas

    Coverage

    Direct the flow of shielding gas to your weld with these nozzles. When choosing a nozzle size, consider the thickness of the material you’re welding. In general, the thicker the material, the higher the nozzle size you should use. All nozzles require a compatible collet in order to connect to your TIG torch.
    Aluminum Oxide Ceramic—Aluminum oxide ceramic nozzles are the most common nozzles. They’re more durable than borosilicate glass nozzles but can limit visibility since they aren’t clear. Use them for general purpose welding applications.
    Silicon Nitride Ceramic—Silicon nitride ceramic nozzles are just as durable as aluminum oxide ceramic nozzles, and they’ll work at higher temperatures. However, they also limit visibility because they aren’t clear. Use standard nozzles with a threaded collet body.
    For Narrow Gas Coverage—Nozzles for narrow gas coverage are good for welding most metals.
    Standard TIG Welding—Standard nozzles require a threaded collet body.
    Gas-Saving TIG Welding—Gas-saving nozzles use less gas than standard nozzles but won’t compromise the quality of your weld. These nozzles require a gas diffuser, which prevents oxidation and pitting in the weld by reducing gas turbulence and improving shielding.
    Each
    For Torch Series
    No.
    TIG Torch
    Nozzle Size
    TIG Industry
    No.
    1-9
    10-24
    25-Up
    Aluminum Oxide Ceramic for Narrow Gas Coverage

    Standard TIG Welding
    9, 20, 25613N1077425A218000000000000000
    17, 18, 26610N4877425A212000000000000

    Gas-Saving TIG Welding
    9, 20, 25653N6077425A262000000000000
    17, 18, 26654N1677425A256000000000000

    Silicon Nitride Ceramic for Narrow Gas Coverage

    Standard TIG Welding
    9, 20613N10SC77425A463000000000000000
    17, 18, 26610N48SC77425A475000000000000000

    Gas-Saving TIG Welding
    9, 20653N60SC77425A469000000000000000
    17, 18, 26654N16SC77425A483000000000000000
