    4 Products

    TIG Torch Nozzles

    Image of System. Standard. Side1 orientation. Exploded view. Contains Annotated. Standard TIG Welding.

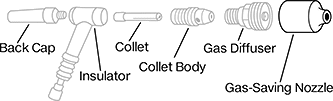

    Image of System. Gas Saving. Side1 orientation. Exploded view. Contains Annotated. Gas-Saving TIG Welding.

    Standard

    Gas Saving

    Image of ProductInUse. Front orientation. Contains Annotated. TIG Torch Nozzles.
    Image of Product. Front orientation. TIG Torch Nozzles. Quartz Glass for Narrow Gas Coverage.

    Quartz Glass for

    Narrow Gas

    Coverage

    Direct the flow of shielding gas to your weld with these nozzles. When choosing a nozzle size, consider the thickness of the material you’re welding. In general, the thicker the material, the higher the nozzle size you should use. All nozzles require a compatible collet in order to connect to your TIG torch.
    Quartz Glass—Quartz glass nozzles are clear like borosilicate glass nozzles, but they’re more durable and withstand higher temperatures. They also won’t turn yellow over time like borosilicate glass nozzles. If you're using them as standard nozzles, you'll need an adapter ring (sold separately) to connect to a threaded collet body.
    For Narrow Gas Coverage—Nozzles for narrow gas coverage are good for welding most metals.
    Standard TIG Welding—Standard nozzles require a threaded collet body.
    Gas-Saving TIG Welding—Gas-saving nozzles use less gas than standard nozzles but won’t compromise the quality of your weld. These nozzles require a gas diffuser, which prevents oxidation and pitting in the weld by reducing gas turbulence and improving shielding.
    Each
    For Torch Series No.
    TIG Torch
    Nozzle Size
    TIG Industry
    No.
    1-9
    10-24
    25-Up
    Quartz Glass for Narrow Gas Coverage

    Standard TIG Welding
    9, 17, 18, 20, 25, 26910NQ-9L000000000000000000000000000

    Standard TIG Welding, Gas-Saving TIG Welding
    9, 20, 25913NQ-9000000000000000000000000

    TIG Torch Adapter Rings for Standard Quartz Glass Nozzles
    Image of System. Side1 orientation. Exploded view. Contains Annotated. TIG Torch Adapter Rings.
    Image of Product. Front orientation. TIG Torch Adapter Rings.
    Each
    For Torch Series
    No.
    1-9
    10-24
    25-Up
    9, 20, 25000000000000000000000000
    17, 18, 26000000000000000000000
