82 Products

Angle Plates with Mounting Slots

Use these plates to ensure accurate right angles and hold workpieces and fixtures perpendicular to a machine table.

4 Slots

Tight Tolerance—These plates are precision ground for the most accurate alignment when inspecting and machining.

					Slot Lg.			Tolerance per 6"
	Lg.	Wd.	Ht.	Slot Wd.	(A)	(B)	Wt., lb.	Squareness	Parallel	End Squareness	End Parallel	Material		Each
Standard Tolerance



		2 1/2"	3 1/2"	3"	7/16"	7/8"	3/8"	4	0.002"	0.002"	—	—	Iron	2353A65	0000000


		3"	4 1/2"	3 1/2"	9/16"	1 1/16"	2 11/16"	4	0.002"	0.002"	—	—	Iron	2351A65	000000
		3"	4 1/2"	3 1/2"	9/16"	1 1/4"	3/4"	5	0.002"	0.002"	—	—	Iron	2353A66	000000
		4 1/2"	6"	5"	11/16"	2 1/16"	1 9/16"	13	0.002"	0.002"	—	—	Iron	2353A67	000000
		4 1/2"	7"	5 1/2"	11/16"	2 9/16"	1 9/16"	14	0.002"	0.002"	—	—	Iron	2353A68	000000
		5"	8"	6"	9/16"	3 1/16"	1 3/4"	22	0.002"	0.002"	—	—	Iron	2353A69	000000
		6"	9"	7"	11/16"	3 7/8"	2 1/16"	28	0.002"	0.002"	—	—	Iron	2353A7	000000
		6"	10"	8"	11/16"	4 1/2"	2 3/8"	37	0.002"	0.002"	—	—	Iron	2353A71	000000


		Tight Tolerance



				3"	4 1/2"	3 1/2"	9/16"	1 1/4"	3/4"	5	0.0005"	0.0005"	0.002"	0.002"	Iron	2359A66	000000


				4 1/2"	6"	5"	11/16"	2 1/16"	1 9/16"	13	0.0005"	0.0005"	0.002"	0.002"	Iron	2359A67	000000
				4 1/2"	7"	5 1/2"	11/16"	2 9/16"	1 9/16"	14	0.0005"	0.0005"	0.002"	0.002"	Iron	2359A68	000000
				5"	8"	6"	9/16"	3 1/16"	1 3/4"	22	0.0005"	0.0005"	0.002"	0.002"	Iron	2359A69	000000
				6"	9"	7"	11/16"	3 7/8"	2 1/16"	28	0.0005"	0.0005"	0.002"	0.002"	Iron	2359A7	000000
				6"	10"	8"	11/16"	4 1/2"	2 3/8"	37	0.0005"	0.0005"	0.002"	0.002"	Iron	2359A71	000000

7 Slots

					Slot Lg.			Tolerance per 6"
	Lg.	Wd.	Ht.	Slot Wd.	(A)	(B)	Wt., lb.	Squareness	Parallel	Material		Each
Standard Tolerance



		4 1/2"	6"	5"	9/16"	2"	1 1/4"	12	0.002"	0.002"	Iron	2351A66	0000000

8 Slots

					Slot Lg.			Tolerance per 6"
	Lg.	Wd.	Ht.	Slot Wd.	(A)	(B)	Wt., lb.	Squareness	Parallel	Material		Each
Standard Tolerance



		4 1/2"	7"	5 1/2"	9/16"	2 1/2"	1 3/4"	14	0.002"	0.002"	Iron	2351A67	0000000


		5"	8"	6"	9/16"	2 5/8"	2 1/16"	20	0.002"	0.002"	Iron	2351A68	000000

11 Slots

Tight Tolerance—These plates are precision ground for the most accurate alignment when inspecting and machining.

					Slot Lg.					Tolerance per 6"
	Lg.	Wd.	Ht.	Slot Wd.	(A)	(B)	(C)	(D)	Wt., lb.	Squareness	Parallel	End Squareness	End Parallel	Material		Each
Standard Tolerance



		8"	12"	9"	11/16"	1 7/16"	5 1/8"	1 7/16"	3 3/16"	63	0.002"	0.002"	—	—	Iron	2353A72	0000000


		Tight Tolerance



				8"	12"	9"	11/16"	1 7/16"	5 1/8"	1 7/16"	3 3/16"	63	0.0005"	0.0005"	0.002"	0.002"	Iron	2359A72	00000000

13 Slots

					Slot Lg.					Tolerance per 6"
	Lg.	Wd.	Ht.	Slot Wd.	(A)	(B)	(C)	(D)	Wt., lb.	Squareness	Parallel	Material		Each
Standard Tolerance



		6"	9"	7"	11/16"	15/16"	3 1/2"	1 5/8"	2 1/2"	24	0.002"	0.002"	Iron	2351A69	0000000


		6"	10"	8"	11/16"	1 3/16"	4 1/8"	1 7/8"	2 1/8"	33	0.002"	0.002"	Iron	2351A71	000000
		8"	12"	9"	13/16"	1 5/16"	4 5/8"	2 7/16"	3 5/8"	62	0.002"	0.002"	Iron	2351A72	000000

14 Slots

					Slot Lg.						Tolerance per 6"
	Lg.	Wd.	Ht.	Slot Wd.	(A)	(B)	(C)	(D)	(E)	Wt., lb.	Squareness	Parallel	Material		Each
Standard Tolerance



		9"	16"	12"	13/16"	2 17/32"	7 15/32"	4 3/4"	1 1/8"	2 17/32"	115	0.002"	0.002"	Iron	2351A11	000000000

22 Slots

					Slot Lg.							Tolerance per 6"
	Lg.	Wd.	Ht.	Slot Wd.	(A)	(B)	(C)	(D)	(E)	(F)	Wt., lb.	Squareness	Parallel	Material		Each
Standard Tolerance



		12"	20"	16"	13/16"	2 3/16"	11 5/16"	4 17/32"	6 3/4"	2 1/8"	2 17/32"	210	0.002"	0.002"	Iron	2351A12	000000000

Any-Which-Way Angle Plates

The handle extends the full length and height of these plates for use on any of their six sides. Ensure accurate right angles and hold workpieces and fixtures perpendicular to a machine table by securing them to the plate with clamps.

Standard Tolerance

				Tolerance per 6"
Lg.	Wd.	Ht.	Wt., lb.	Squareness	Parallel	Material		Each
4"	3 3/4"	5"	10	0.002"	0.002"	Iron	23535A65	0000000
4"	4"	6"	12	0.002"	0.002"	Iron	23535A66	000000
5"	4"	8"	21	0.002"	0.002"	Iron	23535A68	000000
5"	4 1/2"	6"	16	0.002"	0.002"	Iron	23535A67	000000
6"	6"	8"	32	0.002"	0.002"	Iron	23535A72	000000
7"	5 1/2"	10"	37	0.002"	0.002"	Iron	23535A69	000000
8"	5"	12"	44	0.002"	0.002"	Iron	23535A71	000000
8"	5 1/2"	10"	40	0.002"	0.002"	Iron	23535A7	000000
9"	8"	16"	94	0.002"	0.002"	Iron	23535A73	000000
10"	8"	12"	86	0.002"	0.002"	Iron	23535A74	000000

Tight Tolerance

These plates are precision ground for the most accurate alignment when inspecting and machining.

				Tolerance per 6"
Lg.	Wd.	Ht.	Wt., lb.	Squareness	Parallel	Material		Each
4"	3 3/4"	5"	10	0.0005"	0.00025"	Iron	2244A65	0000000
4"	4"	6"	12	0.0005"	0.00025"	Iron	2244A66	000000
5"	4"	8"	21	0.0005"	0.00025"	Iron	2244A68	000000
5"	4 1/2"	6"	16	0.0005"	0.00025"	Iron	2244A67	000000
6"	6"	8"	32	0.0005"	0.00025"	Iron	2244A3	000000
7"	5 1/2"	10"	37	0.0005"	0.00025"	Iron	2244A69	000000
8"	5"	12"	44	0.0005"	0.00025"	Iron	2244A71	000000
9"	8"	16"	94	0.0005"	0.00025"	Iron	2244A5	00000000
10"	8"	12"	86	0.0005"	0.00025"	Iron	2244A74	00000000

T-Slot Fixture Plates

These plates have T-slots for fastening components with T-slot nuts, bolts, and setup studs.

Inch

These plates have three T-slots on top and a straight slot along each side for mounting with clamps.

Iron—Iron plates are heavy duty for long-term use.

			T-Slots
Lg.	Wd.	Thk.	No. of	Wd.	Ctr.-to-Ctr.	Mounting Slot Ht.	Parallel Tolerance	Material		Each
13"	9"	2"	3	11/16"	2 1/2"	5/8"	0.0005"	Iron	1957N15	000000000

Fixture Columns

Clamp multiple parts or fixtures to these columns to speed up your machining process. Also known as tombstones, they have multiple faces for building dense, efficient setups. Each face is precision-machined for accurate positioning. Made from cast iron, these columns are rigid enough to limit vibration and stabilize your workpieces during machining.

Blank


Square	Rectangle	Cross

Blank columns can be customized to fit your application. Machine them with your own holes, T-slots, or other mounting surfaces.

Square—Square columns have four equal faces for balanced machining on each side.

Rectangle—Rectangle columns have two wide faces for larger setups and two narrow faces for smaller ones. The narrow faces can also help reduce tool interference.

Cross—Cross columns have four equal faces, similar to square columns, but cutouts at each corner give you more tool clearance.

	Column				Base			Mounting Holes					Tolerance
	Lg.	Wd.	Ht.	Overall Ht.	Lg.	Wd.	Thk.	No. of	Style	Ctr.-to-Ctr.	For Mounting Screw Size	Wt., lb.	Squareness	Parallel	Flatness	Material		Each
Square



		8"	8"	22"	22 1/2"	15 3/4"	15 3/4"	1 1/2"	8	Slotted	6"	5/8"	365	0.0008"	0.0005"	0.0005"	Cast Iron	9990N111	000000000


		10"	10"	26"	28"	19 3/4"	19 3/4"	2"	8	Slotted	8"	5/8"	615	0.0008"	0.0005"	0.0005"	Cast Iron	9990N113	00000000


		Rectangle



				15 3/4"	4"	26"	28"	15 3/4"	15 3/4"	2"	6	Slotted	6"	5/8"	540	0.0008"	0.0005"	0.0005"	Cast Iron	9990N115	00000000


				19 3/4"	4"	26"	28"	19 3/4"	19 3/4"	2"	6	Slotted	8"	5/8"	715	0.0008"	0.0005"	0.0005"	Cast Iron	9990N117	00000000


				Cross



						10"	10"	26 1/2"	28"	15 3/4"	15 3/4"	1 1/2"	8	Slotted	6"	5/8"	545	0.0008"	0.0005"	0.0005"	Cast Iron	9990N119	00000000

Grid


Square	Rectangle	Cross

Grid columns have industry-standard hole patterns. The holes are lined with a precision bushing and a threaded insert to help locate fasteners, so you can clamp parts accurately and securely. Both are hardened to resist wear. These columns also come with a plastic chip plug for each hole—plug unused holes to keep debris from clogging them or causing damage.

Square—Square columns have four equal faces for balanced machining on each side.

Rectangle—Rectangle columns have two wide faces for larger setups and two narrow faces for smaller ones. The narrow faces can also help reduce tool interference.

Cross—Cross columns have four equal faces, similar to square columns, but cutouts at each corner give you more tool clearance.

	Columns																					Aluminum Chip Plugs		Replacement Plastic Chip Plugs
	Column				Base			Holes			Mounting Holes					Tolerance
	Lg.	Wd.	Ht.	Overall Ht.	Lg.	Wd.	Thk.	No. of	Thread Size	Ctr.-to-Ctr.	No. of	Style	Ctr.-to-Ctr.	For Mounting Screw Size	Wt., lb.	Squareness	Parallel	Flatness	Material		Each		Each		Each
Square



		8"	8"	22"	22 1/2"	15 3/4"	15 3/4"	1 1/2"	132	1/2"-13	2"	8	Slotted	6"	5/8"	355	0.0008"	0.0005"	0.0005"	Cast Iron	9990N112	000000000	3161N12	00000	3161N13	00000


		10"	10"	26"	28"	19 3/4"	19 3/4"	2"	208	1/2"-13	2"	8	Slotted	8"	5/8"	600	0.0008"	0.0005"	0.0005"	Cast Iron	9990N114	00000000	3161N12	0000	3161N13	0000


		Rectangle



				15 3/4"	4"	26"	28"	15 3/4"	15 3/4"	2"	208	1/2"-13	2"	6	Slotted	6"	5/8"	525	0.0008"	0.0005"	0.0005"	Cast Iron	9990N116	00000000	3161N12	0000	3161N13	0000


				19 3/4"	4"	26"	28"	19 3/4"	19 3/4"	2"	260	1/2"-13	2"	6	Slotted	8"	5/8"	695	0.0008"	0.0005"	0.0005"	Cast Iron	9990N118	00000000	3161N12	0000	3161N13	0000


				Cross



						10"	10"	26 1/2"	28"	15 3/4"	15 3/4"	1 1/2"	156	1/2"-13	2"	8	Slotted	6"	5/8"	535	0.0008"	0.0005"	0.0005"	Cast Iron	9990N121	00000000	3161N12	0000	3161N13	0000

Fixture Squares

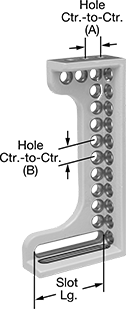

Style B	Style E

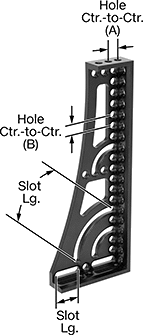

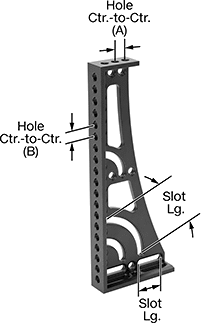

Style F (Left Orientation)	Style F (Right Orientation)

Build fixtures on multiple sides of these squares—you can use them individually or stack them. Made from iron or steel, they’re strong and stable for accurate fixturing. They hold up to welding, fabrication, and other demanding applications.

						Slots				Holes					Tolerance
Style	Lg.	Wd.	Ht.	Plate Thk.	Orientation	No. of	Shape	Lg.	Wd.	No. of	Dia.	Ctr.-to-Ctr. (A)	Ctr.-to-Ctr. (B)	Wt., lb.	Squareness per 4"	Parallel	Material		Each



	B	3 3/4"	4"	3 3/4"	1/2"	—	4 1	Straight Curved	2" 2 13/16"	5/8" 5/8"	6	5/8"	2"	—	5	Not Rated	Not Rated	Iron	1392N111	0000000


	E	6"	2"	12"	1/2"	—	2	Straight	4"	5/8"	26	5/8"	1"	1"	7	0.002"	0.006"	Iron	1392N15	000000
	F	8"	2"	20"	1/2"	Left-Hand Side	4 2 1	Straight Curved Curved	2" 2 13/16" 5 5/8"	5/8" 5/8" 5/8"	43	5/8"	1"	1"	15	Not Rated	Not Rated	Iron	1392N115	000000
	F	8"	2"	20"	1/2"	Right-Hand Side	4 2 1	Straight Curved Curved	2" 2 13/16" 5 5/8"	5/8" 5/8" 5/8"	43	5/8"	1"	1"	15	Not Rated	Not Rated	Iron	1392N114	000000

Angle Plates

Ensure accurate right angles and hold workpieces and fixtures perpendicular to a machine table by securing them to these plates with clamps.

Standard Tolerance

Image of Product. Front orientation. Contains Annotated. Angle Plates.

				Tolerance per 6"
Lg.	Wd.	Ht.	Wt., lb.	Squareness	Parallel	Material		Each
2"	2"	2"	1	0.002"	0.002"	Iron	23525A65	000000
3"	3"	3"	3	0.002"	0.002"	Iron	23525A66	000000
4"	4"	4"	7	0.002"	0.002"	Iron	23525A67	000000
5"	5"	5"	11	0.002"	0.002"	Iron	23525A68	000000
6"	6"	6"	18	0.002"	0.002"	Iron	23525A69	000000
8"	8"	8"	42	0.002"	0.002"	Iron	23525A7	000000
12"	12"	12"	125	0.002"	0.002"	Iron	23525A71	00000000

Tight Tolerance

These plates are precision ground for the most accurate alignment when inspecting and machining.

				Tolerance per 6"
Lg.	Wd.	Ht.	Wt., lb.	Squareness	Parallel	End Squareness	End Parallel	Material		Each
2"	2"	2"	1	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A65	0000000
3"	3"	3"	3	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A66	000000
4"	4"	4"	7	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A13	000000
5"	5"	5"	11	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A68	000000
6"	6"	6"	18	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A17	000000
8"	6"	10"	45	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A25	000000
8"	8"	8"	42	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A7	000000
8"	10"	6"	50	0.0005"	0.0005"	0.002"	0.002"	Iron	2243A22	000000

Welding Fixture Squares


2 Axes With Leveling Tabs	2 Axes with Joint Access Cutouts and Leveling Tabs	3 Axes

Position your workpieces at the correct angle prior to welding. These squares have an extra-wide head, so you can clamp them in place.

Joint Access Cutouts—Squares with joint access cutouts make it easier to reach joints, such as when welding and gluing.

Leveling Tabs—Leveling tabs are for aligning workpieces with one another.

Cast Iron—Cast iron squares are durable and difficult to dent or scratch. They resist weld spatter, but they’re more likely to corrode than aluminum.

		Overall				Cast Iron
	Holding Angle	Lg.	Wd.	Ht.	Flange Thk.		Each
2 Axes with Leveling Tabs



		45°, 90°	4"	4"	1 1/2"	1/4"	4984N42	000000


		45°, 90°	6"	6"	1 1/2"	1/4"	4984N43	00000
		45°, 90°	12"	12"	3"	1/4"	4984N46	000000


		2 Axes with Joint Access Cutouts and Leveling Tabs



				45°, 90°	4"	4"	1 1/2"	1/4"	4984N22	00000


				45°, 90°	6"	6"	1 1/2"	1/4"	4984N23	00000
				45°, 90°	12"	12"	3"	3/8"	4984N26	000000


				3 Axes



						90°	10 1/2"	10 1/2"	8"	1"	4984N101	000000
