59 Products

Surface Guards


Style 2	Style 5

Style 6

Protect walls and other surfaces from impact. All are nonmarking.

Adhesive Back—Peel and stick to any clean, smooth surface. They can be cut to size.

Screw In—These guards have mounting holes and attach with fasteners.

Extra Flexible—Bend these guards around tight curves and contours. They’re often used to protect columns and irregular equipment surfaces.

Hardness Rating—The harder the surface guard, the better it stands up to impact and abrasion over long periods. The softer the guard, the more cushioning it provides to protect the surface and the object that makes contact.

	Surface Guards																	Corner Guards
										Temp., ° F		Mounting
	Style	Lg.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	No. of Holes	Hole Dia.	Fasteners Included	Color		Each	Lg.		Each
Adhesive Back







				Polyurethane Foam

				2	18"	2 1/16"	3/4"	Yes	Yes	Soft	Durometer 30A	Extra Flexible	-10	170	—	—	—	Black	21705T45	000000	—	———	0




						Polypropylene

						2	6 ft.	1"	1/4"	Yes	No	Hard	Durometer 70A	Extra Flexible	Not Rated	Not Rated	—	—	—	Black	1684A22	00000	—	———	0


						Screw In







										Polyurethane Foam

										5	2 ft.	4 1/4"	2 1/4"	Yes	Yes	Hard	Durometer 90A	Rigid	-10	140	3	3/8"	No	Black	9123N111	00000	12"	46875K111	000000


										5	3 ft.	7"	3 3/4"	Yes	Yes	Hard	Durometer 90A	Rigid	-10	140	3	3/8"	No	Black	9123N115	000000	7"	46875K114	000000
										5	3 ft.	10"	5"	Yes	Yes	Hard	Durometer 90A	Rigid	-10	140	3	1/2"	No	Black	9123N118	000000	—	———	0




												PVC

												6	17"	2 1/2"	2 1/2"	Yes	Yes	Hard	Durometer 86A	Rigid	20	120	3	0.3"	No	Black	9123N119	00000	—	———	0

Plastic Edge Trim

Style 9

This hard plastic edge trim prevents denting and wear on everything from enclosure panels to safety mirrors. It stands up to knocks and scrapes over longer periods than our rubber and foam trim, though it doesn’t offer the same protective cushion when people and parts bump against it.

Push On


Style 9	Style 9

High-Temperature Slippery PTFE—Stays strong and flexible at temperatures about twice as high as our other plastic trim. It’s also the slipperiest edge trim we offer, so it helps maintain a constant flow of parts on chutes, slides, and other conveying equipment.

Hardness Rating—The harder the edge trim, the better it withstands impact and abrasion over time. The softer the edge trim, the more cushioning it provides for fragile materials such as glass and thin metal.

												Per Ft.
	Style	Inside Wd. (A)	Outside Wd. (C)	Flexibility	Temp. Range, ° F	For Use Outdoors	Color	Hardness	Hardness Rating	Choose a Length, ft.		1-7	8-Up
High-Temperature Slippery PTFE



		9	1/2"	11/16"	Flexible	-350 to 500	Yes	White	Durometer 55D	Hard	2, 5, 8	9272K45	000000	000000

Surface Guards for Posts


For Square Posts	For Round Posts

For Square Posts

For Round Posts

Absorb repeated hits on posts, columns, pipes and loading dock edges from trucks and carts. Originally designed to cushion boats as they pull up to a dock, these guards are made from polyurethane foam, so they absorb heavy impact without leaving marks and scuffs behind.

Screw In—These guards have mounting holes and attach with fasteners.

				Groove								Temp., ° F		Mounting
	Lg., ft.	Wd.	Thk.	Wd.	Dp.	For Surface Curve Dia.	Nonmarking	For Use Outdoors	Flexibility	Hardness Rating	Hardness	Min.	Max.	No. of Holes	Hole Dia.	Fasteners Included	Color		Each
Screw In—For Square Posts







				Polyurethane Foam

				3	4 1/4"	2 1/4"	2"	5/8"	—	Yes	Yes	Rigid	Hard	Durometer 90A	-10	140	3	3/8"	No	Black	9123N122	000000


				3	4 1/4"	2 1/4"	2 1/2"	5/8"	—	Yes	Yes	Rigid	Hard	Durometer 90A	-10	140	3	3/8"	No	Black	9123N123	00000


				Screw In—For Round Posts







								Polyurethane Foam

								3	7"	3 3/4"	—	—	8" to 12"	Yes	Yes	Rigid	Hard	Durometer 90A	-10	140	3	3/8"	No	Black	9123N126	000000

Plastic Edge Trim for Food and Beverage

Style 9

Protect the edges of equipment in food and beverage plants from bumps and scrapes. This trim is made of smooth, nonporous plastic to prevent bacteria from growing, and it's FDA compliant for direct contact with food. It stands up to impact and abrasion over longer periods than our rubber and foam trim, though it doesn’t offer the same protective cushion when people and parts bump against it.

Push On


Style 9	Style 9

Chemical-Resistant Slippery UHMW Polyethylene—Eases friction on cooler doors and other sliding edges while standing up to harsh cleaning agents such as bleach and alcohol-based disinfectants. While PTFE is even slipperier, UHMW polyethylene stands up better to abrasion and wear.

													Per Ft.
	Style	Inside Wd. (A)	Outside Wd. (C)	Flexibility	Temp. Range, ° F	For Use Outdoors	Specs. Met	Color	Hardness	Hardness Rating	Choose a Length, ft.		1-99	100-Up
Chemical-Resistant Slippery UHMW Polyethylene



		9	3/8"	39/64"	Rigid	-20 to 180	No	FDA Compliant 21 CFR 177.1520	White	Durometer 65D	Hard	5, 10, 25, 50, 100	8672K68	00000	00000


		9	1/2"	11/16"	Rigid	-20 to 180	No	FDA Compliant 21 CFR 177.1520	White	Durometer 65D	Hard	5, 10, 25, 50, 100	8672K59	0000	0000

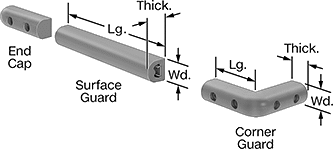

Flexible Reinforced Surface Guards

Strengthened with a metal core yet still bendable, these guards conform to curved surfaces and withstand repeated impact. Bend them around columns, curved walls, equipment edges, and even tight corners to protect against damage from carts, forklifts, and other vehicles.

Use any number of corner, edge, and surface guards to cover your area. Corner guards, edge guards, and end caps mount with fasteners. Surface guards can be installed with adhesive or fastened in place, which requires drilling.

Synthetic Rubber—Synthetic rubber surface guards are more impact and abrasion resistant than vinyl plastic guards.

Vinyl Plastic—These guards resist water and common cleaning solutions so they are easy to wash down and maintain.

	Surface Guards															End Caps			Corner Guards			Cushioned Corner Guards
									Temp., ° F
	Lg., ft.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	Core Material	Mounting Fasteners Included	Choose a Color		Each	Lg.		Each	Lg.		Each	Lg.		Each
Plain Back







				Synthetic Rubber

				5	1 1/2"	1"	Yes	Yes	Hard	Durometer 70A	Extra Flexible	-40	180	Metal	No	Gray	11165A34	0000000	—	———	0	3", 6 1/8"	11165A31	000000	—	———	0


				8	3/4"	5/8"	Yes	Yes	Hard	Durometer 70A	Extra Flexible	-40	180	Metal	No	Gray	11165A52	00000	—	———	0	2 1/2"	11165A18	0000	—	———	0
				8	1 1/16"	15/16"	Yes	Yes	Hard	Durometer 70A	Extra Flexible	-40	180	Metal	No	Gray	11165A54	00000	—	———	0	3"	11165A16	0000	3"	46875K43	00000
				16	3/4"	5/8"	Yes	Yes	Hard	Durometer 70A	Extra Flexible	-40	180	Metal	No	Gray	11165A14	000000	—	———	0	2 1/2"	11165A18	0000	—	———	0
				16	1 1/16"	15/16"	Yes	Yes	Hard	Durometer 70A	Extra Flexible	-40	180	Metal	No	Gray	11165A13	000000	—	———	0	3"	11165A16	0000	3"	46875K43	0000




						Vinyl Plastic

						6	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80A	Extra Flexible	40	110	Metal	No	Black, Gray	11165A58	00000	3 7/8"	11165A46	000000	2 7/8"	11165A44	00000	—	———	0


						12	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80A	Extra Flexible	40	110	Metal	No	Black, Gray	11165A42	000000	3 7/8"	11165A46	00000	2 7/8"	11165A44	00000	—	———	0

Surface Guard Accessories

Edge Guards

								Temp., ° F		Mounting
	Lg.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Min.	Max.	No. of Holes	Hole Dia.	Fasteners Included	Flexibility	Core Material	Color		Each
Edge Guards







				Synthetic Rubber

				12"	3/4"	7/16"	Yes	Yes	Hard	Durometer 70A	-40	180	4	5/32"	No	Rigid	Metal	Gray	46875K45	000000

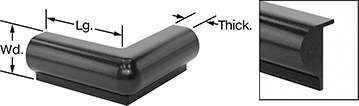

Surface Guards for Corners

Style 2

Style 4

Protect corners on equipment, walls, and docks. These guards sit at a 90° angle to shield against damage from carts, vehicles, and moving objects.

Screw In—These guards have mounting holes and attach with fasteners.

Plain Back—Install with screws, nails, or construction adhesive.

Polyurethane Foam—Designed to cushion and bounce back from impact while maintaining excellent abrasion resistance. These guards protect the surface and the object or person that makes contact.

Synthetic Rubber—Synthetic rubber surface guards are more impact and abrasion resistant than vinyl plastic guards.

Vinyl Plastic—These guards resist water and common cleaning solutions so they are easy to wash down and maintain.

									Temp., ° F		Mounting
	Style	Lg.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Min.	Max.	No. of Holes	Hole Dia.	Fasteners Included	Flexibility	Choose a Color		Each
Screw In







				Polyurethane Foam

				2	7"	7"	7"	Yes	Yes	Hard	Durometer 70A	-10	140	4	3/8"	No	Rigid	Black	46875K114	0000000


				2	12"	4 1/4"	2 1/4"	Yes	Yes	Hard	Durometer 70A	-10	140	4	3/8"	No	Rigid	Black	46875K111	00000




						Synthetic Rubber

						2	2 1/2"	3/4"	5/8"	Yes	Yes	Hard	Durometer 70A	-40	180	4	1/8"	No	Rigid	Gray	11165A18	0000


						2	3"	1 1/16"	15/16"	Yes	Yes	Hard	Durometer 70A	-40	180	4	3/16"	No	Rigid	Gray	11165A16	0000
						2	3", 6 1/8"	1 1/2"	1"	Yes	Yes	Hard	Durometer 70A	-40	180	3	1/4"	No	Rigid	Gray	11165A31	00000




								Vinyl Plastic

								2	2 7/8"	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80A	40	110	4	1/4"	No	Rigid	Black, Gray	11165A44	00000


								Plain Back







												Vinyl Plastic

												4	7 1/8"	3 5/8"	1 1/4"	Yes	Yes	Hard	Durometer 85A	0	120	—	—	—	Flexible	Black	1296T111	00000

High-Visibility Foam Corner Guards


Style 1—Round, 90° Angle	Style 3—Round, 90° Angle

Highlight the edges of equipment and obstructions with these vibrant guards. Made of polyurethane foam, they pad corners to protect the people and objects that bump them. They also resist abrasion.

Adhesive Back—Peel and stick to any clean, smooth surface.

Screw In—Screw-in guards mount with fasteners. They’re more durable than adhesive-back guards.

Black/Fluorescent Yellow—Use the black/fluorescent yellow trim for more visibility during the day.

Extra Flexible—Bend around tight curves and contours.

Hardness Rating—The harder the guard, the better it stands up to impact and abrasion over time. The softer the guard, the more cushioning it has to protect the corner and the object that bumps it.

	Material	Color	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Temp., ° F	Includes	Mounting Fasteners Included		Each
Adhesive Back







	Style 1—Round, 90° Angle

	1"	39"	9/16"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T53	000000


	1"	16 ft.	9/16"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T82	000000
	1 3/8"	39"	1"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T83	00000
	1 3/8"	39"	1"	Polyurethane Foam	Reflective Red/Reflective White	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T61	000000
	1 9/16"	39"	3/4"	Polyurethane Foam	Black/Fluorescent Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	4591N12	00000


	Screw In







					Style 3—Round, 90° Angle

					1 3/8"	39"	1"	Polyurethane Foam	Reflective Red/Reflective White	Yes	Yes	Medium	Durometer 55A	Rigid	-10 to 170	Mounting Bracket	Yes	4278N11	000000

High-Visibility Surface Guards

Style 2

Vibrant colors create a visual alert to draw attention to equipment and obstructions. Designed to cushion during impact, these foam guards have a medium hardness rating to protect walls and other flat surfaces from impact. Made of polyurethane foam, they have good abrasion resistance. They're nonmarking and can be used outdoors.

Adhesive Back—Peel and stick to any clean, smooth surface. They can be cut to size.

Extra Flexible—Bend these guards around tight curves and contours. They’re often used to protect columns and irregular equipment surfaces.

										Temp., ° F
	Style	Lg.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	Color		Each
Adhesive Back







				Polyurethane Foam

				2	39"	1 9/16"	1 1/4"	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10	170	Black/Yellow	21705T51	000000


				2	16 ft.	1 9/16"	1 1/4"	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10	170	Black/Yellow	21705T72	000000

Glow-in-the-Dark Foam Corner Guards

When the lights go out, these guards illuminate the edges of equipment, shelves, and other hazards so you can steer clear. Made of polyurethane foam, they pad corners to protect the people and objects that bump them. They also resist abrasion.

Adhesive Back—Peel and stick to any clean, smooth surface.

Extra Flexible—Bend around tight curves and contours.

	Material	Color	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Temp., ° F		Each
Adhesive Back







	Round—90° Angle

	1 9/16"	39"	3/4"	Polyurethane Foam	Black/Glow-in-the-Dark Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	4591N11	000000

Snap-Together Reinforced Surface Guards


Style 1	Style 2

Style 3	Style 4

A vinyl cover snaps onto an aluminum base for strong impact protection and a clean, fastener-free look. The aluminum base reinforces these guards against repeated contact from carts and equipment, so they withstand high-traffic areas such as corridors and loading zones. Also known as crash rails.

Combine any number of corner guards, surface guards, and end caps to cover your area. To install, drill the included aluminum base, secure with fasteners, then snap on the cover.

	Surface Guards															End Caps			Corner Guards
										Temp., ° F
	Style	Lg., ft.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	Mounting Fasteners Included	Choose a Color		Each	Lg.		Each	Lg.		Each
Plain Back







				Vinyl Plastic Cover

				1	6	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80A	Rigid	40	110	No	Black, Gray	11335A83	000000	3 7/8"	11165A46	000000	2 7/8"	11165A44	000000


				1	12	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80A	Rigid	40	110	No	Black, Gray	11335A37	000000	3 7/8"	11165A46	00000	2 7/8"	11165A44	00000
				2	6	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray	11335A81	00000	1 1/16"	11335A93	0000	1 1/2"	11335A91	0000
				2	6	2"	1 3/4"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray	11335A82	00000	2 1/2"	11335A94	00000	2 3/8"	11335A92	0000
				2	12	1 1/8"	1 1/16"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray	11335A13	00000	1 1/16"	11335A93	0000	1 1/2"	11335A91	0000
				2	12	2"	1 3/4"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray	11335A24	000000	2 1/2"	11335A94	00000	2 3/8"	11335A92	0000
				3	6	2 15/16"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray, Silver, White	11335A84	00000	1"	11335A97	0000	1 3/8"	11335A95	00000
				3	6	6"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray, Silver, White	11335A85	000000	1"	11335A98	0000	1 1/2"	11335A96	0000
				3	12	2 15/16"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray, Silver, White	11335A61	000000	1"	11335A97	0000	1 3/8"	11335A95	00000
				3	12	6"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray, Silver, White	11335A72	000000	1"	11335A98	0000	1 1/2"	11335A96	0000
				4	12	7 3/4"	1"	Yes	No	Hard	Durometer 80D	Rigid	40	110	No	Beige, Black, Gray, Silver, White	1119A13	000000	1"	1119A14	0000	1"	1119A15	0000
