99 Products

Plastic Corner Guards


90° Angle	Bullnose Corner—90° Angle

135° Angle	45° to 135° Angle

Black

Beige

Brown

Clear

Protect corners on walls and other surfaces from chips, scratches, and daily wear. Made of plastic, these guards hold up to impact for longer than rubber and foam guards. However, they don’t have the same protective cushion. They’re often used in offices, hallways, and other high-traffic areas.

Adhesive Back—Peel and stick to any clean, smooth surface.

Plain Back—Install with screws, nails, or construction adhesive.

Screw In—Best for high-traffic areas. These guards have mounting holes and attach with fasteners.

45° to 135° Angle—Guards with a 45° to 135° angle flex to conform to irregular corners.

Color—Guards are available in different colors to match your facility. Use a color selector pack (sold separately) if you’re unsure of what color to choose.

	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Temp., ° F	Mounting Fasteners Included	Choose a Color		4 ft. Long	8 ft. Long
Adhesive Back







	90° Angle

	3/4"	3/64"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Beige , Black , Brown	1103A83	000000	000000


	3/4"	3/64"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Clear	1103A19	0000	00000
	1 1/8"	1/16"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Beige , Black , Brown	1103A84	00000	00000
	1 1/8"	1/16"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Clear	1103A29	00000	00000
	1 1/8"	5/64"	Vinyl Plastic	No	No	Hard	Not Rated	Rigid	60 to 120	—	Beige	1278A24	00000	00000
	2 1/2"	5/64"	Vinyl Plastic	No	No	Hard	Not Rated	Rigid	60 to 120	—	Beige	1278A25	00000	00000
	2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Beige , Black , Brown	1103A85	00000	000000
	2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Clear	1103A39	00000	00000




			Bullnose Corner—90° Angle

			2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Beige , Black , Brown	1103A86	00000	000000


			2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Clear	1103A49	00000	00000




					135° Angle

					2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Beige , Black , Brown	1103A87	00000	000000


					2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	—	Clear	1103A59	00000	00000




							45° to 135° Angle

							1"	3/64"	PETG	Yes	No	Hard	Not Rated	Rigid	—	—	Clear	8353A11	00000	00000


							Plain Back







											90° Angle

											3/4"	3/64"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Beige , Black , Brown	1103A88	00000	00000


											3/4"	3/64"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Clear	1103A69	0000	00000


Screw In







											90° Angle

											1 1/8"	1/16"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Beige , Black , Brown	1103A93	00000	00000


											1 1/8"	1/16"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Clear	1103A79	00000	00000
											2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Beige , Black , Brown	1103A94	00000	00000
											2 1/2"	3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Clear	1103A89	00000	00000




													Bullnose Corner—90° Angle

	2 1/2"												3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Beige , Black , Brown	1103A97	00000	00000


	2 1/2"	3/32"											Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Clear	1103A95	00000	00000




													135° Angle

			2 1/2"										3/32"	Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Beige , Black , Brown	1103A98	00000	00000


			2 1/2"	3/32"									Polycarbonate	Yes	No	Hard	Not Rated	Rigid	—	Yes	Clear	1103A96	00000	00000

Corner Guard Color Samples

		Each
Polycarbonate Color Selector Packs	1103A9	00000

Stainless Steel Corner Guards

Made of sleek stainless steel, these guards stand up to frequent washdowns, cleaning agents, and heavy impact. They’re often used to protect corners in hospitals, laboratories, and commercial kitchens.

Adhesive Back—Peel and stick to any clean, smooth surface.

Plain Back—Install with screws or construction adhesive.

304 Stainless Steel and 430 Stainless Steel—Stainless steel guards have excellent corrosion resistance. 304 stainless steel is more corrosion resistant than 430 stainless steel.

							4 ft. Long		8 ft. Long
	Wd.	Thk.	For Use Outdoors	Flexibility	Temp., ° F	Mounting Fasteners Included		Each		Each
Adhesive Back







				430 Stainless Steel—90° Angle

				1 1/8"	1/16"	No	Rigid	60 to 120	—	8144A43	000000	8144A47	0000000


				2 1/2"	1/16"	No	Rigid	60 to 120	—	8144A45	000000	8144A48	000000
				3 1/2"	1/16"	No	Rigid	60 to 120	—	8144A46	000000	———	0




						304 Stainless Steel—90° Angle

						1 1/8"	1/16"	No	Rigid	60 to 120	—	1296A31	00000	1296A32	000000


						2 1/2"	1/16"	No	Rigid	60 to 120	—	1296A33	000000	1296A34	000000
						3 1/2"	1/16"	No	Rigid	60 to 120	—	1296A35	000000	1296A36	000000


						Plain Back







										430 Stainless Steel—90° Angle

										1 1/8"	1/16"	No	Rigid	—	No	8144A33	00000	8144A35	000000


										2 1/2"	1/16"	No	Rigid	—	No	8144A34	00000	8144A36	000000
										3 1/2"	1/16"	No	Rigid	—	No	8144A12	000000	8144A14	000000




												304 Stainless Steel—90° Angle

												1 1/8"	1/16"	No	Rigid	—	No	1296A11	00000	1296A12	000000


												2 1/2"	1/16"	No	Rigid	—	No	1296A13	000000	1296A14	000000
												3 1/2"	1/16"	No	Rigid	—	No	1296A15	000000	1296A16	000000

Plastic Edge Trim


Style 10	Style 11

This hard plastic edge trim prevents denting and wear on everything from enclosure panels to safety mirrors. It stands up to knocks and scrapes over longer periods than our rubber and foam trim, though it doesn’t offer the same protective cushion when people and parts bump against it.

Adhesive Back


Style 10	Style 11

Style 10

Style 11

Chemical-Resistant Vinyl Plastic—This trim resists coolant, grease, fuel oils, and a range of strong acids and bases.

Abrasion- and Chemical-Resistant PEEK—Withstands cleaning with the harshest chemicals while protecting edges from frequent scuffing and wear.

Chemical-Resistant Slippery UHMW Polyethylene—Eases friction on panel doors, drawers, and other sliding surfaces while standing up to chemicals such as coolant, hydraulic fluid, and fuels. While PTFE is even slipperier, UHMW polyethylene stands up better to abrasion and wear.

High-Temperature Slippery PTFE—Stays strong and flexible at temperatures about twice as high as our other plastic trim. It’s also the slipperiest edge trim we offer, so it helps maintain a constant flow of parts on chutes, slides, and other conveying equipment.

Hardness Rating—The harder the edge trim, the better it withstands impact and abrasion over time. The softer the edge trim, the more cushioning it provides for fragile materials such as glass and thin metal.

		Outside
	Style	Wd. (C)	Ht. (D)	Flexibility	Temp. Range, ° F	For Use Outdoors	Color	Hardness	Hardness Rating	Choose a Length, ft.		Per Ft.
Chemical-Resistant Vinyl Plastic



		11	31/32"	1/4"	Extra Flexible	-20 to 150	Yes	Black	Durometer 90A	Hard	10 , 25 , 50 , 100	1000A84	00000



														Each
		Abrasion- and Chemical-Resistant PEEK



				10	1"	0.007"	Extra Flexible	-40 to 300	No	Beige	Not Rated	Hard	9	7165T21	00000


				10	2"	0.007"	Extra Flexible	-40 to 300	No	Beige	Not Rated	Hard	1	7165T22	00000


				Chemical-Resistant Slippery UHMW Polyethylene



						10	1/2"	0.022"	Extra Flexible	0 to 120	No	Semi-Clear White	Durometer 65D	Hard	15	7165T31	0000


						10	1"	0.022"	Extra Flexible	0 to 120	No	Semi-Clear White	Durometer 65D	Hard	15	7165T42	00000
						10	2"	0.022"	Extra Flexible	0 to 120	No	Semi-Clear White	Durometer 65D	Hard	15	7165T41	00000
						10	6"	0.022"	Extra Flexible	0 to 120	No	Semi-Clear White	Durometer 65D	Hard	3	7165T32	00000
						10	12"	0.022"	Extra Flexible	0 to 120	No	Semi-Clear White	Durometer 65D	Hard	3	7165T33	00000


						High-Temperature Slippery PTFE



								10	1/2"	0.005"	Extra Flexible	40 to 500	No	Beige	Not Rated	Medium Hard	15	7165T12	0000


								10	1"	0.005"	Extra Flexible	40 to 500	No	Beige	Not Rated	Medium Hard	15	7165T13	00000
								10	1 1/2"	0.005"	Extra Flexible	40 to 500	No	Beige	Not Rated	Medium Hard	15	7165T14	00000
								10	2"	0.005"	Extra Flexible	40 to 500	No	Beige	Not Rated	Medium Hard	15	7165T15	00000

Glue On


Style 10	Style 10

Chemical-Resistant Vinyl Plastic—This trim resists coolant, grease, fuel oils, and a range of strong acids and bases.

		Outside
	Style	Wd. (C)	Ht. (D)	Flexibility	Temp. Range, ° F	For Use Outdoors	Hardness	Hardness Rating	Choose a Color	Choose a Length, ft.		Per Ft.
Chemical-Resistant Vinyl Plastic



		10	15/16"	1/8"	Flexible	50 to 90	No	Durometer 75D	Hard	Black , White	10 , 25 , 50 , 100	1620A3	00000


		10	1 5/16"	1/8"	Flexible	50 to 90	No	Durometer 75D	Hard	Black , White	10 , 25 , 50 , 100	1620A4	0000

Diamond-Plate Aluminum Corner Guards

Reinforce corners while resisting scratches and dents and hiding fingerprints. Made of aluminum, these guards hold up to impact and corrosion. In addition to protecting corners on walls, they’re also often used to protect edges on loading docks, carts, vehicles, and workbenches.

Plain Back—Install with screws or construction adhesive.

	For Use Outdoors	Flexibility	Mounting Fasteners Included		Each
Plain Back







	90° Angle

	1"	4	1/16"	Yes	Rigid	No	8933T42	000000


	3"	8	1/16"	Yes	Rigid	No	8933T52	00000
	4"	4	1/16"	Yes	Rigid	No	8933T62	00000

Surface Guards


Style 1	Style 3

Protect walls and other surfaces from impact. All are nonmarking.

Adhesive Back—Peel and stick to any clean, smooth surface. They can be cut to size.

Extra Flexible—Bend these guards around tight curves and contours. They’re often used to protect columns and irregular equipment surfaces.

Hardness Rating—The harder the surface guard, the better it stands up to impact and abrasion over long periods. The softer the guard, the more cushioning it provides to protect the surface and the object that makes contact.

										Temp., ° F
	Style	Lg.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	Color		Each
Adhesive Back







				Polyurethane Foam

				1	18"	2"	3/4"	Yes	Yes	Soft	Durometer 30A	Extra Flexible	-10	170	Black	21705T46	000000


				3	20"	2"	1"	Yes	Yes	Soft	Durometer 30A	Extra Flexible	-10	170	Black	21705T44	00000
				3	27"	2"	1"	Yes	Yes	Soft	Durometer 30A	Extra Flexible	-10	170	Black	21705T43	00000

High-Visibility Foam Corner Guards


Style 2—90° Angle	Style 4—90° Angle

Highlight the edges of equipment and obstructions with these vibrant guards. Made of polyurethane foam, they pad corners to protect the people and objects that bump them. They also resist abrasion.

Adhesive Back—Peel and stick to any clean, smooth surface.

Screw In—Screw-in guards mount with fasteners. They’re more durable than adhesive-back guards.

Extra Flexible—Bend around tight curves and contours.

Hardness Rating—The harder the guard, the better it stands up to impact and abrasion over time. The softer the guard, the more cushioning it has to protect the corner and the object that bumps it.

	Material	Color	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Temp., ° F	Includes	Mounting Fasteners Included		Each
Adhesive Back







	Style 2—90° Angle

	3/4"	39"	1/4"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T32	000000


	3/4"	16 ft.	1/4"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T84	000000
	1"	24"	3/4"	Polyurethane Foam	Yellow	Yes	Yes	Soft	Durometer 30A	Extra Flexible	-10 to 170	—	—	21705T31	00000
	1 3/8"	39"	1/2"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T63	00000
	1 7/8"	39"	1/2"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T64	00000
	1 7/8"	39"	1/2"	Polyurethane Foam	Reflective Red/Reflective White	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10 to 170	—	—	21705T62	000000


	Screw In







					Style 4—90° Angle

					1 3/4"	39"	9/16"	Polyurethane Foam	Black/Yellow	Yes	Yes	Medium	Durometer 55A	Rigid	-10 to 170	Mounting Bracket	Yes	4278N12	00000

Aluminum Edge Trim


Style 9	Style 10

Extruded for a smooth, consistent finish, this durable yet lightweight trim protects and spruces up the edges of workstations, mirrors, and signs. It absorbs knocks and scrapes better than nonmetal trim, keeping edges like new over longer periods. For use indoors and out, the corrosion-resistant aluminum maintains its strength and attractive finish through frequent rinsing, humidity, and rain.

Style 9

Outside		Stem						3 ft. Long		6 ft. Long
Wd. (C)	Ht. (D)	Lg.	Thk.	Flexibility	For Use Outdoors	Appearance	Mount Type		Each		Each
3/4"	5/64"	3/8"	3/32"	Rigid	Yes	Polished	Push In	1618A33	00000	1618A43	00000
1 1/4"	7/64"	3/8"	3/32"	Rigid	Yes	Polished	Push In	1618A34	0000	1618A44	00000

Style 10

Outside		Stem						3 ft. Long		6 ft. Long
Wd. (C)	Ht. (D)	Lg.	Thk.	Flexibility	For Use Outdoors	Appearance	Mount Type		Each		Each
1 1/4"	7/64"	7/16"	3/32"	Rigid	Yes	Polished	Push In	1618A31	00000	1618A41	000000
1 1/2"	3/32"	3/8"	1/8"	Rigid	Yes	Polished	Push In	1618A32	00000	1618A42	00000

High-Visibility Surface Guards


Style 1	Style 3

Vibrant colors create a visual alert to draw attention to equipment and obstructions. Designed to cushion during impact, these foam guards have a medium hardness rating to protect walls and other flat surfaces from impact. Made of polyurethane foam, they have good abrasion resistance. They're nonmarking and can be used outdoors.

Adhesive Back—Peel and stick to any clean, smooth surface. They can be cut to size.

Screw In—These guards have mounting holes and attach with fasteners.

Extra Flexible—Bend these guards around tight curves and contours. They’re often used to protect columns and irregular equipment surfaces.

Flexible—Bend around gradual curves.

										Temp., ° F
	Style	Lg.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Flexibility	Min.	Max.	Color	Mounting Fasteners Included		Each
Adhesive Back







				Polyurethane Foam

				1	39"	1 9/16"	7/16"	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10	170	Black/Yellow	—	21705T48	000000


				1	39"	2"	13/16"	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10	170	Black/Yellow	—	21705T49	00000
				1	39"	2 7/8"	13/16"	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10	170	Black/Yellow	—	21705T55	00000
				1	16 ft.	1 9/16"	7/16"	Yes	Yes	Medium	Durometer 55A	Extra Flexible	-10	170	Black/Yellow	—	21705T71	000000


				Screw In







								Polyurethane Foam

								3	39"	2 7/8"	13/16"	Yes	Yes	Medium	Durometer 55A	Flexible	-10	170	Black/Yellow	Yes	21705T74	000000

Magnet-Mount Flexible Wear Plates

Easily attach, move, and replace these magnetic wear plates on metal surfaces to minimize friction—simply press them on and peel them off as needed. Often found on conveyor systems and chutes, use these plates where friction between two parts or materials is wearing down equipment to extend equipment life. All of these plates have an extra-hard rating to withstand high levels of impact. They are flexible enough to bend around a curve. They're also nonmarking.

Silicone Rubber-Filled UHMW Polyethylene—UHMW polyethylene plates with silicone filler are more slippery than the standard UHMW plates. Objects with adhesives and labels on them will not stick to them to prevent backups on conveyors and chutes.

	Wd.	Lg., ft.	Hardness Rating	Hardness	Temp., ° F	For Use Outdoors	Nonmarking	Color		Each
UHMW Polyethylene



	0.02"	1/2"	10	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N11	000000


	0.02"	3/4"	10	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N12	00000
	0.02"	1"	10	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N13	00000
	0.02"	2"	5	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N14	00000
	0.02"	4"	3	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N15	00000
	0.02"	6"	3	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N16	00000


	Silicone Rubber-Filled UHMW Polyethylene



			0.04"	3/4"	5	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N17	00000


			0.04"	1"	5	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N18	00000
			0.04"	2"	5	Extra Hard	Durometer 95A	0 to 140	No	Yes	Black	8814N19	00000

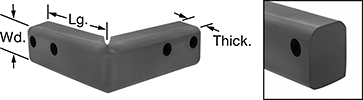

Surface Guards for Corners

Style 1

Style 3

Protect corners on equipment, walls, and docks. These guards sit at a 90° angle to shield against damage from carts, vehicles, and moving objects.

Screw In—These guards have mounting holes and attach with fasteners.

Synthetic Rubber—Synthetic rubber surface guards are more impact and abrasion resistant than vinyl plastic guards.

									Temp., ° F		Mounting
	Style	Lg.	Wd.	Thk.	Nonmarking	For Use Outdoors	Hardness Rating	Hardness	Min.	Max.	No. of Holes	Hole Dia.	Fasteners Included	Flexibility	Color		Each
Screw In







				Plastic

				1	6 1/4"	2 1/2"	1 1/2"	Yes	Yes	Hard	Durometer 70A	-20	200	4	1/4"	No	Rigid	Black	46875K422	000000


				1	6 1/4"	2 1/2"	1 1/2"	Yes	Yes	Hard	Durometer 70A	-20	200	4	1/4"	No	Rigid	White	46875K421	00000




						Synthetic Rubber

						3	3"	1 1/16"	1"	Yes	Yes	Hard	Durometer 70A	-40	180	4	3/16"	No	Rigid	Gray	46875K43	0000
