Load-Rated Slides for Webbing
These slides are rated for heavy duty applications. To make an adjustable strap, thread webbing through both ends or sew it onto one end.
Stainless steel fittings are more corrosion resistant than zinc-plated steel fittings.
Warning: Never use for lifting applications.
For technical drawings and 3-D models, click on a part number.
Light Duty Slides for Webbing
Add a slide to webbing to make adjustable straps. Either thread webbing through both ends or sew it onto one end.
Warning: Never use for lifting applications.
For technical drawings and 3-D models, click on a part number.

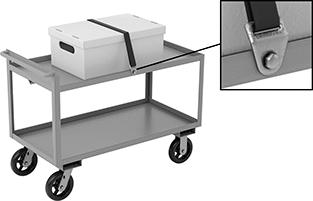

Webbing Anchor Plates
Sew webbing onto these plates for a permanent anchor point or run webbing through to use them as guides.
Zinc-plated steel plates have mild corrosion resistance.
18-8 stainless steel plates have good corrosion resistance.
Warning: Never use for lifting applications.
For technical drawings and 3-D models, click on a part number.
Mounting Holes | ||||||||
|---|---|---|---|---|---|---|---|---|
| For Max. Webbing Wd. | Capacity, lbs. | Lg. | Wd. | Mounting Fasteners Included | No. of | Dia. | Each | |
Zinc-Plated Steel | ||||||||
| 1" | 330 | 2 1/16" | 1 9/16" | No | 1 | 1/2" | 0000000 | 00000 |
| 1 3/4" | 5,000 | 2 7/8" | 2 3/8" | No | 1 | 25/32" | 0000000 | 00000 |
| 2" | 1,000 | 1 7/8" | 2 3/4" | No | 1 | 1/2" | 0000000 | 0000 |
18-8 Stainless Steel  | ||||||||
| 1" | 500 | 2 1/16" | 1 9/16" | No | 1 | 1/2" | 0000000 | 00000 |
| 1 3/4" | 3,900 | 2 7/8" | 2 3/8" | No | 1 | 25/32" | 0000000 | 00000 |
