    94 Products

    Welding Caps

    Image of ProductInUse. Front orientation. Contains MultipleImages. Hats. Welding Caps, Style A.
    Image of ProductInUse. Front orientation. Contains MultipleImages. Hats. Welding Caps, Style B.

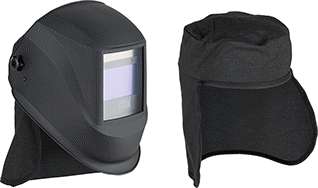

    Style A

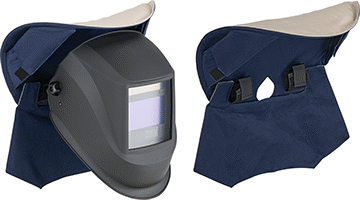

    Style B

    Protect the back of your head and neck from sparks with these flame-resistant welding caps.
    Style A—Style A caps fit under your welding helmet. They’re made from a proprietary blend of strong carbon fibers and heat-resistant aramid.
    Style B—Style B caps attach to the suspension on your helmet to prevent glare. The curved design extends over your head and blocks light from your facility, the sun, or other welders. These caps are made of double-layered flame-resistant cotton. Detach the neck drape when you don’t need the extra spark protection.
    Style
    Material
    Features
    Color
    Clothing
    Size
    Each
    ACarbon Fiber FabricNomex ThreadsBlackOne Size9265N122000000
    BCotton FabricDark Blue/BeigeOne Size9265N12100000

    Laser Welding Helmets

    Image of Product. Front View. Front orientation. Welding Helmets. Laser Welding Helmets.
    Image of Product. Side View. Side1 orientation. Welding Helmets. Laser Welding Helmets.

    Front View

    Side View

    Image of Product. Front orientation. Welding Lenses. Laser Welding Helmets.

    Replacement Welding

    Lenses

    No need for goggles or glasses under these helmets. They have two lenses to protect your eyes against welding laser light. A nose cutout lets these helmets sit closer to your face for a six-times larger viewing area than standard helmets for higher quality welds. Without the need for a larger lens to enhance peripheral vision, these helmets are lighter and have longer battery life. Unlike traditional green welding lenses, these helmets use a true color lens to enhance clarity and color accuracy. They give you a better look at your weld pool to increase weld quality and reduce eye strain.
    Standard Welding Lens—Helmets with a standard lens are suitable for laser use only. The lens stays at a fixed shade number and does not adjust based on intensity. Charge them with a USB cord.
    Auto Darkening—Helmets with an auto-darkening lens let you switch between regular and laser welding without changing your head protection. When you start to weld, five sensors detect the light’s intensity and automatically darken the lens. Built-in solar cells charge the helmet’s battery during use. You can also plug in the battery to charge it while you’re not working.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Welding Helmets
    Replacement Welding Lenses
    Welding Lens
    Lens
    Helmet
    For Lens
    Visible
    Light
    Optical Density @
    Wavelength
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Min. Hat
    Size
    Max. Hat
    Size
    Batteries
    Included
    Switching Time
    Each
    Ht.
    Wd.
    Pkg.
    Qty.
    Pkg.
    Nylon Helmet

    Welding Helmets
    16%7 @ 1,000 nm to 1,100 nm3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
    1/1/1/2Auto Darkening, True ColorBlueNylon
    3 1/2"4 5/16"Black9"6 3/87 3/4YesANSI/ISEA Z87.1, 0.09 ms9175N1200000004 3/4"10"59197N14000000

    Standard Welding Lens
    31%7 @ 1,000 nm to 1,100 nm2
    True ColorYellowNylon
    3 1/2"4 5/16"Black9"6 3/87 3/4ANSI/ISEA Z87.19175N110000004 3/4"10"59197N1400000

    Replacements for Welding Helmets

    Auto-Darkening Welding Safety Goggles with Hood

    Image of ProductInUse. Goggles with Hood Attached. Front orientation. Hoods. Auto-Darkening Welding Safety Goggles with Hood .
    Image of ProductInUse. Goggles with Hood Detached. Front orientation. Hoods. Auto-Darkening Welding Safety Goggles with Hood .

    Goggles with Hood Attached

    Goggles with Hood Detached

    Image of Product. Front orientation. Hoods. Auto-Darkening Welding Safety Goggles with Hood , .

    Get up close to your welds with these goggles. Their lightweight, compact design lets you weld in tight spots or awkward positions. A flame-resistant hood shields your ears, head, and neck from sparks and spatter better than traditional welding helmets. For different protection needs, wear them over prescription glasses, under a hard hat, or without the hood. Use the external controls to adjust power and shade settings without removing these goggles.
    As you begin to weld, two sensors detect the light and automatically darken the lens. Unlike traditional green welding lenses, these goggles use a true color lens to enhance clarity and color accuracy. They allow for a better look at your weld pool to increase weld quality and reduce eye strain.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Hood
    Welding Lens
    Lens
    Application
    Specs. Met
    Color
    Material
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Construction
    Ht.
    Wd.
    Features
    Clothing
    Size
    Wt.,
    lb.
    Batteries
    Included
    Switching
    Time, ms
    No. of Arc
    Sensors
    Each
    With Slider Adjustment, Inner Filter Lens Cover, and Outer Filter Lens Cover
    Welding, Heat Protection, SafetyANSI/ISEA Z87.1BlackCotton Fabric3, 5, 6, 7, 8, 9, 10, 11, 12
    1/1/1/2Auto Darkening, True ColorBluePolycarbonate
    Solid2"4 1/4"Digital Controls, External ControlsOne Size1.6Yes0.0729356N1110000000

    Replacements for Hoods

    Harnesses for Powered Air-Purifying Respirators

    Image of Product. Front orientation. Respirator Harnesses.
    Make it easier to move and more comfortable to wear your respirator. These harnesses keep the respirator secure, so you can kneel, stand, or sit without it shifting much. Since they spread the weight of the respirator system across your shoulders and hips, the load on your back is reduced. They are especially beneficial when you need to wear your respirator for long shifts.
    Material
    Closure
    Method
    Color
    Clothing
    Size
    Each
    Vinyl FabricBuckleBlackOne Size7871N110000000

    Welding Face Masks

    Image of Product. Front orientation. Hoods. Welding Face Masks , Nomex Fabric.
    Image of Product. Front orientation. Hoods. Welding Face Masks , PBI Fabric.

    Nomex Fabric

    PBI Fabric

    These face masks are double-layered to protect your head from radiant heat, flames, and welding sparks. They are designed to meet NFPA 1971 standards for structural firefighting. Check the PPE category and minimum arc rating provided for your workplace, and then select all required clothing and personal protective equipment to meet the minimum arc rating. Arc rating measures a garment’s ability to insulate the wearer from burns; the higher the arc rating, the greater the flame resistance.
    Nomex Fabric—Nomex is heavier than PBI, yet breathable and moisture wicking. They meet NFPA 70E standards for protection against electrical arc flashes for personal protection equipment (PPE) category 2. This is the most common PPE category for standard industrial applications.
    PBI Fabric—PBI is lightweight and provides better wear- and heat-resistance than Nomex.
    Application
    Material
    Arc Rating,
    cal/cm²
    Arc-Rated
    PPE Category
    Flammability
    Rating
    Color
    Clothing
    Size
    Each
    Welding, Arc-Flash Protection, Electrical Protection, Heat ProtectionNomex Fabric102
    NFPA 70E, NFPA 1971
    WhiteOne Size52655T15000000
    Welding, Heat ProtectionPBI FabricNFPA 1971
    BrownOne Size52655T1400000


    Powered Air-Purifying Hood Respirators

    Image of ProductInUse. Front orientation. Respirators. Powered Air-Purifying Hood Respirators.
    Image of ProductInUse. Back orientation. Respirators. Powered Air-Purifying Hood Respirators.
    The most mobile respirators in our offering—these powered respirators allow a wider range of motion than supplied-air respirators. The blower straps around your waist to allow unrestricted movement. They’re often used for jobs such as painting and applications where you need to move around. Comfortable to wear for extended periods of time, these respirators don’t press directly against your face. They include a rechargeable lithium-ion battery that powers them for approximately four hours. To alert you to low battery and low airflow, they have an alarm with two distinct sounds that can be heard inside the hood.
    Made of Tychem 2000 (formerly known as Tyvek QC), these hoods are chemical resistant. They have two layers: an outer bib for overspray protection and an inner bib that tucks into your clothing for splash protection. Turn the knob to adjust the hood’s ratchet suspension for a personalized fit.
    Respirators with Hood
    Respirators
    Replacement
    Filters
    Replacement
    Cartridges
    For Use With
    NIOSH Approval
    Number
    Lens
    Material
    Batteries
    Included
    Each
    Each
    Each
    Solid ParticlesTC-21C-0836PETGYes2428N110000000002428N13000000———0
    Solid Particles
    Organic Vapors
    TC-23C-2510PETGYes2428N1200000000———02428N140000000
    Accessories and Replacements for Respirators
    Respirators with Hood and Hard Hat
    Respirators with a hard hat are best for jobsites where there is a risk of falling objects or an on-site hard hat requirement. The hard hat fits inside the hood.
    Respirators
    Replacement
    Filters
    Replacement
    Cartridges
    Replacement
    Hard Hats
    For Use With
    NIOSH Approval
    Number
    Lens
    Material
    Batteries
    Included
    Each
    Each
    Each
    Each
    Solid ParticlesTC-21C-0836PETGYes2428N1010000000002428N13000000———02428N52000000
    Solid Particles
    Organic Vapors
    TC-23C-2510PETGYes2428N10200000000———02428N1400000002428N5200000
    Accessories and Replacements for Respirators

    Auto-Darkening Welding Helmets with Bluetooth

    Image of Product. Front orientation. Welding Helmets. Auto-Darkening Welding Helmets with Bluetooth.
    Protect your eyes the moment you start welding with a helmet that senses light and automatically darkens. You can change the shade of the lens without removing these helmets by using a Bluetooth-connected app. The app also monitors battery life and tracks the time spent cutting. Save up to 10 setting combinations to switch tasks quickly. Along with the app, these helmets use a tap function to switch between welding and grinding modes. To change modes, tap the side of the helmet twice.
    To improve your weld quality and decrease eye strain, you can switch between cool, neutral, and warm tones. The true color lens enhances clarity and color accuracy to reduce the color distortion of your view.
    Every inch of these helmets is designed to improve your welding experience. A rounded, slim design helps you fit in tight spaces. Levers adjust the helmet’s tilt and position on your head. The head suspension sits comfortably on the back of the head and balances the helmet’s weight for a barely-there feel. Side windows increase peripheral vision for high-quality welds.
    Welding Lens
    Lens
    Helmet
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Hat
    Size
    Wt.,
    lb.
    Batteries
    Included
    Switching
    Time, ms
    No. of Arc
    Sensors
    Features
    Each
    Nylon Helmet
    3, 5, 8, 9, 10, 11, 12, 13, 14
    Not RatedAuto Darkening, True ColorPurplePolycarbonate
    2 3/4"4 1/4"Black8"6 3/8-81.5Yes0.14Adjustable Color Tones, Setting Memory, Side Windows, Tap Function9344N110000000

    Accessories and Replacements for Welding Helmets

    Auto-Darkening Welding Helmets with Integrated Light

    Image of Product. Front orientation. Welding Helmets. Auto-Darkening Welding Helmets with Integrated Light.
    Weld with the same quality as you would in bright conditions. These helmets have a built-in LED light that brightens your workspace, so you can see your weld and maintain precision even in dark areas. Turn the LED light on with the press of a button, and when it detects an arc or intense light, the light automatically turns off.
    As you begin to weld, four arc sensors detect the light and automatically darken the lens. Unlike traditional green welding lenses, these helmets use a true color lens to enhance clarity and color accuracy. They have digital controls behind the lens where you can set the shade number, delay time, and sensitivity. To switch to grind mode without removing your helmet, use the button above the lens.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Welding Lens
    Lens
    Helmet
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Hat Size
    Wt.,
    lb.
    No. of
    Lights
    Brightness,
    lm
    Batteries
    Included
    Switching
    Time, ms
    No. of Arc
    Sensors
    Features
    Includes
    Each
    Nylon Helmet
    3, 5, 6, 7, 8, 9, 10, 11, 12, 13
    1/1/1/1Auto Darkening, True ColorClearGlass2 1/4"4"Black10 1/2"6 1/2-7 1/23.2250Yes0.074Digital Controls, External ControlsCarrying Bag, Four Replacement Outer Lenses, One Helmet, Two Replacement Inner Lenses9357N110000000

    Accessories and Replacements for Welding Helmets

    Low-Profile Auto-Darkening Welding Helmets

    Image of Product. Right Hand. Front orientation. Welding Helmets. Low-Profile Auto-Darkening Welding Helmets, Carbon Fiber Helmet, Right Hand.

    Right Hand

    Image of Product. Left Hand. Front orientation. Left Hand. Low-Profile Auto-Darkening Welding Helmets.

    Left Hand

    Also known as pancake welding helmets, these helmets have a flat face so you can get close to your welds. They’re often used when welding pipes, but are also useful where a standard welding helmet would be too bulky. These helmets extend further on one side than a standard welding helmet does for increased face protection from UV light, sparks, and spatter. A balsa wood box mounted inside the helmet fits around your face and eyes to block all light, even when working outdoors. Sand the box for a customizable fit. Designed for all-day comfort, they’re made of lightweight carbon fiber and have an open back for plenty of airflow.
    These helmets have a large viewing area for a clear view of your workspace. The instant you start to weld, the lens darkens. Solar cells recharge the helmet’s battery while you work.
    Choose a helmet based on which hand you use to hold your torch—they’re designed to protect the side opposite your welding hand, where sparks are most likely to fly. This means that left-hand helmets extend further on the right while right-hand helmets extend further on the left.
    Carbon Fiber Helmet—Warning: These helmets are made of carbon fiber, a conductive material. Never let them touch the welding rod holder and the material your ground cable is on at the same time. This could result in electrical shocks, burns, or eye injuries.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Welding Lens
    Lens
    Helmet
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Clothing
    Size
    Wt.,
    lb.
    Batteries
    Included
    Switching
    Time, ms
    No. of Arc
    Sensors
    Features
    Choose
    a Hand
    Each
    Carbon Fiber Helmet
    3, 5, 8, 9, 10, 11, 12, 13
    1/1/1/2Auto DarkeningBluePolycarbonate
    2"4 1/4"Black10 1/2"One Size1Yes0.062Digital ControlsRight, Left9234N1210000000

    Replacements for Welding Helmets

    Precise-Shade Auto-Darkening Welding Helmets

    Image of Product. Front orientation. Welding Helmets. Precise-Shade Auto-Darkening Welding Helmets.
    Take full control of your shade level with these helmets—you can set the lens to adjust in half-shade increments. They have digital controls behind the lens where you can set the shade number, delay time, and sensitivity. Save up to nine settings to quickly switch between tasks. To switch to grind mode without removing your helmet, press the button above the lens.
    As you weld, four sensors detect the light and automatically darken the lens. To improve weld quality and reduce eye strain, these helmets have a wide panoramic view and a true color lens. The lens enhances clarity and color accuracy to reduce the color distortion of your view.
    Solar cells recharge the helmet’s battery while you work.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Welding Lens
    Lens
    Helmet
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Hat Size
    Wt.,
    oz.
    Batteries
    Included
    Switching
    Time, ms
    No. of Arc
    Sensors
    Features
    Includes
    Each
    Nylon Helmet
    3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
    1/1/1/1Auto Darkening, True ColorYellowGlass2 3/4"4 1/2"Black10 1/4"6 1/2-7 1/260.3Yes0.044Digital Controls, External Controls, Panoramic View, Precision Adjustment, Setting MemoryCarrying Bag, Four Replacement Outer Lenses, One Helmet, Two Replacement Inner Lenses9074N110000000

    Accessories and Replacements for Welding Helmets

    Auto-Darkening Welding Helmets

    Image of Product. Front orientation. Welding Helmets. Auto-Darkening Welding Helmets, Polycarbonate Helmet.
    Image of Product. Front orientation. Welding Helmets. Auto-Darkening Welding Helmets, Nylon Helmet.

    Polycarbonate Helmet

    Nylon Helmet

    Protect your eyes the moment you start welding—four sensors detect the light and automatically darken the lens. Unlike traditional green welding lenses, these helmets use a true color lens to enhance clarity and color accuracy. They allow for a better look at your weld pool to increase weld quality and reduce eye strain. To customize the helmet’s fit so you can focus on welding, these helmets have a ratchet adjustment with an easy-turn knob. Solar cells recharge the helmet’s battery while you work.
    Nylon Helmet—Nylon helmets offer a wider range of shade numbers and better optical clarity than polycarbonate helmets. They use digital controls to adjust settings such as shade number, light sensitivity, and mode selection.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Welding Lens
    Lens
    Helmet
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Hat Size
    Wt.,
    lb.
    Batteries
    Included
    Switching
    Time, ms
    No. of Arc
    Sensors
    Features
    Includes
    Each
    Polycarbonate Helmet
    4, 9, 10, 11, 12, 13
    1/2/1/1Auto Darkening, True ColorBluePolycarbonate
    5 1/4"4 1/2"Black9 3/4"6 3/8-7 3/42Yes0.084Dial Shade SelectionInner Filter Lens Cover, Outer Filter Lens Cover2788N10000000

    Nylon Helmet
    4, 5, 6, 7, 8, 9, 10, 11, 12, 13
    1/1/1/1Auto Darkening, True ColorBluePolycarbonate
    5 1/4"4 1/2"Red/White/Blue8 1/2"6 1/2-81.25Yes0.044Digital ControlsInner Filter Lens Cover, Outer Filter Lens Cover2788N101000000

    Replacements for Welding Helmets

    Powered Air-Purifying Respirator Breathing Tubes

    Image of Product. Front orientation. Respirator Breathing Tubes. Powered Air-Purifying Respirator Breathing Tubes.
    Replace worn or damaged breathing tubes—these tubes deliver clean, breathable air from the air pump to your hood or helmet. To maintain NIOSH approval, match breathing tubes to the same manufacturer and series as the respirator and corresponding hood or helmet.
    Respirator Covers—Covers (sold separately) extend the life of tubes by protecting them from harsh contaminants, such as paint and chemicals.
    Respirator Breathing Tubes
    Respirator
    Covers
    Mfr. Model
    No.
    Compatible With
    For Use With
    Lg.
    Retracted
    Lg.
    Extended
    Lg.
    Flexibility
    Material
    Color
    Fitting
    Connection
    Each
    Each
    Bullard
    PA20LFBTBullard 20LF SeriesSolid Particles32"Extra FlexiblePVC
    WhiteLuer Lock
    7838N110000007838N13000000
    PAFLEXBTBullard Sightline SeriesSolid Particles20"48"Extra FlexiblePVC
    WhiteThreaded
    7838N12000007838N1300000


    Blowers for Powered Air-Purifying Respirators

    Image of Product. Front orientation. Respirator Blowers. Blowers for Powered Air-Purifying Respirators.
    Replace the blower when it’s worn or damaged to keep air flowing through your powered respirator. Blowers suck in air and push it through a filter or cartridge to deliver clean air. They’re battery powered for portability, with a gauge telling you how much battery life is left.
    Low-Battery Alarm—To keep you safe, a low-battery alarm will go off when it’s time to recharge the battery.
    Low-Flow Alarm—A low-flow alarm sounds when you need to change your filter or cartridge.
    Hazardous Location Rating—NEC rated blowers prevent sparks that could ignite flammable or combustible particles in the air. Use them when working in environments where flammable and explosive vapors, gases, and fabrics may be present.
    Blowers
    Batteries
    For Use With
    Housing
    Material
    No. of Batteries
    Req.
    Batteries
    Included
    Features
    Hazardous Location Rating
    Each
    Each
    Solid ParticlesABS
    1NoLow-Battery Alarm, Low-Flow Alarm7816N1100000002504N110000000
    Solid ParticlesABS
    1NoLow-Battery Alarm, Low-Flow AlarmNEC Class I Division 2 Groups A, B, C, D
    NEC Class II Division 2 Groups F, G
    NEC Class III Division 2
    7816N120000007863N12000000
    Accessories for Blowers

    Hazardous Location Powered Air-Purifying Hood Respirators

    Image of ProductInUse. Front orientation. Respirators. Hazardous Location Powered Air-Purifying Hood Respirators.
    Image of ProductInUse. Back orientation. Respirators. Hazardous Location Powered Air-Purifying Hood Respirators.
    Designed with a battery that connects securely to the blower, these respirators prevent sparks that could ignite flammable or combustible particles in the air. They’re CSA certified to meet NEC requirements for use in hazardous locations. Instead of being tethered to an air source, the blower straps around your waist, allowing you to move freely around a space. Use them in areas with high levels of contaminants. A dual-alarm system alerts you to low airflow and low battery life.
    Made of Tychem 2000 (formerly known as Tyvek QC), these hoods resist chemicals. They have two layers: an outer bib for overspray protection and an inner bib that tucks into your clothing for splash protection. Turn the knob to adjust the hood’s ratchet suspension for a personalized fit.
    Respirators
    Replacement
    Filters
    Replacement
    Cartridges
    For Use With
    NIOSH Approval
    Number
    Hat
    Size
    Lens
    Material
    Batteries
    Included
    Battery Charger
    Included
    Hazardous Location Rating
    Each
    Each
    Each
    Solid ParticlesTC-21C-09226 1/2-8PETGYesYesNEC Class I Division 2 Groups A, B, C, D; NEC Class II Division 2 Groups F, G; NEC Class III Division 2
    7863N1010000000002428N13000000———0
    Solid Particles
    Organic Vapors
    TC-23C-27656 1/2-8PETGYesYesNEC Class I Division 2 Groups A, B, C, D; NEC Class II Division 2 Groups F, G; NEC Class III Division 2
    7863N10200000000———02428N140000000
    Accessories and Replacements for Respirators

    Powered Air-Purifying Respirator Cartridges

    Image of Product. Front orientation. Respirator Cartridges. Powered Air-Purifying Respirator Cartridges, Bullard.
    Image of Product. Front orientation. Respirator Cartridges. Powered Air-Purifying Respirator Cartridges, 3M.

    Bullard

    3M

    Replace the cartridge on your powered respirator to keep air free from gases and vapors. Switch them out when the blower indicates that air flow is low. You must match the manufacturer of your respirator.
    Mfr. Model
    No.
    For Use With
    NIOSH Color
    Each
    Bullard EVA

    Compatible with EVA, and EVAHL Series
    PAPRFC5Solid Particles, Ammonia, Formaldehyde, MethylamineMagenta, Olive/Brown7804N140000000

    3M TR-Series

    Compatible with TR-600, and TR-800 Series
    TR-6510NSolid Particles, Organic VaporsBlack, Magenta7804N11000000
    TR-6530NSolid Particles, Organic Vapors, Acid GasMagenta, Yellow7804N12000000
    TR-6590NSolid Particles, Organic Vapors, Acid GasMagenta, Olive/Brown7804N13000000


    Auto-Darkening Welding Helmets with Powered Air-Purifying Respirator

    Image of ProductInUse. Front orientation. Welding Helmets. Auto-Darkening Welding Helmets with Powered Air-Purifying Respirator.
    Image of ProductInUse. Back orientation. Welding Helmets. Auto-Darkening Welding Helmets with Powered Air-Purifying Respirator.
    Image of Product. Side1 orientation. Welding Helmets. Auto-Darkening Welding Helmets with Powered Air-Purifying Respirator, Nylon Helmet.
    Image of Product. Side1 orientation. Welding Helmets. Auto-Darkening Welding Helmets with Powered Air-Purifying Respirator, Nylon Helmet, Internal Slide-Up Lens.

    Nylon Helmet

    Internal Slide-Up Lens

    Nylon Helmet

    Filter out harmful air while you weld. These helmets have a built-in connection for the included powered air-purifying respirator (PAPR). The respirator supplies continuous filtered air to reduce breathing effort and minimize heat buildup inside these helmets. It also filters out at least 99.5% of harmful particles like smoke, aerosols, and dust. For comfortable all-day wear, they are lightweight and connect to a belt on your back for unrestricted movement. A rechargeable battery powers the respirator for up to 18 hours.
    When you start to weld, five sensors detect the light and automatically darken the lens. Unlike traditional green welding lenses, these helmets use a true color lens to enhance clarity and color accuracy. They allow for a better look at your weld pool to increase weld quality and reduce eye strain. A nose cutout lets these helmets sit closer to your face for a six-times larger viewing area than standard helmets for higher quality welds. Without the need for a larger lens to enhance peripheral vision, these helmets are lighter and have longer battery life. Solar cells recharge the helmet’s battery while you work.
    Internal Slide-Up Lens—Helmets with an internal slide-up lens offer a clear view for grinding and other tasks that require impact protection without a shaded view. Turn the external knob to slide the lens up without removing your head protection. These helmets also have a removable hard hat for additional head protection when needed.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Welding Helmets
    Replacement Welding Lenses
    Replacement
    Suspensions
    Brow Pads
    Welding Lens
    Lens
    Helmet
    For Lens
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Hat Size
    Helmet Weight,
    lb.
    Specs. Met
    Each
    Ht.
    Wd.
    Pkg.
    Qty.
    Pkg.
    Each
    Pkg.
    Qty.
    Pkg.
    Nylon Helmet with Adjustable Airflow
    5, 6, 7, 8, 9, 10, 11, 12
    1/1/1/2Auto Darkening, True ColorBluePolycarbonate
    2 1/2"4 3/4"Black9 1/8"6 1/2-7 3/42EN 12941 TH3, EN 14594 Class 3B9258N110000000004 3/4"10"59197N140000009197N2500000029197N23000000

    Nylon Helmet with Adjustable Airflow, Internal Slide-Up Lens and Removable Hard Hat
    4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
    1/1/1/1Auto Darkening, True ColorGreenPolycarbonate
    2 1/2"5 3/4"Black9 7/8"6 1/2-7 3/43ANSI/ISEA Z87.1+9258N17000000005"14 1/4"59197N13000009197N240000029197N2200000

    Accessories and Replacements for Welding Helmets

    Wide-View Auto-Darkening Welding Helmets

    Image of Product. Front orientation. Welding Helmets. Wide-View Auto-Darkening Welding Helmets, Nylon Helmet.
    Image of Product. Front orientation. Welding Helmets. Wide-View Auto-Darkening Welding Helmets, Nylon Helmet, Internal Slide-Up Lens.

    Nylon Helmet

    Internal Slide-Up Lens

    Nylon Helmet

    Image of Product. Front orientation. Hard Hat Suspensions. Wide-View Auto-Darkening Welding Helmets.
    Image of Product. Front orientation. Brow Pads. Wide-View Auto-Darkening Welding Helmets.

    Replacement Suspensions

    Brow Pads

    Get a broader look at your weld—these helmets fit close to your face for a view six times wider than standard welding helmets. Designed with a smaller lens than other wide-view helmets, they’re lighter in weight and require less battery to darken. When you start to weld, five sensors detect the light and automatically darken the lens. Unlike traditional green welding lenses, these helmets use a true color lens to enhance clarity and color accuracy. They give you a better look at the weld pool to increase weld quality and reduce eye strain.
    Built-in solar cells charge the helmet’s battery during use. You can also plug in the battery to charge it while you’re not working.
    Internal Slide-Up Lens—Helmets with an internal slide-up lens give you a clear view for grinding and other tasks that require impact protection without a dark welding lens. Turn the external knob to slide the lens up without removing your head protection. These helmets also have a removable hard hat for additional head protection when needed.
    Welding Lens Optical Clarity—Optical clarity measures how clearly a welder can see through the lens based on four categories: visual accuracy, light diffusion, consistency, and distortion. Each category is given a rating on a scale of 1 to 3. The lower the number, the better the clarity. Better optical clarity allows for precise welds, reduces eye strain, and improves focus.
    Welding Helmets
    Replacement Welding Lenses
    Replacement
    Suspensions
    Brow Pads
    Welding Lens
    Lens
    Helmet
    For Lens
    Shade No.
    Optical
    Clarity
    Properties
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Hat Size
    Batteries
    Included
    Each
    Ht.
    Wd.
    Pkg.
    Qty.
    Pkg.
    Each
    Pkg.
    Qty.
    Pkg.
    Nylon Helmet
    5, 6, 7, 8, 9, 10, 11, 12
    1/1/1/2Auto Darkening, True ColorBluePolycarbonate
    2 1/2"5 1/4"Black9"6 1/2-7 3/4Yes9197N1200000004 3/4"10"59197N140000009197N2500000029197N23000000

    Nylon Helmet with Internal Slide-Up Lens and Removable Hard Hat
    4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
    1/1/1/1Auto Darkening, True ColorBluePolycarbonate
    2 1/2"5 1/4"Black9"6 1/2-7 3/4Yes9197N110000005"14 1/4"59197N13000009197N240000029197N2200000

    Accessories and Replacements for Welding Helmets

    Welding Helmets

    Image of Product. Front orientation. Outer Filter Lens Cover. Welding Helmets, Style A.
    Image of Product. Front orientation. Outer Filter Lens Cover. Welding Helmets, Style B.
    Image of Product. Front orientation. Outer Filter Lens Cover. Welding Helmets, Style C.

    Style A

    Style B

    Style C

    Image of Product. Front orientation. Outer Filter Lens Cover. Welding Helmets, Style D.
    Image of Product. Front orientation. Outer Filter Lens Cover. Welding Helmets, Style E.

    Style D

    Style E

    Providing greater safety while welding than face shields, these helmets have an outer filter lens cover for protection from scratches and weld spatter. All helmets have a ratchet adjustment with an easy-turn knob.
    Flip-Up Welding Lens—Helmets with a flip-up lens let you expose a viewing lens.
    Nylon Helmet—Nylon helmets are lighter weight than fiberglass helmets.
    Fiberglass Helmet—Fiberglass helmets provide superior heat resistance.
    Leather Helmet—Leather helmets are flexible, so they’re easy to maneuver in tight spots.
    Styles B and D—Style B and D helmets have an extended forehead that offers more overhead protection.
    Welding Helmets
    Replacement Welding
    Helmet Adjustments
    Lens
    Helmet
    Style
    Color
    Material
    Ht.
    Wd.
    Color
    Wd.
    Features
    Choose a Shade
    Number
    Each
    Each
    Standard Welding Lens

    Nylon Helmet
    AGreenPolycarbonate
    4 1/2"5 1/4"Black9"Outer Filter Lens Cover10
    9653T41200000056405T924000000
    BGreenPolycarbonate
    4 1/2"5 1/4"Black8 1/2"Outer Filter Lens Cover10
    56405T7220000056405T92400000
    BGreenPolycarbonate
    4 1/2"5 1/4"Red8 1/2"Outer Filter Lens Cover9
    56405T7410000056405T92400000

    Fiberglass Helmet
    CBluePolycarbonate
    2"4 1/4"Gray8"Outer Filter Lens Cover10
    5423T612000005423T9300000

    Flip-Up Welding Lens

    Nylon Helmet
    DGreenPolycarbonate
    2"4 1/4"Black8 1/2"Concealed Viewing Lens, Outer Filter Lens Cover10
    56405T5220000056405T92400000

    Leather Helmet
    EBluePolycarbonate
    2"4 1/4"Brown8"Concealed Viewing Lens, Outer Filter Lens Cover9, 10, 115439T110000005439T3500000

    back to top
