Stand-Up-Height Workstations
The work surface is positioned at a comfortable height for writing and working while standing. All doors, drawers, and compartments have a keyed lock.
Stainless steel workstations resist corrosion and are often used in laboratories and food-processing plants.
Style C have file drawers to accommodate hanging files.
Style D have a top that lifts for access to a storage compartment.
O'all | Work Surface | Shelves | Cabinet | Drawers | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Ht. | Style | Dp. | Top Cap., lbs. | Type (No. of) | Dp. | Cap., lbs | Wd. | Dp. | Ht. | No. of | Wd. | Dp. | Ht. | Assembled or Unassembled | Each | |
Stationary | ||||||||||||||||||||
Gray Painted Steel | ||||||||||||||||||||
| A | 34 1/2" | 30" | 53" | 42 3/4" | Sloped | 21" | 250 | Fixed (1) | 15" | 75 | __ | __ | __ | 1 | 25" | 22" | 3 1/2" | Unassembled | 0000000 | 0000000 |
| B | 34 1/2" | 30" | 53" | 42 3/4" | Sloped | 24 1/4" | 250 | Adjustable (1) | 27 1/2" | 150 | 34 1/2" | 30" | 28" | 1 | 25" | 22" | 3 1/2" | Unassembled | 0000000 | 000000 |
Gray Powder-Coated Steel | ||||||||||||||||||||
| C | 39" | 29" | 55 1/2" | 43 3/4" | Flat | 19 3/4" | 200 | Fixed (1) | 16 1/2" | 75 | __ | __ | __ | 1 1 2 | 13" 20" 13" | 20" 23" 20" | 5 1/2" 5 1/2" 12" | Assembled | 00000000 | 00000000 |
Mobile | ||||||||||||||||||||
Gray Powder-Coated Steel | ||||||||||||||||||||
| D | 24" | 22" | 49" | 42" | Sloped | 13 1/2" | 25 | Fixed (1) | 20" | 100 | __ | __ | __ | __ | __ | __ | __ | Assembled | 00000000 | 000000 |
Stainless Steel | ||||||||||||||||||||
| D | 24" | 22" | 49" | 42" | Sloped | 13 1/2" | 25 | Fixed (1) | 20" | 125 | __ | __ | __ | __ | __ | __ | __ | Assembled | 00000000 | 00000000 |
| Replacement Lock Bar Guides Inserts for Style B | 00000000 | Pair | 00000 |
Heavy Duty Stand-Up-Height Workstations
These workstations have almost twice the top capacity of our standard stand-up-height workstations. All doors and drawers can be locked.
Style E have file drawers to accommodate hanging files.
Style F have a lip on the front of the work surface to keep items from rolling off.
Style G have a floor lock to keep the workstation in place.
O'all | Work Surface | Shelf | Cabinet | Drawers | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Ht. | Style | Dp. | Top Cap., lbs. | Type | Dp. | Cap., lbs. | Wd. | Dp. | Ht. | No. of | Wd. | Dp. | Ht. | Assembled or Unassembled | Each | |
Stationary—Adjustable-Height | ||||||||||||||||||||
Gray Powder-Coated Steel | ||||||||||||||||||||
| A | 35" | 30" | 51 3/4" | 36 3/4"-42 3/4" | Sloped | 22 1/2" | 400 | Fixed | 15" | 130 | __ | __ | __ | 1 | 20" | 24" | 5" | Assembled | 00000000 | 0000000 |
Stationary | ||||||||||||||||||||
Gray Painted Steel | ||||||||||||||||||||
| B | 36" | 28" | 54" | 42" | Sloped | 17 3/4" | 1,600 | Fixed | 20" | 950 | __ | __ | __ | 1 | 29" | 20" | 6" | Assembled | 0000000 | 00000000 |
| C | 36" | 28" | 54" | 42" | Sloped | 17 3/4" | 1,600 | Adjustable | 25 1/2" | 2,250 | 36" | 28" | 36" | 1 | 29" | 20" | 6" | Assembled | 0000000 | 00000000 |
Gray Powder-Coated Steel | ||||||||||||||||||||
| D | 35" | 30" | 50 1/4" | 41 1/4" | Sloped | 22 1/2" | 400 | Adjustable | 28" | 130 | 35" | 30" | 30" | 1 | 20" | 24" | 5" | Assembled | 0000000 | 000000 |
| E | 39" | 28" | 53 1/2" | 42" | Flat | 20" | 1,000 | Fixed | 20" | 250 | __ | __ | __ | 1 3 | 20" 12" | 23" 22 1/2" | 5" 9" | Assembled | 0000000 | 00000000 |
Mobile | ||||||||||||||||||||
Gray Powder-Coated Steel | ||||||||||||||||||||
| F | 23" | 20" | 51" | 42" | Sloped | 14" | 500 | Fixed | 17 3/4" | 50 | 23" | 20" | 20 1/2" | 2 | 20 3/4" | 19 1/2" | 6" | Assembled | 00000000 | 000000 |
Gray Painted Steel | ||||||||||||||||||||
| G | 36" | 28" | 54" | 42" | Sloped | 17 3/4" | 1,900 | Fixed | 27 3/4" | 950 | __ | __ | __ | 1 | 29" | 20" | 6" | Assembled | 0000000 | 00000000 |
Wall-Mount Workstations
Stainless steel workstations are often used in corrosive environments.
Style A can be folded up. They have a spring clip for holding papers and built-in pockets for storing forms, cards, and pencils.
Style B have a locking drawer for storage.
Style C have a locking top that lifts for access to a storage compartment.
O'all | Work Surface | Mtg. Holes | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Style | Dp. | Top Cap., lbs. | Projection When Folded | Side Stop Ht. | No. of | Dia. | Mtg. Fasteners Included | Assembled or Unassembled | Choose a Color | Each | |
Powder-Coated Steel | ||||||||||||||
| 20" | 15 1/4" | 16 3/8" | Flat | 13 1/2" | 50 | 3 3/8" | 1" | 2 | 3/16" | Yes | Assembled | 0000000 | 0000000 | |
Stainless Steel | ||||||||||||||
| 20" | 15 1/4" | 16 3/8" | Flat | 13 1/2" | 50 | 3 3/8" | 1" | 2 | 3/16" | Yes | Assembled | __ | 0000000 | 000000 |
O'all | Work Surface | Drawer | Mtg. Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Style | Dp. | Top Cap., lbs. | Dp. | Wd. | Ht. | Cap., lbs. | No. of | Dia. | Mtg. Fasteners Included | Assembled or Unassembled | Color | Each | |
Powder-Coated Steel | ||||||||||||||||
| 34 1/2" | 30" | 32" | Sloped | 22" | 200 | 28" | 24" | 3 1/2" | 100 | 4 | 7/16" | Yes | Assembled | Gray | 0000000 | 0000000 |
O'all | Work Surface | Locks | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Style | Dp. | Top Cap., lbs. | No. of | Location | Included | Mtg. Hole Dia (No. of) | Mtg. Fasteners Included | Assembled or Unassembled | Color | Each | |
Powder-Coated Steel | ||||||||||||||
| 24 1/2" | 27 1/4" | 11 7/8" | Sloped | 13 1/2" | 100 | 1 | Top Compartment | Yes | 1/4" (6) | No | Assembled | Gray | 0000000 | 0000000 |
Stainless Steel | ||||||||||||||
| 24 1/2" | 27 1/4" | 11 7/8" | Sloped | 13 1/2" | 150 | 1 | Top Compartment | Yes | 1/4" (6) | No | Assembled | __ | 0000000 | 000000 |

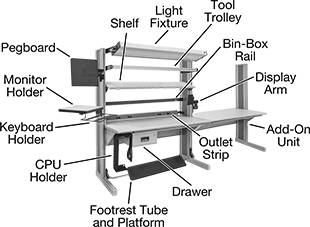

Adjustable-Height Workstations
Create a customized work area by adding accessories. These workstations are often used for small-parts assembly.
Static-dissipative tops, shelves, and bin-box rails have a surface that dissipates static to protect sensitive electronic equipment from damage.
Monitor holders rotate 360° on a swing arm.
Keyboard holders attach to the bottom of the monitor holder.
CPU holders suspend your CPU on a platform below the workstation to free up space. They slide out for access to the CPU.
Outlet strips have six outlets, a power switch, and a circuit breaker.
Drawers mount under the work surface and have a keyed lock.
Light fixtures adjust in any direction. They use two tubular T8 fluorescent bulbs (not included).
Shelves tilt forward and backward 45°.
Bin box racks contain four 13-in. rails, and can hold up to 12 four-in.-wide × three-in.-tall bin boxes.
Bin-box rails accept hanging bin boxes.
Move tools along the length of workstations with tool trolleys. Trolleys come with one hanger; additional hangers sold separately.
Footrest tubes span the length of workstations for foot support. Use footrest platforms along with footrest tubes for additional support.
Workstations | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O'all | Top | Bin-Box Rails | Shelves | ||||||||||
| Wd. | Dp. | Ht. | Ht. | O'all Cap., lbs. | Color | Cap., lbs. | Assembled or Unassembled | Each | Each | Each | |||
Complete Unit | |||||||||||||
Plastic Laminate Top with Blue Powder-Coated Steel Frame | |||||||||||||
| 60" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 000000000 | 00000000 | 0000000 | 00000000 | 0000000 |
| 72" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
Static-Dissipative Plastic Laminate Top with Blue Powder-Coated Steel Frame | |||||||||||||
| 60" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
| 72" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
Add-On Unit | |||||||||||||
Plastic Laminate Top with Blue Powder-Coated Steel Frame | |||||||||||||
| 60" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
| 72" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
Static-Dissipative Plastic Laminate Top with Blue Powder-Coated Steel Frame | |||||||||||||
| 60" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
| 72" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
| Length | Width | Height | Each | ||
Bin-Box Racks with Swing Arms | |||||
|---|---|---|---|---|---|
| For Workstations with 60" and 72" Overall Width | __ | 12" | 14 3/8" | 00000000 | 0000000 |
CPU Holders | |||||
| For Workstations with 60" and 72" Overall Width | __ | 12" | 22" | 00000000 | 000000 |
Drawers | |||||
| For Workstations with 60" and 72" Overall Width | __ | 15" | 6 1/2" | 00000000 | 000000 |
| For Workstations with 60" and 72" Overall Width | __ | 15" | 12 1/2" | 00000000 | 000000 |
Flat Panel Display Arms | |||||
| For Workstations with 60" and 72" Overall Width | __ | __ | __ | 00000000 | 000000 |
Footrest Platforms | |||||
| For Workstations with 60" and 72" Overall Width | 36" | 36" | 3/4" | 00000000 | 000000 |
Footrest Tubes | |||||
| For Workstations with 60" Overall Width | __ | 60" | 1" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | __ | 72" | 1" | 00000000 | 000000 |
Keyboard Holders | |||||
| For Workstations with 60" and 72" Overall Width | __ | 18" | 2 3/4" | 00000000 | 00000 |
Light Fixtures | |||||
| For Workstations with 60" Overall Width | 56" | 11" | 3" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | 68" | 13 1/2" | 3" | 00000000 | 000000 |
Monitor Holders | |||||
| For Workstations with 60" and 72" Overall Width | __ | 15" | __ | 00000000 | 000000 |
Outlet Strips | |||||
| For Workstations with 60" Overall Width | __ | 52" | 3 1/2" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | __ | 64" | 3 1/2" | 00000000 | 000000 |
Pegboards | |||||
| For Workstations with 60" and 72" Overall Width | __ | 12" | 16" | 00000000 | 000000 |
Tool Hangers | |||||
| For Workstations with 60" and 72" Overall Width | __ | __ | __ | 00000000 | 00000 |
Tool Trolleys | |||||
| For Workstations with 60" Overall Width | __ | __ | 2 1/4" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | __ | __ | 2 1/4" | 00000000 | 000000 |
