Oblong Links—For Lifting
Also known as master and sling links, a large inner diameter provides room to attach multiple connectors or legs on a sling.
Grade 120 are the strongest links we offer. When used with chain of the same grade, they are approximately 20% stronger than Grade 100 links and about 35% stronger than Grade 80 links. They're powder coated for mild corrosion resistance.
Grade 100 links are approximately 20% stronger than Grade 80 links when used with chain of the same grade.
Grade 63 links are approximately 60% as strong as Grade 80 links when used with chain of the same grade. Links have excellent resistance to salt water and chemicals.
Forged links offer greater strength than welded links.
Note: Capacities are for vertical lifting only. As the angle changes from vertical, the amount of weight the link can lift is significantly reduced.
For Chain Trade Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| One Chain | Two Chains | Thick. | Inside Lg. | Inside Wd. | Capacity, lbs. | Fabrication | Specifications Met | Each | |
Grade 120 | |||||||||
Blue Powder-Coated Alloy Steel | |||||||||
| 9/32 | __ | 1/2" | 4 5/8" | 2 3/4" | 6,100 | Welded | ASME B30.26 | 0000000 | 000000 |
| 3/8 | __ | 3/4" | 6 1/4" | 3 3/4" | 12,800 | Welded | ASME B30.26 | 0000000 | 00000 |
| 1/2 | __ | 1" | 7 1/2" | 4 1/4" | 30,000 | Welded | ASME B30.26 | 0000000 | 000000 |
Grade 100 | |||||||||
Orange Painted Alloy Steel | |||||||||
| 7/32 | __ | 7/16" | 3 1/2" | 2 9/16" | 3,800 | Welded | ASME B30.26 | 000000 | 00000 |
| 9/32 | 7/32 | 9/16" | 4 23/32" | 2 3/4" | 6,100 | Welded | ASME B30.26 | 000000 | 00000 |
| 5/16 | 9/32 | 5/8" | 5 1/2" | 3 1/8" | 8,400 | Welded | ASME B30.26 | 0000000 | 00000 |
| 3/8 | 5/16 | 3/4" | 6 1/4" | 3 3/4" | 12,800 | Welded | ASME B30.26 | 000000 | 00000 |
| 1/2 | 3/8 | 7/8" | 6 1/4" | 4 5/16" | 18,500 | Welded | ASME B30.26 | 000000 | 00000 |
| 5/8 | 1/2 | 1 1/16" | 7 1/2" | 4 5/16" | 30,000 | Welded | ASME B30.26 | 0000000 | 00000 |
| 3/4 | 5/8 | 1 1/4" | 9 1/16" | 5 1/8" | 45,000 | Welded | ASME B30.26 | 0000000 | 000000 |
| 7/8 | 3/4 | 1 1/2" | 10 13/16" | 5 7/8" | 61,100 | Welded | ASME B30.26 | 0000000 | 000000 |
Grade 80 | |||||||||
Gold Painted Alloy Steel | |||||||||
| 5/16 | 5/16 | 5/8" | 6" | 3" | 9,000 | Forged | ASME B30.26 | 00000000 | 00000 |
Silver Painted Alloy Steel | |||||||||
| 1/4, 5/16 | 1/4 | 5/8" | 5" | 2 3/4" | 7,400 | Forged | ASME B30.26 | 00000000 | 00000 |
| 5/16, 3/8 | 3/8 | 3/4" | 6" | 3 1/4" | 12,300 | Forged | ASME B30.26 | 00000000 | 00000 |
| 1/2, 5/8 | 1/2 | 1 3/32" | 7 1/2" | 4 1/4" | 26,000 | Forged | ASME B30.26 | 00000000 | 00000 |
| 5/8, 3/4 | 5/8 | 1 5/16" | 9 1/2" | 5 1/2" | 39,100 | Forged | ASME B30.26 | 00000000 | 000000 |
Alloy Steel | |||||||||
| 7/32 | 7/32 | 3/8" | 3" | 1 1/2" | 3,600 | Welded | ASME B30.26 | 0000000 | 00000 |
| 9/32 | 7/32 | 1/2" | 5" | 2 1/2" | 4,100 | Welded | ASME B30.26 | 0000000 | 00000 |
| 3/8 | 3/8 | 3/4" | 5 1/2" | 2 3/4" | 13,200 | Welded | ASME B30.26 | 0000000 | 00000 |
| 1/2, 5/8 | 1/2 | 1" | 7" | 3 1/2" | 22,500 | Welded | ASME B30.26 | 0000000 | 00000 |
| 3/4 | 5/8 | 1 1/4" | 8 3/4" | 4 3/8" | 32,500 | Welded | ASME B30.26 | 0000000 | 000000 |
Grade 63 | |||||||||
316L Stainless Steel | |||||||||
| 3/16, 7/32 | 3/16, 7/32 | 3/8" | 3 1/8" | 2" | 1,900 | Welded | ASME B30.26 | 0000000 | 00000 |
318LN Stainless Steel | |||||||||
| __ | 3/8 | 3/4" | 5 5/16" | 2 15/16" | 7,700 | Welded | ASME B30.26 | 0000000 | 00000 |
| 9/32 | __ | 1/2" | 4 5/16" | 2 3/8" | 3,600 | Welded | ASME B30.26 | 00000000 | 00000 |
| 1/2, 5/8 | 1/2 | 7/8" | 6 5/16" | 3 9/16" | 13,900 | Welded | ASME B30.26 | 00000000 | 00000 |
Pear-Shaped Links—For Lifting
The narrow end that restricts the movement of the rope and chain and a wide end that allows room to attach multiple connectors.
Note: Capacities are for vertical lifting only. As the angle changes from vertical, the amount of weight the link can lift is significantly reduced.
For Chain Trade Size | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| One Chain | Two Chains | Thick. | Inside Lg. | Narrow-End Inside Wd. | Wide-End Inside Wd. | Capacity, lbs. | Fabrication | Specifications Met | Each | |
Grade 80 | ||||||||||
Alloy Steel | ||||||||||
| 9/32 | 7/32 | 1/2" | 6" | 1 1/2" | 3" | 4,100 | Welded | ASME B30.26 | 0000000 | 000000 |
| 1/2 | 3/8 | 3/4" | 6" | 1 3/4" | 3" | 13,200 | Welded | ASME B30.26 | 0000000 | 00000 |
| 5/8 | 1/2 | 1" | 8" | 2 1/2" | 4" | 22,500 | Welded | ASME B30.26 | 0000000 | 00000 |
| 3/4 | 5/8 | 1 1/4" | 9" | 3" | 6" | 32,500 | Welded | ASME B30.26 | 0000000 | 000000 |
| 7/8 | 3/4 | 1 1/2" | 12" | 3" | 6" | 52,700 | Welded | ASME B30.26 | 0000000 | 000000 |
| 1 | 7/8 | 1 3/4" | 12" | 4" | 7" | 73,500 | Welded | ASME B30.26 | 0000000 | 000000 |
| 1 1/4 | 1 | 2" | 14" | 4" | 7" | 88,900 | Welded | ASME B30.26 | 0000000 | 000000 |
Links with Chain-Shortening Hooks—For Lifting
A pear-shaped link and hook for chain shortening allow you to create an adjustable-length chain sling.

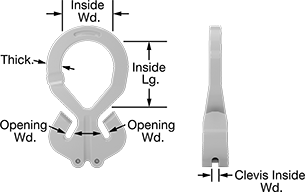

| Number of Hooks | For Chain Trade Size | Inside Lg. | Inside Wd. | Hook Opening Wd. | Clevis Inside Wd. | Capacity, lbs. | Fabrication | Specifications Met | Each | |
Grade 100 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Silver Powder-Coated Alloy Steel | ||||||||||
| 1 | 1/4 | 3 7/8" | 3" | 7/16" | 3/8" | 4,300 | Forged | ASME B30.9 | 000000 | 000000 |
| 1 | 5/16 | 3 7/8" | 3" | 7/16" | 3/8" | 5,700 | Forged | ASME B30.9 | 000000 | 00000 |
| 1 | 3/8 | 4 13/16" | 3 1/2" | 1/2" | 7/16" | 8,800 | Forged | ASME B30.9 | 000000 | 000000 |
| 1 | 1/2 | 6" | 4 1/8" | 5/8" | 9/16" | 15,000 | Forged | ASME B30.9 | 000000 | 000000 |
| 1 | 5/8 | 6 7/8" | 4 3/4" | 3/4" | 11/16" | 22,600 | Forged | ASME B30.9 | 000000 | 000000 |
| 2 | 1/4 | 3 7/8" | 3" | 7/16" | 3/8" | 8,600 | Forged | ASME B30.9 | 000000 | 00000 |
| 2 | 5/16 | 3 7/8" | 3" | 7/16" | 3/8" | 11,400 | Forged | ASME B30.9 | 000000 | 00000 |
| 2 | 3/8 | 4 13/16" | 3 1/2" | 1/2" | 7/16" | 17,600 | Forged | ASME B30.9 | 000000 | 000000 |
| 2 | 1/2 | 6" | 4 1/8" | 5/8" | 9/16" | 30,000 | Forged | ASME B30.9 | 000000 | 000000 |
| 2 | 5/8 | 6 7/8" | 4 3/4" | 3/4" | 11/16" | 45,200 | Forged | ASME B30.9 | 0000000 | 000000 |
Links with Chain Saddles—For Lifting
Create balanced chain slings and adjust their length quickly and easily.
| For Number of Sling Legs | For Chain Trade Size | Thick. | Inside Lg. | Inside Wd. | Capacity, lbs. | Max. Lifting Angle | Fabrication | Specifications Met | Each | |
Grade 100 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Alloy Steel | ||||||||||
| 2 | 9/32 | 37/64" | 3" | 2 1/2" | 4,300 | 30° | Welded | ASME B30.9 | 0000000 | 0000000 |
| 2 | 3/8 | 13/16" | 3 1/2" | 3" | 8,800 | 30° | Welded | ASME B30.9 | 0000000 | 000000 |
| 4 | 9/32 | 13/16" | 3 3/4" | 3" | 6,400 | 30° | Welded | ASME B30.9 | 0000000 | 000000 |
| 4 | 3/8 | 1 1/8" | 4 13/16" | 4" | 13,200 | 30° | Welded | ASME B30.9 | 0000000 | 000000 |
Removable Pear-Shaped Connecting Links—For Lifting
The pear-shaped link provides more room for attachments than standard figure-eight connectors.
Note: Connecting links are for vertical lifting only.
| For Chain Trade Size | Thick. | Inside Lg. | Narrow-End Inside Wd. | Wide-End Inside Wd. | Capacity, lbs. | Fabrication | Specifications Met | Each | |
Grade 80 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
Yellow Powder-Coated Alloy Steel | |||||||||
| 9/32 | 9/16" | 5" | 19/32" | 2" | 3,500 | Forged | ASME B30.9 | 0000000 | 000000 |
| 3/8 | 23/32" | 6 19/64" | 51/64" | 2 39/64" | 7,100 | Forged | ASME B30.9 | 0000000 | 00000 |
| 1/2 | 7/8" | 7 13/32" | 1" | 2 51/64" | 12,000 | Forged | ASME B30.9 | 0000000 | 000000 |
