    143 Products

    Rivet Setters for Air-Powered Hammers

    Image of Product. For Domed Head Rivets. Front orientation. Rivet Setters. For Solid Rivets, For Domed Head Rivets.

    For Domed Head

    Rivets

    Image of Product. For Flat and Flush Mount Head Rivets. Front orientation. Rivet Setters. For Solid Rivets, For Flush Mount Head Rivets, For Flat Head Rivets.

    For Flat and

    Flush Mount Head

    Rivets

    Image of Product. For Flat and Flush Mount Head Rivets with Rubber Guard. Front orientation. Rivet Setters. For Solid Rivets, For Flush Mount Head Rivets, For Flat Head Rivets, Rubber Guard.

    For Flat and

    Flush Mount Head

    Rivets with

    Rubber Guard

    Image of Product. For Flat and Flush Mount Head Rivets with Rubber Guard and Swiveling Body. Front orientation. Rivet Setters. For Solid Rivets, For Flush Mount Head Rivets, Rubber Guard, For Flat Head Rivets, Swiveling Body.

    For Flat and Flush

    Mount Head Rivets with

    Rubber Guard and

    Swiveling Body

    Pair these rivet setters with an air-powered hammer to drive rivets. Choose the setter that matches your rivet's head style.
    Rubber Guard—Setters with a rubber guard install flat and flush rivets without leaving marks or dents in your surface.
    Swiveling Body—Setters with a swiveling body stay flush with the installation surface even if your hammer isn’t perfectly aligned.
    Shank
    For Rivet
    Dia.
    Lg.
    Type
    Size
    Lg.
    Tip
    Dia.
    Material
    Each
    For Solid Rivets

    For Button Domed Head (AN435)
    1/16"3 1/2"Round0.401"1 9/16"1/2"Steel6104A58000000
    3/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A5900000
    1/8"3 1/2"Round0.401"1 9/16"1/2"Steel6104A6100000
    5/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A6200000
    3/16"3 1/2"Round0.401"1 9/16"1/2"Steel6104A6300000
    1/4"3 1/2"Round0.401"1 9/16"5/8"Steel6104A6400000
    5/16"3 1/2"Round0.498"1 9/16"13/16"Steel6104A6500000
    3/8"3 1/2"Round0.498"1 9/16"7/8"Steel6104A6600000

    For Round Domed Head (AN430)
    1/16"3 1/2"Round0.401"1 9/16"1/2"Steel6104A5200000
    3/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A5300000
    1/8"3 1/2"Round0.401"1 9/16"1/2"Steel6104A5400000
    5/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A5500000
    3/16"3 1/2"Round0.401"1 3/4"1/2"Steel6104A4800000
    1/4"3 1/2"Round0.401"1 3/4"5/8"Steel6104A4900000
    5/16"3 1/2"Round0.498"1 9/16"13/16"Steel6104A5600000
    3/8"3 1/2"Round0.498"1 9/16"7/8"Steel6104A5700000

    For Universal Domed Head (AN470)
    1/16"3 1/2"Round0.401"1 9/16"1/2"Steel6104A7300000
    3/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A7400000
    1/8"3 1/2"Round0.401"1 9/16"1/2"Steel6104A7500000
    5/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A7600000
    3/16"3 1/2"Round0.401"1 9/16"1/2"Steel6104A7700000
    1/4"3 1/2"Round0.401"1 9/16"5/8"Steel6104A7800000

    For Brazier Domed Head (AN455)
    3/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A6700000
    1/8"3 1/2"Round0.401"1 9/16"1/2"Steel6104A6800000
    5/32"3 1/2"Round0.401"1 9/16"1/2"Steel6104A6900000
    3/16"3 1/2"Round0.401"1 9/16"1/2"Steel6104A7100000
    1/4"3 1/2"Round0.401"1 9/16"5/8"Steel6104A7200000

    For Modified Brazier Domed Head (AN456)
    3/16"3 1/2"Round0.401"1 9/16"1/2"Steel6104A8200000
    1/4"3 1/2"Round0.401"1 9/16"5/8"Steel6104A8300000

    For Flat and Flush Mount Head (AN426)
    1"2 3/4"Round0.401"1 9/16"5/8"Steel6104A7900000

    For Flat and Flush Mount Head (AN426)—Rubber Guard
    1"2 1/2"Round0.401"1 9/16"1"Steel6104A2100000

    For Flat and Flush Mount Head (AN426)—Rubber Guard and Swiveling Body
    1 1/4"3 1/2"Round0.401"1 9/16"1 1/4"Steel6104A2200000


    Rivet Tool Bucking Bars

    Image of Product. Front orientation. Rivet Tool Bucking Bars. 3 15/16" Overall Length.
    Image of Product. Front orientation. Rivet Tool Bucking Bars. 6 3/8" Overall Length.

    3 15/16" Overall

    Length

    6 3/8" Overall Length

    Place against the back side of your rivet while hammering the head.
    Overall
    Lg.
    Wd.
    Ht.
    No. of
    Faces
    Face Lg.
    Face Wd.
    Wt.,
    lb.
    Material
    Each
    3 15/16"1 5/8"15/16"31 5/8", 1 5/8", 1 5/8"3/8", 5/8", 15/16"1 1/4Iron1924N12000000
    6 3/8"1"2 1/4"31", 1 7/8", 2 1/4"1", 1", 1"2Iron1924N1100000

    Manual Squeeze Tools for Solid Rivets

    Squeeze the handles on these tools to set solid aluminum rivets along an edge. Do not use them with steel or stainless steel rivets.
    2" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Manual Squeeze Tools for Solid Rivets, 2" Throat Depth.
    Image of Specification. Front orientation. Rivet Tools. Manual Squeeze Tools for Solid Rivets, 2" Throat Depth.

    For Max.
    Rivet Lg.
    Domed
    Flat
    Flush
    Mount
    Max. Jaw
    Opening
    Lg.
    Handle
    Lg.
    Wt.,
    lb.
    Material
    Includes
    Each
    1.65"1.713"1.713"2"15 1/2"9 1/2"2.8Stainless Steel
    		1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)
    11 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16",    		6616A230000000
    Die Sets
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Manual Squeeze Tools for Solid Rivets, 7 Pieces.
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Manual Squeeze Tools for Solid Rivets, 11 Pieces.

    7 Pieces

    11 Pieces

    No. of
    Pieces
    Includes
    Material
    Each
    77 Piece Die Set (For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN442 Style Head Rivets)Steel6616A38000000
    1111 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)Steel6616A3700000
    2 1/4" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Manual Squeeze Tools for Solid Rivets, 2 1/4" Throat Depth.
    Image of Specification. Front orientation. Rivet Tools. Manual Squeeze Tools for Solid Rivets, 2 1/4" Throat Depth.

    For Max.
    Rivet Lg.
    Domed
    Flat
    Flush
    Mount
    Max. Jaw
    Opening
    Lg.
    Handle
    Lg.
    Wt.,
    lb.
    Material
    Each
    1.65"1.713"1.713"1 1/4"14 3/4"9 1/2"2.6Stainless Steel
    		6616A350000000
    Die Sets
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Manual Squeeze Tools for Solid Rivets, 7 Pieces.
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Manual Squeeze Tools for Solid Rivets, 11 Pieces.

    7 Pieces

    11 Pieces

    No. of
    Pieces
    Includes
    Material
    Each
    77 Piece Die Set (For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN442 Style Head Rivets)Steel6616A38000000
    1111 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)Steel6616A3700000
    6" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Manual Squeeze Tools for Solid Rivets, 6" Throat Depth.
    Image of Specification. Front orientation. Rivet Tools. Manual Squeeze Tools for Solid Rivets, 6" Throat Depth.

    For Max.
    Rivet Lg.
    Domed
    Flat
    Flush
    Mount
    Max. Jaw
    Opening
    Lg.
    Handle
    Lg.
    Wt.,
    lb.
    Material
    Includes
    Each
    1.65"1.713"1.713"1 1/4"15 1/4"9 1/2"6Stainless Steel
    		1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)
    11 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16",    		6616A30000000
    Die Sets
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Manual Squeeze Tools for Solid Rivets, 7 Pieces.
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Manual Squeeze Tools for Solid Rivets, 11 Pieces.

    7 Pieces

    11 Pieces

    No. of
    Pieces
    Includes
    Material
    Each
    77 Piece Die Set (For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN442 Style Head Rivets)Steel6616A38000000
    1111 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)Steel6616A3700000

    Hole Spacers

    Image of Product. Front orientation. Rivet Hole Locators. Hole Spacers.
    Image of Attribute. Shown Extended to the 1" Marking Increment. Front orientation. ZoomedIn view. Contains Annotated. Hole Spacers.

    Shown Extended to the 1"

    Marking Increment

    Mark even spacing for rivets and other fasteners before you drill. Push and pull the ends of these hole spacers to create the distance between holes that you need.
    Hole
    No. of
    Holes
    Marking Increments
    Dia.
    Spacing
    Lg.
    Material
    Each
    103/4", 1", 1 1/4", 1 1/2"1/8"1/2" to 2"5 1/4" to 17 1/2"Stainless Steel
    		8381N11000000

    Removal Tools for Blind and Solid Rivets

    Image of ProductInUse. Front orientation. Rivet Tools. Removal Tools for Blind and Solid Rivets.
    Image of Product. Front orientation. Rivet Tools. Removal Tools for Blind and Solid Rivets.
    Attach this tool to your drill to remove all styles of aluminum, steel, and plastic domed head rivets. Collets fit over the head of your rivet to keep the drill bit centered and prevent it from slipping and damaging surrounding material. The tool also allows you to control the depth of your drilling.
    For Rivet Dia.
    For Rivet Material
    Dia.
    Lg.
    Material
    Includes
    Each
    3/32", 1/8", 5/32", 3/16"Aluminum, Plastic, Steel7/8"5"SteelFour 1" Lg. Collets (3/32", 1/8", 5/32", and 3/16")
    Four 2 1/8" Lg. Drill Bits (3/32", 1/8", 5/32", and 3/16")    		90112A600000000

    Solid Rivet Cutters

    Image of ProductInUse. Front orientation. Rivet Tools. Solid Rivet Cutters.
    Image of Product. Side1 orientation. ZoomedIn view. Contains Border. Rivet Tools. Solid Rivet Cutters.
    Trim solid rivets to the length you need without changing their shape. For clean, uniform cuts, you can choose a length from ¼" to ¾" in ¹⁄₁₆" increments.
    For Rivet Dia.
    Cut Lg.
    Overall
    Lg.
    Material
    Handle
    Color
    Grip
    Material
    Each
    For Aluminum
    3/32", 1/8", 5/32", 3/16", 7/32", 1/4"1/4" to 3/4"9 1/2"SteelRedPlastic7488N11000000


    Tools for Solid Rivets with Washer

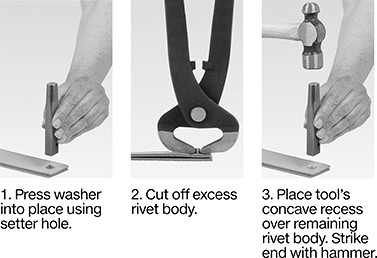

    Image of ProductInUse. Front orientation. Contains Annotated, MultipleImages. Rivet Tools. Tools for Solid Rivets with Washer.
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Tools for Solid Rivets with Washer.
    Set solid copper rivets with washer (also known as belt rivets) using one of these tools and a hammer. Press the washer into place, then strike the end of the tool to clinch the back of the rivet tight with the washer.
    For Belt Rivet
    Size
    For Rivet Dia.
    For Rivet
    Material
    Setter
    Hole Dia.
    Lg.
    Material
    Each
    No. 30.28" to 0.307"Copper0.312"4 1/2"Steel6663A11000000
    No. 4, No. 50.233" to 0.275"Copper0.281"4 1/2"Steel6663A1200000
    No. 60.212" to 0.229"Copper0.234"4 1/2"Steel6663A1300000
    No. 70.19" to 0.209"Copper0.213"4 1/2"Steel6663A1400000
    No. 80.165" to 0.187"Copper0.191"4 1/2"Steel6663A1500000
    No. 9, No. 100.148" to 0.163"Copper0.166"4 1/2"Steel6663A1600000
    No. 110.14" to 0.146"Copper0.149"4 1/2"Steel6663A1700000
    No. 120.124" to 0.138"Copper0.14"4 1/2"Steel6663A1800000
    No. 130.108" to 0.123"Copper0.125"4 1/2"Steel6663A1900000
    No. 140.098" to 0.107"Copper0.109"4 1/2"Steel6663A2100000

    Air-Powered Squeeze Tools for Solid Rivets

    Powered by compressed air, these tools install rivets with nearly double the force of manual rivet tools. Since they squeeze rivets from both sides, they’re also easier to use than air hammers—no need to line up a setter and bucking bar.
    Alligator Jaw—1 1/2" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—1 1/2" Throat Depth.
    Image of Specification. 93970A210. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—1 1/2" Throat Depth, 3,000 lbf Maximum Force, 1 1/2" Maximum Jaw Opening.
    Image of Specification. 93970A101. Front orientation. Contains Border. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—1 1/2" Throat Depth, 3,000 lbf Maximum Force, 1 5/8" Maximum Jaw Opening.

    93970A210

    93970A101

    Image of Specification. 93970A310. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—1 1/2" Throat Depth, 6,000 lbf Maximum Force, 1 1/2" Maximum Jaw Opening.
    Image of Specification. 93970A102. Front orientation. Contains Border. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—1 1/2" Throat Depth, 9,000 lbf Maximum Force, 1 1/2" Maximum Jaw Opening.

    93970A310

    93970A102

    Alligator-style tools have two pivoting jaws that meet in the center. They can install rivets at any angle, but they can be harder to position than tools with C-style jaws.
    Air
    Inlet
    Max. Force,
    lbf
    Max. Jaw
    Opening
    Lg.
    Wt.,
    lb.
    Operating Air
    Pressure, psi
    Pipe
    Size
    Gender
    Air Hose
    Included
    Material
    Each
    3,0001 1/2"9 1/4"485 to 901/4
    		FemaleNoSteel93970A210000000000
    3,0001 5/8"10"585 to 901/4
    		FemaleNoSteel93970A101000000
    6,0001 1/2"12"5.585 to 901/4
    		FemaleNoSteel93970A31000000000
    9,0001 1/2"16"785 to 901/4
    		FemaleNoSteel93970A10200000000
    Die Sets
    Image of Product. Flat Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw.
    Image of Product. Domed Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw.
    Image of Specification. Side1 orientation. For Round Domed Head. Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Side1 orientation. For Universal Domed Head. Air-Powered Squeeze Tools for Solid Rivets.

    Flat Head

    Domed Head

    For

    Round

    Domed

    Head

    For

    Universal

    Domed Head

    You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.
    For 3/16"
    Long Rivets
    For 3/8"
    Long Rivets
    For 1/2"
    Long Rivets
    For 5/8"
    Long Rivets
    For Rivet Dia.
    Material
    Each
    Each
    Each
    Each
    Round Domed Head—AN430
    3/32"Steel93970A50800000093970A53200000093970A55600000093970A580000000
    1/8"Steel93970A6080000093970A6320000093970A6560000093970A68000000
    5/32"Steel93970A7080000093970A7320000093970A7560000093970A78000000
    3/16"Steel93970A8080000093970A8320000093970A8560000093970A88000000

    Universal Domed Head—AN470
    3/32"Steel93970A5160000093970A5400000093970A5640000093970A58800000
    1/8"Steel93970A6160000093970A6400000093970A6640000093970A68800000
    5/32"Steel93970A7160000093970A7400000093970A7640000093970A78800000
    3/16"Steel93970A8160000093970A8400000093970A8640000093970A88200000

    Flat Head—AN442
    3/32", 1/8", 5/32", 3/16"Steel93970A9240000093970A9480000093970A9720000093970A99600000

    Alligator Jaw—2 1/4" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—2 1/4" Throat Depth.
    Image of Specification. 93970A330. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—2 1/4" Throat Depth, 4,600 lbf Maximum Force.

    93970A330

    Image of Specification. 93970A103. Front orientation. Contains Border. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—2 1/4" Throat Depth, 7,000 lbf Maximum Force.

    93970A103

    Alligator-style tools have two pivoting jaws that meet in the center. They can install rivets at any angle, but they can be harder to position than tools with C-style jaws.
    Air
    Inlet
    Max. Force,
    lbf
    Max. Jaw
    Opening
    Lg.
    Wt.,
    lb.
    Operating Air
    Pressure, psi
    Pipe
    Size
    Gender
    Air Hose
    Included
    Material
    Each
    4,6001 7/8"12 3/4"5.585 to 901/4
    		FemaleNoSteel93970A330000000000
    7,0001 3/4"16 3/4"7.585 to 901/4
    		FemaleNoSteel93970A10300000000
    Die Sets
    Image of Product. Flat Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw.
    Image of Product. Domed Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw.
    Image of Specification. Side1 orientation. For Round Domed Head. Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Side1 orientation. For Universal Domed Head. Air-Powered Squeeze Tools for Solid Rivets.

    Flat Head

    Domed Head

    For

    Round

    Domed

    Head

    For

    Universal

    Domed Head

    You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.
    For 3/16"
    Long Rivets
    For 3/8"
    Long Rivets
    For 1/2"
    Long Rivets
    For 5/8"
    Long Rivets
    For Rivet Dia.
    Material
    Each
    Each
    Each
    Each
    Round Domed Head—AN430
    3/32"Steel93970A50800000093970A53200000093970A55600000093970A580000000
    1/8"Steel93970A6080000093970A6320000093970A6560000093970A68000000
    5/32"Steel93970A7080000093970A7320000093970A7560000093970A78000000
    3/16"Steel93970A8080000093970A8320000093970A8560000093970A88000000

    Universal Domed Head—AN470
    3/32"Steel93970A5160000093970A5400000093970A5640000093970A58800000
    1/8"Steel93970A6160000093970A6400000093970A6640000093970A68800000
    5/32"Steel93970A7160000093970A7400000093970A7640000093970A78800000
    3/16"Steel93970A8160000093970A8400000093970A8640000093970A88200000

    Flat Head—AN442
    3/32", 1/8", 5/32", 3/16"Steel93970A9240000093970A9480000093970A9720000093970A99600000

    Alligator Jaw—3" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—3" Throat Depth.
    Image of Specification. 93970A270. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—3" Throat Depth, 1,800 lbf Maximum Force.

    93970A270

    Image of Specification. 93970A104. Front orientation. Contains Border. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw—3" Throat Depth, 4,000 lbf Maximum Force.

    93970A104

    Alligator-style tools have two pivoting jaws that meet in the center. They can install rivets at any angle, but they can be harder to position than tools with C-style jaws.
    Air
    Inlet
    Max. Force,
    lbf
    Max. Jaw
    Opening
    Lg.
    Wt.,
    lb.
    Operating Air
    Pressure, psi
    Pipe
    Size
    Gender
    Air Hose
    Included
    Material
    Each
    1,8001 1/2"10 3/4"585 to 901/4
    		FemaleNoSteel93970A270000000000
    4,0001 7/8"13 1/2"685 to 901/4
    		FemaleNoSteel93970A10400000000
    Die Sets
    Image of Product. Flat Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw.
    Image of Product. Domed Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, Alligator Jaw.
    Image of Specification. Side1 orientation. For Round Domed Head. Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Side1 orientation. For Universal Domed Head. Air-Powered Squeeze Tools for Solid Rivets.

    Flat Head

    Domed Head

    For

    Round

    Domed

    Head

    For

    Universal

    Domed Head

    You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.
    For 3/16"
    Long Rivets
    For 3/8"
    Long Rivets
    For 1/2"
    Long Rivets
    For 5/8"
    Long Rivets
    For Rivet Dia.
    Material
    Each
    Each
    Each
    Each
    Round Domed Head—AN430
    3/32"Steel93970A50800000093970A53200000093970A55600000093970A580000000
    1/8"Steel93970A6080000093970A6320000093970A6560000093970A68000000
    5/32"Steel93970A7080000093970A7320000093970A7560000093970A78000000

    Universal Domed Head—AN470
    3/32"Steel93970A5160000093970A5400000093970A5640000093970A58800000
    1/8"Steel93970A6160000093970A6400000093970A6640000093970A68800000
    5/32"Steel93970A7160000093970A7400000093970A7640000093970A78800000

    Flat Head—AN442
    3/32", 1/8", 5/32", 3/16"Steel93970A9240000093970A9480000093970A9720000093970A99600000

    C Jaw—1 1/2" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, C Jaw—1 1/2" Throat Depth.
    Image of Specification. 93970A105. Front orientation. Contains Border. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, C Jaw—1 1/2" Throat Depth.

    93970A105

    C-style tools have only one moving jaw. They apply force more consistently than alligator-style tools, but they can only install rivets straight.
    Air
    Inlet
    Max. Force,
    lbf
    Max. Jaw
    Opening
    Lg.
    Wt.,
    lb.
    Operating Air
    Pressure, psi
    Pipe
    Size
    Gender
    Air Hose
    Included
    Material
    Each
    6,0001 1/4"14"5.585 to 901/4
    		FemaleNoSteel93970A105000000000
    Die Sets
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, C Jaw.
    You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.
    For 3/16"
    Long Rivets
    For 3/8"
    Long Rivets
    For 1/2"
    Long Rivets
    For Rivet Dia.
    Material
    Each
    Each
    Each
    Flat Head—AN442
    3/32", 1/8", 5/32", 3/16"Steel93970A10900000093970A10700000093970A108000000

    C Jaw—2 1/2" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, C Jaw—2 1/2" Throat Depth.
    Image of Specification. 93970A106. Front orientation. Contains Border. Rivet Tools. Air-Powered Squeeze Tools for Solid Rivets, C Jaw—2 1/2" Throat Depth.

    93970A106

    C-style tools have only one moving jaw. They apply force more consistently than alligator-style tools, but they can only install rivets straight.
    Air
    Inlet
    Max. Force,
    lbf
    Max. Jaw
    Opening
    Lg.
    Wt.,
    lb.
    Operating Air
    Pressure, psi
    Pipe
    Size
    Gender
    Air Hose
    Included
    Material
    Each
    6,0001 1/4"14 3/4"6.585 to 901/4
    		FemaleNoSteel93970A106000000000
    Die Sets
    Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, C Jaw.
    You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.
    For 3/16"
    Long Rivets
    For 3/8"
    Long Rivets
    For 1/2"
    Long Rivets
    For Rivet Dia.
    Material
    Each
    Each
    Each
    Flat Head—AN442
    3/32", 1/8", 5/32", 3/16"Steel93970A10900000093970A10700000093970A108000000


    Air-Powered Hammers for Solid Rivets

    Image of ProductInUse. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets.
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style A.
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style B.

    Style A

    Style B

    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style C.
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style D.

    Style C

    Style D

    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style A.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style B.

    Style A

    Style B

    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style C.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style D.

    Style C

    Style D

    Also known as zip guns, these air hammers require a rivet setter and a bucking bar (each sold separately) to install solid rivets. Choose a rivet setter that matches the rivet's head style. As the tool strikes the rivet head, the back side of the rivet is hammered against the bucking bar, deforming the body and fastening your material. They can also be used as a chiseling air hammer when paired with chiseling bits. Stroke length determines the hammering power. The longer the stroke, the greater the power.
    Style A
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style A.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style A.
    Nose
    For
    Shank
    Air
    Inlet
    Stroke
    Lg.
    Dia.
    Lg.
    Lg.
    Type
    Size
    Operating Air
    Pressure, psi
    Blows per
    min.
    Average Air Consumption,
    ft³/min
    Wt.,
    lb.
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Min. Air
    Hose ID
    Material
    Each
    2 1/2"5/8"1"8 1/2"Round0.401"80 to 900 to 3,40044Trigger1/4
    		FemaleNo1/4"Steel5872A920000000
    Accessories for Rivet Tools
    Each
    Back Valve Block6104A414000000
    Front Valve Block6104A41300000
    Small Seal5872A6150000
    Large Seal5872A9140000
    Wafer6104A4160000
    Pin6104A4150000
    Beehive Spring Retainer59005A230000
    Style B
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style B.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style B.
    Nose
    For
    Shank
    Air
    Inlet
    Stroke
    Lg.
    Dia.
    Lg.
    Lg.
    Type
    Size
    Operating Air
    Pressure, psi
    Blows per
    min.
    Average Air Consumption,
    ft³/min
    Wt.,
    lb.
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Min. Air
    Hose ID
    Material
    Each
    4"5/8"1"10 1/2"Round0.401"80 to 900 to 2,20044.75Trigger1/4
    		FemaleNo3/8"Steel6104A440000000
    Accessories for Rivet Tools
    Each
    Back Valve Block6104A414000000
    Front Valve Block6104A41300000
    Small Seal6104A4120000
    Wafer6104A4160000
    Large Seal6104A4110000
    Pin6104A4150000
    Beehive Spring Retainer59005A230000
    Style C
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style C.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style C.
    Nose
    For
    Shank
    Air
    Inlet
    Stroke
    Lg.
    Dia.
    Lg.
    Lg.
    Type
    Size
    Operating Air
    Pressure, psi
    Blows per
    min.
    Average Air Consumption,
    ft³/min
    Wt.,
    lb.
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Min. Air
    Hose ID
    Material
    Each
    4"5/8"1"13"Round0.401"80 to 900 to 2,20046.25Trigger1/4
    		FemaleNo3/8"Steel6104A460000000
    Accessories for Rivet Tools
    Each
    Back Valve Block6104A414000000
    Front Valve Block6104A41300000
    Small Seal6104A4120000
    Wafer6104A4160000
    Large Seal6104A4110000
    Pin6104A4150000
    Beehive Spring Retainer59005A230000
    Style D
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style D.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammers for Solid Rivets, Style D.
    Nose
    For
    Shank
    Air
    Inlet
    Stroke
    Lg.
    Dia.
    Lg.
    Lg.
    Type
    Size
    Operating Air
    Pressure, psi
    Blows per
    min.
    Average Air Consumption,
    ft³/min
    Wt.,
    lb.
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Min. Air
    Hose ID
    Material
    Each
    4"1 7/32"1"10 1/2"Round0.498"80 to 900 to 1,80044.75Trigger1/4
    		FemaleNo1/4"Steel6104A430000000
    Rivet Tool Accessories and Replacement Parts
    Each
    Back Valve Block6104A414000000
    Front Valve Block6104A41300000
    Small Seal6104A4120000
    Large Seal6104A4110000
    Rivet Setters
    Image of Product. For Flat and Flush Mount Head Rivets with Rubber Guard and Swiveling Body. Front orientation. Rivet Setters. Air-Powered Hammers for Solid Rivets.

    For Flat and Flush

    Mount Head Rivets with

    Rubber Guard and

    Swiveling Body

    Image of Product. For Flat and Flush Mount Head Rivets. Front orientation. Rivet Setters. Air-Powered Hammers for Solid Rivets.

    For Flat and

    Flush Mount Head

    Rivets

    Image of Product. For Flat and Flush Mount Head Rivets with Rubber Guard. Front orientation. Rivet Setters. Air-Powered Hammers for Solid Rivets.

    For Flat and

    Flush Mount Head

    Rivets with

    Rubber Guard

    Image of Product. For Domed Head Rivets. Front orientation. Rivet Setters. Air-Powered Hammers for Solid Rivets.

    For Domed Head

    Rivets

    Image of Specification. Front orientation. For Button Domed Head. Air-Powered Hammers for Solid Rivets.
    Image of Specification. Front orientation. For Round Domed Head. Air-Powered Hammers for Solid Rivets.

    For

    Button

    Domed

    Head

    For

    Round

    Domed

    Head

    Image of Specification. Front orientation. For Universal Domed Head. Air-Powered Hammers for Solid Rivets.
    Image of Specification. Front orientation. For Brazier Domed Head. Air-Powered Hammers for Solid Rivets.

    For

    Universal

    Domed Head

    For

    Brazier

    Domed

    Head

    Image of Specification. Front orientation. For Modified-Brazier Domed Head. Air-Powered Hammers for Solid Rivets.
    Image of Specification. Front orientation. For Flat Head Rivets. Air-Powered Hammers for Solid Rivets.

    For

    Modified-Brazier

    Domed Head

    For

    Flat

    Head

    Rivets

    Image of Specification. Front orientation. For Flush Mount Head Rivets. Air-Powered Hammers for Solid Rivets.

    For

    Flush

    Mount

    Head

    Rivets

    Setters with a rubber guard install flat and flush rivets without leaving marks or dents in your surface. Setters with a swiveling body stay flush with the installation surface even if your hammer isn’t perfectly aligned.
    Shank
    For Rivet
    Dia.
    Type
    Size
    Each
    For Button Domed Head (AN435)
    1/16"Round0.401"6104A58000000
    3/32"Round0.401"6104A5900000
    1/8"Round0.401"6104A6100000
    5/32"Round0.401"6104A6200000
    3/16"Round0.401"6104A6300000
    1/4"Round0.401"6104A6400000
    5/16"Round0.498"6104A6500000
    3/8"Round0.498"6104A6600000

    For Round Domed Head (AN430)
    1/16"Round0.401"6104A5200000
    3/32"Round0.401"6104A5300000
    1/8"Round0.401"6104A5400000
    5/32"Round0.401"6104A5500000
    3/16"Round0.401"6104A4800000
    1/4"Round0.401"6104A4900000
    5/16"Round0.498"6104A5600000
    3/8"Round0.498"6104A5700000

    For Universal Domed Head (AN470)
    1/16"Round0.401"6104A7300000
    3/32"Round0.401"6104A7400000
    1/8"Round0.401"6104A7500000
    5/32"Round0.401"6104A7600000
    3/16"Round0.401"6104A7700000
    1/4"Round0.401"6104A7800000

    For Brazier Domed Head (AN455)
    3/32"Round0.401"6104A6700000
    1/8"Round0.401"6104A6800000
    5/32"Round0.401"6104A6900000
    3/16"Round0.401"6104A7100000
    1/4"Round0.401"6104A7200000

    For Modified-Brazier Domed Head (AN456)
    3/16"Round0.401"6104A8200000
    1/4"Round0.401"6104A8300000

    For Flat and Flush Mount Head (AN426)
    1"Round0.401"6104A7900000

    For Flat and Flush Mount Head (AN426)—Rubber Guard
    1"Round0.401"6104A2100000

    For Flat and Flush Mount Head (AN426)—Rubber Guard and Swiveling Body
    1 1/4"Round0.401"6104A2200000

    Bucking Bars
    Image of Product. Front orientation. Rivet Tool Bucking Bars. Air-Powered Hammers for Solid Rivets.
    Image of Product. Front orientation. Rivet Tool Bucking Bars. Air-Powered Hammers for Solid Rivets.
    Overall
    Lg.
    Wd.
    Ht.
    No. of
    Faces
    Face Lg.
    Face Wd.
    Wt.,
    lb.
    Material
    Each
    3 15/16"1 5/8"15/16"31 5/8", 1 5/8", 1 5/8"3/8", 5/8", 15/16"1 1/4Iron1924N12000000
    6 3/8"1"2 1/4"31", 1 7/8", 2 1/4"1", 1", 1"2Iron1924N1100000

    Riveting Hammers

    Image of Product. Front orientation. Hammers. Riveting Hammers , Round Steel Face, Hickory Handle with Plain Grip, Style A.
    Image of Product. Front orientation. Hammers. Riveting Hammers , Round Steel Face, Fiberglass Handle with Textured Grip, Style A.
    Image of Product. Front orientation. Hammers. Riveting Hammers , Rectangular Steel Face, Hickory Handle with Plain Grip, Style B.
    Image of Product. Front orientation. Hammers. Riveting Hammers , Rectangular Steel Face, Steel Handle with Textured Grip, Style B.

    Round Steel Face,

    Hickory Handle with

    Plain Grip, Style A

    Round Steel Face,

    Fiberglass Handle with

    Textured Grip, Style A

    Rectangular Steel Face,

    Hickory Handle with

    Plain Grip, Style B

    Rectangular Steel Face,

    Steel Handle with Textured

    Grip, Style B

    Set solid rivets by hand. These tools are also known as paneing, setting, and seaming hammers. Use the flat end of the head to drive rivets and pins. The other end of the head has a wedge shape for creating corners and seams in sheet metal. For replacement handles, see Hickory Hammer Handles.
    Round Steel Face
    Image of Product. Front orientation. Hammers. Riveting Hammers , Round Steel Face, Hickory Handle with Plain Grip, Style A.

    Hickory Handle with

    Plain Grip, Style A

    Image of Product. Front orientation. Hammers. Riveting Hammers , Round Steel Face, Fiberglass Handle with Textured Grip, Style A.

    Fiberglass Handle with

    Textured Grip, Style A

    Hickory Handle—Hickory handles resist vibration.
    Fiberglass Handle—Fiberglass handles combine the strength of steel with the vibration resistance of hickory.
    Textured Grip—Textured grips provide slip resistance.
    Style
    Head Wt.,
    lb.
    Face
    Dia.
    Overall
    Lg.
    Head
    Material
    Handle
    Replaceable
    Each
    Hickory Handle with Plain Grip
    A1/211/16"11"SteelYes5860A5000000
    A3/413/16"13 1/2"SteelYes5860A100000
    A17/8"14"SteelYes5860A300000

    Fiberglass Handle with Textured Grip
    A11"12 1/2"SteelNo58605A100000

    Rectangular Steel Face
    Image of Product. Front orientation. Hammers. Riveting Hammers , Rectangular Steel Face, Hickory Handle with Plain Grip, Style B.
    Image of Product. Front orientation. Hammers. Riveting Hammers , Rectangular Steel Face, Steel Handle with Textured Grip, Style B.

    Hickory Handle with

    Plain Grip, Style B

    Steel Handle with Textured

    Grip, Style B

    Hickory Handle—Hickory handles resist vibration.
    Steel Handle—Steel handles are stronger than wooden handles but have less vibration resistance.
    Textured Grip—Textured grips provide slip resistance.
    Style
    Head Wt.,
    lb.
    Face
    Lg.
    Face
    Wd.
    Overall
    Lg.
    Head
    Material
    Handle
    Replaceable
    Each
    Hickory Handle with Plain Grip
    B113/16"13/16"13 1/2"SteelYes5860A4000000

    Steel Handle with Textured Grip
    B3/413/16"3/4"11"SteelNo6069A500000
    B1 1/415/16"7/8"12"SteelNo6069A600000


    Air-Powered Hammer and Rivet Setter Kits for Solid Rivets

    Image of ProductInUse. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style A.
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style B.
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style C.

    Style A

    Style B

    Style C

    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style A.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style B.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style C.

    Style A

    Style B

    Style C

    Install solid rivets with the tools in these kits. They include an air-powered hammer (also known as a zip gun), rivet setters, and a bucking bar. Slide a rivet setter into the hammer and place the bucking bar against the back side of your material. When you strike the rivet head, the back of the rivet is flattened against the bucking bar to fasten your material. When paired with chiseling bits, the hammer can also be used as a chiseling air hammer. Stroke length determines the hammering power. The longer the stroke, the greater the power.
    Style A
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style A.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style A.
    For
    Shank
    Air
    Inlet
    Type
    Size
    Operating Air
    Pressure, psi
    Blows per
    min.
    Stroke
    Lg.
    Average Air Consumption,
    ft³/min
    Wt.,
    lb.
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Min. Air
    Hose ID
    Material
    Includes
    Each
    Round0.401"80 to 900 to 3,4002 1/2"44Trigger1/4
    		FemaleNo1/4"Steel6-3/8" lg. × 1" wd. bucking bar
    Air Regulator
    Air-Powered Hammer
    Setter for 1/8" dia. round structural rivets
    Setter for 3/16" dia. round structural rivets
    Setter for 5/32" dia. round structural rivets    		5872A90000000
    Accessories for Rivet Tools
    Each
    Back Valve Block6104A414000000
    Front Valve Block6104A41300000
    Small Seal5872A6150000
    Large Seal5872A9140000
    Wafer6104A4160000
    Pin6104A4150000
    Beehive Spring Retainer59005A230000
    Style B
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style B.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style B.
    For
    Shank
    Air
    Inlet
    Type
    Size
    Operating Air
    Pressure, psi
    Blows per
    min.
    Stroke
    Lg.
    Average Air Consumption,
    ft³/min
    Wt.,
    lb.
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Min. Air
    Hose ID
    Material
    Includes
    Each
    Round0.401"80 to 900 to 2,2004"44.75Trigger1/4
    		FemaleNo3/8"Steel6-3/8" lg. × 1" wd. bucking bar
    Air-Powered Hammer
    Setter for 1/4" dia. round structural rivets
    Setter for 3/16" dia. round structural rivets    		6104A50000000
    Accessories for Rivet Tools
    Each
    Back Valve Block6104A414000000
    Front Valve Block6104A41300000
    Small Seal6104A4120000
    Wafer6104A4160000
    Large Seal6104A4110000
    Pin6104A4150000
    Beehive Spring Retainer59005A230000
    Style C
    Image of Product. Front orientation. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style C.
    Image of Specification. Front orientation. Contains Annotated. Rivet Tools. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets, Style C.
    For
    Shank
    Air
    Inlet
    Type
    Size
    Operating Air
    Pressure, psi
    Blows per
    min.
    Stroke
    Lg.
    Average Air Consumption,
    ft³/min
    Wt.,
    lb.
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Min. Air
    Hose ID
    Material
    Includes
    Each
    Round0.401"80 to 900 to 2,2004"46.25Trigger1/4
    		FemaleNo3/8"Steel6-3/8" lg. × 1" wd. bucking bar
    Air-Powered Hammer
    Setter for 1/4" dia. round structural rivets
    Setter for 3/16" dia. round structural rivets    		6104A70000000
    Accessories for Rivet Tools
    Each
    Back Valve Block6104A414000000
    Front Valve Block6104A41300000
    Small Seal6104A4120000
    Wafer6104A4160000
    Large Seal6104A4110000
    Pin6104A4150000
    Beehive Spring Retainer59005A230000
    Rivet Setters
    Image of Product. For Flat and Flush Mount Head Rivets with Rubber Guard and Swiveling Body. Front orientation. Rivet Setters. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For Flat and Flush

    Mount Head Rivets with

    Rubber Guard and

    Swiveling Body

    Image of Product. For Flat and Flush Mount Head Rivets. Front orientation. Rivet Setters. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For Flat and

    Flush Mount Head

    Rivets

    Image of Product. For Flat and Flush Mount Head Rivets with Rubber Guard. Front orientation. Rivet Setters. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For Flat and

    Flush Mount Head

    Rivets with

    Rubber Guard

    Image of Product. For Domed Head Rivets. Front orientation. Rivet Setters. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For Domed Head

    Rivets

    Image of Specification. Front orientation. For Button Domed Head. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.
    Image of Specification. Front orientation. For Round Domed Head. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For

    Button

    Domed

    Head

    For

    Round

    Domed

    Head

    Image of Specification. Front orientation. For Universal Domed Head. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.
    Image of Specification. Front orientation. For Brazier Domed Head. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For

    Universal

    Domed Head

    For

    Brazier

    Domed

    Head

    Image of Specification. Front orientation. For Modified-Brazier Domed Head. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.
    Image of Specification. Front orientation. For Flat Head Rivets. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For

    Modified-Brazier

    Domed Head

    For

    Flat

    Head

    Rivets

    Image of Specification. Front orientation. For Flush Mount Head Rivets. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.

    For

    Flush

    Mount

    Head

    Rivets

    All kits include setters for common sizes of round domed-head rivets. To install other sizes of round domed-head rivets or different head types, you’ll need a matching rivet setter. When installing flat and flush head rivets, use setters with a rubber guard to prevent marks and dents. Those with a swiveling body stay flush with the installation surface even if your hammer isn’t perfectly aligned.
    Shank
    For Rivet
    Dia.
    Type
    Size
    Each
    For Button Domed Head (AN435)
    1/16"Round0.401"6104A58000000
    3/32"Round0.401"6104A5900000
    1/8"Round0.401"6104A6100000
    5/32"Round0.401"6104A6200000
    3/16"Round0.401"6104A6300000
    1/4"Round0.401"6104A6400000

    For Round Domed Head (AN430)
    1/16"Round0.401"6104A5200000
    3/32"Round0.401"6104A5300000
    1/8"Round0.401"6104A5400000
    5/32"Round0.401"6104A5500000
    3/16"Round0.401"6104A4800000
    1/4"Round0.401"6104A4900000

    For Universal Domed Head (AN470)
    1/16"Round0.401"6104A7300000
    3/32"Round0.401"6104A7400000
    1/8"Round0.401"6104A7500000
    5/32"Round0.401"6104A7600000
    3/16"Round0.401"6104A7700000
    1/4"Round0.401"6104A7800000

    For Brazier Domed Head (AN455)
    3/32"Round0.401"6104A6700000
    1/8"Round0.401"6104A6800000
    5/32"Round0.401"6104A6900000
    3/16"Round0.401"6104A7100000
    1/4"Round0.401"6104A7200000

    For Modified-Brazier Domed Head (AN456)
    3/16"Round0.401"6104A8200000
    1/4"Round0.401"6104A8300000

    For Flat and Flush Mount Head (AN426)
    1"Round0.401"6104A7900000

    For Flat and Flush Mount Head (AN426)—Rubber Guard
    1"Round0.401"6104A2100000

    For Flat and Flush Mount Head (AN426)—Rubber Guard and Swiveling Body
    1 1/4"Round0.401"6104A2200000

    Bucking Bars
    Image of Product. Front orientation. Rivet Tool Bucking Bars. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.
    Image of Product. Front orientation. Rivet Tool Bucking Bars. Air-Powered Hammer and Rivet Setter Kits for Solid Rivets.
    Overall
    Lg.
    Wd.
    Ht.
    No. of
    Faces
    Face Lg.
    Face Wd.
    Wt.,
    lb.
    Material
    Each
    3 15/16"1 5/8"15/16"31 5/8", 1 5/8", 1 5/8"3/8", 5/8", 15/16"1 1/4Iron1924N12000000
    6 3/8"1"2 1/4"31", 1 7/8", 2 1/4"1", 1", 1"2Iron1924N1100000

    Bench-Mount Air-Powered Squeeze Tools for Solid Rivets

    Image of ProductInUse. Front orientation. Rivet Tools. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    With a bench or cart to keep them steady, these tools install solid rivets along edges more consistently than portable squeeze tools. They close with the press of a foot pedal, so you can use both hands to feed a workpiece through the jaws. These tools are also known as alligator squeezers.
    A die set (sold separately) is required and must be attached to the tool jaws to properly form rivets during installation. Choose a die set that matches the rivet's head style.
    1 1/2" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Front orientation. Rivet Tools. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets, 1 1/2" Throat Depth.

    Image of Product. Flat Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.

    Flat Head

    Image of Product. Domed Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.

    Domed Head

    Rivet Tools
    Replacement
    Foot Pedals
    Replacement
    Mounting Brackets
    Air
    Inlet
    Max. Jaw
    Opening
    Max. Force,
    lbf
    Lg.
    Wt.,
    lb.
    Operating Air
    Pressure, psi
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Material
    Mounting Fasteners
    Included
    Includes
    Each
    Each
    Each
    1 1/2"6,00012"5.585 to 90Throttle1/4
    		FemaleYesSteelYesFoot Pedal
    Mounting Bracket    		8634N110000000008634N1400000008634N130000000
    Die Sets
    Image of Product. Flat Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Product. Domed Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Side1 orientation. For Round Domed Head. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Side1 orientation. For Universal Domed Head. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.

    Flat Head

    Domed Head

    For

    Round

    Domed

    Head

    For

    Universal

    Domed Head

    For 3/16"
    Long Rivets
    For 3/8"
    Long Rivets
    For 1/2"
    Long Rivets
    For 5/8"
    Long Rivets
    For Rivet Dia.
    Material
    Each
    Each
    Each
    Each
    Round Domed Head—AN430
    3/32"Steel93970A50800000093970A53200000093970A55600000093970A580000000
    1/8"Steel93970A6080000093970A6320000093970A6560000093970A68000000
    5/32"Steel93970A7080000093970A7320000093970A7560000093970A78000000
    3/16"Steel93970A8080000093970A8320000093970A8560000093970A88000000

    Universal Domed Head—AN470
    3/32"Steel93970A5160000093970A5400000093970A5640000093970A58800000
    1/8"Steel93970A6160000093970A6400000093970A6640000093970A68800000
    5/32"Steel93970A7160000093970A7400000093970A7640000093970A78800000
    3/16"Steel93970A8160000093970A8400000093970A8640000093970A88200000

    Flat Head—AN442
    3/32", 1/8", 5/32", 3/16"Steel93970A9240000093970A9480000093970A9720000093970A99600000

    2 1/4" Throat Depth
    Image of Product. Front orientation. Contains Annotated. Rivet Tools. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Front orientation. Rivet Tools. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets, 2 1/4" Throat Depth.

    Image of Product. Flat Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.

    Flat Head

    Image of Product. Domed Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.

    Domed Head

    Rivet Tools
    Replacement
    Foot Pedals
    Replacement
    Mounting Brackets
    Air
    Inlet
    Max. Jaw
    Opening
    Max. Force,
    lbf
    Lg.
    Wt.,
    lb.
    Operating Air
    Pressure, psi
    Speed
    Control
    Pipe
    Size
    Gender
    Air Hose
    Included
    Material
    Mounting Fasteners
    Included
    Includes
    Each
    Each
    Each
    1 7/8"4,60012 3/4"5.585 to 90Throttle1/4
    		FemaleNoSteelYesFoot Pedal
    Mounting Bracket    		8634N120000000008634N1400000008634N130000000
    Die Sets
    Image of Product. Flat Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Product. Domed Head. Front orientation. Rivet Tool Accessories and Replacement Parts. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Side1 orientation. For Round Domed Head. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.
    Image of Specification. Side1 orientation. For Universal Domed Head. Bench-Mount Air-Powered Squeeze Tools for Solid Rivets.

    Flat Head

    Domed Head

    For

    Round

    Domed

    Head

    For

    Universal

    Domed Head

    For 3/16"
    Long Rivets
    For 3/8"
    Long Rivets
    For 1/2"
    Long Rivets
    For 5/8"
    Long Rivets
    For Rivet Dia.
    Material
    Each
    Each
    Each
    Each
    Round Domed Head—AN430
    3/32"Steel93970A50800000093970A53200000093970A55600000093970A580000000
    1/8"Steel93970A6080000093970A6320000093970A6560000093970A68000000
    5/32"Steel93970A7080000093970A7320000093970A7560000093970A78000000
    3/16"Steel93970A8080000093970A8320000093970A8560000093970A88000000

    Universal Domed Head—AN470
    3/32"Steel93970A5160000093970A5400000093970A5640000093970A58800000
    1/8"Steel93970A6160000093970A6400000093970A6640000093970A68800000
    5/32"Steel93970A7160000093970A7400000093970A7640000093970A78800000
    3/16"Steel93970A8160000093970A8400000093970A8640000093970A88200000

    Flat Head—AN442
    3/32", 1/8", 5/32", 3/16"Steel93970A9240000093970A9480000093970A9720000093970A99600000


    Rivet Shavers

    Shaver Tools
    Image of Product. Front orientation. Rivet Tools. Rivet Shavers, Shaver Tools.
    Grind down the heads of installed rivets for a smooth, even surface. These shavers can be set in 0.001" increments for precise control over how much material you remove. They come with a stabilizer and a skirt for ½" rivet heads (additional sizes sold separately). The stabilizer has two arms that press against the surface of your material to steady the tool and keep you from grinding at an angle.
    Air Inlet
    For Rivet
    Head Dia.
    For Thread
    Size
    Lg. Adjustment
    Increments
    Operating
    Pressure, psi
    Speed
    Control
    Pipe
    Size
    Thread
    Type
    Gender
    Includes
    Each
    5/16" to 5/8"1/4"-28
    		0.001"90Trigger1/4
    		NPT
    		Female1/2" Skirt
    Stabilizer    		9100N110000000
    Shaver Bits
    Image of Product. Front orientation. Rivet Tools. Rivet Shavers, Shaver Bits.
    Choose a bit that matches the diameter of your rivet head.
    For Rivet
    Head Dia.
    Thread
    Size
    Material
    Each
    5/16"1/4"-28
    		Carbide9100N18000000
    3/8"1/4"-28
    		Carbide9100N1900000
    7/16"1/4"-28
    		Carbide9100N2100000
    1/2"1/4"-28
    		Carbide9100N2200000
    9/16"1/4"-28
    		Carbide9100N2300000
    5/8"1/4"-28
    		Carbide9100N2400000
    Skirts
    Image of Product. Front orientation. Rivet Tools. Rivet Shavers, Skirts.
    The skirt keeps the bit from damaging the material around the rivet.
    For Rivet
    Head Dia.
    Material
    Each
    5/16"Steel9100N12000000
    3/8"Steel9100N1300000
    7/16"Steel9100N1400000
    1/2"Steel9100N1500000
    9/16"Steel9100N1600000
    5/8"Steel9100N1700000

    Hole-Finding Drill Guides

    Image of ProductInUse. Locating Pin Down Shown in Use. Front orientation. Drill Bit Guides. Hole-Finding Drill Guides, Locating Pin Down.

    Locating Pin Down Shown in

    Use

    Image of Product. Front orientation. Drill Bit Guides. Hole-Finding Drill Guides, Locating Pin Down.

    Locating Pin Down

    Image of Product. Front orientation. Drill Bit Guides. Hole-Finding Drill Guides, Locating Pin Up.

    Locating Pin Up

    Drill a hole in sheet metal that aligns with an existing hole in another piece. These guides line up with the original hole so you know where to drill. Also known as strap duplicators.
    Locating Pin Down—The most common guides. Use these when sheet metal pieces aren’t attached or can be pried apart.
    Locating Pin Up—Use these guides when two panels are held tightly together and you can’t get beneath the sheet with a drill.
    Locating Pin
    Position
    No. of
    Guides
    For Drill Bit Size
    Lg.
    Wd.
    Material
    Each
    Down51/4", 10 Ga., 21 Ga., 30 Ga., 40 Ga.6"5/8"Steel9264N12000000
    Up51/4", 10 Ga., 21 Ga., 30 Ga., 40 Ga.6"5/8"Steel9264N1100000
    back to top
