    40 Products

    Step Blocks

    Image of ProductInUse. Front orientation. Support Blocks. Step Blocks.
    Image of Product. Front orientation. Contains Annotated. Support Blocks. Step Blocks.
    Use these blocks to support step setup clamps. Fit the nonslip steps together for quick height adjustments.
    Overall Height—Overall height applies when blocks are used as a pair.
    Step
    Overall Ht.
    Lg.
    Wd.
    Ht.
    Ht.
    Dp.
    Hole
    Dia.
    Material
    Pair
    3/4" to 1 5/8"1 1/16"1"11/16"1/8"1/16"Steel5002A600000
    1 1/8" to 2 1/2"1 39/64"1"1 1/16"1/8"1/16"Steel5002A200000
    1 3/4" to 4"2 17/32"1 1/2"1 43/64"1/8"1/16"Steel5002A700000
    1 3/4" to 4"2 17/32"2"1 43/64"1/8"1/16"Steel5002A1200000
    2 1/2" to 6"3 3/4"1"2 15/32"1/8"1/16"1"Steel5002A300000
    2 1/2" to 6"3 3/4"1 1/2"2 15/32"1/8"1/16"1"Steel5002A800000
    2 1/2" to 6"3 3/4"2"2 15/32"1/8"1/16"1"Steel5002A1300000
    3 1/2" to 9"5 21/64"1 1/2"3 7/16"1/8"1/16"1 5/8"Steel5002A1100000
    3 1/2" to 9"5 21/64"2"3 7/16"1/8"1/16"1 5/8"Steel5002A1400000
    4 7/8" to 10 1/2"7 3/16"2"4 5/8"1/8"1/16"Steel5002A15000000

    Step Block Sets

    Image of ProductInUse. Single Pair Shown In Use. Front orientation. Support Blocks. Step Block Sets.
    Image of Product. Set. Front orientation. Support Blocks. Step Block Sets.
    Image of Attribute. Single Pair Shown. Front orientation. Contains Annotated. Support Blocks. Step Block Sets.

    Single Pair Shown In Use

    Set

    Single Pair Shown

    Keep a variety of step blocks on hand to make quick height adjustments to your setups. Use the nonslip steps to support a step setup clamp, or fit two blocks together and secure a clamp on top. Blocks are steel, so they’ll hold up under heavy clamping and resist wear over time.
    Overall height applies when blocks are used as a pair.
    Step
    No. of
    Pairs
    Includes
    Lg.
    Wd.
    Ht.
    Dp.
    Hole Dia.
    Material
    Container
    Type
    Each
    10Four Pairs of 1 1/16" Lg. × 1 1/16" Ht. Step Blocks—3/4"-1 5/8" Overall Ht.
    Four Pairs of 1 39/64" Lg. × 11/16" Ht. Step Blocks—1 1/8"-2 1/2" Overall Ht.
    Two Pairs of 3 3/4" Lg. × 2 15/32" Ht. Step Blocks—2 1/2"-6" Overall Ht.
    1 1/16" to 3 3/4"1"1/8"1/16"1"SteelMetal Tray7949N11000000
    10Four Pairs of 2 17/32" Lg. × 1 43/64" Ht. Step Blocks—1 3/4"-4" Overall Ht.
    Four Pairs of 3 3/4" Lg. × 3 7/16" Ht. Step Blocks—2 1/2"-6" Overall Ht.
    Two Pairs of 5 21/64" Lg. × 2 15/32" Ht. Step Blocks—3 1/2"-9" Overall Ht.
    2 17/32" to 5 21/64"1 1/2"1/8"1/16"1", 1 5/8"SteelMetal Tray7949N12000000
    10Four Pairs of 2 17/32" Lg. × 1 43/64" Ht. Step Blocks—1 3/4"-4" Overall Ht.
    Four Pairs of 3 3/4" Lg. × 3 7/16" Ht. Step Blocks—2 1/2"-6" Overall Ht.
    Two Pairs of 5 21/64" Lg. × 2 15/32" Ht. Step Blocks—3 1/2"-9" Overall Ht.
    2 17/32" to 5 21/64"2"1/8"1/16"1"SteelMetal Tray7949N13000000

    Setup Clamp and T-Slot Fastener Kits

    Image of Product. Metal Wall-Mount Rack. Front orientation. Fixture Kits. Setup Clamp and T-Slot Fastener Kits, Metal Wall-Mount Rack.
    Image of Product. Wood Stand and Metal Tray. Front orientation. Fixture Kits. Setup Clamp and T-Slot Fastener Kits, Metal Tray.

    Metal Wall-Mount Rack

    Wood Stand and Metal Tray

    Get everything needed for basic workholding on a machine table. Select a kit that matches your table's slot width. Each kit includes studs, setup clamps, step blocks, T-slot nuts, flange nuts, coupling nuts, and a T-slot cleaning tool.
    Step
    Block
    For Slot
    Wd.
    No. of
    Pieces
    Includes
    Ht. Range
    Wd.
    T-Slot Nut
    Base Wd.
    Material
    Container Type
    Each
    5/16"-18
    3/8"494 T-Slot Nuts
    4 Flange Nuts
    4 Coupling Nuts
    3 Step Block Pairs
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"5/8"SteelWood Stand, Metal Tray8957A190000000

    3/8"-16
    7/16"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"11/16"SteelMetal Wall-Mount Rack8957A83000000
    1/2"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"7/8"SteelMetal Wall-Mount Rack8957A41000000
    9/16"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"7/8"SteelMetal Wall-Mount Rack8957A74000000

    1/2"-13
    9/16"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"7/8"SteelMetal Wall-Mount Rack8957A42000000
    5/8"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"1"SteelMetal Wall-Mount Rack8957A43000000
    11/16"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"1 1/8"SteelMetal Wall-Mount Rack8957A44000000

    5/8"-11
    11/16"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"1 1/8"SteelMetal Wall-Mount Rack8957A45000000
    3/4"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"1 1/4"SteelMetal Wall-Mount Rack8957A46000000
    13/16"534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    3/4" to 6"1"1 1/4"SteelMetal Wall-Mount Rack8957A75000000

    3/4"-10
    13/16"494 T-Slot Nuts
    4 Flange Nuts
    4 Coupling Nuts
    3 Step Block Pairs
    6 Step Setup Clamps (2 each in 4", 6", and 8" lengths)
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    1 3/4" to 9"1 1/2"1 1/4"SteelWood Stand, Metal Tray8957A2000000
    7/8"494 T-Slot Nuts
    4 Flange Nuts
    4 Coupling Nuts
    3 Step Block Pairs
    6 Step Setup Clamps (2 each in 4", 6", and 8" lengths)
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    1 3/4" to 9"1 1/2"1 1/2"SteelWood Stand, Metal Tray8957A22000000
    1"494 T-Slot Nuts
    4 Flange Nuts
    4 Coupling Nuts
    3 Step Block Pairs
    6 Step Setup Clamps (2 each in 4", 6", and 8" lengths)
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    1 3/4" to 9"1 1/2"1 5/8"SteelWood Stand, Metal Tray8957A76000000
    1 1/16"494 T-Slot Nuts
    4 Flange Nuts
    4 Coupling Nuts
    3 Step Block Pairs
    6 Step Setup Clamps (2 each in 4", 6", and 8" lengths)
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    T-Slot Cleaner
    1 3/4" to 9"1 1/2"1 5/8"SteelWood Stand, Metal Tray8957A77000000

    M8 × 1.25 mm
    10 mm494 T-Slot Nuts
    4 Flange Nuts
    4 Coupling Nuts
    3 Step Block Pairs
    6 Step Setup Clamps (2 each in 64 mm, 102 mm, and 152 mm lengths)
    24 Studs (4 each in 80 mm, 110 mm, 125 mm, 150 mm, 175 mm, and 200 mm lengths)
    T-Slot Cleaner
    19 mm to 152 mm25 mm16 mmSteelWood Stand, Metal Tray8957A78000000

    M10 × 1.5 mm
    12 mm534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 64 mm, 102 mm, and 152 mm lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 80 mm, 110 mm, 125 mm, 150 mm, 175 mm, and 200 mm lengths)
    T-Slot Cleaner
    19 mm to 152 mm25 mm19 mmSteelMetal Wall-Mount Rack8957A71000000
    14 mm534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 64 mm, 102 mm, and 152 mm lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 80 mm, 110 mm, 125 mm, 150 mm, 175 mm, and 200 mm lengths)
    T-Slot Cleaner
    19 mm to 152 mm25 mm22 mmSteelMetal Wall-Mount Rack8957A79000000

    M12 × 1.75 mm
    14 mm534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 64 mm, 102 mm, and 152 mm lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 80 mm, 110 mm, 125 mm, 150 mm, 175 mm, and 200 mm lengths)
    T-Slot Cleaner
    19 mm to 152 mm25 mm22 mmSteelMetal Wall-Mount Rack8957A72000000
    16 mm534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 64 mm, 102 mm, and 152 mm lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 80 mm, 110 mm, 125 mm, 150 mm, 175 mm, and 200 mm lengths)
    T-Slot Cleaner
    19 mm to 152 mm25 mm25 mmSteelMetal Wall-Mount Rack8957A81000000

    M16 × 2 mm
    18 mm534 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 64 mm, 102 mm, and 152 mm lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 80 mm, 110 mm, 150 mm, 175 mm, 200 mm, and 250 mm lengths)
    T-Slot Cleaner
    19 mm to 152 mm25 mm29 mmSteelMetal Wall-Mount Rack8957A82000000


    Light Duty Fixture Clamp Kits

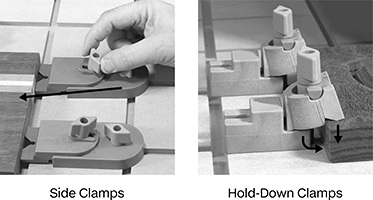

    Image of ProductInUse. Front orientation. Contains Annotated, MultipleImages. Fixture Clamps. Light Duty Fixture Clamp Kits.

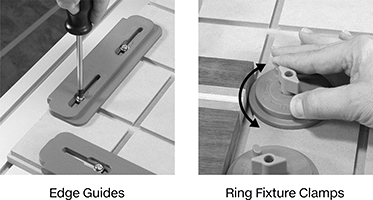

    Image of ProductInUse. Front orientation. Contains Annotated, MultipleImages. Fixture Clamps. Light Duty Fixture Clamp Kits.
    Image of Product. Front orientation. Fixture Clamps. Light Duty Fixture Clamp Kits.
    Made of plastic, the clamps in these kits are used for woodworking and other machining jobs that don’t need high clamping pressure. Each kit comes with edge guides and three different types of clamps, so you can secure workpieces of all shapes and sizes. Edge guides are often used as a frame to consistently position multiple workpieces for repeat jobs. Ring fixture clamps tighten with a twist—they press into the side of your workpiece to hold it in place. Side clamps apply force both inward and downward without blocking the top of your workpiece. Hold-down clamps grip the top and side of your workpiece for the most secure hold.
    No. of
    Pieces
    Includes
    Material
    Mounting Screw
    Thread Size
    Each
    123 Edge Guides
    2 Ring Fixture Clamps
    2 Side Clamps
    4 Hold-Down Clamps
    Nylon Mounting Hardware
    Plastic1/4"-20
    9896N110000000

    Slotted Support Blocks

    Image of ProductInUse. Front orientation. Support Blocks. Slotted Support Blocks.
    Image of Product. Front orientation. Support Blocks. Slotted Support Blocks.
    Position T-slot side clamps at any angle you need to hold workpieces. These support blocks have a threaded hole at the top to attach your clamp. Slide a T-slot fastener through the slotted portion to hold the support block and clamp in place on your worktable. Then tighten the clamp to secure your workpiece.
    Slot Wd.
    For Screw
    Size
    Lg.
    Wd.
    Ht.
    Edge-to-Slot
    Lg.
    Material
    Each
    3/8", 9 mmM8
    3 15/16", 100 mm1 3/16", 30 mm9/16", 15 mm1 7/16", 37 mmSteel9942N1210000000
    1/2", 13 mmM12
    4 3/4", 120 mm1 9/16", 40 mm13/16", 20 mm1 7/8", 48 mmSteel9942N122000000
    11/16", 17 mmM16
    5 1/2", 140 mm2 3/8", 60 mm1 3/16", 30 mm2 3/8", 60 mmSteel9942N123000000

    Economy Setup Clamp and T-Slot Fastener Kits

    Image of Product. Front orientation. Fixture Kits. Economy Setup Clamp and T-Slot Fastener Kits.
    Good for occasional machining, economy kits contain lower-strength components than standard kits. Select a kit that matches your table's slot width. Kits include studs, setup clamps, step blocks, T-slot nuts, flange nuts, and coupling nuts.
    Step
    Block
    For Slot
    Wd.
    No. of
    Pieces
    Includes
    Ht. Range
    Wd.
    T-Slot Nut
    Base Wd.
    Material
    Container Type
    Each
    1/2"-13
    5/8"524 Coupling Nuts
    3 Step Block Pairs
    6 Flange Nuts
    6 Step Setup Clamps (2 each in 2 1/2", 4", and 6" lengths)
    6 T-Slot Nuts
    24 Studs (4 each in 3", 4", 5", 6", 7", and 8" lengths)
    3/4" to 6"1"1"SteelPlastic Wall-Mount Rack31255A890000000


    Setup and Fixture Clamp Kits for Welding

    Image of ProductInUse. Front orientation. Fixture Kits. Setup and Fixture Clamp Kits for Welding.
    Image of Product. 66-Piece Kit. Front orientation. Fixture Kits. Setup and Fixture Clamp Kits for Welding.
    Image of Product. 65-Piece Kit with Metal Tray. Front orientation. Fixture Kits. Setup and Fixture Clamp Kits for Welding, Metal Tray.

    66-Piece Kit

    65-Piece Kit with Metal Tray

    Hold and position workpieces on your welding fixture table. These kits include all the clamps, locating pins, and other components you need for most welding setups.
    For Hole
    Dia.
    No. of
    Pieces
    Includes
    Material
    Container
    Type
    Each
    5/8"662 Hold-Down Clamps with 6-1/2" Maximum Clamping Clearance
    4 Locking Plier Clamps (2 each with 2 1/4" and 3 1/4" Reach)
    2 Side Clamps
    2 Locating Pins
    10 Ball-Lock Screws
    8 V-Blocks
    2 Magnetic Top V-Pads
    8 Straightedge Stops
    8 Flat Rests
    4 Risers
    12 Magnetic Risers
    4 Right-Angle Brackets
    Steel8536N120000000
    16 mm654 Setup Blocks with 6 Holes
    4 Hold-Down Clamps with 6-1/2" Maximum Clamping Clearance
    4 Locking Plier Clamps with 2-1/4" Reach
    30 Locating Pins
    6 Ball-Lock Screws
    12 Shims for Ball-Lock Screws
    1 Set of MIG Welding Pliers
    3 Right-Angle Brackets
    1 Quick-Set Angle Fence
    SteelMetal Tray8536N1100000000

    back to top
