    20 Products

    Steel Spill-Control Pallets

    Image of Product. Front orientation. Pallets. Steel Spill-Control Pallets, Style A.
    Image of Product. Front orientation. Pallets. Steel Spill-Control Pallets, Style B.

    Style A

    Style B

    Image of Product. Ramps (Sold Separately). Front orientation. Ramps. Steel Spill-Control Pallets, Style B.

    Ramps (Sold Separately)

    A heavy duty solution for safely containing liquids. Made of 12 gauge steel, these pallets won’t crack if they’re hit and won't melt if there's a fire. All meet EPA regulations for storing hazardous liquids. However, they might corrode if exposed to chemicals. Remove the grating for easy cleaning.
    When choosing a pallet, consider the surface area and capacity you need. For number of 55-gallon drums gives you a sense of the surface area of your pallet, while capacity tells you how much liquid it can hold. For your system to meet EPA 40 CFR 264.175, the pallet must hold either 10% of the total capacity of your shipment or the full capacity of the largest container—whichever is greater.
    Style B—Style B pallets don’t nest, so you can access the forklift entry points even when they’re stacked.
    Ramps—Add a ramp to wheel drums onto your pallet with a hand truck.
    Pallets
    Ramps
    Usable
    Grating
    Max.
    Fork
    Style
    For No. of
    55 gal. Drums
    Cap.,
    gal.
    Wt. Cap.,
    lb.
    Lg.
    Wd.
    Ht.
    Lg.
    Wd.
    Wt.,
    lb.
    Color
    Material
    Color
    No. of Entry Points
    for Forklifts
    Wd.
    Ht.
    With
    Drain
    Space Saving
    Features
    Each
    Wt. Cap.,
    lb.
    Each
    Powder-Coated Steel—EPA Compliant 40 CFR 264.175
    A1653,00032"26"18 1/2"31"25"123GrayPainted SteelBlack———NoStackable19805T140000000————0
    A4656,00051"51"6 1/2"50 1/2"49"173GrayPainted SteelBlack———NoStackable19805T90000001,50019805T130000000
    B1653,00032"26"22 1/2"31"25"139GrayPainted SteelBlack430"4"NoStackable19805T15000000————0
    B2652,00051"26"16"50 1/2"24"171GrayPainted SteelBlack418"4"NoStackable19805T1000000————0
    B4654,00051"51"10 1/2"50 1/2"49"259GrayPainted SteelBlack435"4"NoStackable19805T3000000001,50019805T12000000


    Plastic Spill-Control Pallets

    Image of Product. Front orientation. Pallets. Plastic Spill-Control Pallets, Style C.
    Image of Product. Ramp For Style C. Front orientation. Ramps. Plastic Spill-Control Pallets, Style C.

    Style C

    Ramp For Style C

    When spills happen, these pallets contain the mess. They’re made of polyethylene, so they won’t degrade from most chemicals. They also meet EPA standards for liquid storage. To minimize potential leak points, these pallets are built without a drain. You’ll need to pump or clean out liquids after a spill—remove the grating to access the interior.
    When choosing a pallet, consider the surface area and capacity you need. For number of 55-gallon drums gives you a sense of the surface area of your pallet, while capacity tells you how much liquid it can hold. When used correctly, these pallets meet EPA 40 CFR 264.175. Choose a pallet that’s large enough to hold either 10% of the total capacity of all the containers on it or the full capacity of the largest container—whichever is greater.
    Polyethylene—Polyethylene pallets last longer than recycled polyethylene pallets.
    Nestable—Nestable pallets fit within each other like cups to save you space.
    Stackable—Stackable pallets sit flush when stacked, so you can access entry points with your forks.
    Ramps—Add a ramp to wheel drums onto your pallet with a hand truck.
    Pallets
    Ramps
    Usable
    Max.
    Fork
    Style
    For No. of
    55 gal. Drums
    Cap.,
    gal.
    Wt. Cap.,
    lb.
    Lg.
    Wd.
    Ht.
    Lg.
    Wd.
    Wt.,
    lb.
    Color
    No. of Entry Points
    for Forklifts
    Wd.
    Ht.
    With
    Drain
    Space Saving
    Features
    Each
    Wt. Cap.,
    lb.
    Each
    Polyethylene—EPA Compliant 40 CFR 264.175
    C2653,00053"29"16 1/2"48"24"63Orange210 3/4"4"NoStackable12635T330000000————0
    C4653,00098 1/4"25 1/4"11 1/2"96"23"79Yellow29"3"NoNestable, Stackable12635T93000000————0
    C4656,00053"53"11 3/4"48"48"90Orange414 3/4"4"NoStackable12635T3600000070012635T610000000

    Recycled Polyethylene—EPA Compliant 40 CFR 264.175
    C2651,20053"29"16 1/2"48"24"63Black210 1/2"4"NoStackable12635T92000000————0
    C4653,00053"53"11 3/4"48"48"85Black414 1/2"4"NoStackable12635T8200000070012635T61000000


    Salvage/Overpack Drums

    Use these drums for secondary containment or for temporarily storing and transporting leaking containers. All drums are UN-compliant for shipping.
    Polyethylene
    Image of Product. Front orientation. Drums. Salvage/Overpack Drums, Polyethylene.
    For Drum
    Cap., gal.
    Cap.,
    gal.
    Wt. Cap.,
    lb.
    Dia.
    Ht.
    Bottom
    ID
    Inside
    Ht.
    Thk.
    Color
    Lid
    Color
    Seal
    Material
    Max.
    Temp.
    Space Saving
    Features
    Shipping
    Std.
    Each
    306542527 3/4"37 1/2"21 1/2"34 1/4"1/4"YellowYellowNeoprene
    		Not RatedNestable, StackableUN1H2/X200/S4059T350000000


    Pallet Rack Basins

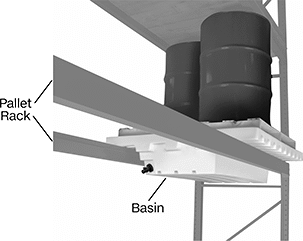

    Image of ProductInUse. Front orientation. Contains Annotated. Pallet Rack Basins.
    Image of Product. Front orientation. Pallet Rack Basins. Without Drain.

    Without Drain

    Image of Product. Front orientation. Pallet Rack Basins. With Drain.

    With Drain

    Store hazardous liquids up and out of the way. These basins can be placed directly on the beams of a pallet rack, helping you maximize floor space. Simply set your pallet on top to create a spill-control system. Made of polyethylene, they won’t degrade from most chemicals, including acids. To be EPA compliant 40 CFR 264.175, the basin must hold either 10% of the total capacity of all the containers on it or the full capacity of the largest container—whichever is greater.
    You can use a forklift to place these basins on your pallet rack. Your pallet sits flush on top, so its fork entry points stay accessible.
    Without Drain—Basins without a drain have fewer possible leak points than those with one.
    With Drain—Basins with a drain are easy to clean after a spill. Just hook up a 3/4 garden hose to drain liquid away—no need to lift the basin or pump liquid out from the top.
    Usable
    Without Drain
    With Drain
    For Rack
    Dp.
    For No. of
    55 gal. Drums
    Cap.,
    gal.
    Lg.
    Wd.
    Ht.
    Rack Decking
    Req.
    Lg.
    Wd.
    Wt.,
    lb.
    Color
    Space Saving
    Features
    Each
    Each
    Polyethylene—EPA Compliant 40 CFR 264.175
    36" to 48"46551 1/2"51 1/2"12"No49"49"50YellowNestable7873N1200000007873N110000000


    Plastic Spill-Control Pallets with Drain

    Image of Product. Front orientation. Pallets. Plastic Spill-Control Pallets with Drain, Style B.

    Style B

    Image of Attribute. Ramp For Style B. Front orientation. Ramps. Plastic Spill-Control Pallets with Drain, Style B.

    Ramp For Style B

    Speed up cleaning after a spill—these pallets have a built-in drain, so you can empty liquid without removing containers or grates. For even deeper cleaning, the grating can be removed. Made of polyethylene, these pallets won’t degrade from most chemicals, including acids. All meet EPA storage standards by containing leaks from hazardous liquids.
    When choosing a pallet, consider the surface area and capacity you need. For number of 55-gallon drums gives you a sense of the surface area of your pallet, while capacity tells you how much liquid it can hold. When used correctly, these pallets meet EPA 40 CFR 264.175. Choose a pallet that’s large enough to hold either 10% of the total capacity of all the containers on it or the full capacity of the largest container—whichever is greater.
    Polyethylene—Polyethylene pallets last longer than recycled polyethylene pallets.
    Stackable—Stackable pallets sit flush when stacked, so you can access entry points with your forks.
    Ramps—Add a ramp to wheel drums onto your pallet with a hand truck.
    Pallets
    Ramps
    Usable
    Max.
    Fork
    Style
    For No. of
    55 gal. Drums
    Cap.,
    gal.
    Wt. Cap.,
    lb.
    Lg.
    Wd.
    Ht.
    Lg.
    Wd.
    Wt.,
    lb.
    Color
    No. of Entry Points
    for Forklifts
    Wd.
    Ht.
    Space Saving
    Features
    Each
    Wt. Cap.,
    lb.
    Each
    Polyethylene—EPA Compliant 40 CFR 264.175
    B2653,00053"29"16 1/2"48"24"63Orange210 3/4"4"Stackable8350N120000000————0
    B4656,00053"53"11 3/4"48"48"90Orange414 3/4"4"Stackable8350N1300000070012635T610000000

    Recycled Polyethylene—EPA Compliant 40 CFR 264.175
    B2651,20053"29"16 1/2"48"24"63Black210 1/2"4"Stackable8350N15000000————0
    B4653,00053"53"11 3/4"48"48"85Black414 1/2"4"Stackable8350N1600000070012635T61000000
