106 Products

One-Time-Use Multiple-Point Temperature-Indicating Labels


Horizontal Orientation 4 Temperature Points	Horizontal Orientation 6 Temperature Points	Vertical Orientation, 5 Temperature Points	Vertical Orientation, 8 Temperature Points

Vertical Orientation, 9 Temperature Points	Vertical Orientation, 10 Temperature Points	Circular Orientation 5 Temperature Points

Record incremental surface-temperature changes. The windows on these labels permanently turn black when the temperature reaches each temperature point. Labels are self-adhesive.

Store in a cool, dry place below 64° F with less than 50% humidity.

									Pkg.
	Temp. Point, ° F	Temp. Point, ° C	Accuracy	Dia.	Ht.	Wd.	Pkg. Qty.		1-9	10-Up
Horizontal Orientation







				4 Temperature Points

				100, 125, 150, 175	38, 52, 66, 79	±3%/±3%	—	7/8"	1 3/4"	5	5951K41	000000	000000


				100, 150, 200, 250	38, 66, 93, 121	±3%/±3%	—	7/8"	1 3/4"	5	5951K51	00000	00000
				100, 110, 120, 130	38, 43, 49, 54	±3%/±3%	—	7/8"	1 3/4"	10	5951K53	00000	00000
				120, 130, 140, 150	49, 54, 60, 66	±3%/±3%	—	7/8"	1 3/4"	10	5951K54	00000	00000
				125, 150, 175, 200	52, 66, 79, 93	±3%/±3%	—	7/8"	1 3/4"	5	5951K42	00000	00000
				130, 140, 150, 160	54, 60, 66, 71	±3%/±3%	—	7/8"	1 3/4"	10	5951K55	00000	00000
				140, 150, 160, 170	60, 66, 71, 77	±3%/±3%	—	7/8"	1 3/4"	5	5951K25	00000	00000
				150, 160, 170, 180	66, 71, 77, 82	±3%/±3%	—	7/8"	1 3/4"	5	5951K26	00000	00000
				150, 175, 200, 225	66, 79, 93, 107	±3%/±3%	—	7/8"	1 3/4"	5	5951K43	00000	00000
				150, 200, 250, 300	66, 93, 121, 149	±3%/±3%	—	7/8"	1 3/4"	5	5951K52	00000	00000
				160, 170, 180, 190	71, 77, 82, 88	±3%/±3%	—	7/8"	1 3/4"	5	5951K27	00000	00000


				170, 180, 190, 200	77, 82, 88, 93	±3%/±3%	—	7/8"	1 3/4"	5	5951K28	00000	00000
				175, 200, 225, 250	79, 93, 107, 121	±3%/±3%	—	7/8"	1 3/4"	5	5951K44	00000	00000
				180, 190, 200, 210	82, 88, 93, 99	±3%/±3%	—	7/8"	1 3/4"	5	5951K29	00000	00000
				190, 200, 210, 220	88, 93, 99, 104	±3%/±3%	—	7/8"	1 3/4"	5	5951K31	00000	00000
				200, 210, 220, 230	93, 99, 104, 110	±3%/±3%	—	7/8"	1 3/4"	5	5951K32	00000	00000
				200, 225, 250, 275	93, 107, 121, 135	±3%/±3%	—	7/8"	1 3/4"	5	5951K45	00000	00000
				200, 250, 300, 350	93, 121, 149, 177	±3%/±3%	—	15/16"	1 3/4"	10	5951K62	00000	00000
				220, 230, 240, 250	104, 110, 116, 121	±3%/±3%	—	7/8"	1 3/4"	5	5951K34	00000	00000
				225, 250, 275, 300	107, 121, 135, 149	±3%/±3%	—	7/8"	1 3/4"	5	5951K46	00000	00000
				261, 270, 280, 289	127, 132, 138, 143	±3%/±3%	—	7/8"	1 3/4"	10	5951K63	00000	00000


				270, 280, 290, 300	132, 138, 143, 149	±3%/±3%	—	7/8"	1 3/4"	5	5951K39	00000	00000
				300, 309, 320, 331	149, 154, 160, 166	±3%/±3%	—	7/8"	1 3/4"	10	5951K64	00000	00000
				330, 340, 350, 360	166, 171, 177, 182	±3%/±3%	—	15/16"	1 3/4"	10	5951K61	00000	00000




						6 Temperature Points

						111, 115, 120, 129, 140, 144	44, 46, 49, 54, 60, 62	±3%/±3%	—	7/16"	1 1/4"	10	5950K21	00000	00000


						149, 160, 171, 180, 190, 199	65, 71, 77, 82, 88, 93	±3%/±3%	—	7/16"	1 1/4"	5	5950K32	00000	0000
						210, 219, 230, 241, 250, 261	99, 104, 110, 116, 121, 127	±3%/±3%	—	7/16"	1 1/4"	5	5950K34	00000	0000
						270, 280, 289, 300, 309, 320	132, 138, 143, 149, 154, 160	±3%/±3%	—	7/16"	1 1/4"	5	5950K35	00000	0000
						331, 340, 351, 360, 370, 379	166, 171, 177, 182, 188, 193	±3%/±3%	—	7/16"	1 1/4"	5	5950K37	00000	0000
						390, 399, 410, 421, 435, 450	199, 204, 210, 216, 224, 232	±3%/±3%	—	7/16"	1 1/4"	5	5950K38	00000	0000
						466, 480, 489, 500, 536, 554	241, 249, 254, 260, 280, 290	±3%/±3%	—	7/16"	1 1/4"	5	5950K31	00000	0000


						Vertical Orientation







5 Temperature Points

99, 104, 109, 115, 120	37, 40, 43, 46, 49									±3%/±3%	—	1 1/2"	11/16"	10	5948K41	00000	00000


120, 129, 140, 149, 160	49, 54, 60, 65, 71									±3%/±3%	—	1 1/2"	11/16"	10	5948K42	00000	00000
171, 180, 190, 199, 210	77, 82, 88, 93, 99	±3%/±3%								—	1 1/2"	11/16"	10	5948K23	00000	00000
219, 230, 241, 250, 261	104, 110, 116, 121, 127	±3%/±3%	—							1 1/2"	11/16"	10	5948K24	00000	00000
270, 280, 289, 300, 309	132, 138, 143, 149, 154	±3%/±3%	—							1 1/2"	11/16"	10	5948K25	00000	00000
320, 331, 340, 351, 360	160, 166, 171, 177, 182	±3%/±3%	—							1 1/2"	11/16"	10	5948K26	00000	00000
370, 379, 390, 399, 410	188, 193, 199, 204, 210	±3%/±3%	—							1 1/2"	11/16"	10	5948K27	00000	00000
421, 435, 450, 466, 480	216, 224, 232, 241, 249	±3%/±3%	—							1 1/2"	11/16"	10	5948K28	00000	00000
480, 489, 500, 536, 554	249, 254, 260, 280, 290	±3%/±3%	—							1 1/2"	11/16"	10	5948K43	00000	00000




		8 Temperature Points

		99, 104, 109, 115, 120, 129, 140, 149	37, 40, 43, 46, 49, 54, 60, 65							±3%/±3%	—	2"	11/16"	10	5956K31	00000	00000


		160, 171, 180, 190, 199, 210, 219, 230	71, 77, 82, 88, 93, 99, 104, 110							±3%/±3%	—	2"	11/16"	5	5956K16	00000	00000
		241, 250, 261, 270, 280, 289, 300, 309	116, 121, 127, 132, 138, 143, 149, 154							±3%/±3%	—	2"	11/16"	5	5956K17	00000	00000
		320, 331, 340, 351, 360, 370, 379, 390	160, 166, 171, 177, 182, 188, 193, 199							±3%/±3%	—	2"	11/16"	5	5956K18	00000	00000




										9 Temperature Points

										399, 410, 421, 435, 450, 466, 480, 489, 500	204, 210, 216, 224, 232, 241, 249, 254, 260	±3%/±3%	—	2"	11/16"	5	5956K19	00000	00000




												10 Temperature Points

												99, 104, 111, 115, 120, 129, 140, 144, 149, 160	37, 40, 44, 46, 49, 54, 60, 62, 65, 71	±3%/±3%	—	2"	11/16"	10	5957K71	00000	00000


												171, 180, 190, 199, 210, 219, 230, 241, 250, 261	77, 82, 88, 93, 99, 104, 110, 116, 121, 127	±3%/±3%	—	2"	11/16"	5	5957K63	00000	00000
												270, 280, 289, 300, 309, 320, 331, 340, 351, 360	132, 138, 143, 149, 154, 160, 166, 171, 177, 182	±3%/±3%	—	2"	11/16"	5	5957K64	00000	00000
				370, 379, 390, 399, 410, 421, 435, 450, 466, 480								188, 193, 199, 204, 210, 216, 224, 232, 241, 249	±3%/±3%	—	2"	11/16"	5	5957K65	00000	00000


				Circular Orientation







														5 Temperature Points

														105, 110, 115, 120, 130	40, 43, 46, 49, 54	±3%/±3%	9/16"	—	—	5	9246T11	00000	0000


														140, 150, 160, 170, 180	60, 65, 71, 77, 82	±3%/±3%	9/16"	—	—	5	9246T13	00000	0000
						190, 200, 210, 220, 230								88, 93, 99, 104, 110	±3%/±3%	9/16"	—	—	5	9246T15	00000	0000
						240, 250, 260, 270, 280	116, 121, 127, 132, 138							±3%/±3%	9/16"	—	—	5	9246T17	00000	0000
						290, 300, 310, 320, 330	143, 149, 154, 160, 166							±3%/±3%	9/16"	—	—	5	9246T21	00000	0000
						340, 350, 360, 370, 380	171, 177, 182, 188, 193							±3%/±3%	9/16"	—	—	5	9246T23	00000	0000
						390, 400, 410, 420, 435	199, 204, 210, 216, 224							±3%/±3%	9/16"	—	—	5	9246T25	00000	0000
						450, 465, 480, 490, 500	232, 241, 249, 254, 260	±3%/±3%						9/16"	—	—	5	9246T27	00000	0000

Temperature-Indicating Labels


Horizontal Orientation	Vertical Orientation

Continuously monitor surface-temperature changes. The temperature windows instantly turn from black to green when surface temperature reaches the temperature points. They return to black when the surface cools. Labels are self-adhesive.

Store in a cool, dry place below 64° F with less than 50% humidity.

									Pkg.
	Temp. Point, ° F	Temp. Point, ° C	Graduations, ° F	Accuracy	Ht.	Wd.	Pkg. Qty.		1-9	10-Up
Horizontal Orientation







				7 Temperature Points

				-22, -13, -4, 5, 14, 23, 32	-30, -25, -20, -15, -10, -5, 0	9	±1.8° F/±1° C	1/2"	1 3/4"	10	59535K11	000000	00000


				32, 41, 50, 59, 68, 77, 86	0, 5, 10, 15, 20, 25, 30	9	±1.8° F/±1° C	1/2"	1 3/4"	10	59535K12	00000	0000
				86, 95, 104, 113, 122, 131, 140	30, 35, 40, 45, 50, 55, 60	9	±3.6° F/±2° C	1/2"	1 3/4"	10	59535K13	00000	0000
				140, 149, 158, 167, 176, 185, 194	60, 65, 70, 75, 80, 85, 90	9	±3.6° F/±2° C	1/2"	1 3/4"	10	59535K14	00000	0000
				194, 203, 212, 221, 230, 239, 248	90, 95, 100, 105, 110, 115, 120	9	±5.4° F/±3° C	1/2"	1 3/4"	10	59535K15	00000	0000


				Vertical Orientation







								16 Temperature Points

								26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56	-3, -2, -1, 0, 1, 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13	2	±1.8° F/±1° C	5"	1/2"	10	59485K21	00000	00000


								58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84, 86, 88	14, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 29, 30, 31	2	±1.8° F/±1° C	5"	1/2"	10	59485K22	00000	00000
								77, 86, 95, 104, 113, 122, 131, 140, 149, 158, 167, 176, 185, 194, 203, 212	25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100	9	±3.6° F/±2° C	5"	1/2"	10	59485K26	00000	00000
								90, 92, 94, 96, 98, 100, 102, 104, 106, 108, 110, 112, 114, 116, 118, 120	32, 33, 34, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49	2	±1.8° F/±1° C	5"	1/2"	10	59485K23	00000	00000
								122, 124, 126, 128, 130, 132, 134, 136, 138, 140, 142, 144, 146, 148, 150, 152	50, 51, 52, 53, 54, 56, 57, 58, 59, 60, 61, 62, 63, 64, 66, 67	2	±3.6° F/±2° C	5"	1/2"	10	59485K24	00000	00000
								154, 156, 158, 160, 162, 164, 166, 168, 170, 172, 174, 176, 178, 180, 182, 184	68, 69, 70, 71, 72, 73, 74, 76, 77, 78, 79, 80, 81, 82, 83, 84	2	±3.6° F/±2° C	5"	1/2"	10	59485K25	00000	00000

One-Time-Use Single-Point Temperature-Indicating Labels


	Multiple Exposure-Duration Thresholds

See at a glance whether inventory has been exposed to high temperatures during shipping and storage. These labels are self-adhesive.

Labels without multiple exposure-duration thresholds have one window that turns black permanently when your surface heats to the temperature point. Store in a cool, dry place below 64° F with less than 50% humidity.

Labels with multiple exposure-duration thresholds have three windows that turn red permanently when your surface heats to the temperature point for brief, moderate, and prolonged periods of time. They won’t begin to monitor temperature changes until you pull their activation tab. Before activating, place them in an environment at least 9° F (5° C) below their temperature point for 30 minutes.

							Exposure Time						Pkg.
	Temp. Point, ° F	Temp. Point, ° C	Accuracy	Ht.	Wd.	No. of Labels per Sheet	Brief	Moderate, hr.	Prolonged, hr.	Activation Method	Pkg. Qty.		1-9	10-Up
Vertical Orientation



		100	38	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K241	000000	000000


		110	43	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K242	00000	00000
		120	48	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K243	00000	00000
		130	54	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K214	00000	00000
		140	60	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K215	00000	00000
		160	71	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K217	00000	00000
		180	82	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K219	00000	00000
		190	88	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K221	00000	00000
		200	93	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K222	00000	00000
		210	99	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K223	00000	00000
		220	104	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K224	00000	00000


		230	110	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K225	00000	00000
		240	116	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K226	00000	00000
		250	121	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K227	00000	00000
		260	127	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K228	00000	00000
		270	132	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K229	00000	00000
		280	138	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K231	00000	00000
		290	143	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K232	00000	00000
		300	149	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K234	00000	00000
		400	204	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K238	00000	00000
		500	260	±2%	1/2"	1/2"	21	—	—	—	—	—	5952K239	00000	00000


		Vertical Orientation with Multiple Exposure-Duration Thresholds



				0	-18	±2° F, ±1° C	1 3/4"	3/4"	1	1 hr.	3	12	Pull-Tab, Temperature	10	5952K11	00000	00000


				32	0	±2° F, ±1° C	1 3/4"	3/4"	1	2 hr.	12	48	Pull-Tab, Temperature	10	5952K12	00000	00000
				41	5	±2° F, ±1° C	1 3/4"	3/4"	1	30 min.	2	8	Pull-Tab, Temperature	10	5952K13	00000	00000
				46	8	±2° F, ±1° C	1 3/4"	3/4"	1	2 hr.	12	48	Pull-Tab, Temperature	10	5952K14	00000	00000
				50	10	±2° F, ±1° C	1 3/4"	3/4"	1	2 hr.	12	48	Pull-Tab, Temperature	10	5952K15	00000	00000
				68	20	±2° F, ±1° C	1 3/4"	3/4"	1	2 hr.	12	48	Pull-Tab, Temperature	10	5952K16	00000	00000
				77	25	±2° F, ±1° C	1 3/4"	3/4"	1	30 min.	2	8	Pull-Tab, Temperature	10	5952K17	00000	00000
				86	30	±2° F, ±1° C	1 3/4"	3/4"	1	30 min.	2	8	Pull-Tab, Temperature	10	5952K18	00000	00000

Temperature-Indicating "Hot" Labels

Avoid injury with these self-adhesive labels that indicate when pipes, ovens, and other machinery are too hot to touch. When your surface heats to the temperature point, these black labels display a red graphic with a red message “hot.” When the surface cools, the graphic and message disappear. Store at in a dry place at 70° F with less than 50% humidity. Shelf life is one year from date of shipment.

							Pkg.
	Temp. Point, ° F	Temp. Point, ° C	Accuracy	Dia.	Pkg. Qty.		1-9	10-Up
Horizontal Orientation







				1 Temperature Point

				122	50	±2° F/±1° C	1 1/2"	10	83375T83	000000	000000

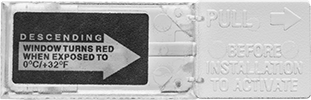

One-Time-Use Single-Point Low-Temperature-Indicating Labels

Often used with cold-sensitive chemicals, paints, and electronics, these labels have a window that permanently turns red when your surface's temperature drops to the temperature point. Labels are self-adhesive.

Store in a cool, dry place below 64° F with less than 50% humidity.

								Pkg.
	Temp. Point, ° F	Temp. Point, ° C	Accuracy	Ht.	Wd.	Pkg. Qty.		1-9	10-Up
Horizontal Orientation







				1 Temperature Point

				32	0	±3.6° F/±2° C	11/16"	1 3/8"	2	4655K11	000000	000000


				36	2	±3.6° F/±2° C	11/16"	1 3/8"	2	4655K13	00000	00000
				41	5	±3.6° F/±2° C	11/16"	1 3/8"	2	4655K15	00000	00000
				50	10	±3.6° F/±2° C	11/16"	1 3/8"	2	4655K17	00000	00000

Temperature-Indicating Barcode Labels

Confirm your product wasn’t too hot or cold throughout shipping and storage. With just a scan from your barcode reader or smartphone, these labels inform you whether your packaging surpassed the temperature point. Once they're past the point for at least two hours, the barcode lines fill in to give you a unique code. The code changes again at four hours, so you know how long your product has been exposed. A compatible app shows you the results. You can also integrate them into your existing scanning system to log a record. Scan once upon your product's arrival or implement multiple scans along your supply chain to catch storage errors as they occur.

For accurate monitoring, keep them somewhere at least 6° F below their temperature point for two hours before use. They won’t begin monitoring temperature until you pull their tab.

Choose a temperature point that suits your application.

32° F Temperature Points—32° F labels are ideal for frozen products.

43° F Temperature Points—Use 43° F labels for refrigerated products.

46° F Temperature Points—46° F labels are often used to monitor lab samples.

77° F Temperature Points—77° F labels are typically used for products best kept at room temperatures, such as adhesives.

						Exposure Time, hr.
	Temp. Point, ° F	Temp. Point, ° C	Accuracy	Ht.	Wd.	Moderate	Prolonged	Barcode Symbology	Pkg. Qty.		Pkg.
Horizontal Orientation



		32	0	±2° F/±1° C	2"	3 1/4"	2	4	UPC-A	100	7423N21	0000000


		43	6	±2° F/±1° C	2"	3 1/4"	2	4	UPC-A	100	7423N22	000000
		46	8	±2° F/±1° C	2"	3 1/4"	2	4	UPC-A	100	7423N23	000000
		77	25	±2° F/±1° C	2"	3 1/4"	2	4	UPC-A	100	7423N24	000000
