    14 Products

    Threaded Rods

    Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
    Medium-Strength Steel
    Image of Product. Front orientation. Threaded Rods. Threaded Rods.
    With tensile strengths from 110,000 psi to 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also medium-strength steel.
    Steel—Best for dry environments since moisture will cause these rods to rust.
    Lg.,
    ft.
    Tensile Strength,
    psi
    Fastener Strength
    Grade/Class
    Hardness
    Specs.
    Met
    Each
    Steel

    2"-12
    1125,000ASTM Grade B7
    		Rockwell C35ASTM A193
    		92580A166000000
    3125,000ASTM Grade B7
    		Rockwell C35ASTM A193
    		92580A167000000
    6125,000ASTM Grade B7
    		Rockwell C35ASTM A193
    		92580A168000000

    High-Strength Steel
    Image of Product. Front orientation. Threaded Rods. Threaded Rods.
    With a tensile strength of 150,000 psi, these rods are strong enough to stabilize steel frameworks and structural supports, such as I-beams. They are about 25% stronger than medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also high-strength steel.
    Zinc-Yellow-Chromate-Plated Steel—The most common choice for areas with occasional exposure to moisture.
    Steel—Best for dry environments since moisture will cause these rods to rust.
    Lg.,
    ft.
    Tensile Strength,
    psi
    Fastener Strength
    Grade/Class
    Hardness
    Specs. Met
    Each
    Zinc-Yellow-Chromate-Plated Steel

    2"-12
    3150,000ASTM Grade BD
    		Rockwell C33ASTM A354 Grade BD3313N1750000000

    Steel

    2"-12
    1150,000ASTM Grade BD
    		Rockwell C33ASTM A354 Grade BD90322A251000000
    2150,000ASTM Grade BD
    		Rockwell C33ASTM A354 Grade BD90322A283000000
    3150,000ASTM Grade BD
    		Rockwell C33ASTM A354 Grade BD90322A711000000
    6150,000ASTM Grade BD
    		Rockwell C33ASTM A354 Grade BD90322A712000000

    Low-Strength Steel
    Image of Product. Front orientation. Threaded Rods. Threaded Rods.
    With a tensile strength of 50,000 psi or 60,000 psi, these rods are often used to suspend light fixtures, cable trays, and conduit from ceilings. They're about half the strength of medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also low-strength steel.
    Steel—Best for dry environments since moisture will cause these rods to rust.
    Lg.,
    ft.
    Tensile Strength,
    psi
    Hardness
    Pkg.
    Qty.
    Pkg.
    Steel

    2"-12
    150,000Rockwell B61198790A4700000000
    250,000Rockwell B61198791A046000000
    350,000Rockwell B61198838A046000000
    650,000Rockwell B61198911A046000000


    Ball Joint Rod Ends

    Image of Product. Front orientation. Rod Ends. Ball Joint Rod Ends.

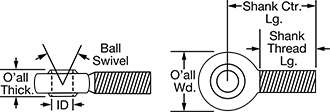

    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Ball Joint Rod Ends.
    Made of steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They don’t come lubricated, so you’ll need to lubricate during installation and on an ongoing basis.
    Shank
    Thread
    Size
    Ctr.
    Lg.
    Thread
    Lg.
    ID
    Max. Ball
    Swivel
    Overall
    Wd.
    Overall
    Thk.
    Static Radial
    Load Cap., lb.
    Material
    Choose a Shank Thread
    Direction
    Each
    Ball Joints
    2"-12
    		8"4 1/2"2"6°5"1 3/4"153,500Zinc-Plated Alloy SteelRight Hand, Left Hand60645K670000000


    Internally Threaded Ball Joint Rod Ends

    Image of Product. Front orientation. Rod Ends. Internally Threaded Ball Joint Rod Ends.

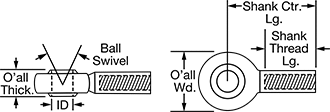

    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Internally Threaded Ball Joint Rod Ends.
    Made of steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They don’t come lubricated, so you’ll need to lubricate them during installation and on an ongoing basis.
    Shank
    Thread
    Size
    Ctr.
    Lg.
    Thread
    Lg.
    ID
    Max. Ball
    Swivel
    Overall
    Wd.
    Overall
    Thk.
    Static Radial
    Load Cap., lb.
    Material
    Choose a Shank Thread
    Direction
    Each
    Ball Joints
    2"-12
    		8"4"2"6°5"1 3/4"153,500Zinc-Plated Alloy SteelRight Hand, Left Hand60645K770000000
