    75 Products

    Build-Your-Own Wire Partitions

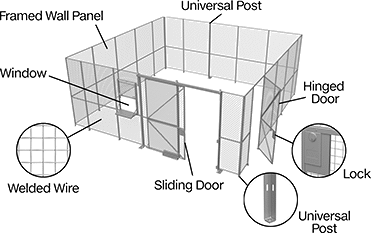

    Image of System. Front orientation. Contains Annotated, Inset. Wire Partitions. Build-Your-Own Wire Partitions.
    Create secure but visible tool and stock rooms. Mix-and-match panels, posts, doors, and locks to design a partition that meets your storage demands. Add a universal post every 10 feet of wall panel and at every corner. Posts come with a 4” × 6” baseplate that can be mounted to the floor.
    Note: There's a 2" clearance between the floor and the bottom of the partition.
    Framed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Framed Wall Panels.
    Framed wall panels have a 1 ¼” × 1 ¼” frame around the panels for strength and stability.
    7 ft. High
    8 ft. High
    10 ft. High
    Wd.,
    ft.
    Color
    Construction
    Steel Wire
    Ga.
    Wire Opening
    Ht.
    Wire Opening
    Wd.
    Each
    Each
    Each
    Powder-Coated Steel
    1BlackWelded Wire10 Ga.2 1/2"1 1/4"7619N19700000007619N19600000007619N840000000
    2BlackWelded Wire10 Ga.2 1/2"1 1/4"7619N1940000007619N1930000007619N82000000
    3BlackWelded Wire10 Ga.2 1/2"1 1/4"7619N1910000007619N1870000007619N79000000
    4BlackWelded Wire10 Ga.2 1/2"1 1/4"7619N1890000007619N1880000007619N77000000
    5BlackWelded Wire10 Ga.2 1/2"1 1/4"7619N1860000007619N1850000007619N75000000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Unframed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Unframed Wall Panels.
    Unframed wall panels can be cut-to-size or stacked up to 8’ high. They have 1 ½” bends around the top and bottom for extra rigidity. They can be installed at any angle without additional hardware. Unframed wall panels are compatible with framed wall panels.
    2 ft. High
    4 ft. High
    Wd.,
    ft.
    Color
    Construction
    Steel Wire
    Ga.
    Wire Opening
    Ht.
    Wire Opening
    Wd.
    Each
    Each
    Powder-Coated Steel
    4BlackWelded Wire8 Ga.2 1/2"1 1/4"7619N280000007619N27000000
    8BlackWelded Wire8 Ga.2 1/2"1 1/4"7619N26000007619N25000000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Universal Posts for Framed and Unframed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Universal Posts for Framed and Unframed Wall Panels.
    7 ft. High
    8 ft. High
    10 ft. High
    Wd.
    Color
    Dp.
    Each
    Each
    Each
    Powder-Coated Steel
    2"Black2"7619N2130000007619N21100000007619N850000000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Universal Post Extensions
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Universal Post Extensions.
    2 ft. High
    4 ft. High
    Wd.
    Color
    Dp.
    Each
    Each
    Powder-Coated Steel
    2"Black2"7619N70000007619N5000000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Hinged Doors for Framed and Unframed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Hinged Doors for Framed and Unframed Wall Panels.
    Image of Product. Front orientation. Lock Cylinders.

    Replacement Lock Cylinders

    To access the inside of the enclosure, you will need to pick either a sliding or hinged door. All doors lock from the outside only. Door opening direction is determined when standing outside the partition.
    Wire Partition Doors
    Replacement
    Lock Cylinders
    7 ft. High
    8 ft. High
    10 ft. High
    Wd.,
    ft.
    Door Opening
    Wd.
    Color
    Construction
    Steel Wire
    Ga.
    Wire Opening
    Ht.
    Wire Opening
    Wd.
    Choose a Door Opening
    Direction
    Each
    Each
    Each
    Each
    Powder-Coated Steel
    334 1/2"BlackWelded Wire10 Ga.2 1/2"1 1/4"Swings Left, Swings Right7619N100000007619N20700000007619N20100000007619N182000000
    446"BlackWelded Wire10 Ga.2 1/2"1 1/4"Swings Left, Swings Right7619N2030000007619N2090000007619N2050000007619N18200000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Hinged Double Doors for Framed and Unframed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Hinged Double Doors for Framed and Unframed Wall Panels.
    Image of Product. Front orientation. Lock Cylinders.

    Replacement Lock Cylinders

    To access the inside of the enclosure, you will need to pick either a sliding or hinged door. All doors lock from the outside only. Door opening direction is determined when standing outside the partition.
    Wire Partition Doors
    Replacement
    Lock Cylinders
    7 ft. High
    8 ft. High
    10 ft. High
    Wd.,
    ft.
    Door Opening
    Wd.
    Color
    Construction
    Steel Wire
    Ga.
    Wire Opening
    Ht.
    Wire Opening
    Wd.
    Door Opening
    Direction
    Each
    Each
    Each
    Each
    Powder-Coated Steel
    670 1/2"BlackWelded Wire10 Ga.2 1/2"1 1/4"Swings Out7619N980000000007619N970000000007619N960000000007619N182000000
    894 1/2"BlackWelded Wire10 Ga.2 1/2"1 1/4"Swings Out7619N42000000007619N41000000007619N95000000007619N18200000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Sliding Doors for Framed and Unframed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Sliding Doors for Framed and Unframed Wall Panels.
    Image of Product. Front orientation. Lock Cylinders.
    Image of Product. Front orientation. Contains MultipleImages. Gate Latches.

    Replacement Lock Cylinders

    Replacement Gate Latches

    To access the inside of the enclosure, you will need to pick either a sliding or hinged door. All doors lock from the outside only. Door opening direction is determined when standing outside the partition.
    Wire Partition Doors
    Replacement
    Lock Cylinders
    Replacement
    Square Locking Units
    7 ft. High
    8 ft. High
    10 ft. High
    Wd.,
    ft.
    Door Opening
    Wd., ft.
    Door Track
    Lg., ft.
    Color
    Construction
    Steel Wire
    Ga.
    Wire Opening
    Ht.
    Wire Opening
    Wd.
    Door Opening
    Direction
    Each
    Each
    Each
    Each
    Each
    Powder-Coated Steel
    3311 1/4BlackWelded Wire10 Ga.2 1/2"1 1/4"Slides Left7619N710000000007619N69000000000———07619N1820000007619N720000000
    4414 1/4BlackWelded Wire10 Ga.2 1/2"1 1/4"Slides Left7619N35000000007619N34000000007619N680000000007619N182000007619N72000000
    5517 1/4BlackWelded Wire10 Ga.2 1/2"1 1/4"Slides Left7619N67000000007619N66000000007619N65000000007619N182000007619N72000000
    6614 1/4BlackWelded Wire10 Ga.2 1/2"1 1/4"Slides Left7619N33000000007619N32000000007619N64000000007619N182000007619N72000000
    8811 1/4BlackWelded Wire10 Ga.2 1/2"1 1/4"Slides Left———0———07619N3000000007619N182000007619N72000000
    8818 1/4BlackWelded Wire10 Ga.2 1/2"1 1/4"Slides Left7619N6000000007619N3100000000———07619N182000007619N72000000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Window Kits for Framed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Window Kits for Framed Wall Panels.
    Windows can only be used with framed wall panels. Windows have a drop-down shelf.
    Color
    Construction
    Each
    Powder-Coated Steel
    BlackWelded Wire7619N210000000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Top Cap Rails for Unframed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Top Cap Rails for Unframed Wall Panels.
    Add top cap rails to unframed wall panels for extra support. Rails can be cut to the length you need.
    For Wall
    Panel Ht., ft.
    Color
    Each
    Powder-Coated Steel
    4Black7619N24000000
    8Black7619N2300000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Wall Mounting Kits for Framed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Wall Mounting Kits for Framed Wall Panels.
    Use wall mounting kits to make use of existing walls. Order one kit for each panel you’ll connect to a wall.
    For Wall Panel Wd., ft.
    Each
    Steel
    1, 2, 3, 4, 57619N29000000

    Paint
    Image of Product. Front orientation. Paint.
    Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.
    Container
    Net Wt.,
    oz.
    Type
    Color
    Cannot Be
    Sold To
    Each
    12Aerosol CanBlackCalifornia7619N2000000
    Wall Mounting Kits for Unframed Wall Panels
    Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Wall Mounting Kits for Unframed Wall Panels.
    Use wall mounting kits to make use of existing walls. Order one kit for each panel you’ll connect to a wall.
    Color
    For Wall
    Panel Wd., ft.
    Each
    Powder-Coated Steel
    Black47619N52000000
    Black87619N2200000


    Wire Partitions

    Image of Product. Front orientation. Wire Partitions. 2 Sides.
    Image of Product. Front orientation. Wire Partitions. 3 Sides.

    2 Sides

    3 Sides

    Image of Product. Front orientation. Wire Partitions. 4 Sides.

    4 Sides

    These complete partitions include everything you'll need. We’ll supply the unframed wall panels, unframed door panels, unframed roof panels (when necessary), universal posts with baseplates, door track and brackets, and mounting kits (fasteners included). Door opening direction is determined when standing outside the partition.
    2 Sides—Use two-sided partitions to create a room in a corner.
    3 Sides—Use three-sided partitions to create a room along a wall.
    4 Sides—Use four-sided partitions to create a freestanding room.
    Overall,
    ft.
    Door
    Opening
    Complete
    Partitions without Roofs
    Complete
    Partitions with Roofs
    Ht.
    Wd.
    Dp.
    Door
    Type
    Door Opening
    Direction
    Ht.
    Wd.,
    ft.
    Color
    Construction
    Steel Wire
    Ga.
    Wire Opening
    Ht.
    Wire Opening
    Wd.
    Each
    Each
    Powder-Coated Steel

    2 Sides
    888SlidingSlides Left85"3BlackWelded Wire8 Ga.2 1/2"1 1/4"6719T190000000006719T277000000000
    8812SlidingSlides Left97"4BlackWelded Wire8 Ga.2 1/2"1 1/4"6719T331000000006719T43900000000

    3 Sides
    888SlidingSlides Left85"3BlackWelded Wire8 Ga.2 1/2"1 1/4"6719T209000000006719T28300000000
    8812SlidingSlides Left97"4BlackWelded Wire8 Ga.2 1/2"1 1/4"6719T356000000006719T500000000

    4 Sides
    888SlidingSlides Left85"3BlackWelded Wire8 Ga.2 1/2"1 1/4"6719T215000000006719T31100000000
    8812SlidingSlides Left97"4BlackWelded Wire8 Ga.2 1/2"1 1/4"6719T393000000006719T67700000000
