    9 Products

    Underground Enclosures

    Image of System. Enclosure with Cover. Front orientation. Underground Enclosures.
    Image of Product. Bottom View. Bottom orientation. Underground Enclosures.

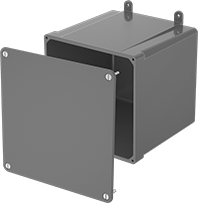

    Enclosure with Cover

    Bottom View

    Bury these enclosures in the ground or in concrete to protect and maintain access to electrical service and other underground utilities. They withstand freeze/thaw conditions and have an open bottom for water drainage. They also withstand occasional vehicular traffic, are nonconductive, and are impact and corrosion resistant. You can stack multiple enclosures in deep holes with one cover (sold separately).
    Covers—Covers include two bolts for attaching to enclosure.
    Enclosures
    Covers
    Ht.
    Wd.
    Dp.
    Wt. Cap.,
    lb.
    Environment
    Color
    Each
    Each
    Fiberglass-Reinforced Polymer Concrete
    12"14 3/4"14 3/4"8,000UndergroundGray7941K2100000007941K560000000
    12"20 1/2"13 1/2"8,000UndergroundGray7941K220000007941K57000000
    12"27 1/4"16 1/4"5,000UndergroundGray7941K230000007941K58000000
    12"33 1/8"20 1/8"5,000UndergroundGray7941K240000007941K59000000

    Puller Hooks
    Cover Hook—Cover hooks make it easier to lift a cover.
    Each
    Cover Hook7941K85000000
