Maximum Climbing Height Maximum Climbing Height |
|---|
Material Material |
|---|
|
Finish Finish |
|---|
|
Step Tread Step Tread |
|---|
 |  |
| Serrated | Smooth |
 |  |
| Knurled | Coated |
 |  |
| Perforated | Ribbed |
 | |
| Diamond Plate |
Overall Height Overall Height |
|---|
Assembled or Unassembled Assembled or Unassembled |
|---|
|
Bracket Location Bracket Location |
|---|
|
DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense AcquisitionRegulations Supplement)  |
|---|
RoHS (Restriction of Hazardous Substances) RoHS (Restriction ofHazardous Substances) |
|---|
|
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration,Evaluation, Authorization and Restriction of Chemicals) |
|---|
|
Wall-Mount Ladders
Mount these ladders to the wall for access to mezzanines, roofs, and other elevated areas.
For ladders with round steps, the first step is 18" off the floor.
For ladders with flat steps, the first step is 9" off the floor.
Steel ladders are durable to handle most work environments. Steps are serrated for maximum slip resistance.
Fiberglass ladders are corrosion resistant, lightweight, and nonconductive. Steps are grit coated for good slip resistance.
304 stainless steel ladders resist corrosion and have a welded construction to minimize the collection of dust and debris, making them suitable for sanitary environments. Steps are serrated for maximum slip resistance.
Note: Ladders meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
For technical drawings and 3-D models, click on a part number.
Overall | Mounting Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht. | Wd. | Wt., lbs. | No. of Steps | Choose a Color | Step Shape | Step Tread | Projection | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Specifications Met | Each | |
Powder-Coated Steel | |||||||||||||||
300-lb. Capacity | |||||||||||||||
| 20'1" | 20'3" | 21" | 200 | 21 | Round | Serrated | 7" | No | 10 | 9/16" | 10 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 00000000 | 000000000 | |
| 22'1" | 22'3" | 21" | 230 | 23 | Round | Serrated | 7" | No | 12 | 9/16" | 12 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 00000000 | 00000000 | |
350-lb. Capacity | |||||||||||||||
| 7'9" | 8' | 17" | 65 | 8 | Gray | Flat | Serrated | 7" | No | 2 | 7/16" | 2 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 9'9" | 10' | 17" | 85 | 10 | Gray | Flat | Serrated | 7" | No | 2 | 7/16" | 2 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 11'9" | 12' | 17" | 100 | 12 | Gray | Flat | Serrated | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 13'9" | 14' | 17" | 115 | 14 | Gray | Flat | Serrated | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 15'9" | 16' | 17" | 130 | 16 | Gray | Flat | Serrated | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
Overall | Mounting Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht. | Wd. | Wt., lbs. | No. of Steps | Color | Step Shape | Step Finish | Projection | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Specifications Met | Each | |
Fiberglass | |||||||||||||||
500-lb. Capacity | |||||||||||||||
| 7'9" | 8' | 22" | 32 | 8 | Yellow | Flat | Grit Coated | 7" | Yes | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 0000000 |
| 9'9" | 10' | 22" | 38 | 10 | Yellow | Flat | Grit Coated | 7" | Yes | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 11'9" | 12' | 22" | 45 | 12 | Yellow | Flat | Grit Coated | 7" | Yes | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 13'9" | 14' | 22" | 52 | 14 | Yellow | Flat | Grit Coated | 7" | Yes | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 15'9" | 16' | 22" | 59 | 16 | Yellow | Flat | Grit Coated | 7" | Yes | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 00000000 |
Overall | Mounting Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht. | Wd. | Wt., lbs. | No. of Steps | Step Shape | Step Tread | Projection | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Specifications Met | Each | |
304 Stainless Steel | ||||||||||||||
350-lb. Capacity | ||||||||||||||
| 7'9" | 8' | 17" | 65 | 8 | Flat | Serrated | 7" | No | 2 | 7/16" | 2 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 000000000 |
| 9'9" | 10' | 17" | 85 | 10 | Flat | Serrated | 7" | No | 2 | 7/16" | 2 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |
| 11'9" | 12' | 17" | 100 | 12 | Flat | Serrated | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |
| 13'9" | 14' | 17" | 115 | 14 | Flat | Serrated | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |
| 15'9" | 16' | 17" | 130 | 16 | Flat | Serrated | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |
Sectional Wall-Mount Ladders
Ladders can be connected to create the height you need. They have textured steps for slip resistance.
Ladders with built-in connectors have built-in splices, so they can be connected to each other. Note: The first rung of the ladder cannot be more than 12" from the floor.
300-lb. capacity ladders use the connecting kit (sold separately) to connect ladders with no drilling required. Mount to the wall with the mounting bracket kit (sold separately). OSHA requires a cage when the distance from the floor to the top rung is more than 20 feet.
Connecting kits (sold separately) include splice plates and fasteners. Order one connecting kit for each additional ladder section.
Mounting bracket kits (sold separately) offset the ladder 7" for toe clearance to meet OSHA requirements. Kits include fasteners to mount brackets to the ladder; fasteners to mount brackets to a surface are not included. Two kits are recommended for 4-, 5-, and 8-foot ladders; three kits are recommended for the 10-foot ladder. If connecting multiple ladders, one mounting bracket kit is required for each additional ladder section.
Mounting bracket kits without mounting holes must be drilled to the desired bolt hole size to mount to your surface, so you can adapt it to your needs. For instance, use U-bolts (not included) to connect ladder to pipes.
Note: Ladders meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
with Built-In
Connectors
Overall | Mounting Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht., ft. | Wd. | Wt., lbs. | No. of Steps | Step Tread | Projection | Mounting Hardware Included | No. of | Lg. | Wd. | No. of Mounting Brackets | Features | Specifications Met | Each | |
Galvanized Steel | |||||||||||||||
250-lb. Capacity | |||||||||||||||
| 3'6" | 4 | 20" | 11 | 4 | Perforated | 7" | No | 4 | 3/4" | 13/32" | 4 | Built-In Connectors | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 0000000 |
| 4'6" | 5 | 20" | 14 | 5 | Perforated | 7" | No | 6 | 3/4" | 13/32" | 6 | Built-In Connectors | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 000000 |
| 7'6" | 8 | 20" | 25 | 8 | Perforated | 7" | No | 6 | 3/4" | 13/32" | 6 | Built-In Connectors | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 000000 |
300-lb. Capacity | |||||||||||||||
| 3'6" | 4 | 20" | 17 | 4 | Knurled | 7" | No | __ | __ | __ | __ | __ | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 000000 |
| 4'6" | 5 | 20" | 19 | 5 | Knurled | 7" | No | __ | __ | __ | __ | __ | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 000000 |
| 7'6" | 8 | 20" | 31 | 8 | Knurled | 7" | No | __ | __ | __ | __ | __ | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 000000 |
| 9'6" | 10 | 20" | 38 | 10 | Knurled | 7" | No | __ | __ | __ | __ | __ | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 000000 |
Wall-Mount Ladders with Cage
Ladder and cage come unassembled for mounting flexibility and lower freight costs. Cages start between 7 and 8 feet from the ground and extend beyond the top rung by 42" with a walk-through exit. OSHA requires a cage when the distance from the floor to the top rung is more than 20 feet.
Optional security cover prevents unauthorized access. It covers five rungs and is secured by two hooks at the top and a U-clamp at the bottom.
Note: Ladders meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Ladder | Cage | Flared Cage | Mounting Holes | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht., ft. | Wd. | O'all Ht. with Cage | Wd. | Dp. | Wd. | Dp. | Wt., lbs. | No. of Steps | Step Tread | Mounting Hardware Included | No. of | Lg. | Wd. | Assembled or Unassembled | Specifications Met | Each | |
Galvanized Steel | ||||||||||||||||||
300-lb. Capacity | ||||||||||||||||||
| 10'6" | 11 | 19" | 14'1" | 27" | 28 1/2" | 35" | 32 1/2" | 180 | 11 | Knurled | Yes | 12 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 000000000 |
| 11'6" | 12 | 19" | 15'1" | 27" | 28 1/2" | 35" | 32 1/2" | 185 | 12 | Knurled | Yes | 12 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 12'6" | 13 | 19" | 16'1" | 27" | 28 1/2" | 35" | 32 1/2" | 195 | 13 | Knurled | Yes | 12 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 13'6" | 14 | 19" | 17'1" | 27" | 28 1/2" | 35" | 32 1/2" | 210 | 14 | Knurled | Yes | 16 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 14'6" | 15 | 19" | 18'1" | 27" | 28 1/2" | 35" | 32 1/2" | 220 | 15 | Knurled | Yes | 16 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 15'6" | 16 | 19" | 19'1" | 27" | 28 1/2" | 35" | 32 1/2" | 230 | 16 | Knurled | Yes | 16 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 16'6" | 17 | 19" | 20'1" | 27" | 28 1/2" | 35" | 32 1/2" | 235 | 17 | Knurled | Yes | 16 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 17'6" | 18 | 19" | 21'1" | 27" | 28 1/2" | 35" | 32 1/2" | 250 | 18 | Knurled | Yes | 20 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 18'6" | 19 | 19" | 22'1" | 27" | 28 1/2" | 35" | 32 1/2" | 265 | 19 | Knurled | Yes | 20 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 20'6" | 21 | 19" | 24'1" | 27" | 28 1/2" | 35" | 32 1/2" | 280 | 21 | Knurled | Yes | 20 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 22'6" | 23 | 19" | 26'1" | 27" | 28 1/2" | 35" | 32 1/2" | 300 | 23 | Knurled | Yes | 20 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 24'6" | 25 | 19" | 28'1" | 27" | 28 1/2" | 35" | 32 1/2" | 315 | 25 | Knurled | Yes | 20 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 26'6" | 27 | 19" | 30'1" | 27" | 28 1/2" | 35" | 32 1/2" | 340 | 27 | Knurled | Yes | 24 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 28'6" | 29 | 19" | 32'1" | 27" | 28 1/2" | 35" | 32 1/2" | 360 | 29 | Knurled | Yes | 24 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
| 29'6" | 30 | 19" | 33'1" | 27" | 28 1/2" | 35" | 32 1/2" | 380 | 30 | Knurled | Yes | 24 | 3/4" | 3/8" | Unassembled | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1926.1053, ANSI A14.3 | 0000000 | 00000000 |
Wall-Mount Ladders with Welded-On Cage
A cage is welded to these ladders for quick installation. Ladders come in sections no longer than 7 feet for easy handling—bolt sections together end-to-end (fasteners included). Cages start 7 feet above the bottom of the ladder and extend beyond the top rung by 42".
Optional security cover prevents unauthorized access. It can be welded or bolted on (holes must be drilled) to open from the right side.
Note: Ladders meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Ladder | Cage | Flared Cage | Mounting Holes | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht. | Wd. | O'all Ht. with Cage | Wd. | Dp. | Wd. | Dp. | Wt., lbs. | No. of Steps | Step Tread | Projection | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Specifications Met | Each | |
Gray Powder-Coated Steel | ||||||||||||||||||
300-lb. Capacity | ||||||||||||||||||
| 12'1" | 12'1" | 20" | 15'7 1/2" | 30" | 27" | 36 1/2" | 30" | 260 | 13 | Ribbed | 7" | No | 10 | 9/16" | 10 | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.29, ANSI A14.3 | 00000000 | 000000000 |
| 16'1" | 16'1" | 20" | 19'7 1/2" | 30" | 27" | 36 1/2" | 30" | 350 | 17 | Ribbed | 7" | No | 14 | 9/16" | 14 | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.29, ANSI A14.3 | 00000000 | 00000000 |
| 20'1" | 20'1" | 20" | 23'7 1/2" | 30" | 27" | 36 1/2" | 30" | 430 | 21 | Ribbed | 7" | No | 14 | 9/16" | 14 | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.29, ANSI A14.3 | 00000000 | 00000000 |
| 24'1" | 24'1" | 20" | 27'7 1/2" | 30" | 27" | 36 1/2" | 30" | 520 | 25 | Ribbed | 7" | No | 18 | 9/16" | 18 | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.29, ANSI A14.3 | 00000000 | 00000000 |
| 27'1" | 27'1" | 20" | 30'7 1/2" | 30" | 27" | 36 1/2" | 30" | 575 | 28 | Ribbed | 7" | No | 14 | 9/16" | 14 | OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.29, ANSI A14.3 | 00000000 | 00000000 |
| Ht., ft. | Wd. | Wt., lbs. | Features | Max. Padlock Shackle Dia. | Mounting Hardware Included | Each | |
Gray Powder-Coated Steel | |||||||
|---|---|---|---|---|---|---|---|
| 6 | 20 7/8" | 41 | Padlockable Hasp | 13/32" | Yes | 00000000 | 0000000 |
Wall-Mount Ladders with Grab Posts
Posts at the top of these ladders give you something to grab when you climb up and descend. Mount ladders to the wall for access to mezzanines, roofs, and other elevated areas.
Steel ladders are durable to handle most work environments.
Serrated steps provide maximum slip resistance.
Fiberglass ladders are corrosion resistant, lightweight, and nonconductive. Steps are grit coated for good slip resistance.
304 stainless steel ladders resist corrosion and have a welded construction to minimize the collection of dust and debris, making them suitable for sanitary environments. Steps are serrated for maximum slip resistance.
Note: Ladders meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
For technical drawings and 3-D models, click on a part number.
Overall | Mounting Holes | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht. | Wd. | Wt., lbs. | No. of Steps | Step Tread | Grab Post Ht. | Projection | Color | Construction | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Features | Specifications Met | Each | |
Powder-Coated Steel | |||||||||||||||||
350-lb. Capacity | |||||||||||||||||
| 7'9" | 11'3" | 25" | 90 | 8 | Serrated | 42" | 7" | Gray | Welded | No | 4 | 7/16" | 4 | __ | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 0000000 |
| 9'9" | 13'3" | 25" | 110 | 10 | Serrated | 42" | 7" | Gray | Welded | No | 4 | 7/16" | 4 | __ | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 11'9" | 15'3" | 25" | 125 | 12 | Serrated | 42" | 7" | Gray | Welded | No | 6 | 7/16" | 6 | __ | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 13'9" | 17'3" | 25" | 140 | 14 | Serrated | 42" | 7" | Gray | Welded | No | 6 | 7/16" | 6 | __ | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 15'9" | 19'3" | 25" | 155 | 16 | Serrated | 42" | 7" | Gray | Welded | No | 6 | 7/16" | 6 | __ | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
500-lb. Capacity | |||||||||||||||||
| 2'2" | 5'8" | 26" | 27 | 3 | Smooth | 42" | 8" | Yellow | Welded | No | 4 | 3/8" | 4 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 3'2" | 6'8" | 26" | 31 | 4 | Smooth | 42" | 8" | Yellow | Welded | No | 4 | 3/8" | 4 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 4'2" | 7'8" | 26" | 36 | 5 | Smooth | 42" | 8" | Yellow | Welded | No | 4 | 3/8" | 4 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 5'2" | 8'8" | 26" | 43 | 6 | Smooth | 42" | 8" | Yellow | Welded | No | 6 | 3/8" | 6 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 6'2" | 9'8" | 26" | 47 | 7 | Smooth | 42" | 8" | Yellow | Welded | No | 6 | 3/8" | 6 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 7'2" | 10'8" | 26" | 52 | 8 | Smooth | 42" | 8" | Yellow | Welded | No | 6 | 3/8" | 6 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 8'2" | 11'8" | 26" | 56 | 9 | Smooth | 42" | 8" | Yellow | Welded | No | 6 | 3/8" | 6 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 9'2" | 12'8" | 26" | 64 | 10 | Smooth | 42" | 8" | Yellow | Welded | No | 8 | 3/8" | 8 | 4 1/2" Long Vinyl Handgrips | Cal/OSHA Compliant Title 8 Section 3277, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
Overall | Mounting Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht. | Wd. | Wt., lbs. | No. of Steps | Step Finish | Grab Post Ht. | Projection | Color | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Specifications Met | Each | |
Fiberglass | |||||||||||||||
500-lb. Capacity | |||||||||||||||
| 7'9" | 11'3" | 28" | 45 | 8 | Grit Coated | 42" | 7" | Yellow | Yes | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 0000000 |
| 9'9" | 13'3" | 28" | 52 | 10 | Grit Coated | 42" | 7" | Yellow | Yes | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 11'9" | 15'3" | 28" | 59 | 12 | Grit Coated | 42" | 7" | Yellow | Yes | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
| 13'9" | 17'3" | 28" | 66 | 14 | Grit Coated | 42" | 7" | Yellow | Yes | 8 | 7/16" | 8 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 00000000 |
| 15'9" | 19'3" | 28" | 73 | 16 | Grit Coated | 42" | 7" | Yellow | Yes | 8 | 7/16" | 8 | OSHA Compliant 29 CFR 1910.23 | 0000000 | 00000000 |
Overall | Mounting Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. | Ht. | Wd. | Wt., lbs. | No. of Steps | Step Tread | Grab Post Ht. | Projection | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Specifications Met | Each | |
304 Stainless Steel | ||||||||||||||
350-lb. Capacity | ||||||||||||||
| 7'9" | 11'3" | 25" | 90 | 8 | Serrated | 42" | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 000000000 |
| 9'9" | 13'3" | 25" | 110 | 10 | Serrated | 42" | 7" | No | 4 | 7/16" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |
| 11'9" | 15'3" | 25" | 125 | 12 | Serrated | 42" | 7" | No | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |
| 13'9" | 17'3" | 25" | 140 | 14 | Serrated | 42" | 7" | No | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |
| 15'9" | 19'3" | 25" | 155 | 16 | Serrated | 42" | 7" | No | 6 | 7/16" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 00000000 | 00000000 |

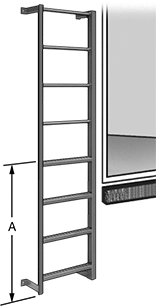

Wall-Mount Ladders for Docks
Ladders have serrated rungs for slip resistance and four smooth rungs at the top for hand grips. They mount to the wall with welded-on brackets.
Note: Ladders meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Overall | Mounting Holes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Climbing Ht. (A) | Ht. | Wd. | Wt., lbs. | No. of Steps | Step Tread | Projection | Color | Mounting Hardware Included | No. of | Dia. | No. of Mounting Brackets | Specifications Met | Each | |
Powder-Coated Steel | ||||||||||||||
300-lb. Capacity | ||||||||||||||
| 1'5" | 5'6" | 28" | 43 | 2 | Serrated, Smooth | 7" | Gray | No | 4 | 3/8" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 0000000 |
| 2'5" | 6'6" | 28" | 46 | 3 | Serrated, Smooth | 7" | Gray | No | 4 | 3/8" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 3'5" | 7'6" | 28" | 53 | 4 | Serrated, Smooth | 7" | Gray | No | 4 | 3/8" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 4'5" | 8'6" | 28" | 58 | 5 | Serrated, Smooth | 7" | Gray | No | 4 | 3/8" | 4 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 5'5" | 9'6" | 28" | 66 | 6 | Serrated, Smooth | 7" | Gray | No | 6 | 3/8" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 6'5" | 10'6" | 28" | 71 | 7 | Serrated, Smooth | 7" | Gray | No | 6 | 3/8" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 7'5" | 11'6" | 28" | 76 | 8 | Serrated, Smooth | 7" | Gray | No | 6 | 3/8" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 8'5" | 12'6" | 28" | 80 | 9 | Serrated, Smooth | 7" | Gray | No | 6 | 3/8" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
| 9'5" | 13'6" | 28" | 86 | 10 | Serrated, Smooth | 7" | Gray | No | 6 | 3/8" | 6 | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277 | 0000000 | 000000 |
Ladder Cages
OSHA requires a ladder cage when ladder heights are greater than 20 feet from the floor to the top rung. Each section is fully welded and mounts to the side rails of stationary ladders (not to walls or other cages) that have an overall width of 16" to 20". OSHA requires cages to start between 7 and 8 feet from the ground.
Bottom sections flare out for entry and exit.
Middle/top sections extend the length of the cage or can act as a top section for hatch opening use.
Walk-through sections are required for walk-through applications and should extend 42" above the top rung.
Note: At least one middle/top section and one bottom section are required for a complete assembly.
Note: Cages meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Cage | Flared Cage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall Ht., ft. | Wd. | Dp. | Wd. | Dp. | For Ladder Wd. | Max. Ladder Rail Dp. | Wt., lbs. | Color | Mounting Hardware Included | Specifications Met | Each | |
Powder-Coated Steel | ||||||||||||
Bottom Section | ||||||||||||
| 4 | 38" | 34" | 38" | 38" | 16"-20" | 2" | 71 | Gray | Yes | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 0000000 | 0000000 |
Middle/Top Section | ||||||||||||
| 2 | 30" | 30" | __ | __ | 16"-20" | 2" | 55 | Gray | Yes | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 0000000 | 000000 |
| 3 | 30" | 30" | __ | __ | 16"-20" | 2" | 61 | Gray | Yes | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 0000000 | 000000 |
| 4 | 30" | 30" | __ | __ | 16"-20" | 2" | 68 | Gray | Yes | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 0000000 | 000000 |
| 7 | 30" | 30" | __ | __ | 16"-20" | 2" | 110 | Gray | Yes | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 0000000 | 000000 |
Walk-Through Section | ||||||||||||
| 5 | 30" | 30" | __ | __ | 16"-20" | 2" | 85 | Gray | Yes | OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3277, ANSI A14.3 | 0000000 | 000000 |
Fold-Up Elevating Steps
Flip these steps down when you need them and fold them up out of the way when you don't.
Overall | Step | Mounting Holes | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. (A) | Wd. (B) | Dp. (C) | Wd. | Dp. | Tread | Projection | Wt., lbs. | Material | Cap., lbs. | Mounting Hardware Included | No. of | Dia. | Ctr.-to-Ctr. Ht. | Ctr.-to-Ctr. Wd. | Each | ||
| 1 | 3 3/8" | 2 3/8" | 5 5/8" | 1" | 5 5/8" | Serrated | 5 5/8" | 1 | 304 Stainless Steel | Not Rated | No | 4 | 3/16" | 2 5/8" | 1 3/4" | 0000000 | 000000 |
| 2 | 4 3/8" | 1 7/8" | 3 1/2" | 3 1/4" | 3 7/16" | Diamond Plate | 3 1/2" | 2 | Chrome-Plated Brass | Not Rated | No | 2 | 7/32" | 3 5/8" | __ | 0000000 | 00000 |
| 2 | 4 3/8" | 1 7/8" | 3 1/2" | 3 3/8" | 3 7/16" | Diamond Plate | 3 1/2" | 1 | 316 Stainless Steel | Not Rated | No | 2 | 5/16" | 3 5/8" | __ | 0000000 | 00000 |
| 3 | 4" | 15 1/4" | 10 1/8" | 14 1/4" | 9 1/2" | Serrated | 9 1/2" | 11 | Powder-Coated Steel | 350 | No | 2 | 7/16" | __ | 13" | 0000000 | 000000 |
Antislip Step Covers
Weld these covers to the rungs of your wall and tank ladders for excellent slip resistance. Covers fit square and round rungs. Can be cut with a hand grinder or miter saw using a masonry blade.
Wall-Mount Stairs
Stop dragging a step stool to the same place again and again—permanently mount these short stairs where you need them. Steps are serrated for maximum slip resistance. You are responsible for adhering to local, state, and federal safety codes, including OSHA.
